TooQ logo MPN: TQAPOLO-750SP

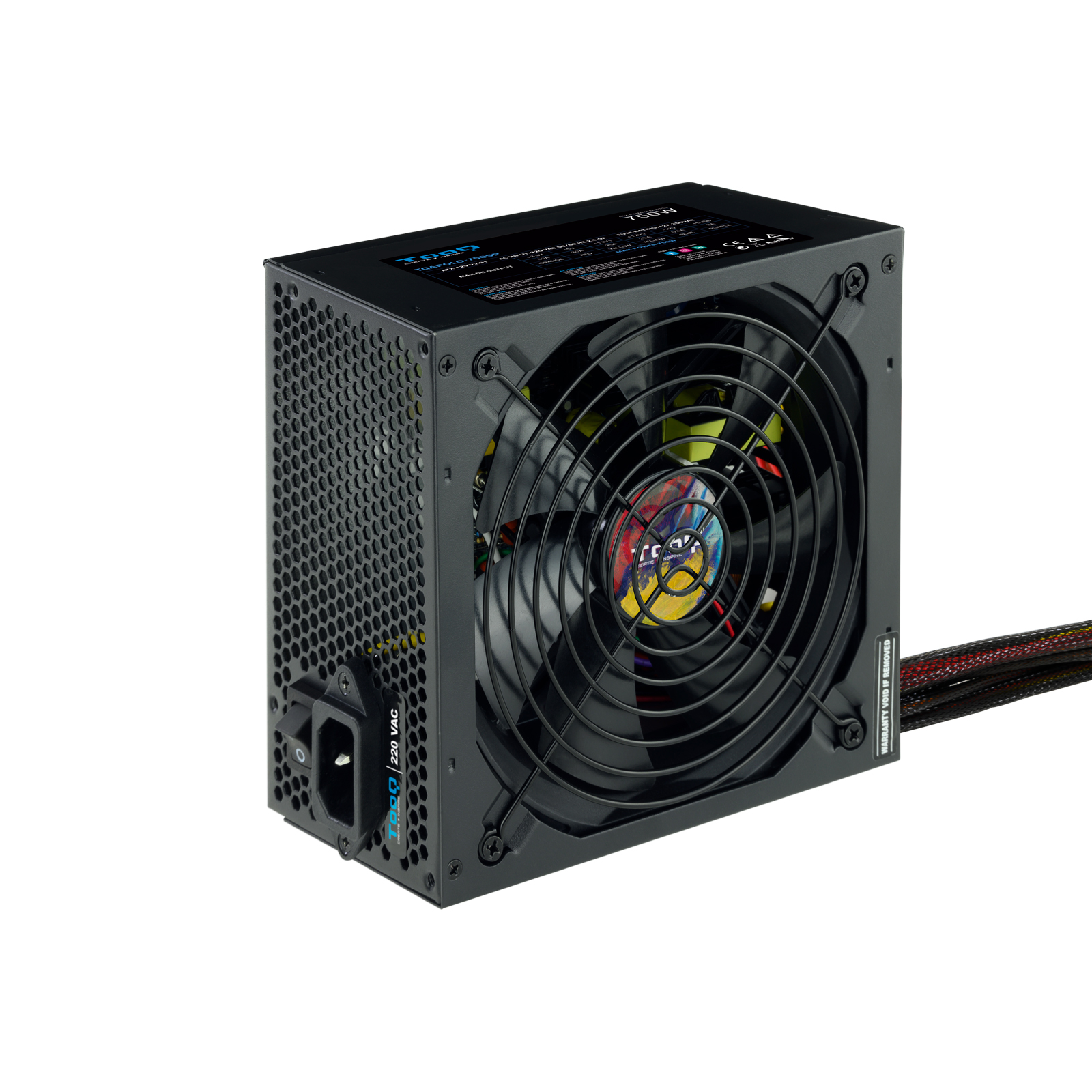

TooQ TQAPOLO-750SP power supply unit 750 W 20+4 pin ATX ATX Black

Released: Not on record
Price not yet available US · Amazon.com

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

Wattage
750 W
Efficiency rating
N

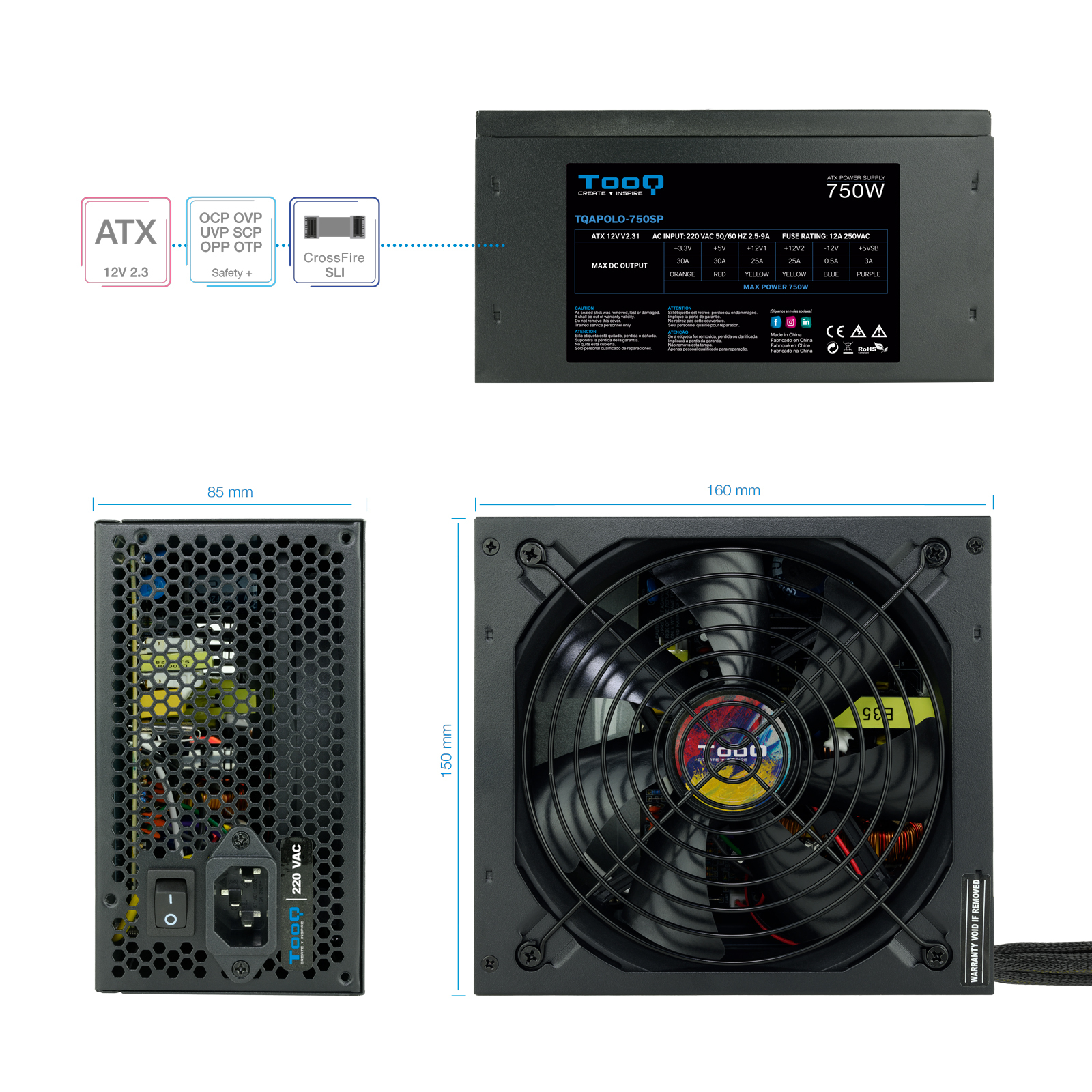

Depth
160 mm
Width
150 mm
Height
85 mm
Safety
OCP, OVP, UVP, SCP, OPP, OTP
Purpose
PC
ATX version
2.31
Cabling type
Non-Modular
View 49 specifications
1 / 7
Shopping actions
Check price on Amazon

Overview

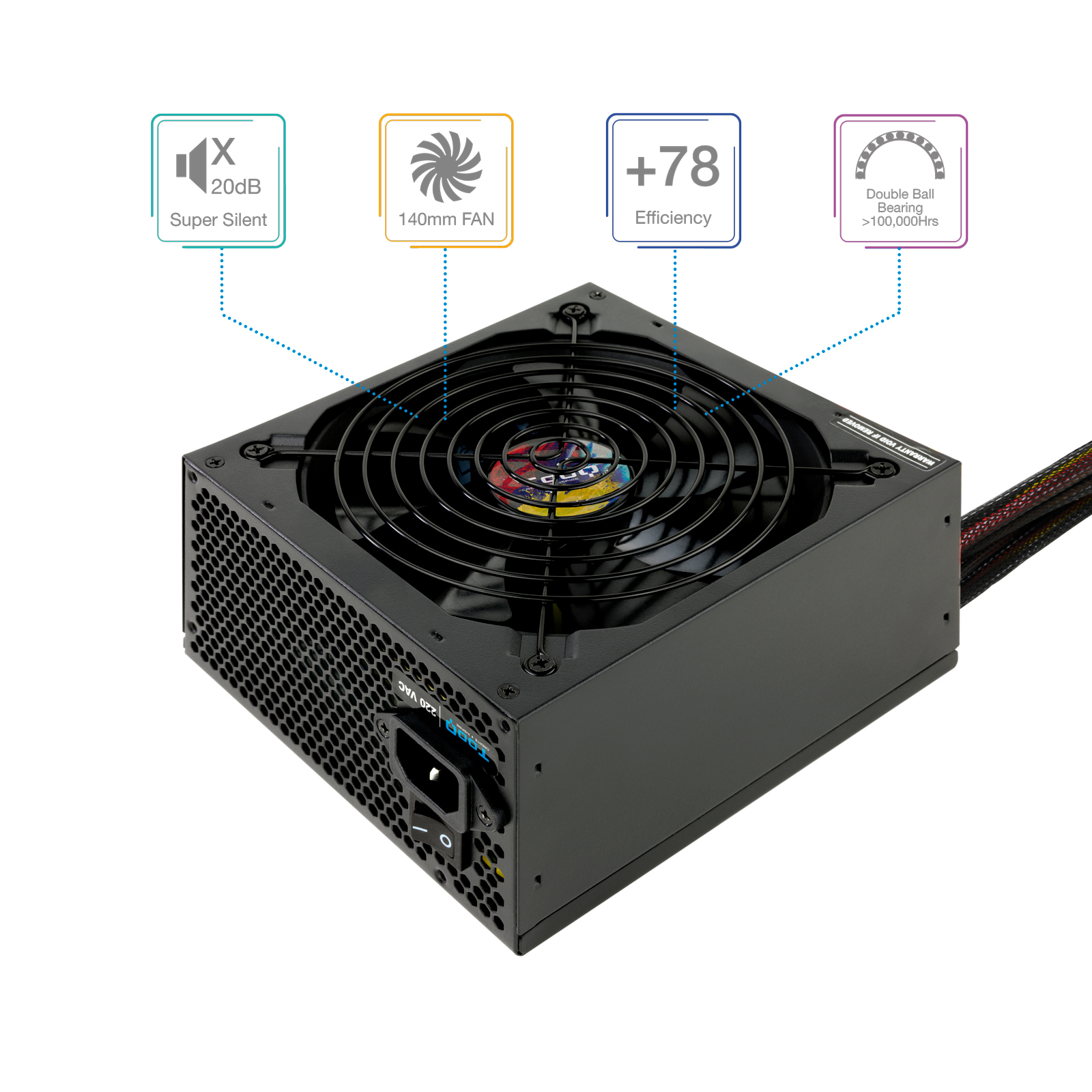

Ecopower II ATX 750W Active PFC power supply

Ecopower II is the next generation of Ecopower TOOQ power supply. The new Power Supplies version includes high quality Active PFC (Active PFC, PF> 0.99, not all models have Altive PFC), which guarantees at least 78% efficiency. With Active PFC technology, the power supply produces much less heat than another with Passive PFC, which can prolong the power supply life. In addition, the Ecopower II series has a super quiet high quality fan, very stable dual +12V rail and high-tech electronic protection system.

Technical Specifications

Physical

4 SPECS
Depth
160 mm
Width
150 mm
Height
85 mm
Colour
Black

Power

2 SPECS
Wattage
750 W
Efficiency rating
No

Cooling

3 SPECS
Cooling type
Active
Fan size
140
Number of fans
1

Logistics & Packaging

3 SPECS
Package depth
172 mm
Package width
256 mm
Package height
102 mm

General

37 SPECS
Safety
OCP, OVP, UVP, SCP, OPP, OTP
Purpose
PC
ATX version
2.31
Cabling type
Non-Modular
Fan location
Top
Packaging type
Box
Input current
2.5 - 9
On/off switch
Yes

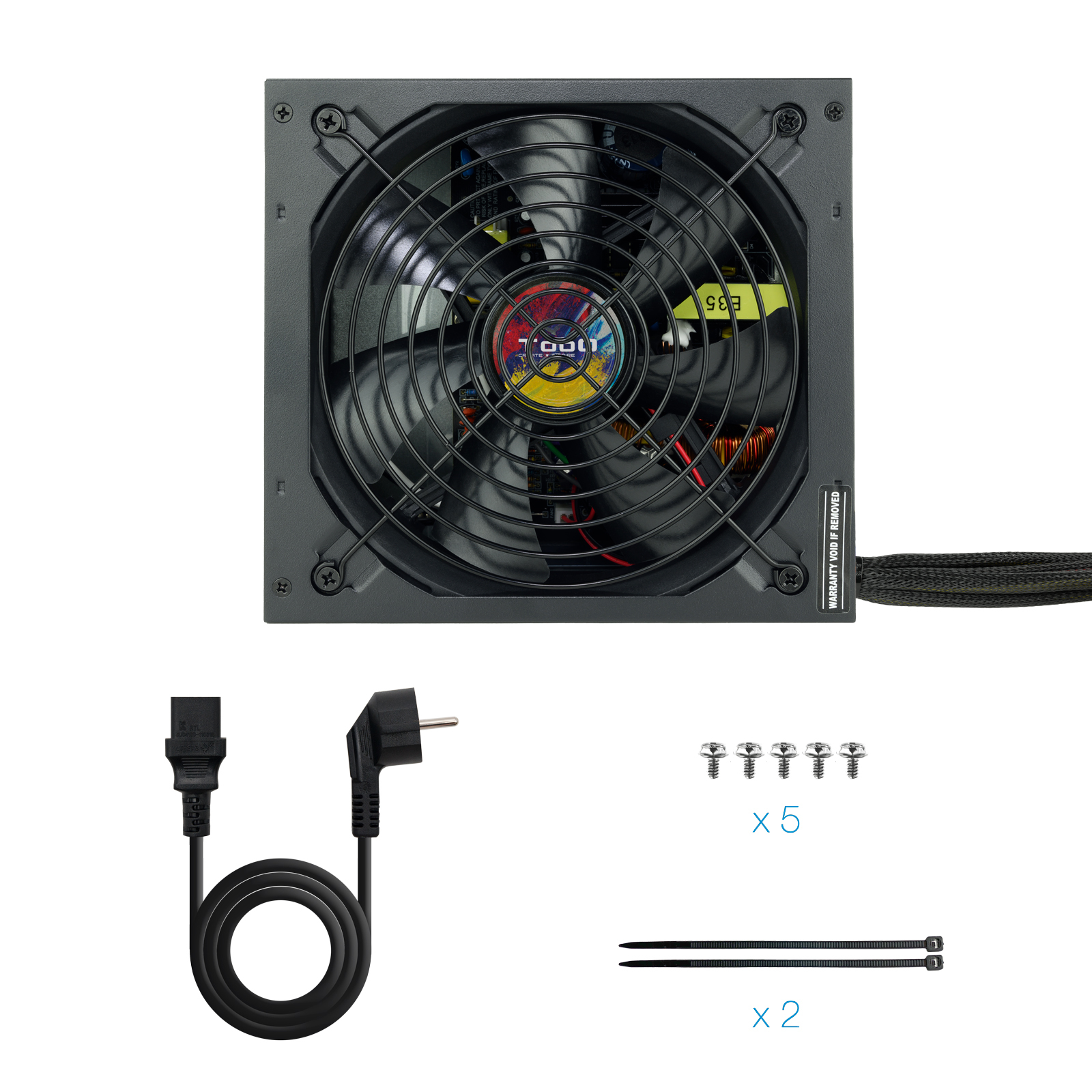

Included cables
AC
AC input voltage
220
AC input frequency
50 - 60

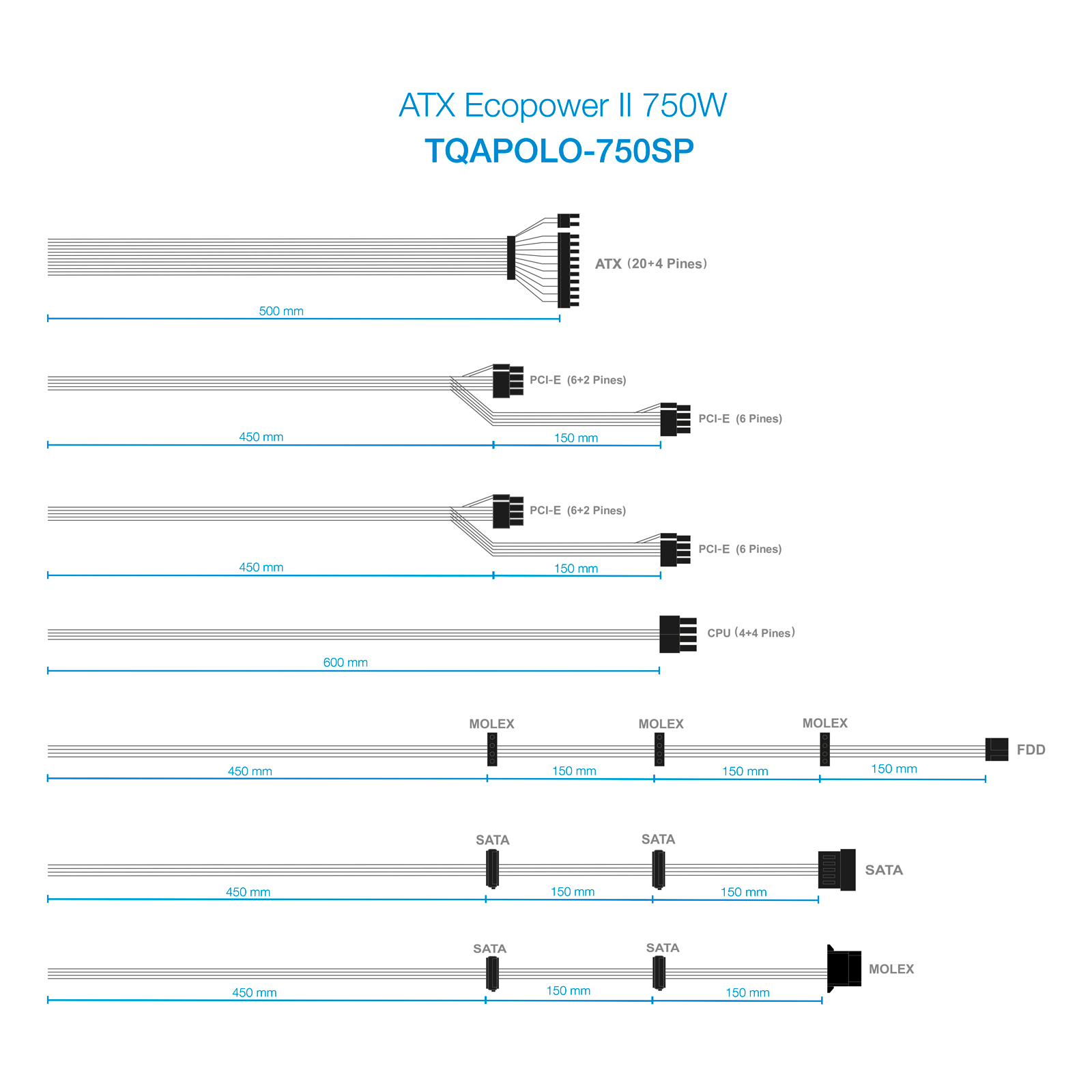

CPU power cable length
400
Compliance certificates
CE,RoHS
SATA power cable length
700
Max output current (+5V)
30
Max output current (-12V)
0.5
Power protection features
Over current,Over voltage,Overheating,Overload,Short circuit,Under voltage
Max output current (+12V1)
25
Max output current (+12V2)
25
Max output current (+3.3V)
30
Max output current (+5Vsb)
3

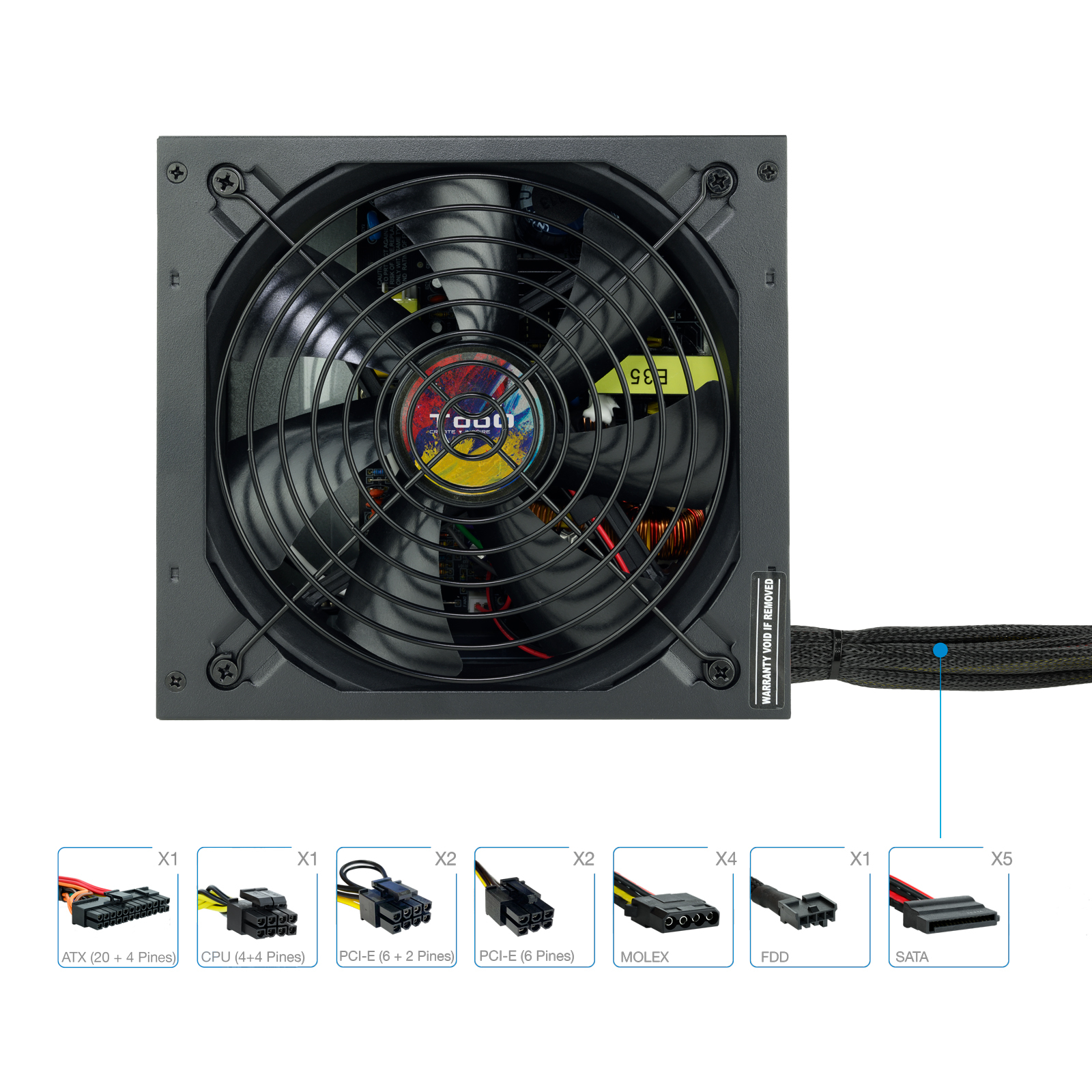

Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
ATX power connector (20+4 pin)
Yes
Floppy disk drive cable length
700
Motherboard power cable length
400
PCI Express power cable length
400
Number of SATA power connectors
5
Power Factor Correction (PFC) type
Active
Supported board sizes
ATX
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6-pin)
1
Peripheral (Molex) power cable length
700
PCI Express power connectors (6+2 pin)
1
Peripheral (Molex) power connectors (4-pin)
3
