MPN:
TQXGEII-700SAP
TooQ TQXGEII-700SAP power supply unit 700 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 700 W
- Efficiency rating
- 80 PLUS Bronze
- Depth
- 160 mm
- Width
- 150 mm
- Height
- 86 mm
- Manual included
- Y
- Purpose
- PC
- Efficiency
- 82
- ATX version
- 2.31
1 / 11
Shopping actions
Overview

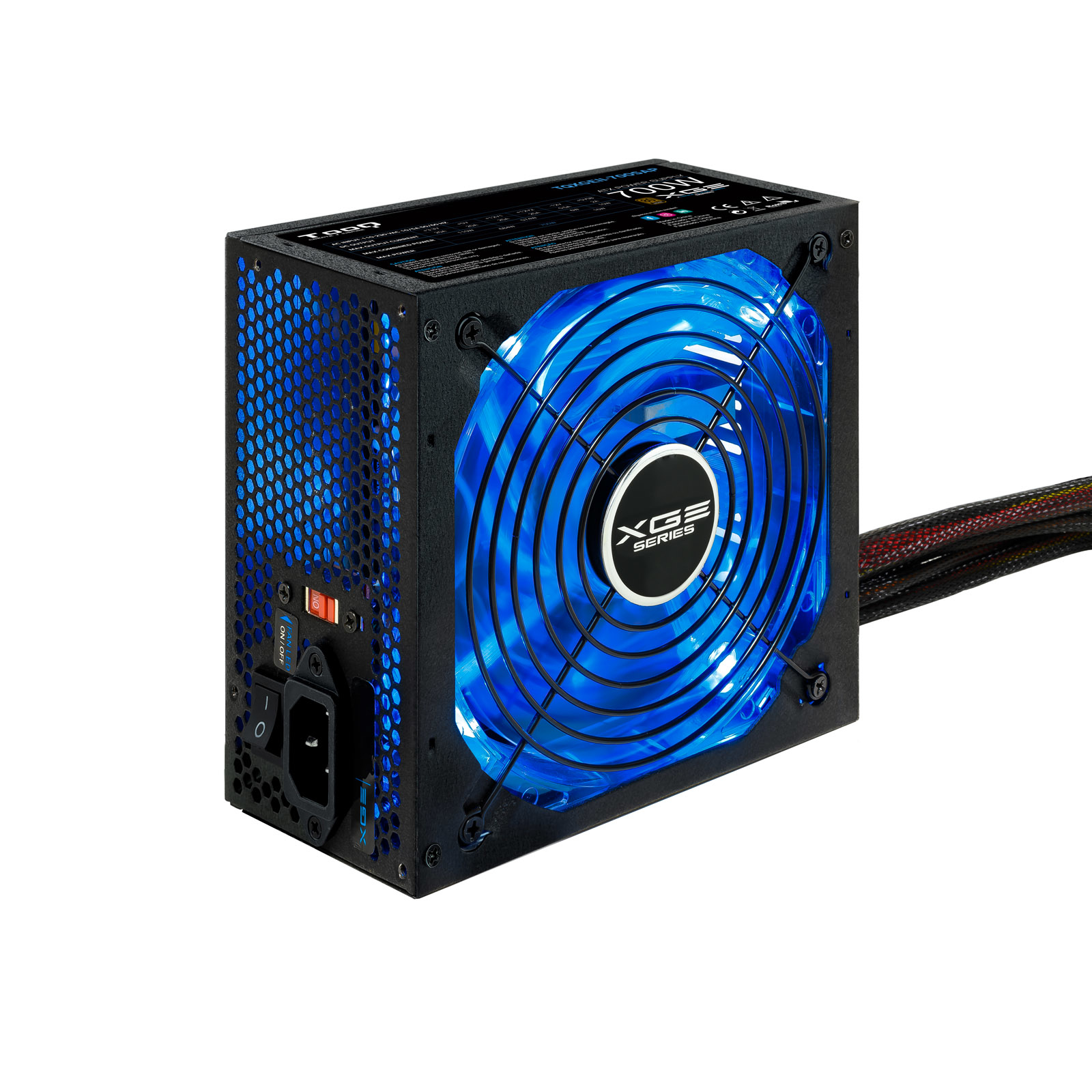

The TooQ TQXGEII-700SAP power supply unit 700 W 20+4 pin ATX ATX Black features 700 W output, 80 PLUS 80 PLUS Bronze efficiency, a 140 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Logistics & Packaging
7 SPECS
Package depth
280 mm
Package width
235 mm
Package height
105 mm
Package weight
2350 g
Products per pallet
150
Master (outer) case gross weight
11800
Products per master (outer) case
5
Power
2 SPECS
Wattage
700 W
Efficiency rating
80 PLUS Bronze
Physical
4 SPECS

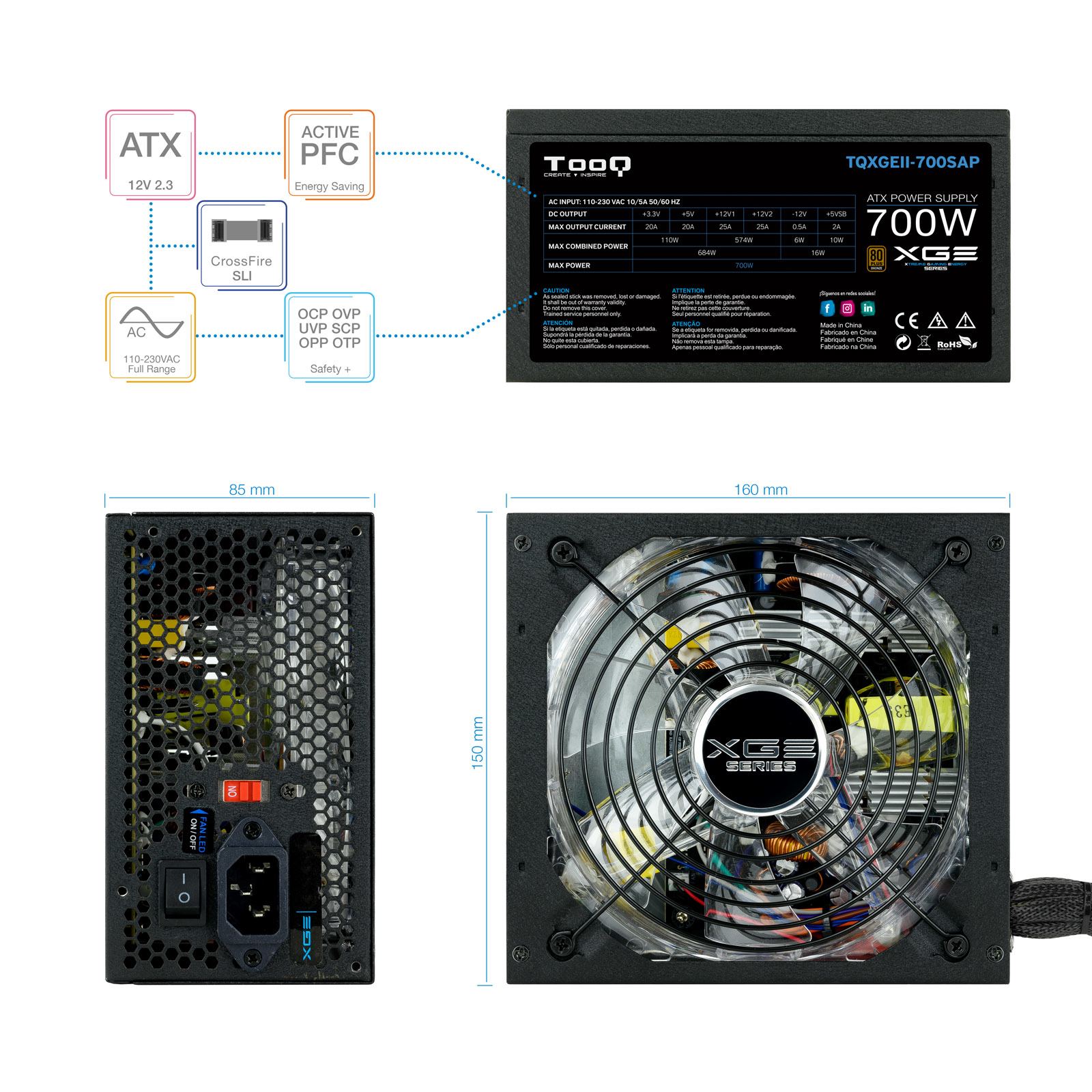

Depth
160 mm
Width
150 mm
Height
86 mm
Colour
Black

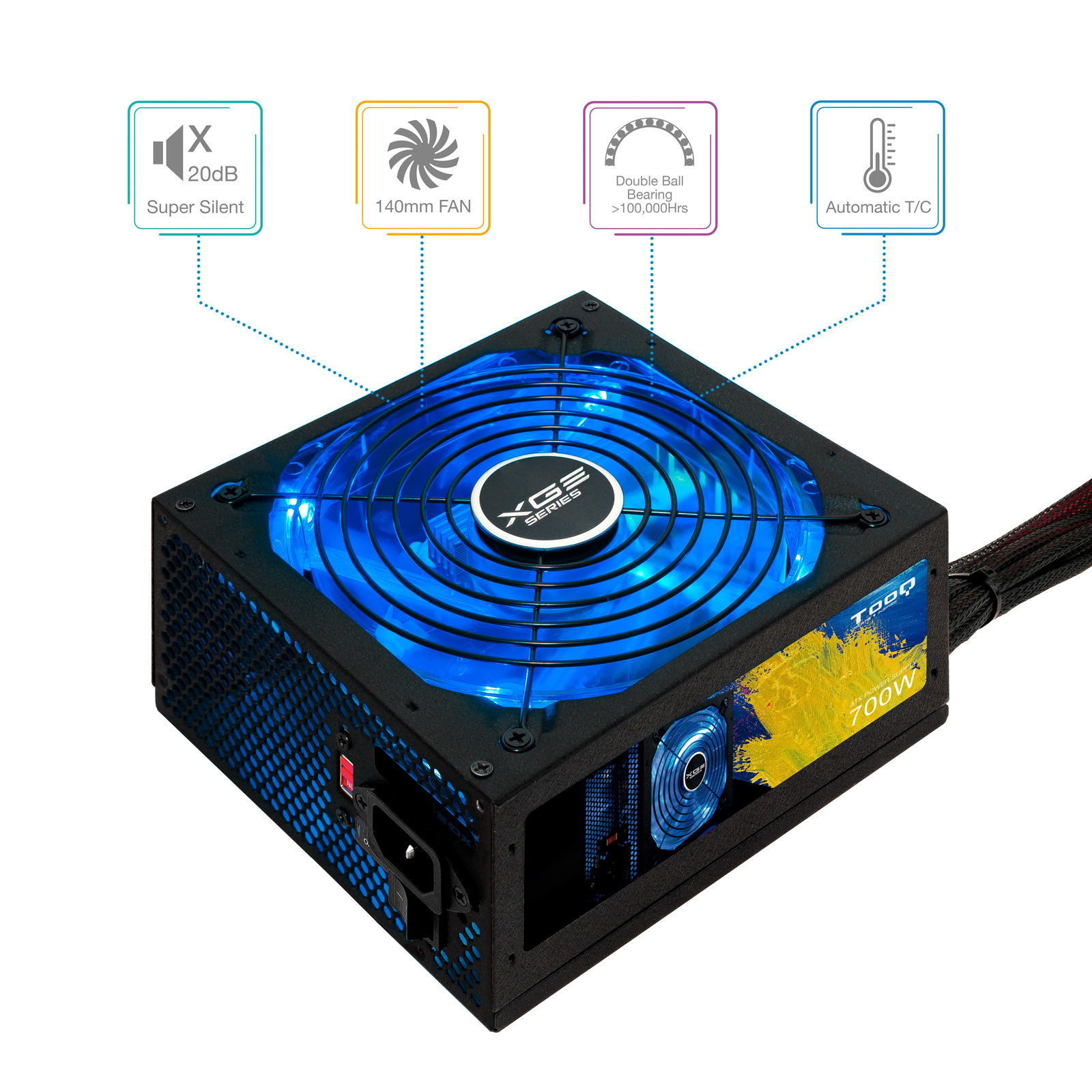

Cooling
3 SPECS
Cooling type
Active
Fan size
140
Number of fans
1
Graphics
1 SPEC
Illumination
Yes
General
42 SPECS
Manual included
Yes
Purpose
PC
Efficiency
82
ATX version
2.31
Case colour
Black
EPS version
2.92
Noise level
17
Cabling type
Non-Modular
Packaging type
Box
Certifications
UL, BSMI, GOST, KCC
On/off switch
Yes
LED indicators
Yes

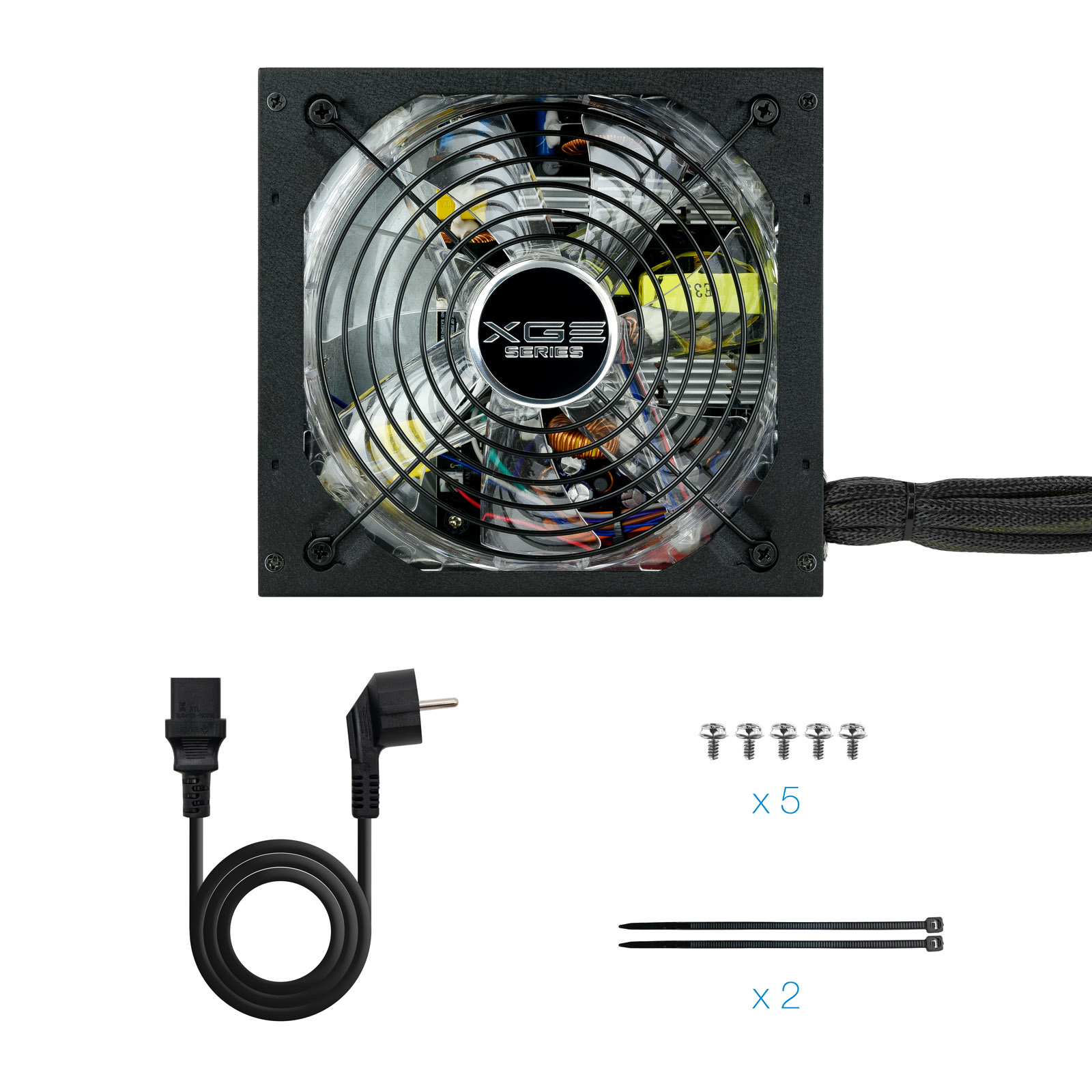

Included cables
AC
AC input voltage
110 - 230
EPS cable length
600
AC input frequency
50 - 60
Bearing type
Ball bearing

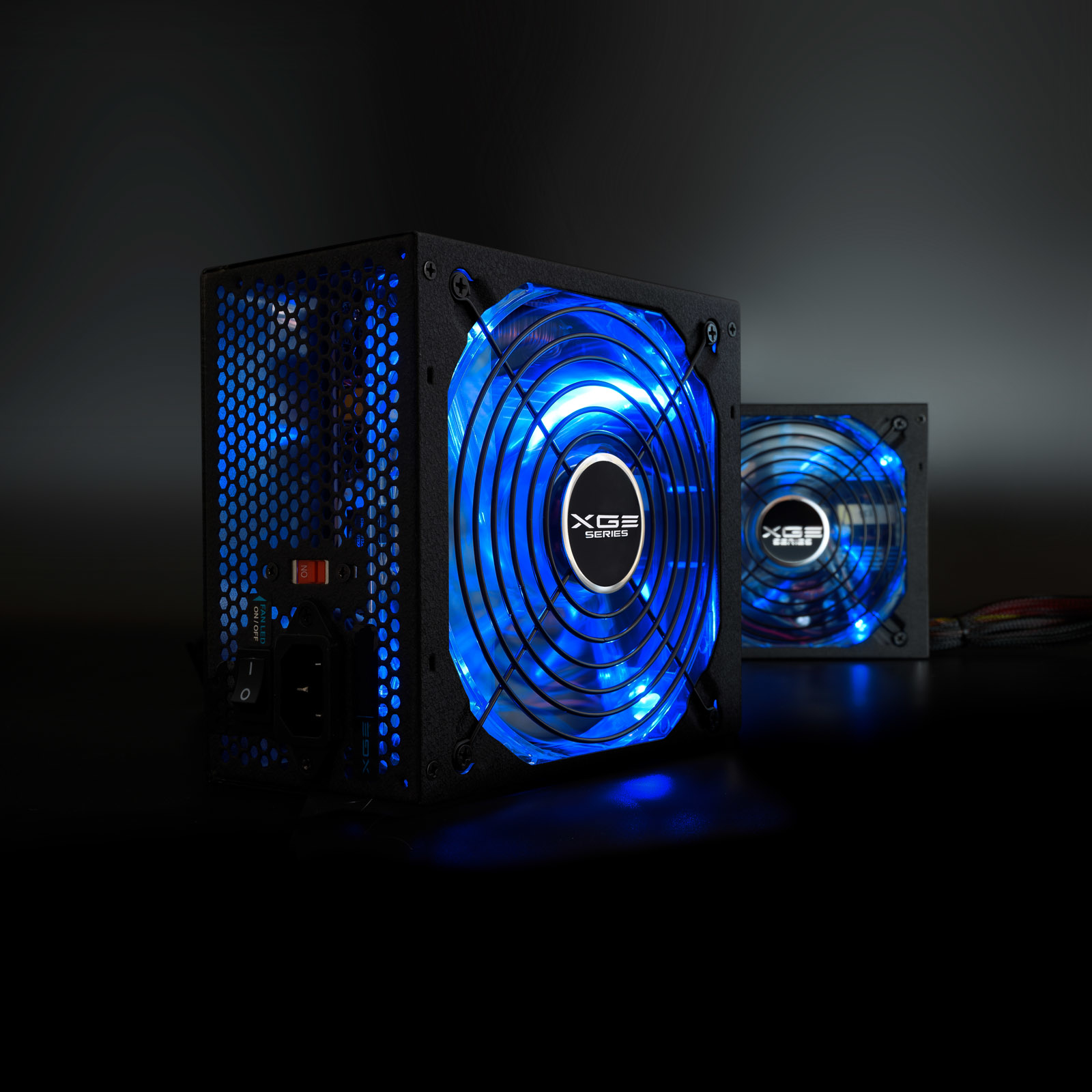

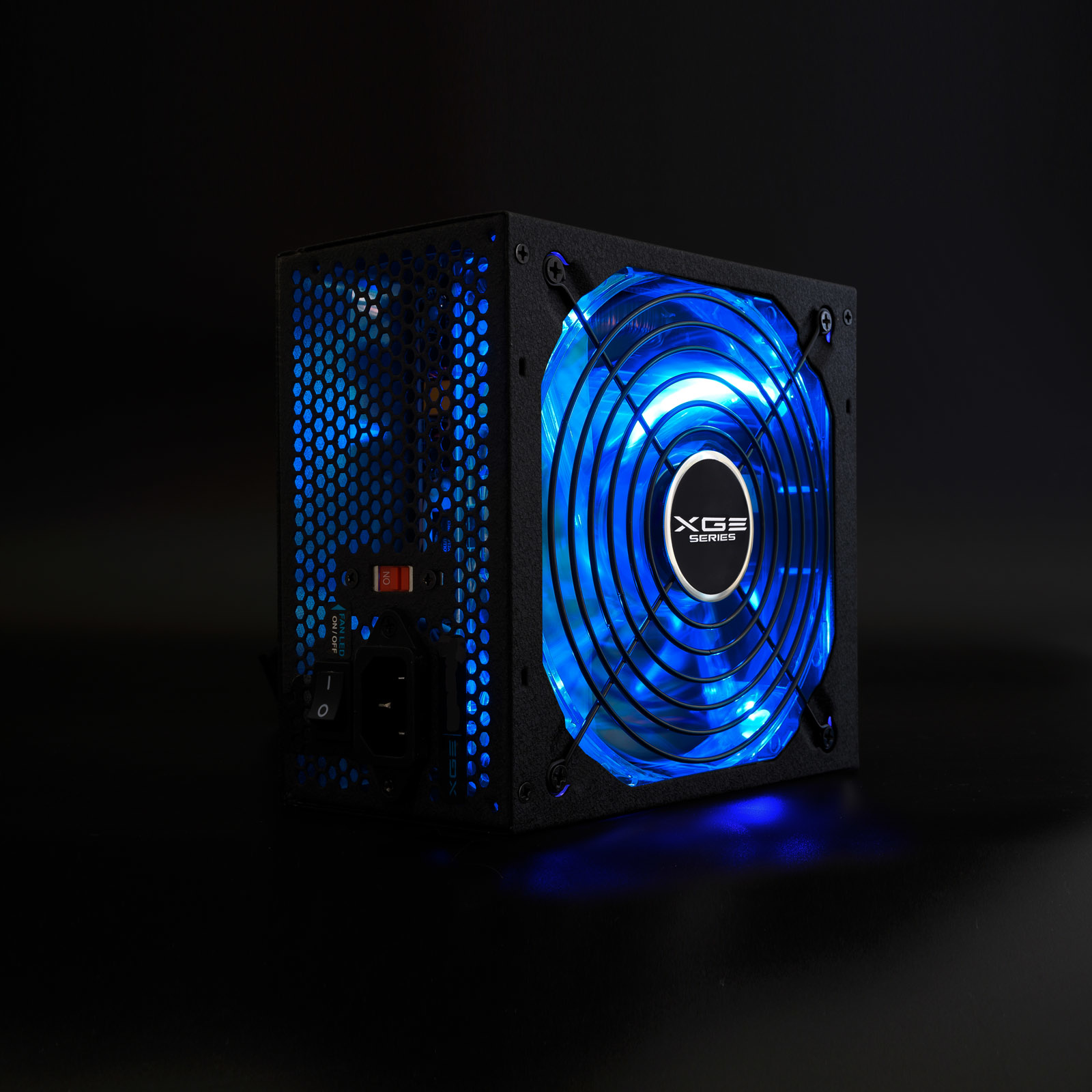

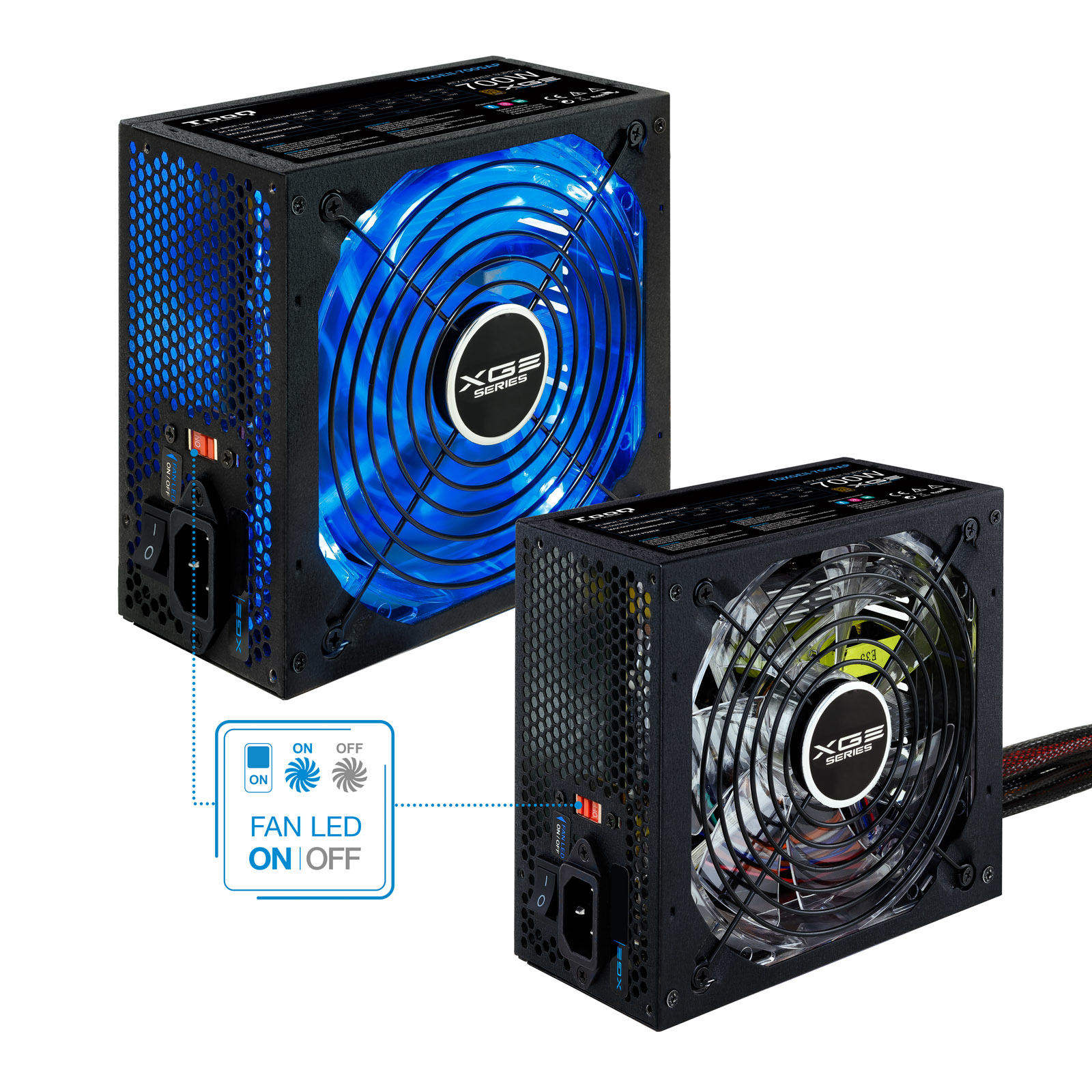

Illumination colour
Blue
Compliance certificates
CE,China Compulsory Certification (CCC),Federal Communications Commission (FCC),RoHS
SATA power cable length
450,600,750
Max output current (+5V)
20
Max output current (-12V)
0.5
Power protection features
Over current,Over voltage,Overload,Short circuit,Under voltage,Overheating
Max output current (+12V1)
25
Max output current (+12V2)
25
Max output current (+3.3V)
20
Max output current (+5Vsb)
2

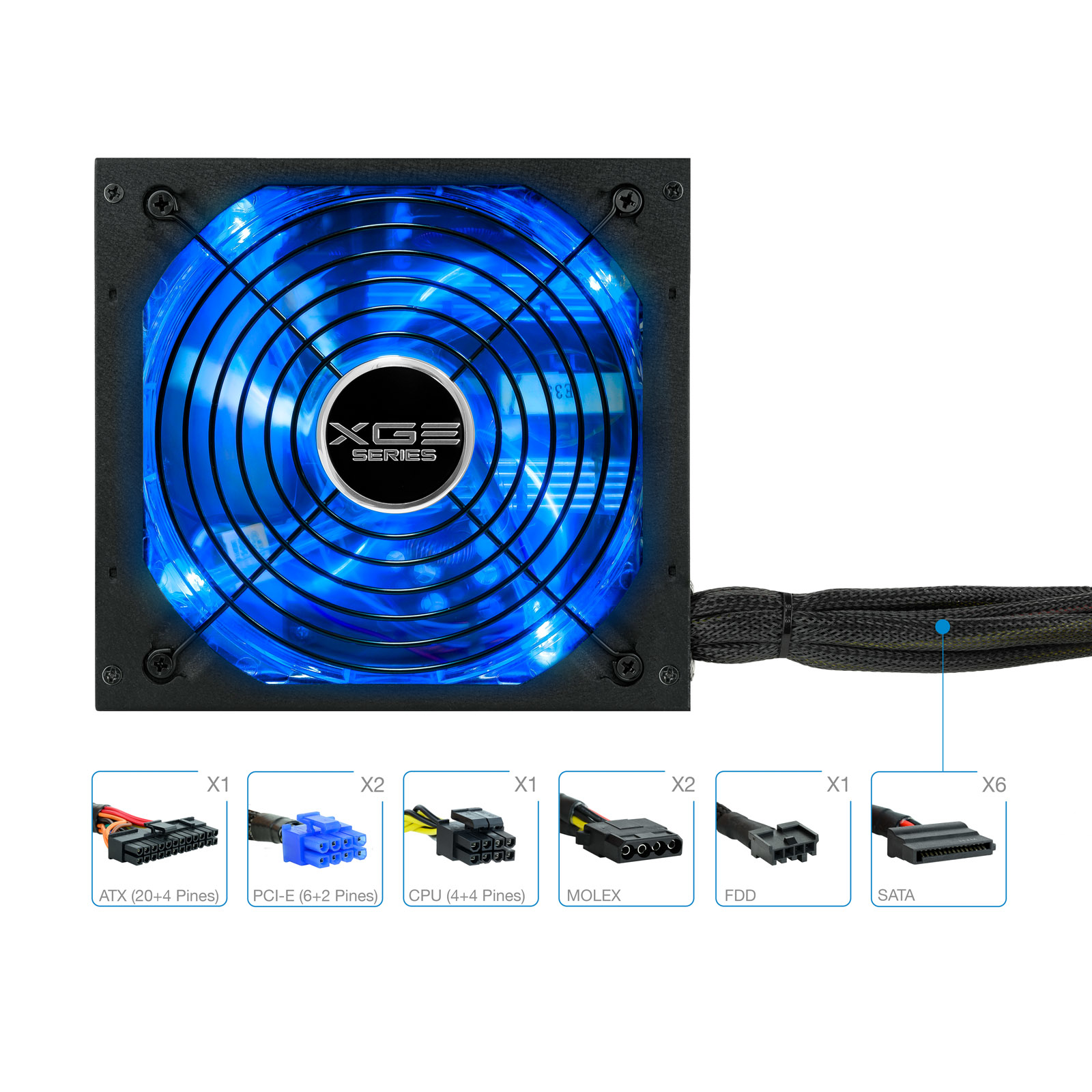

EPS power connector (8-pin)
Yes
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
ATX power connector (20+4 pin)
Yes

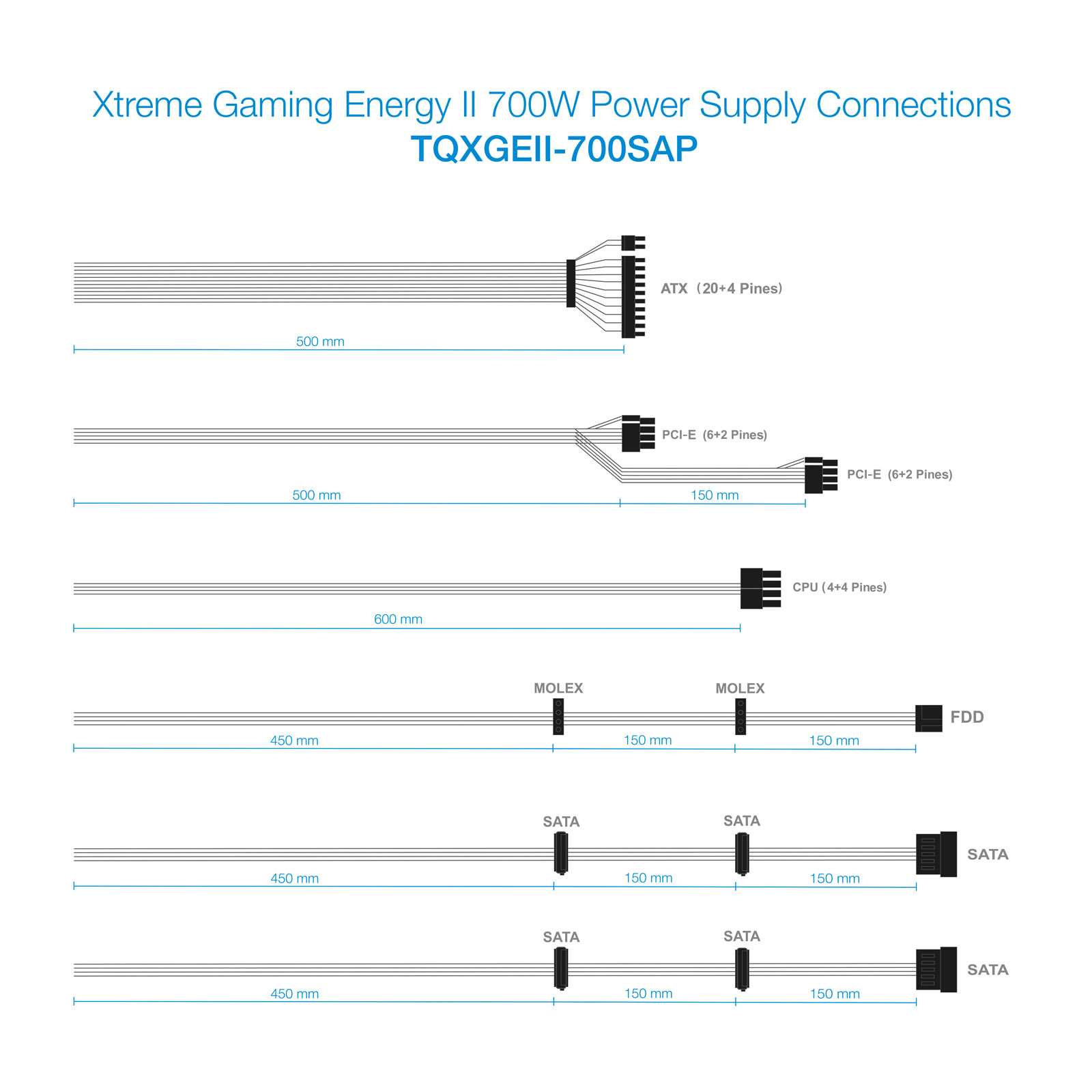

Floppy disk drive cable length
850
Motherboard power cable length
500
PCI Express power cable length
650
Number of SATA power connectors
6
MTBF
80000 h
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
Peripheral (Molex) power cable length
450,600,750
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
3
