MPN:
TQAPOLO-650SP

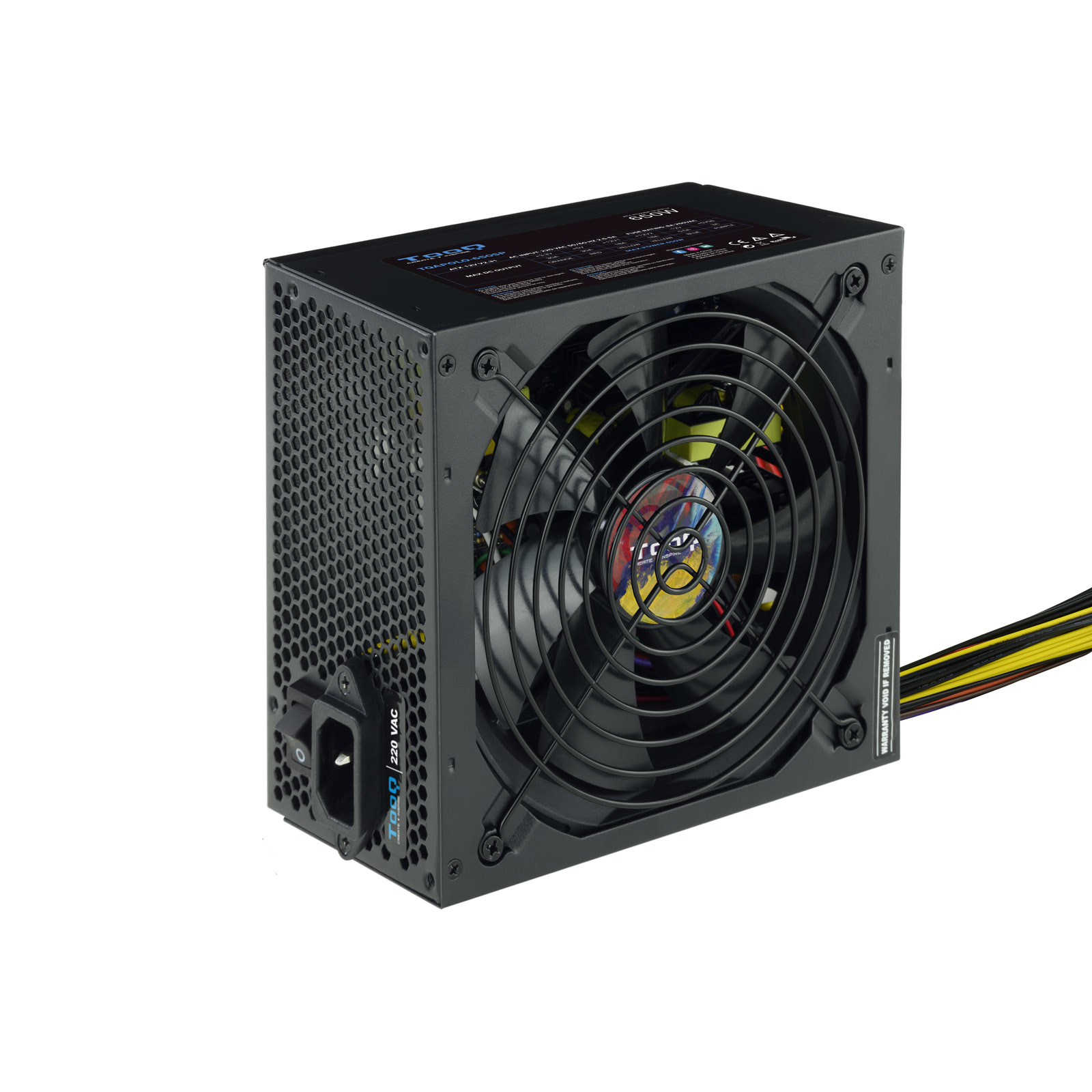

TooQ TQAPOLO-650SP power supply unit 650 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 650 W
- Efficiency rating
- N
- Depth
- 160 mm
- Width
- 150 mm
- Height
- 85 mm
- Manual included
- Y
- Purpose
- PC
- ATX version
- 2.3
- Cabling type
- Non-Modular
1 / 7
Shopping actions
Overview
ATX 650W power supply with Active PFC
Technical Specifications
Physical
4 SPECS
Depth
160 mm
Width
150 mm
Height
85 mm
Colour
Black
Power
2 SPECS
Wattage
650 W
Efficiency rating
No
Cooling
3 SPECS
Cooling type
Active

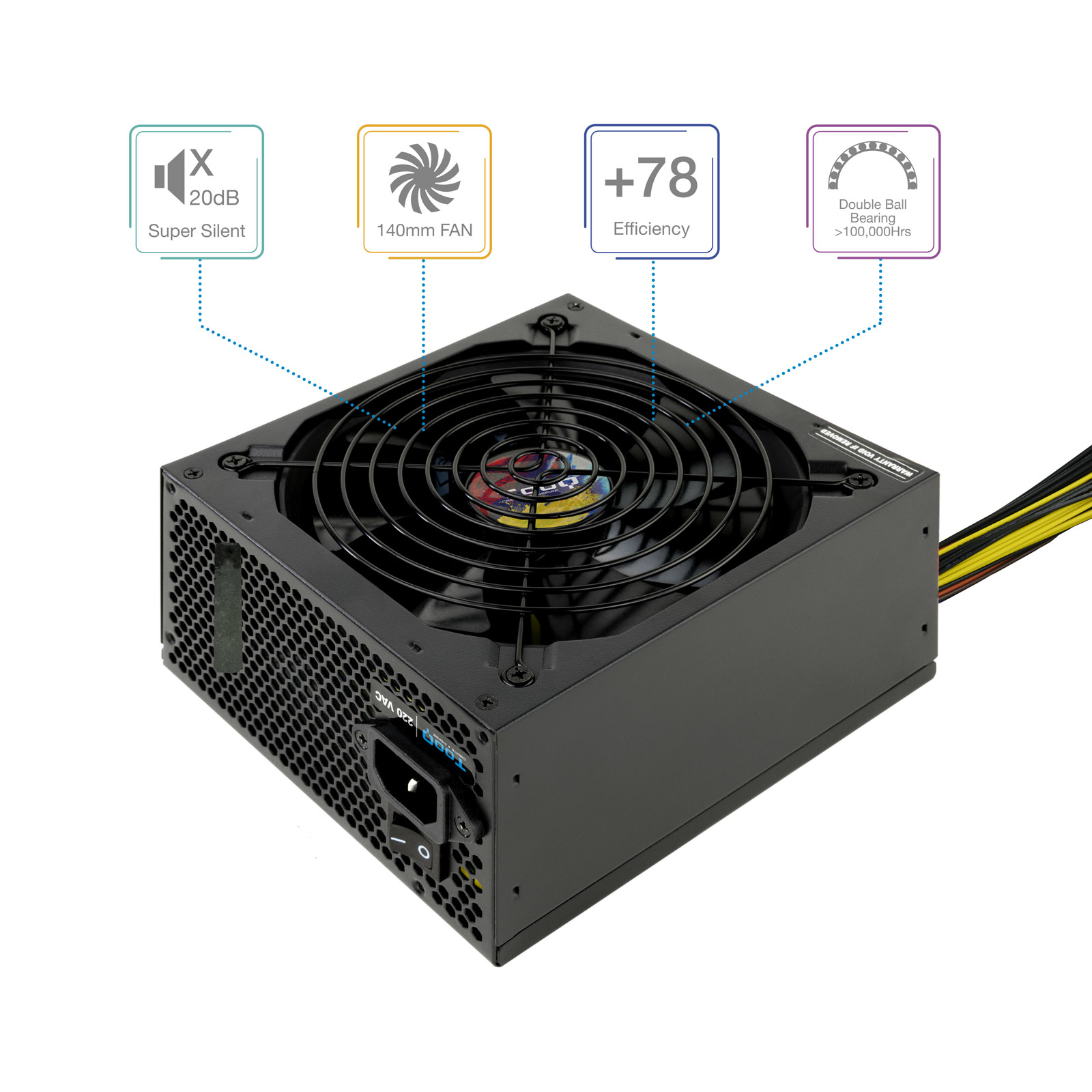

Fan size
140
Number of fans
1
Logistics & Packaging
3 SPECS
Package depth
172 mm
Package width
256 mm
Package height
102 mm
General
43 SPECS
Manual included
Yes
Purpose
PC
ATX version
2.3
Cabling type
Non-Modular
Fan location
Top
Packaging type
Box
Input current
2.5 - 5
On/off switch
Yes

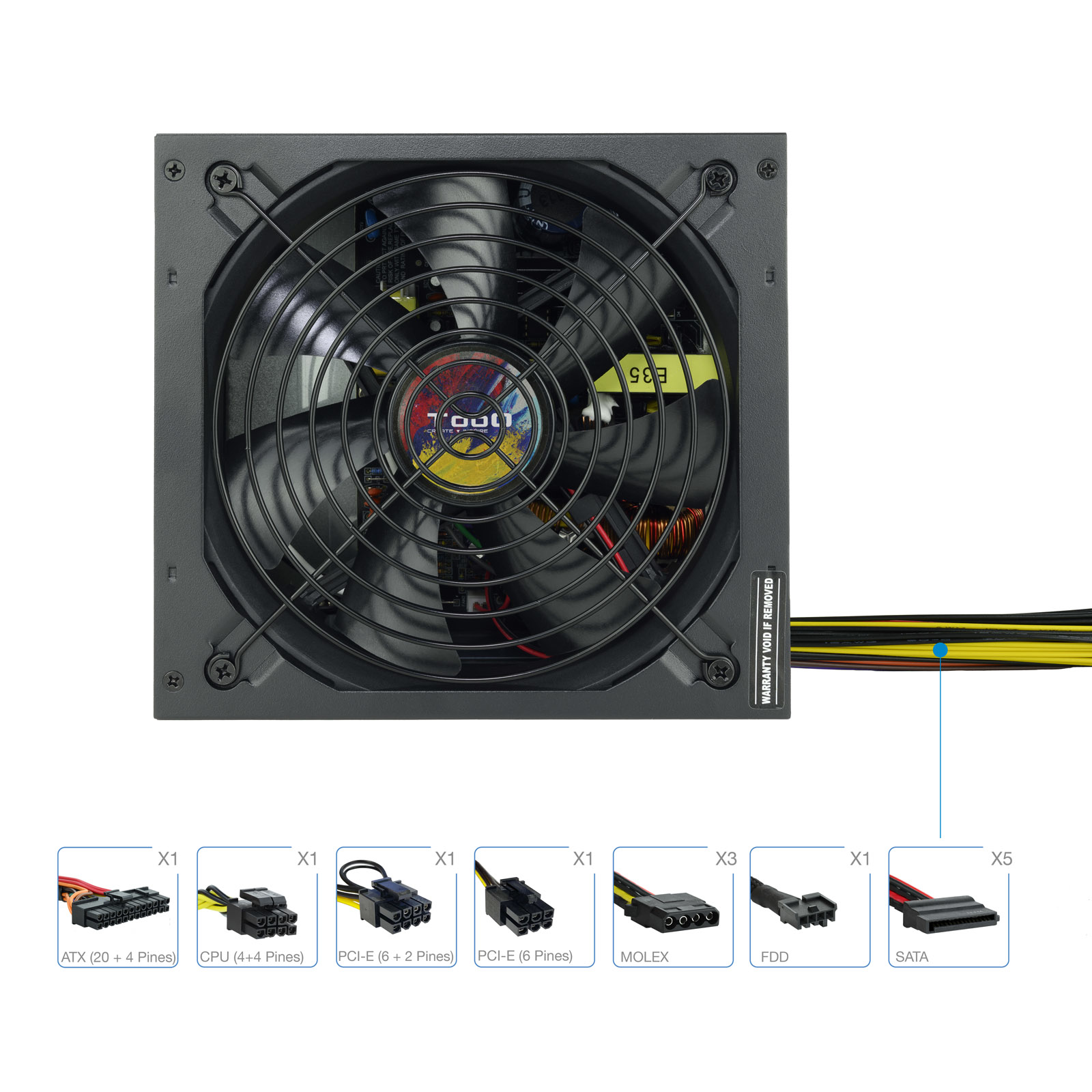

Included cables
AC

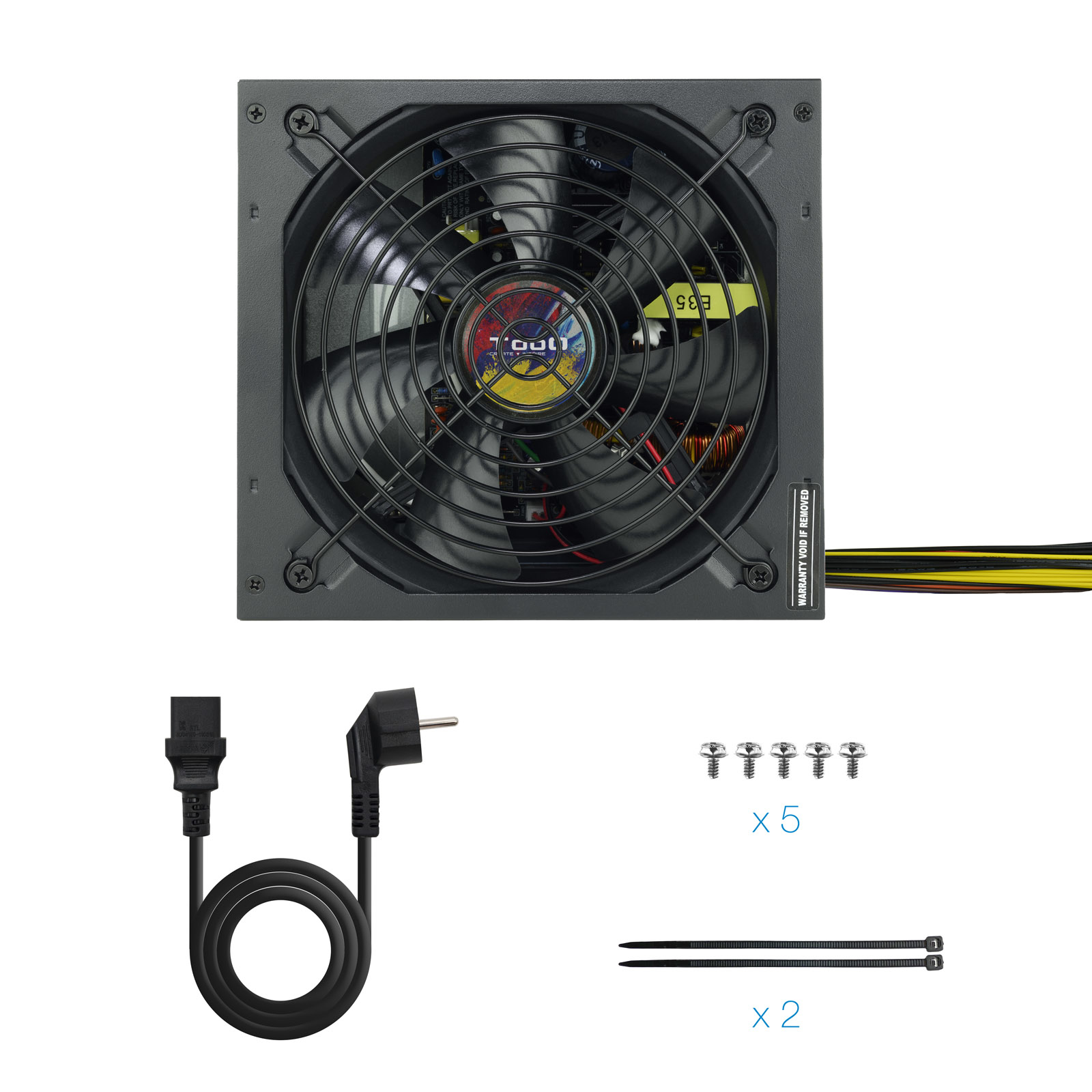

Screws included
Yes
AC input voltage
220
Number of screws
5
AC input frequency
50 - 60
PCI Express connector
Yes
CPU power cable length
400
Compliance certificates
CE,RoHS
SATA power cable length
400,550,700
CPU P4 connector (4-pin)
1
Max output current (+5V)
30
Max output current (-12V)
0.5
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage
Max output current (+12V1)
18
Max output current (+12V2)
18
Max output current (+3.3V)
30
Max output current (+5Vsb)
3
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Operating temperature
0 - 40
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
ATX power connector (20+4 pin)
Yes
Floppy disk drive cable length
700
Motherboard power cable length
400
PCI Express power cable length
550
Number of SATA power connectors
5
MTBF
10000 h
Power Factor Correction (PFC) type
Active
Supported board sizes
ATX
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6-pin)
1
Peripheral (Molex) power cable length
700
PCI Express power connectors (6+2 pin)
1
Peripheral (Molex) power connectors (4-pin)
3
Market Value History
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
