Shuttle logo MPN: DS20UV2

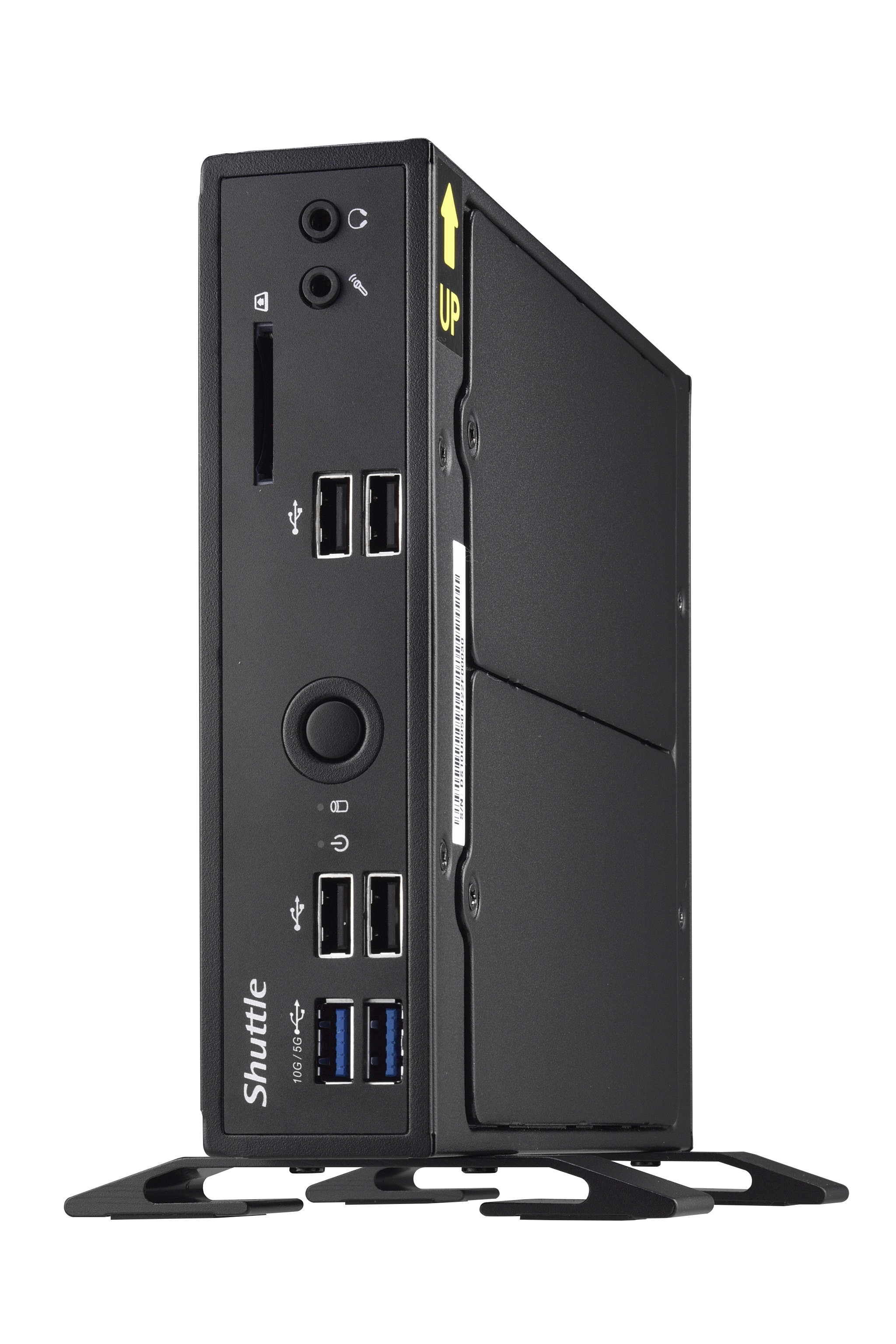

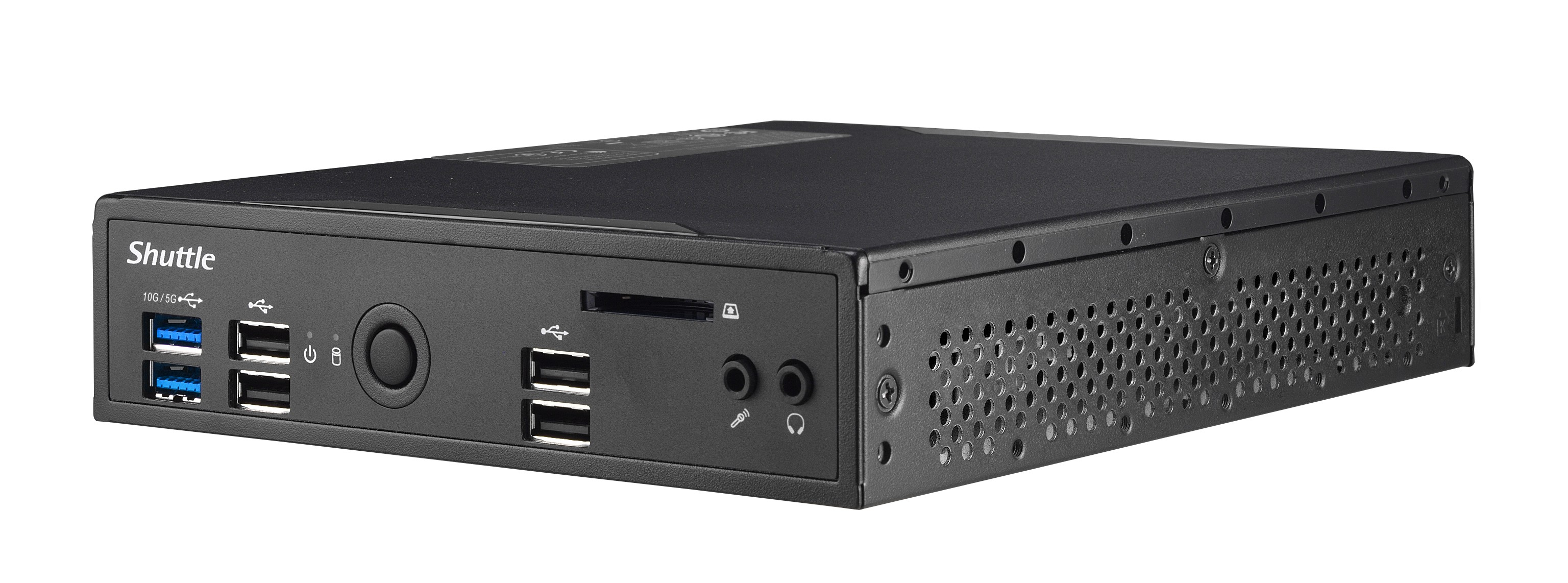

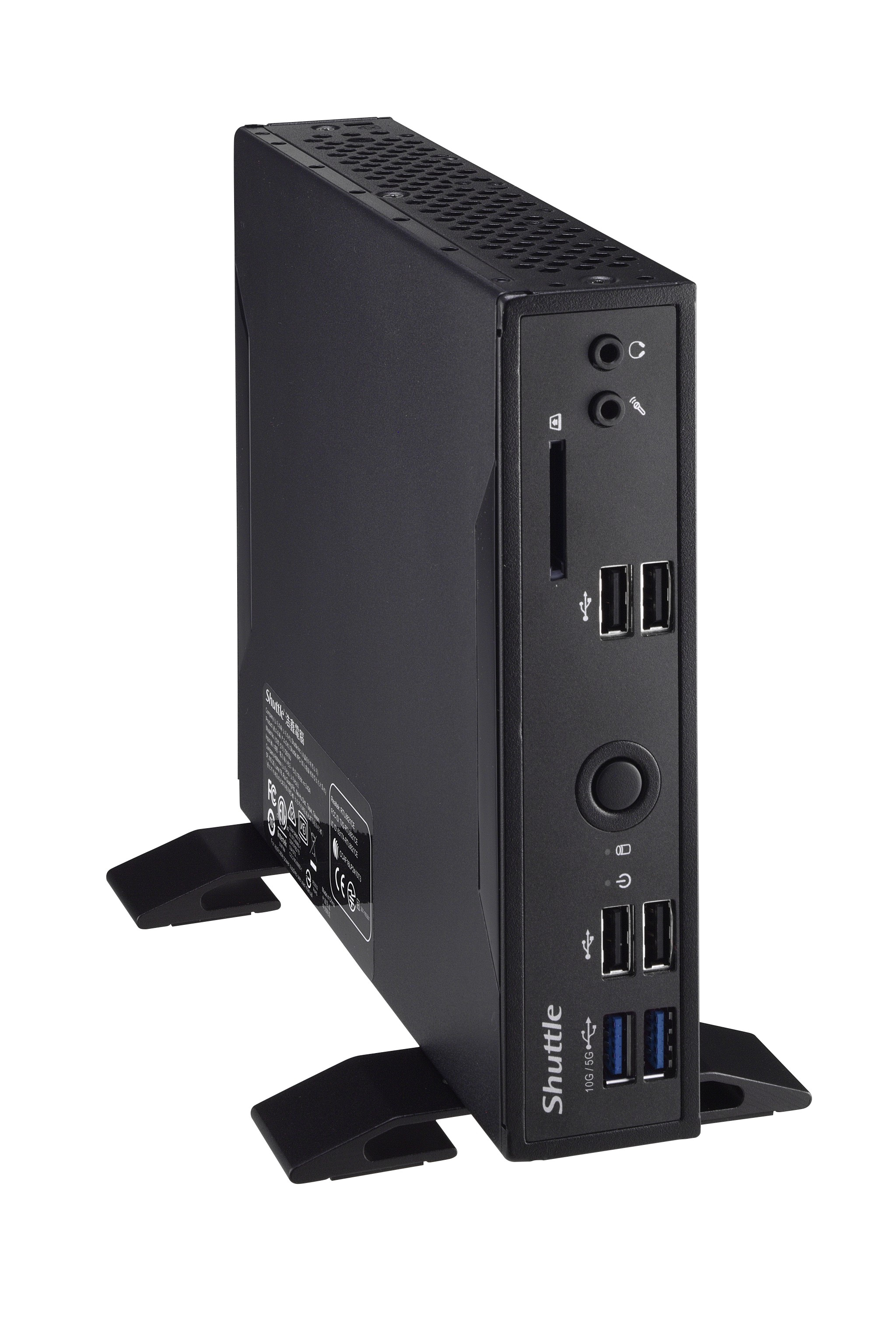

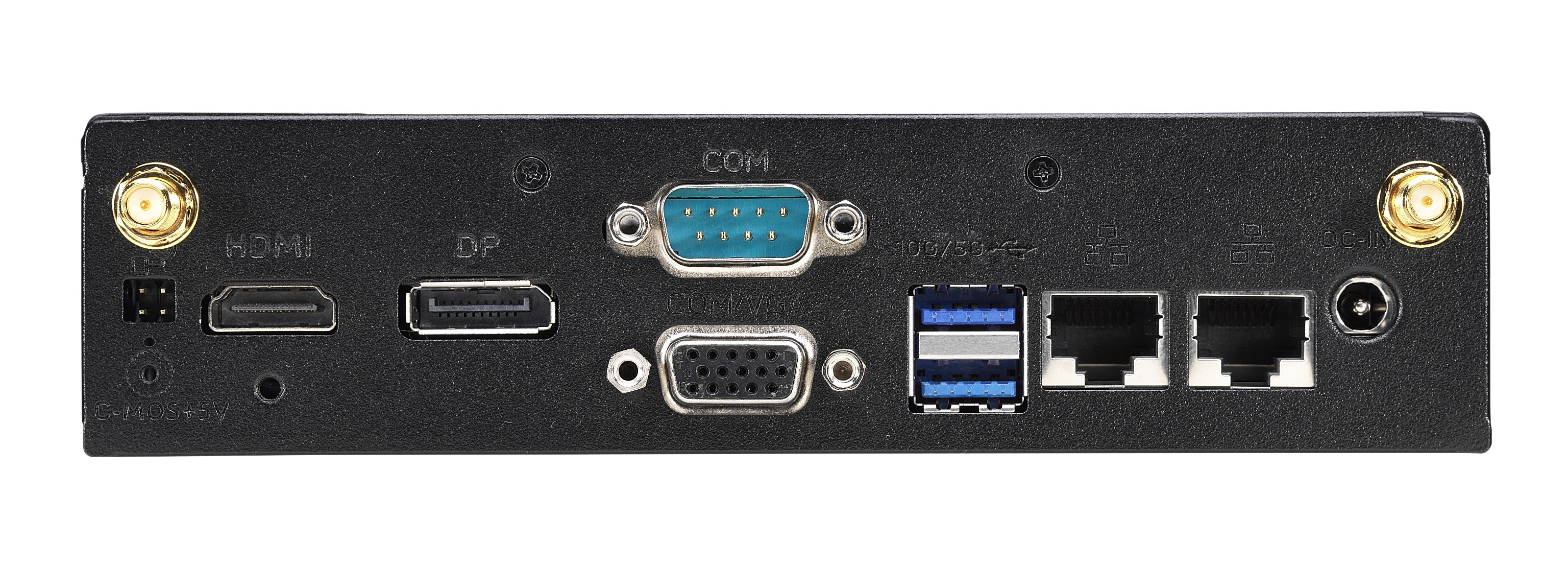

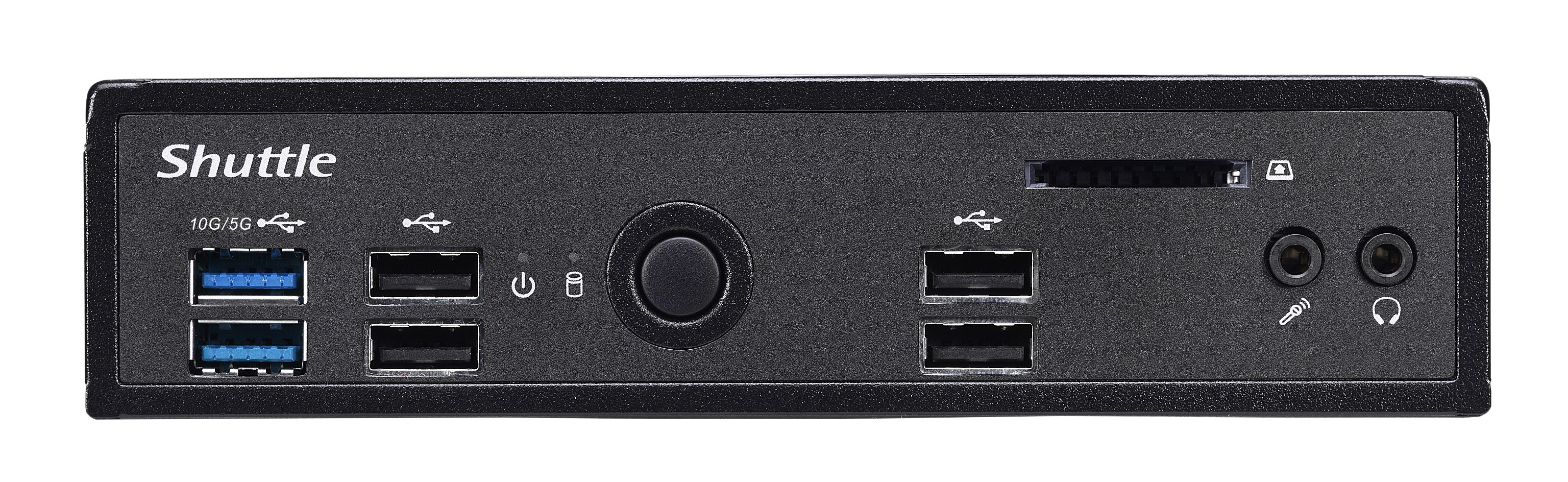

Shuttle XPC slim Barebone DS20UV2, Celeron 5205U, 1xHDMI, 1xDP, 1xVGA, 2xLAN (1xGbit, 1×2.5Gbit), 1xCOM, 8xUSB, fanless, 24/7 permanent operation

Released: Not on record
Price not yet available US · Amazon.com

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

Depth
200 mm
Wi-Fi
N
Width
165 mm
Height
39.5 mm
Weight
1500 g
Non-ECC
Y
64-bit support
Y
BIOS type
UEFI AMI
DC-in jack
Y
View 98 specifications
1 / 8
Shopping actions
Check price on Amazon

Overview

Fanless Slim PC with a Comet-Lake-U processor in industrial design

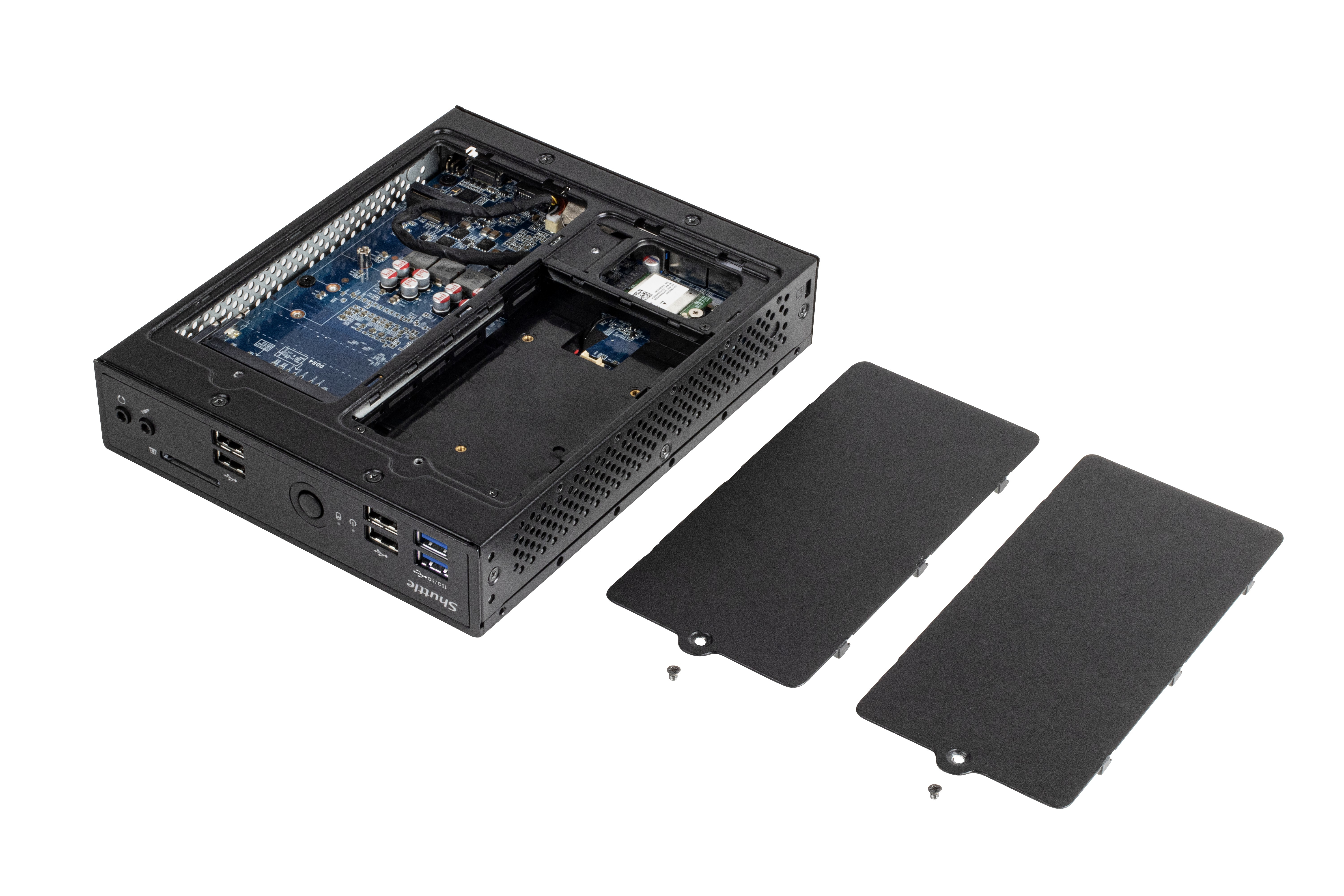

The DS20U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one tradi-tional D-Sub/VGA connector. The built-in Intel "Comet-Lake-U" processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, one 2.5" drive and an M.2-2280 SSD card. Optionally, an LTE module can be fitted in the 2,5" bay using the WWN03 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS20U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.

Technical Specifications

Processor

9 SPECS
Cache
2 MB
Cores
2
Model
5205U
Processor line
Intel Celeron
Threads
2
Clock speed
1.9 GHz
Process node
14 nm
CPU brand
Intel
TDP
15 W

Ports & Connectivity

3 SPECS
DisplayPorts quantity
1
USB 2.0 ports
4
Ethernet ports
2

Graphics

1 SPEC
Max resolution
4096 x 2304

Physical

7 SPECS
Depth
200 mm
Width
165 mm
Height
39.5 mm
Weight
1500 g
Product type
Mini PC (<= 3L) barebone
Colour
Black
Customs (HS) code
84733080

Memory

3 SPECS
Voltage
1.2 V
Memory slots
2
Max memory
64 GB

Logistics & Packaging

2 SPECS
Package weight
2200 g
Country of origin
China

Cooling

1 SPEC
Cooling type
Active

General

72 SPECS
Wi-Fi
No
Non-ECC
Yes
64-bit support
Yes
BIOS type
UEFI AMI
DC-in jack
Yes
Idle power states
Yes
Chassis type
1.3L sized PC
Ethernet LAN
Yes
HDMI version
2.0a
Intel TSX-NI
No
Power supply
65
Microphone input
Yes
On/off switch
Yes
VESA mounting
Yes
LAN controller
Intel I211,Intel I219
LED indicators
HDD,Power
Security lock slot
Yes
Memory channels
Dual-channel
AC input voltage
100 - 240
Drivers included
Yes
Headphone outputs
1
Memory slots type
SO-DIMM
Power supply type
External AC adapter
Quick start guide
Yes
AC input frequency
50 - 60
Built-in processor
Yes
AC adapter included
Yes
Built-in speaker(s)
No
DisplayPort version
1.2
Execute Disable (NX)
Yes
Chipset
Intel SoC
Power cord included
Yes
Cable lock slot type
Kensington
Graphics card family
Intel
Serial ports
1
Card reader
Yes
Integrated graphics
Yes
Supported memory types
DDR4-SDRAM
CPU configuration (max)
1
Compatible memory cards
SD,SDHC,SDXC
Number of M.2 (M) slots
1
Storage drive interface
PCI Express,Serial ATA III
Combo headphone/mic port
Yes
Intel Flex Memory Access
Yes
AC adapter output current
3.42 A
AC adapter output voltage
19 V
ECC memory support
No
Long-term availability
No
Operating system
No
VGA ports
1
Operating temperature
0 - 40
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Number of displays supported
3
Number of power supply units
1
Integrated GPU model
Intel UHD Graphics
Storage drive sizes supported
2.5,M.2
Supported memory clock speeds
2400
Supported storage drive types
HDD & SSD
Trusted Platform Module (TPM)
Yes
Number of processors supported
1
Linux distributions supported
Yes
Operating humidity
10 - 90
Trusted Execution (TXT)
No
Number of storage drives supported
2
SpeedStep power scaling
Yes
Windows versions supported
Windows 10,Windows 11
Trusted Platform Module (TPM) version
2.0
Virtualization (VT-x)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Directed I/O virtualization (VT-d)
Yes
