MPN:
NC01U5

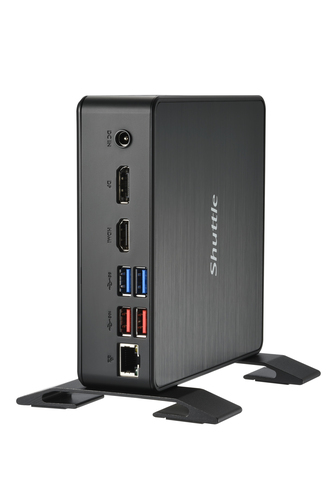

Shuttle NC01U5 PC/workstation barebone 0.6L sized PC Black i5-5200U BGA 1168 2.2 GHz
Released: Not on record
$399.99
$445.99
▼ 10% ($46.00 off)
vs MSRP
from
US · Amazon.com
Updated 2 weeks ago
Last updated Sep 3, 2026 03:14 UTC
Ratings & price sourced from Amazon.com (United States).
- Depth
- 141 mm
- Wi-Fi
- Y
- Width
- 141 mm
- Height
- 29 mm
- Weight
- 360 g
- DVI port
- N
- 64-bit support
- Y
- L2 cache
- 0.512 MB
- L3 cache
- 3 MB
1 / 9
Shopping actions
Overview
The Shuttle NC01U5 PC/workstation barebone 0.6L sized PC Black i5-5200U BGA 1168 2.2 GHz features Intel Core i5 processor, 2 cores and up to 2.7 GHz boost. Full verified specifications are listed below.
Technical Specifications
Processor
10 SPECS
Cores
2
Model
i5-5200U
Processor line
Intel Core i5
Socket
BGA 1168
Threads
4
Clock speed
2.2 GHz
Process node
14 nm
CPU brand
Intel
Boost clock
2.7 GHz
TDP
15 W
Ports & Connectivity
3 SPECS
HDMI ports
1
USB 2.0 ports
2
Ethernet ports
1
Physical
6 SPECS
Depth
141 mm
Width
141 mm
Height
29 mm
Weight
360 g
Product type
Mini PC (<= 3L) barebone
Colour
Black
Memory
3 SPECS
Voltage
1.35 V
Memory slots
2
Max memory
16 GB
Graphics
1 SPEC
Max resolution
3840 x 2160
Logistics & Packaging
1 SPEC
Package weight
1260 g
General
114 SPECS
Wi-Fi
Yes
DVI port
No
64-bit support
Yes
L2 cache
0.512 MB
L3 cache
3 MB
BIOS type
AMI
Bluetooth
Yes
DC-in jack
Yes
Idle power states
Yes
Chassis type
0.6L sized PC
Ethernet LAN
Yes
HDMI version
1.4a
Intel TSX-NI
No
Power supply
65
Certifications
EMI: FCC, CE, BSMI, C-Tick
CB, BSMI, ETL
Conflict-Free
Yes
On/off switch
Yes
VESA mounting
Yes
LED indicators
Yes
Mouse included
No
Built-in camera
No
Security lock slot
Yes
Memory channels
Dual-channel
S/PDIF out port
No
AC input voltage
100 - 240
Display included
No
Drivers included
Yes
Housing material
Plastic
Intel® OS Guard
Yes
Intel® Unite™
No
Processor series
Intel Core i5-5200 Mobile series
Bluetooth version
4.0
Keyboard included
No
Memory slots type
SO-DIMM
Power supply type
External AC adapter
AC input frequency
50 - 60
Built-in processor
Yes
COM ports quantity
1
Intel® Insider™
Yes
Intel® Secure Key
Yes
Optical drive type
No
Codename
Broadwell
AC adapter included
Yes
DisplayPort version
1.2
Execute Disable (NX)
Yes
Intel® Smart Cache
Yes
Networking features
LAN, WLAN
Power cord included
Yes
Cable lock slot type
Kensington
Graphics card family
Intel
Intel FDI Technology
Yes
Generation
Intel Core i5-5xxx
Card reader
Yes
Integrated graphics
Yes
Redundant fans support
No
Supported memory types
DDR3L-SDRAM
CPU configuration (max)
1
Compatible memory cards
SD,SDHC,SDXC
Storage drive interface
M.2,Serial ATA III
CardBus PCMCIA slot type
No
Combo headphone/mic port
Yes
Intel Fast Memory Access
Yes
Intel Flex Memory Access
Yes
Panel mounting interface
75 x 75,100 x 100
AC adapter output current
3.42 A
AC adapter output voltage
19 V
PCI Express slots version
2.0
Long-term availability
No
Mini DisplayPorts quantity
1
Operating system
No
PCI Express configurations
4x1,2x4
VGA ports
0
Compatible processor series
Intel Core i5
Operating temperature
0 - 50
Compatible OS
Windows 7, Window 8, Linux
Intel Clear Video Technology
Yes
Number of power supply units
1
Integrated GPU model
Intel HD Graphics 5500
CardBus PCMCIA slots quantity
0
Storage drive sizes supported
2.5
Supported memory clock speeds
1333,1600
Supported storage drive types
HDD & SSD
Intel Rapid Storage Technology
No
Intel Smart Connect Technology
No
Intel® InTru™ 3D Technology
Yes
Intel® Rapid Start Technology
No
Intel® Turbo Boost Technology
2.0
Number of processors supported
1
Thermal monitoring
Yes
Intel® Smart Response Technology
Yes
Linux distributions supported
Yes
Operating humidity
10 - 90
Trusted Execution (TXT)
No
Number of storage drives supported
2
SpeedStep power scaling
Yes
Intel® Quick Sync Video Technology
Yes
Max supported CPU speed
2.7
Windows versions supported
Yes
Intel Advanced Management Technology
No
Virtualization (VT-x)
Yes
Intel® Wireless Display (Intel® WiDi)
Yes
Intel® My WiFi Technology (Intel® MWT)
No
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Anti-Theft Technology (Intel® AT)
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Small Business Advantage (Intel® SBA)
Yes
Intel® Virtualization Technology (Intel® VT)
VT-d,VT-x
Intel® Matrix Storage Technology (Intel® MST)
No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Market Value History
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
