Shuttle logo MPN: SW580R8

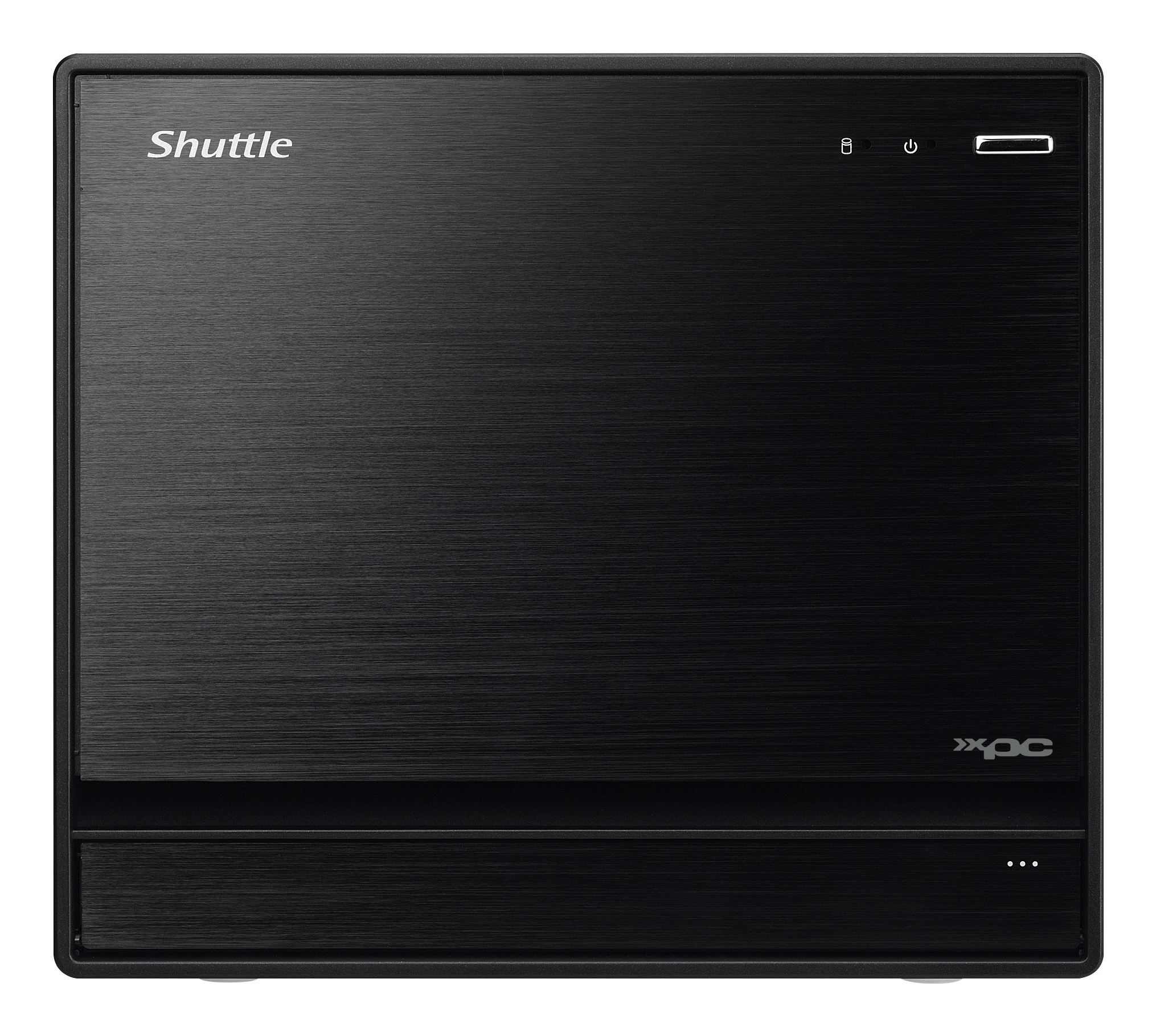

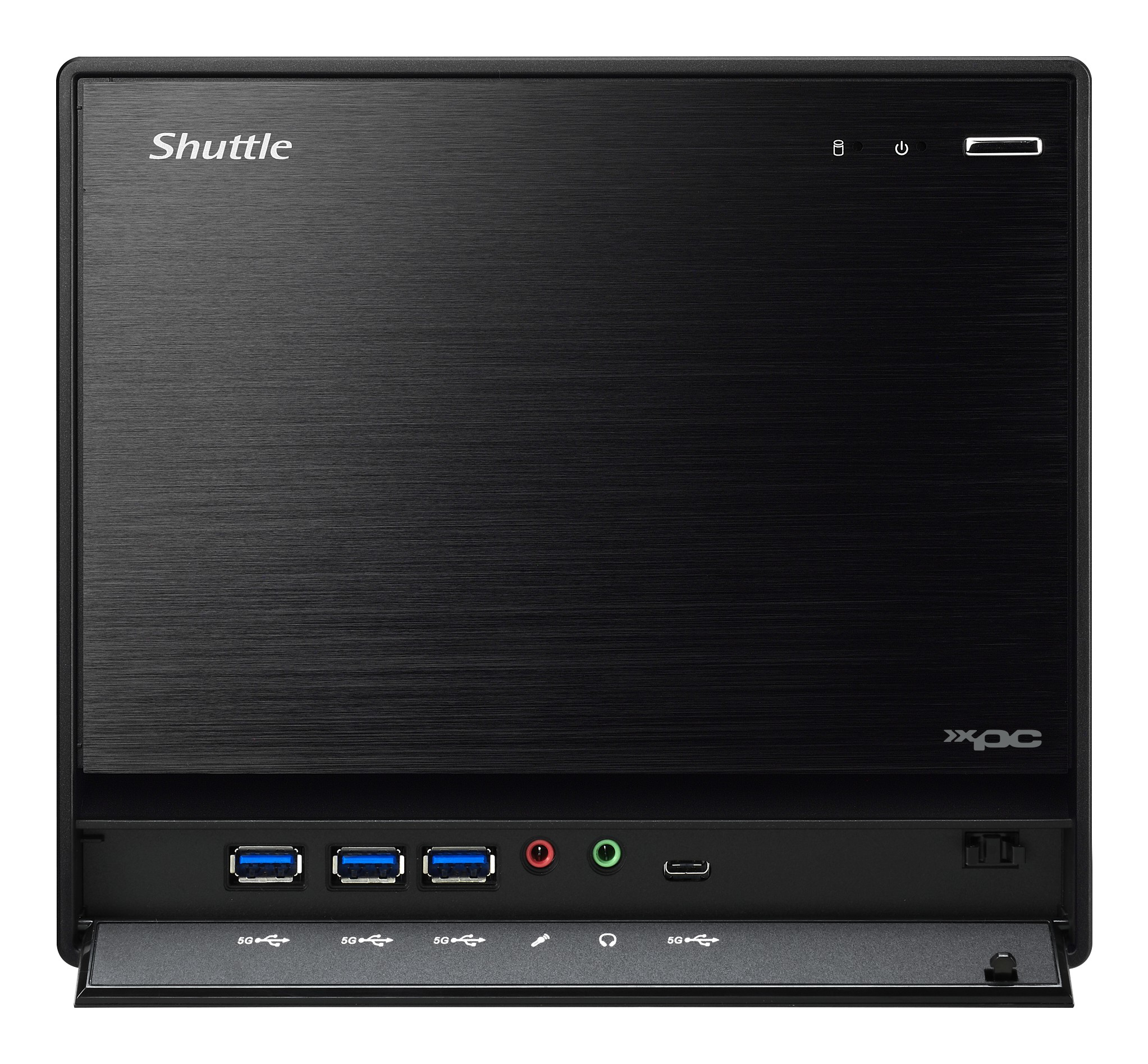

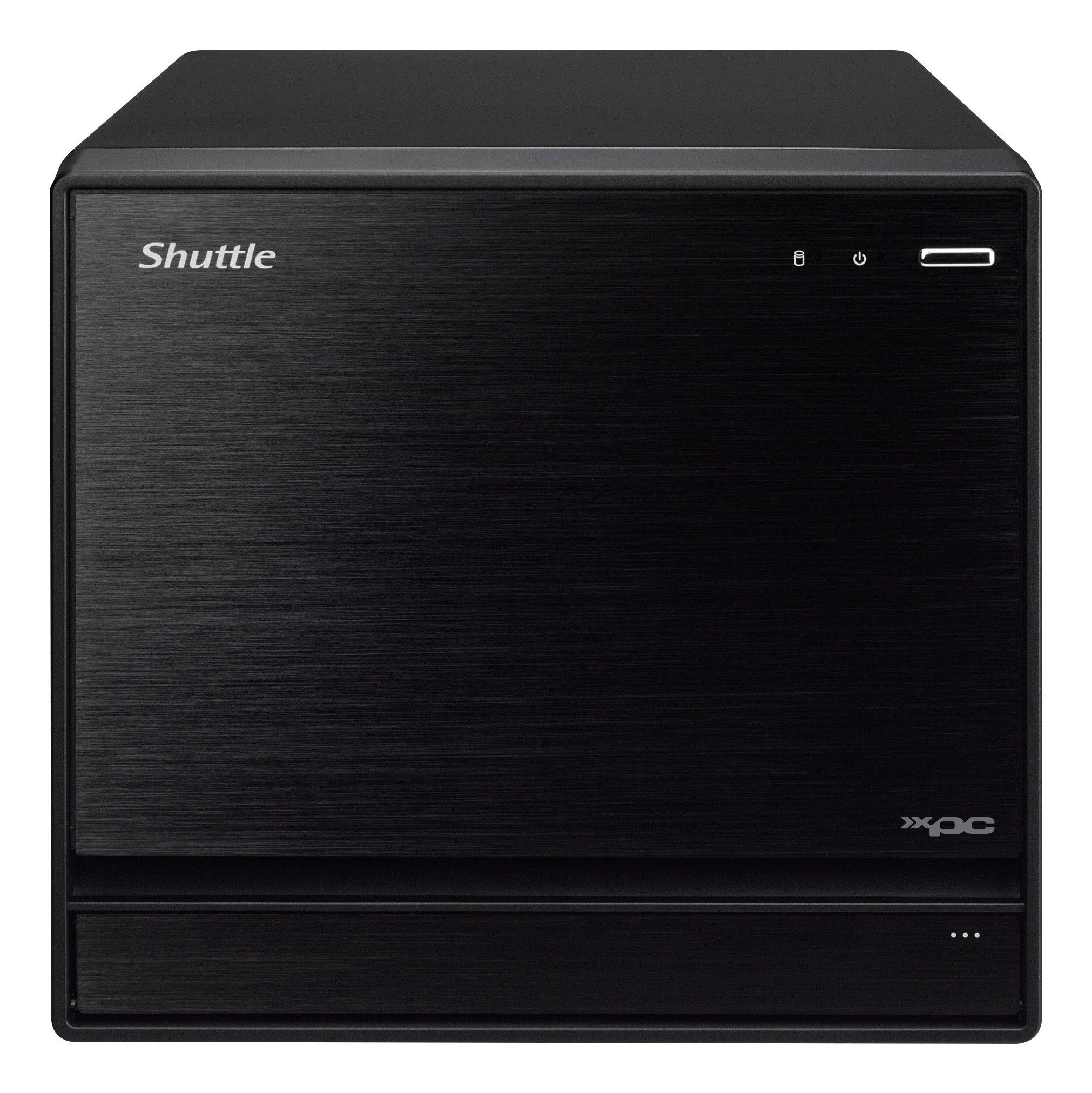

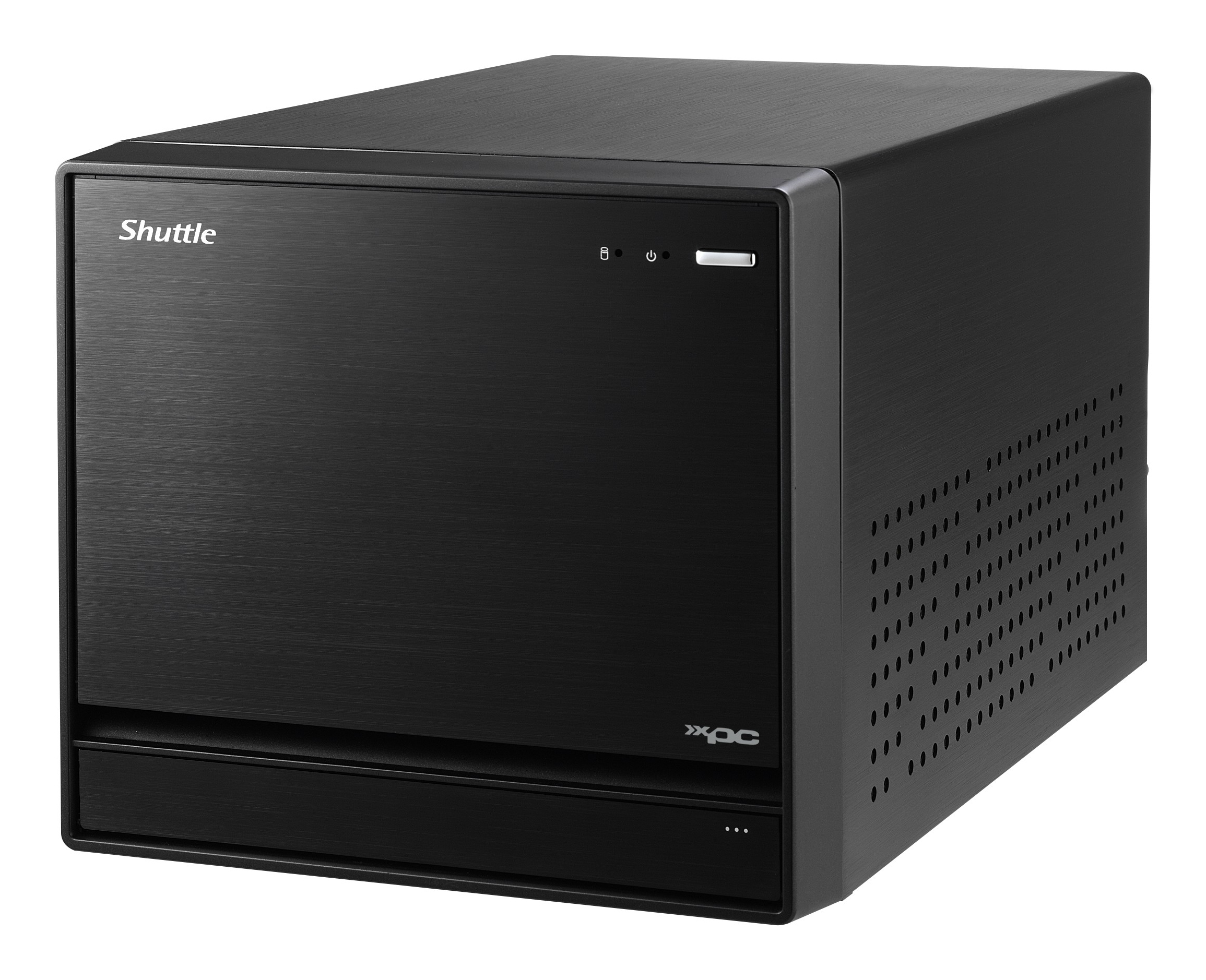

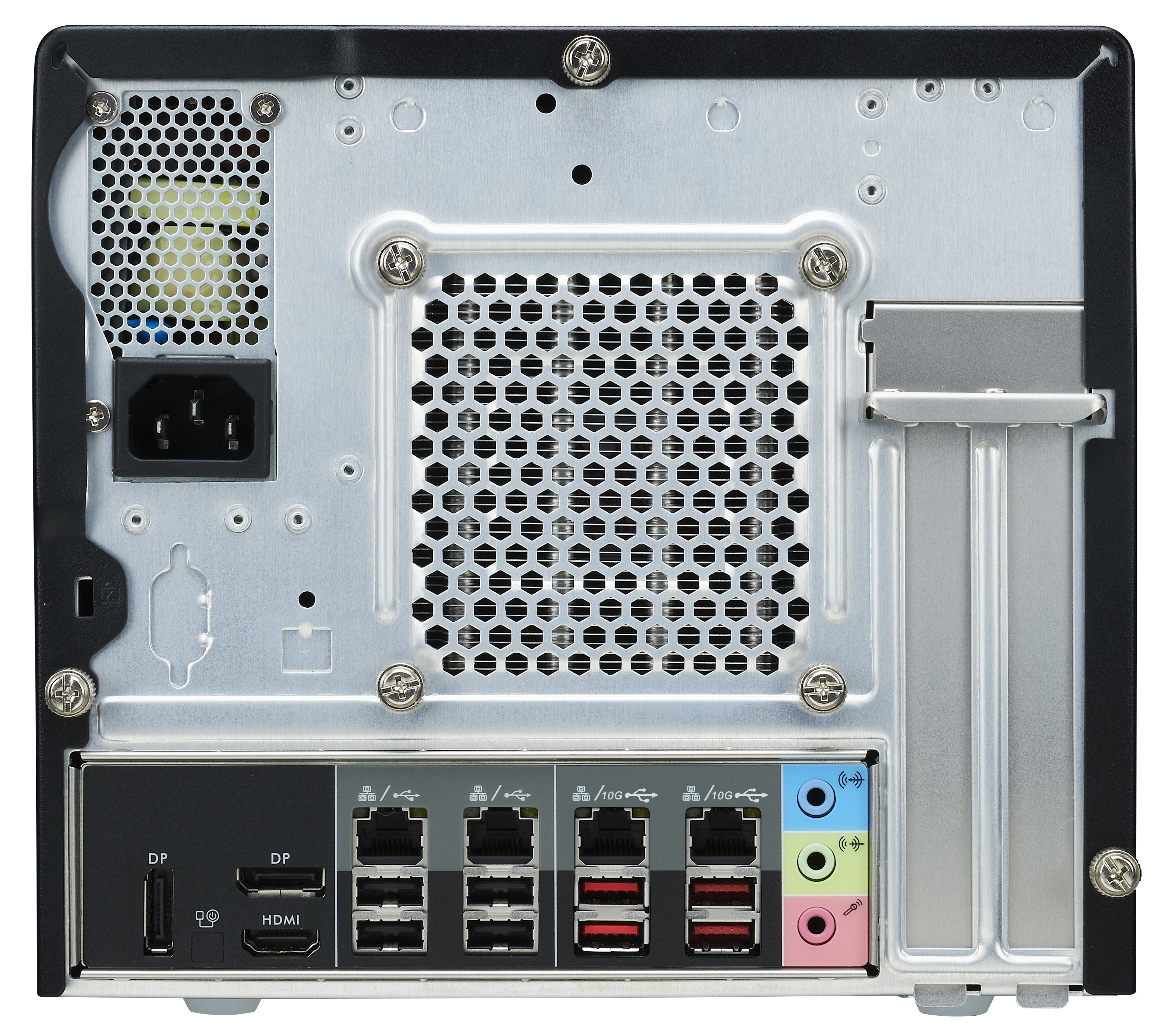

Shuttle XPC cube Barebone SW580R8 – S1200, Intel W580, vPRO, 4x LAN (2x 1Gb & 2x 2.5Gb), 4x 3.5″ HDD bays

Released: Not on record
Price not yet available US · Amazon.com
3.4 2 ratings

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

ECC support
Y
Depth
332 mm
Wi-Fi
N
Width
215 mm
Height
190 mm
Weight
3500 g
BIOS type
UEFI AMI
Audio chip
Realtek ALC897
RAID levels
0,1,5,10,JBOD
View 75 specifications
1 / 6
Shopping actions
Check price on Amazon

Overview

14-liter cube for server and workstation applications
Like its sister model SH570R8, the Shuttle XPC Barebone SW580R8 supports 10th/11th generation Intel Core processors, four large 3.5" hard disks with Raid function, 128 GB DDR4-3200 RAM and dual-slot graphics cards. In addition, the SW580R8 also accepts Xeon W-series processors featuring ECC and vPro for more system stability and remote management options. It also offers four network ports for the first time (two of them with 2.5 GBit/s), a second M.2 slot for SSD cards and a TPM security chip. Such impressive performance and range of features in an aluminum chassis with a volume of only 14 liters makes SW580R8 the ideal platform for demanding mini-server and workstation PCs with top reliability even under heavy load.

Technical Specifications

Physical

6 SPECS
Depth
332 mm
Width
215 mm
Height
190 mm
Weight
3500 g
Product type
PC barebone
Colour
Black

Processor

2 SPECS
Socket
LGA 1200 (Socket H5)
TDP
125 W

Cooling

1 SPEC
Cooling type
Active

Memory

4 SPECS
ECC support
Yes
Voltage
1.2 V
Memory slots
4
Max memory
128 GB

Ports & Connectivity

4 SPECS
HDMI ports
1
DisplayPorts quantity
1
USB 2.0 ports
4
Ethernet ports
4

Logistics & Packaging

1 SPEC
Package weight
4500 g

General

57 SPECS
Wi-Fi
No
BIOS type
UEFI AMI
Audio chip
Realtek ALC897
RAID levels
0,1,5,10,JBOD
Chassis type
Cube
Ethernet LAN
Yes
HDMI version
2.0b
Power supply
500
Microphone input
Yes
On/off switch
Yes
LAN controller
Intel I210-AT,Intel I219-LM,Realtek RTL8125B
LED indicators
HDD,Power
Security lock slot
Yes
Memory channels
Dual-channel
AC input voltage
100 - 240
Drivers included
Yes
Housing material
Aluminium
Headphone outputs
2
Memory slots type
DIMM
Power supply type
Internal power supply unit
Quick start guide
Yes
AC input frequency
50 - 60
Built-in processor
No
Built-in speaker(s)
No
DisplayPort version
1.4
Chipset
Intel W580
Power cord included
Yes
Cable lock slot type
Kensington
Graphics card family
Intel
PCI Express x4 slots
1
Audio channels
5.1
PCI Express x16 slots
1
Card reader
No
Integrated graphics
Yes
Supported memory types
DDR4-SDRAM
Compliance certificates
CE,RoHS
Number of M.2 (M) slots
2
Storage drive interface
Serial ATA III
PCI Express slots version
3.0,4.0
Operating system
No
Compatible processor series
Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold,Intel Xeon W
Operating temperature
0 - 40
Eco certifications
ENERGY STAR,ErP
Number of power supply units
1
Integrated GPU model
Intel UHD Graphics
Storage drive sizes supported
2.5,3.5,M.2
Supported memory clock speeds
2666,2933,3200
Supported storage drive types
HDD & SSD
Trusted Platform Module (TPM)
Yes
Number of processors supported
1
Linux distributions supported
Yes
Operating humidity
10 - 90
Number of storage drives supported
6
Windows versions supported
Windows 10,Windows 11
Trusted Platform Module (TPM) version
2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
7
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
