MPN: SH570R6 PLUS

Shuttle XPC cube Barebone SH570R6 Plus – S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25″, 2x 3.5″, 500W PSU

Name: Shuttle XPC cube Barebone SH570R6 Plus – S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25″, 2x 3.5″, 500W PSU
Brand: Shuttle
SKU: SH570R6 PLUS
Rating: 5.0 (1 reviews)

Released: Not on record

Price not yet available US · Amazon.com

5.0 1 rating

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

Depth: 332 mm
Wi-Fi: N
Width: 215 mm
Height: 190 mm
Weight: 3500 g
BIOS type: UEFI AMI
Audio chip: Realtek ALC897
Chassis type: Cube
Cooling type: Active

View 62 specifications

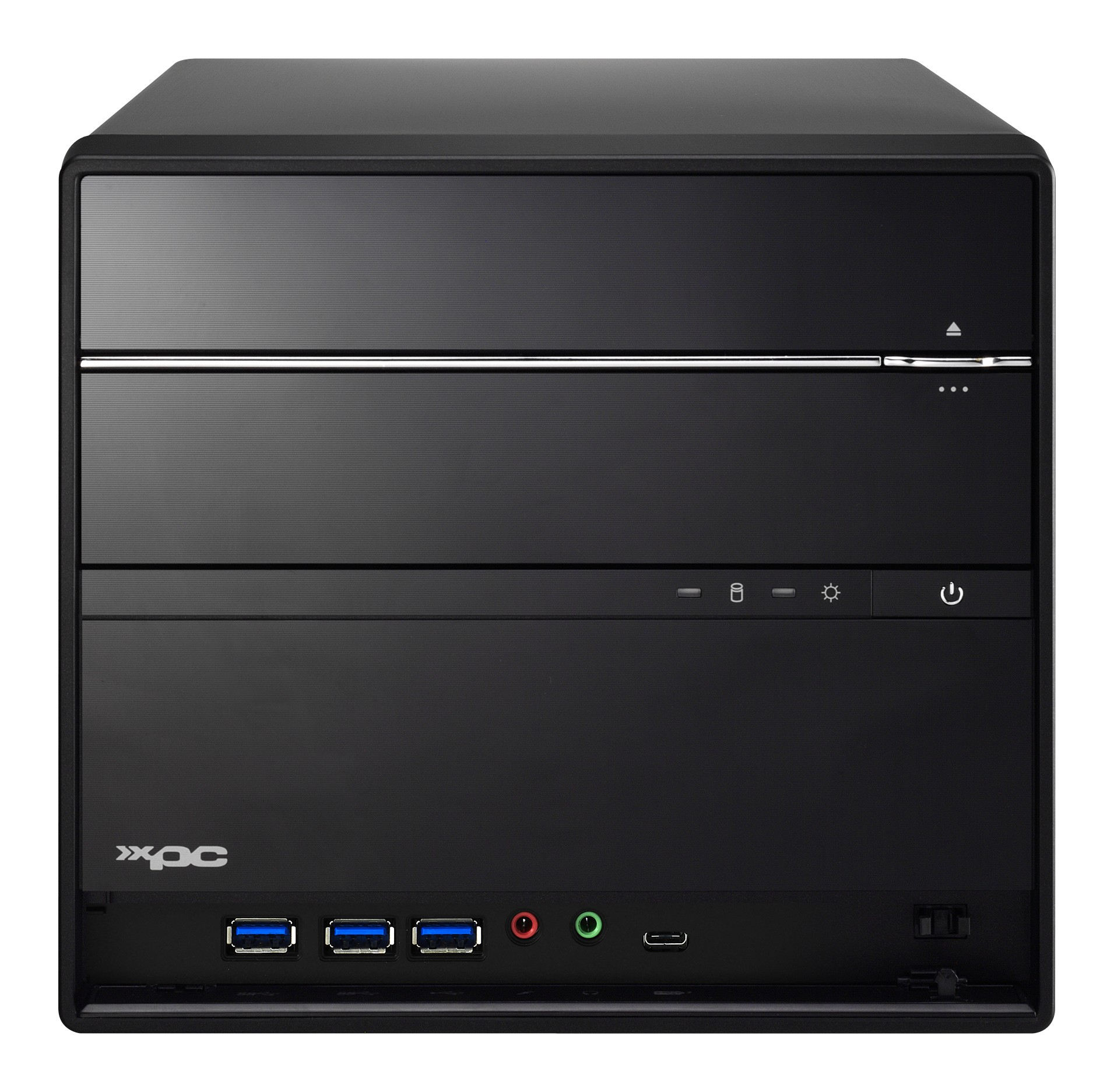

Shuttle XPC cube Barebone SH570R6 Plus – S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25″, 2x 3.5″, 500W PSU image 1

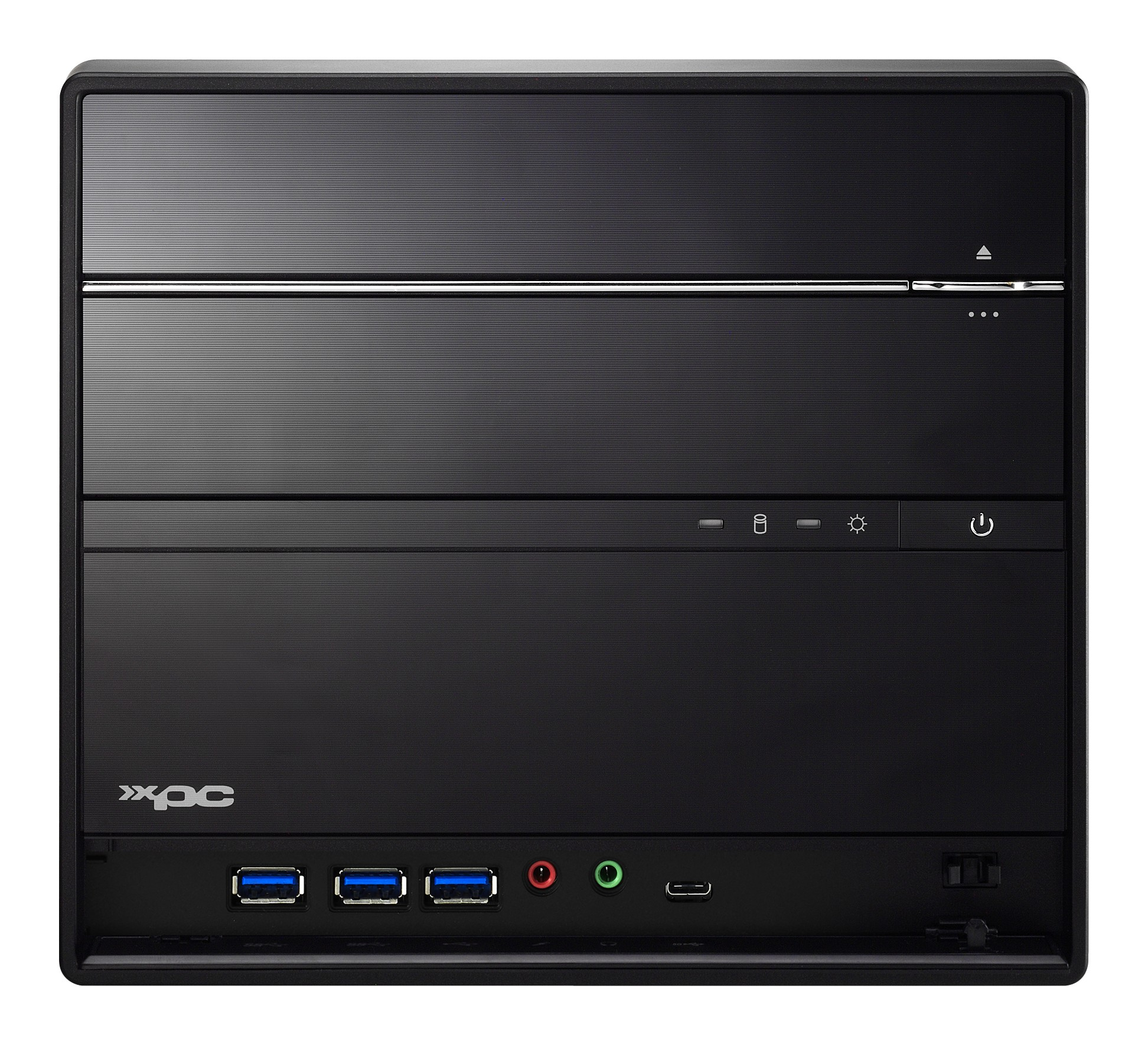

Shuttle XPC cube Barebone SH570R6 Plus – S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25″, 2x 3.5″, 500W PSU image 2

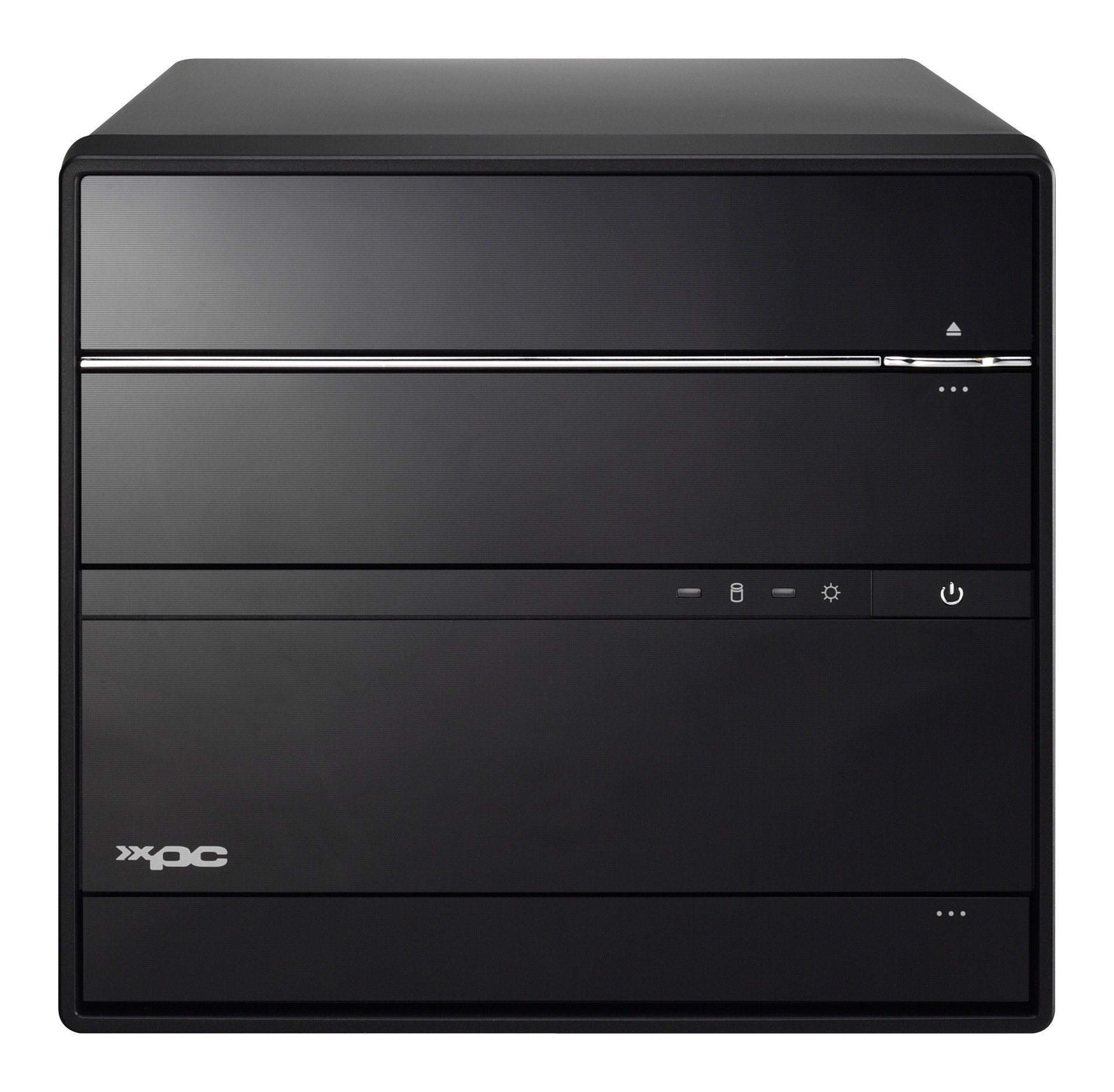

Shuttle XPC cube Barebone SH570R6 Plus – S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25″, 2x 3.5″, 500W PSU image 3

Shuttle XPC cube Barebone SH570R6 Plus – S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25″, 2x 3.5″, 500W PSU image 4

Shuttle XPC cube Barebone SH570R6 Plus – S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25″, 2x 3.5″, 500W PSU image 5

Shuttle XPC cube Barebone SH570R6 Plus – S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25″, 2x 3.5″, 500W PSU image 6

Shuttle XPC cube Barebone SH570R6 Plus – S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25″, 2x 3.5″, 500W PSU image 7

Shuttle XPC cube Barebone SH570R6 Plus – S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25″, 2x 3.5″, 500W PSU image 8

Shuttle XPC cube Barebone SH570R6 Plus – S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25″, 2x 3.5″, 500W PSU image 9

Shuttle XPC cube Barebone SH570R6 Plus – S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25″, 2x 3.5″, 500W PSU image 10

Shuttle XPC cube Barebone SH570R6 Plus – S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25″, 2x 3.5″, 500W PSU image 11

Shuttle XPC cube Barebone SH570R6 Plus – S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25″, 2x 3.5″, 500W PSU image 12

Shuttle XPC cube Barebone SH570R6 Plus – S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25″, 2x 3.5″, 500W PSU image 13

Click to zoom

1 / 13

Shopping actions

Check price on Amazon

Overview

Supports 10th/11th generation Intel Core processors and up to three UHD displays

The Shuttle XPC Barebone SH570R6 Plus shows how discreet a modern PC can look and at the same time how powerful it can be. Its black-brushed aluminium case has barely a volume of 14 litres, but packs everything you need for a high-performance workstation for example. This includes the power of 10th/11th gen. Intel Core processors ("Comet Lake-S" and "Rocket Lake-S"), a dual-slot graphics card, fast M.2 NVMe SSD drives, two 3.5'' hard drives in RAID and up to 128 GB of DDR4 memory, plus a Blu-ray drive. Even without a dedicated graphics card, up to three UHD displays are supported optionally.

Technical Specifications

Physical

7 SPECS

Depth

332 mm

Width

215 mm

Height

190 mm

Weight

3500 g

Product type

PC barebone

Colour

Black

Customs (HS) code

84713000

Processor

2 SPECS

Socket

LGA 1200 (Socket H5)

TDP

125 W

Logistics & Packaging

1 SPEC

Package weight

4500 g

Ports & Connectivity

4 SPECS

HDMI ports

DisplayPorts quantity

USB 2.0 ports

Ethernet ports

Memory

3 SPECS

Voltage

1.2 V

Memory slots

Max memory

128 GB

Cooling

1 SPEC

Cooling type

Active

General

44 SPECS

Wi-Fi

BIOS type

UEFI AMI

Audio chip

Realtek ALC897

Chassis type

Cube

Ethernet LAN

Yes

HDMI version

2.0b

Power supply

500

Microphone input

Yes

LAN controller

Intel I210-AT,Intel I219-LM

LED indicators

Yes

Security lock slot

Yes

Memory channels

Dual-channel

AC input voltage

100 - 240

Drivers included

Yes

Housing material

Aluminium

Headphone outputs

Memory slots type

DIMM

Power supply type

Internal power supply unit

Quick start guide

Yes

AC input frequency

50 - 60

Built-in processor

DisplayPort version

1.4

Chipset

Intel H570

Power cord included

Yes

Cable lock slot type

Kensington

PCI Express x4 slots

Audio channels

5.1

PCI Express x16 slots

Integrated graphics

Yes

Supported memory types

DDR4-SDRAM

PCI Express slots version

4.0

Compatible processor series

Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold

Number of power supply units

Storage drive sizes supported

2.5,3.5,M.2

Supported memory clock speeds

2666,2933,3200

Supported storage drive types

HDD & SSD

Trusted Platform Module (TPM)

Yes

Number of processors supported

Linux distributions supported

Yes

Windows versions supported

Windows 10,Windows 11

Trusted Platform Module (TPM) version

2.0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
