MPN:
PIB-DH310011

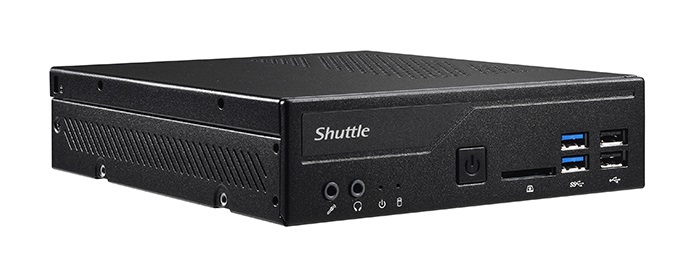

Shuttle XPС slim DH310V2 1L sized PC Black Intel® H310 LGA 1151 (Socket H4)
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 165 mm
- Wi-Fi
- N
- Width
- 190 mm
- Height
- 43 mm
- Safety
- ETL, CB, BSMI
- Weight
- 1300 g
- BIOS type
- UEFI AMI
- Audio chip
- Realtek ALC662
- DC-in jack
- Y
1 / 3
Shopping actions
Overview
The Shuttle XPС slim DH310V2 1L sized PC Black Intel® H310 LGA 1151 (Socket H4) features Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
7 SPECS
Depth
165 mm
Width
190 mm
Height
43 mm
Weight
1300 g
Product type
Mini PC (<= 3L) barebone
Colour
Black
Customs (HS) code
84713000
Logistics & Packaging
2 SPECS
Package weight
2100 g
Country of origin
China
Graphics
1 SPEC
Max resolution
3840 x 2160
Cooling
1 SPEC
Cooling type
Active
Ports & Connectivity
4 SPECS
HDMI ports
1
DisplayPorts quantity
1
USB 2.0 ports
4
Ethernet ports
2
Memory
3 SPECS
Voltage
1.2 V
Memory slots
2
Max memory
32 GB
Processor
1 SPEC
Socket
LGA 1151 (Socket H4)
Storage
1 SPEC
Form factor
2.5"
General
52 SPECS
Wi-Fi
No
Safety
ETL, CB, BSMI
BIOS type
UEFI AMI
Audio chip
Realtek ALC662
DC-in jack
Yes
Chassis type
1L sized PC
Ethernet LAN
Yes
HDMI version
2.0
Power supply
90
Certifications
FCC, CE, BSMI, RCM, VCCI, RoHS, ErP
Microphone input
Yes
VESA mounting
Yes
LAN controller
Intel I211
LED indicators
HDD,Power
Security lock slot
Yes
Memory channels
Dual-channel
AC input voltage
100 - 240
Drivers included
Yes
Headphone outputs
1
Memory slots type
SO-DIMM
Power supply type
External AC adapter
Quick start guide
Yes
AC input frequency
50 - 60
Built-in processor
No
AC adapter included
Yes
Chipset
Intel H310
Power cord included
Yes
Cable lock slot type
Kensington
Graphics card family
Intel
Audio channels
5.1
Serial ports
2
Card reader
Yes
Integrated graphics
No
Supported memory types
DDR4-SDRAM
Compatible memory cards
SD
Storage drive interface
Serial ATA III
AC adapter output current
4.74 A
AC adapter output voltage
19 V
Compatible processor series
Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Pentium
Operating temperature
0 - 50
Eco certifications
ENERGY STAR
Number of displays supported
2
Number of power supply units
1
Storage drive sizes supported
2.5
Supported memory clock speeds
2400,2666
Supported storage drive types
HDD & SSD
Number of processors supported
1
Linux distributions supported
Yes
Operating humidity
10 - 90
Number of storage drives supported
1
Windows versions supported
Windows 10
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
