MPN:
NC10U3

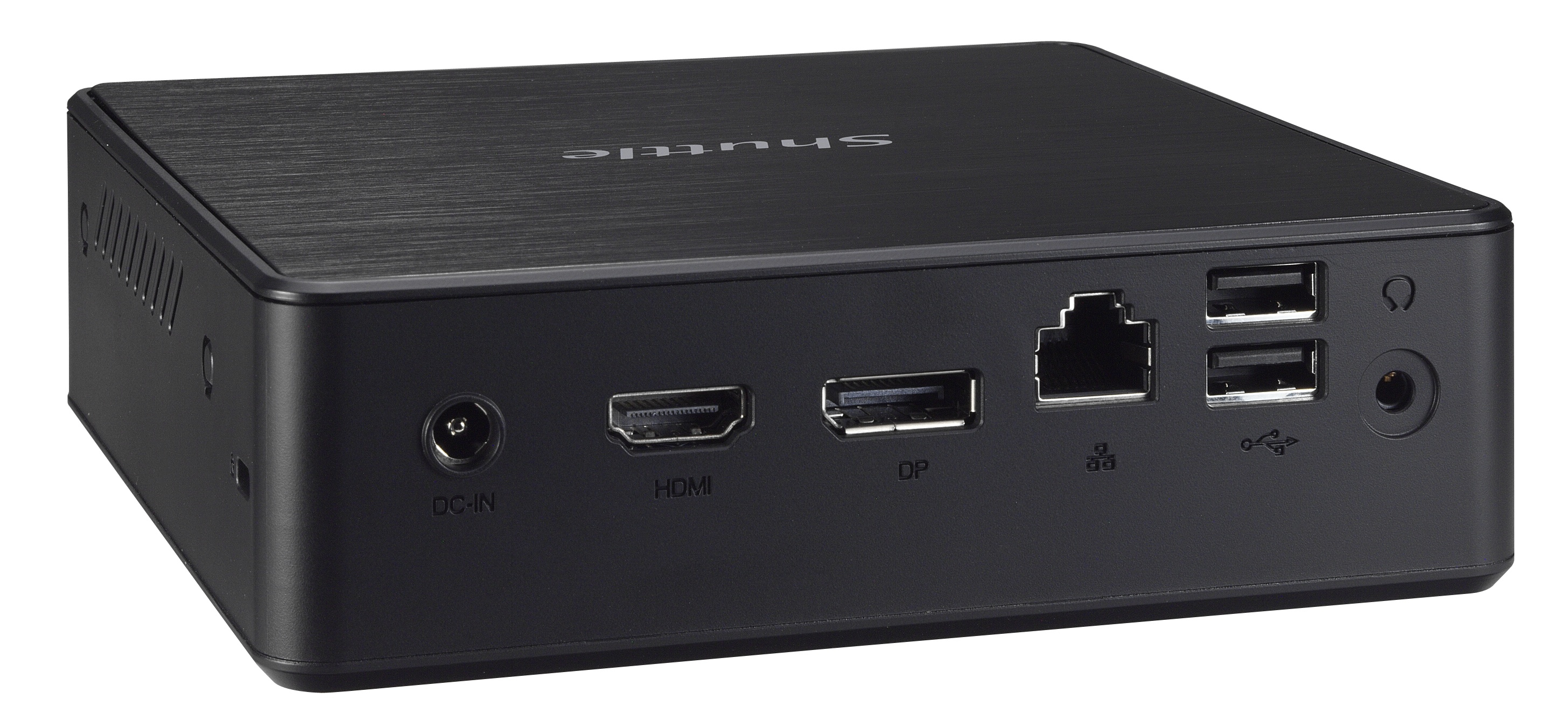

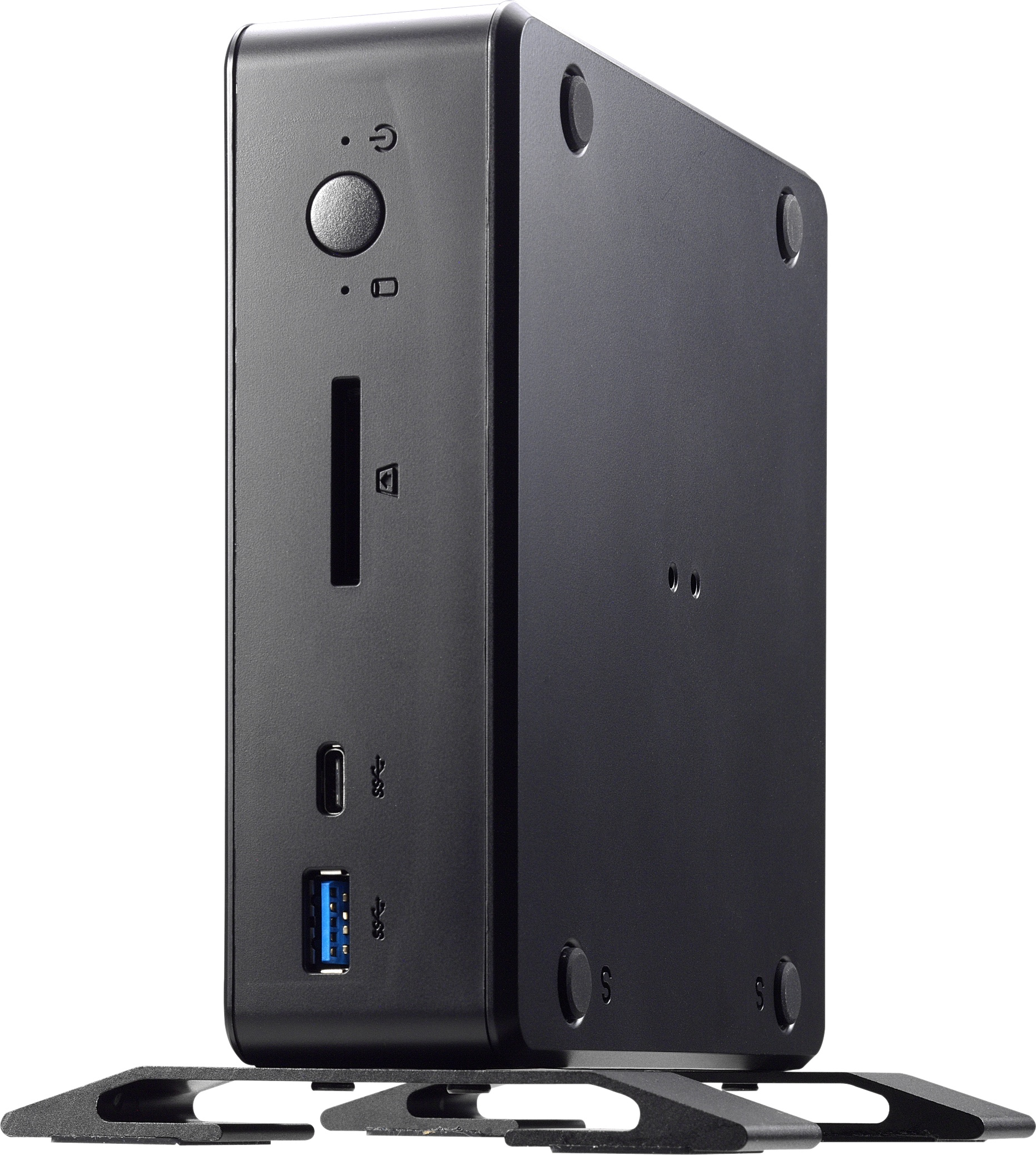

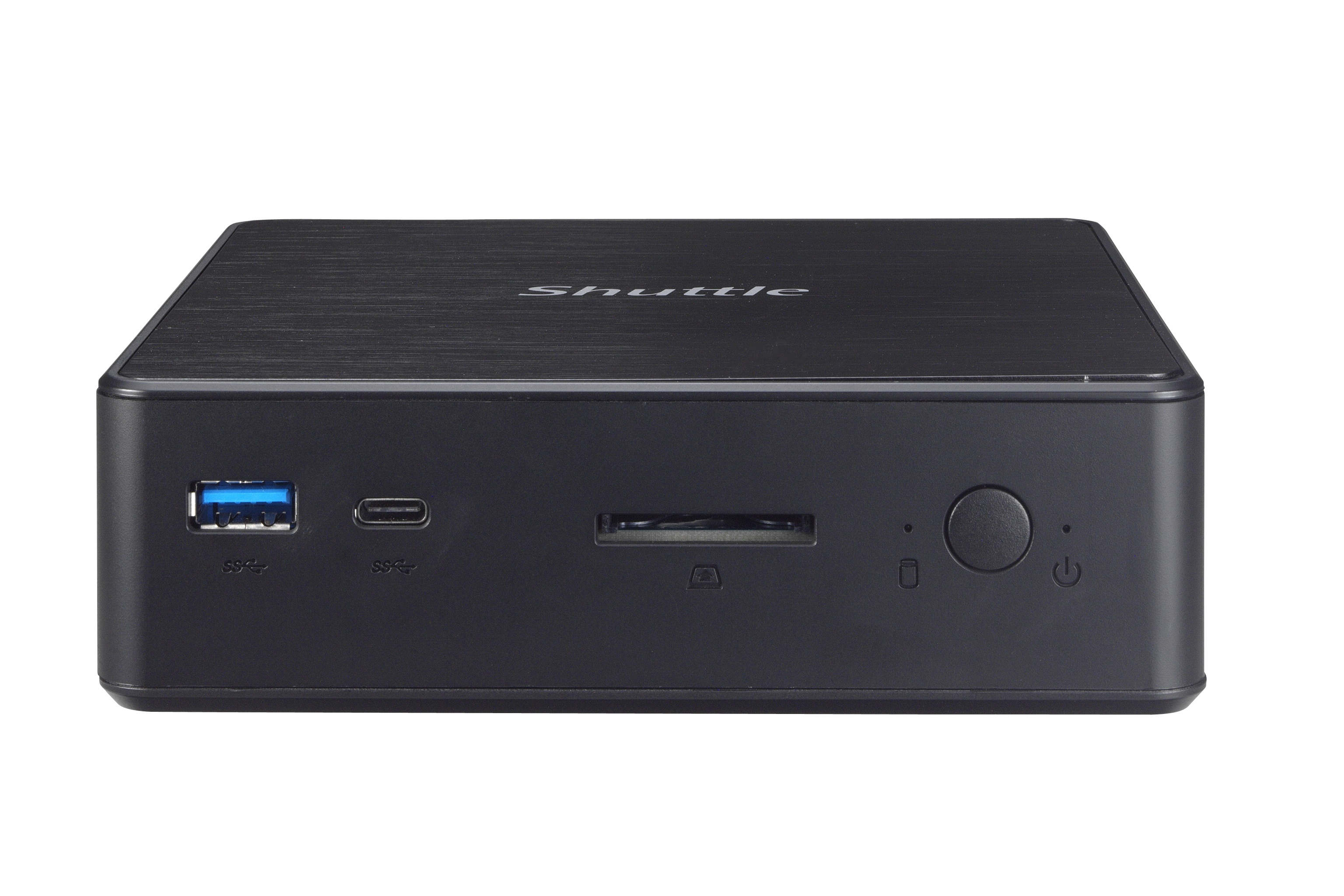

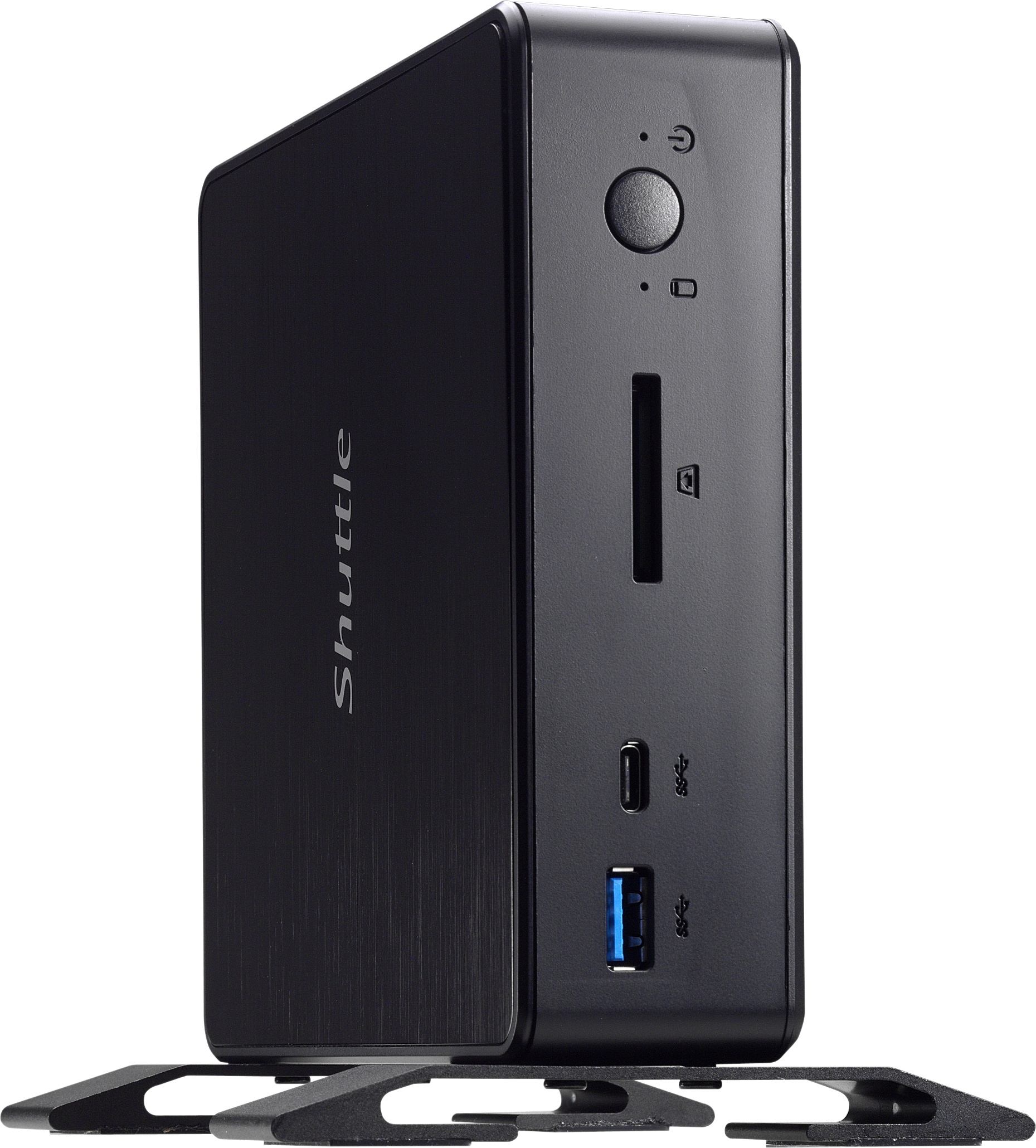

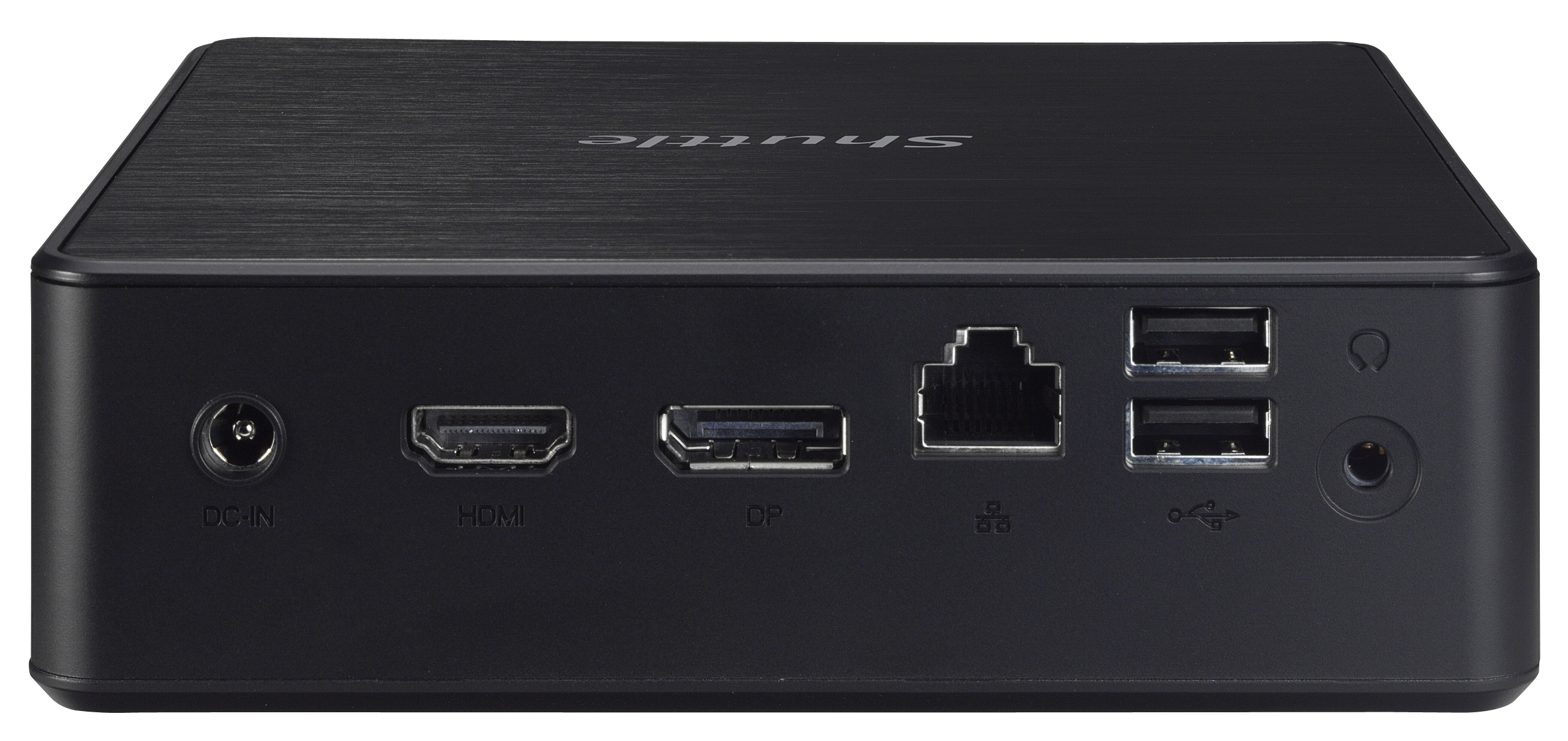

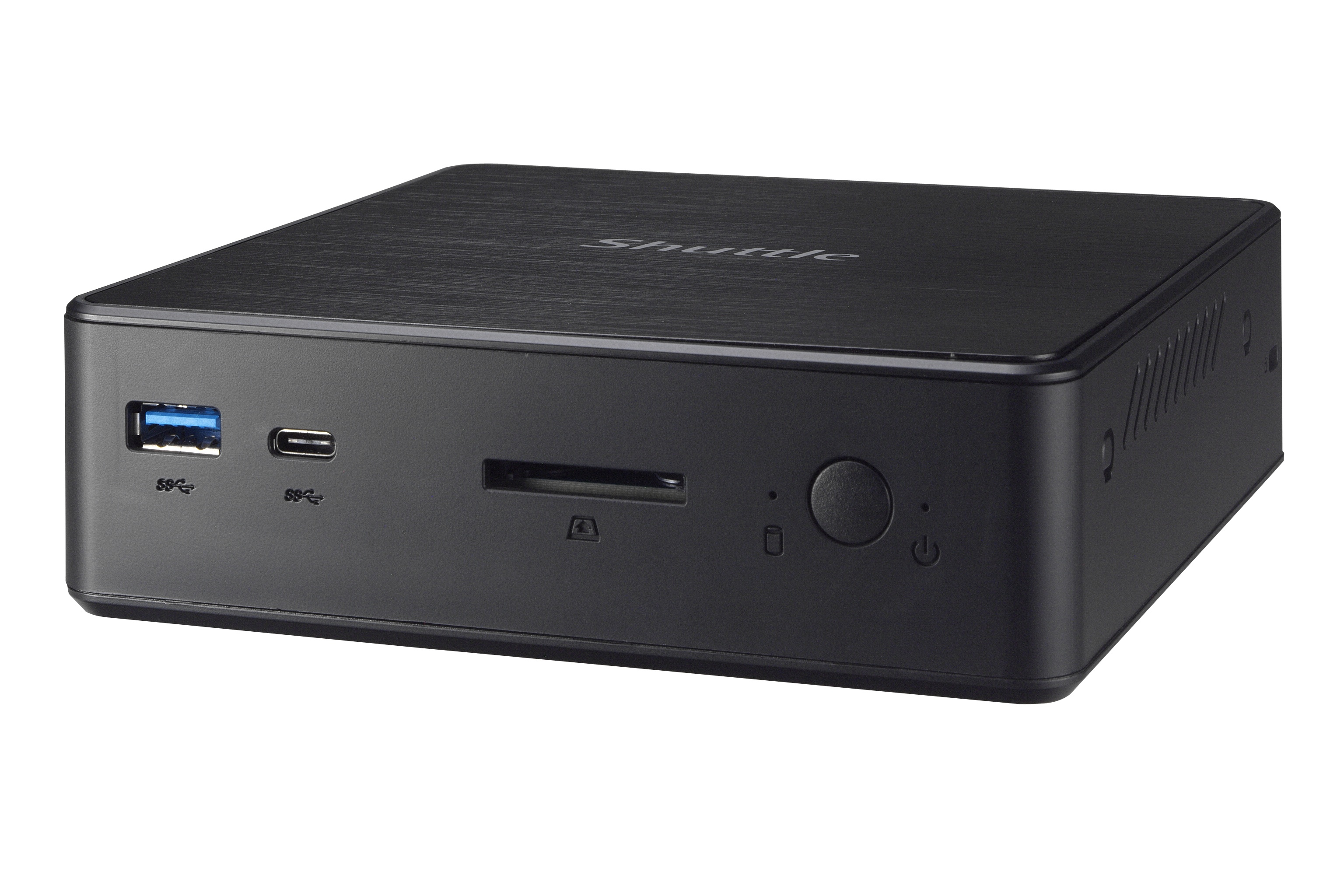

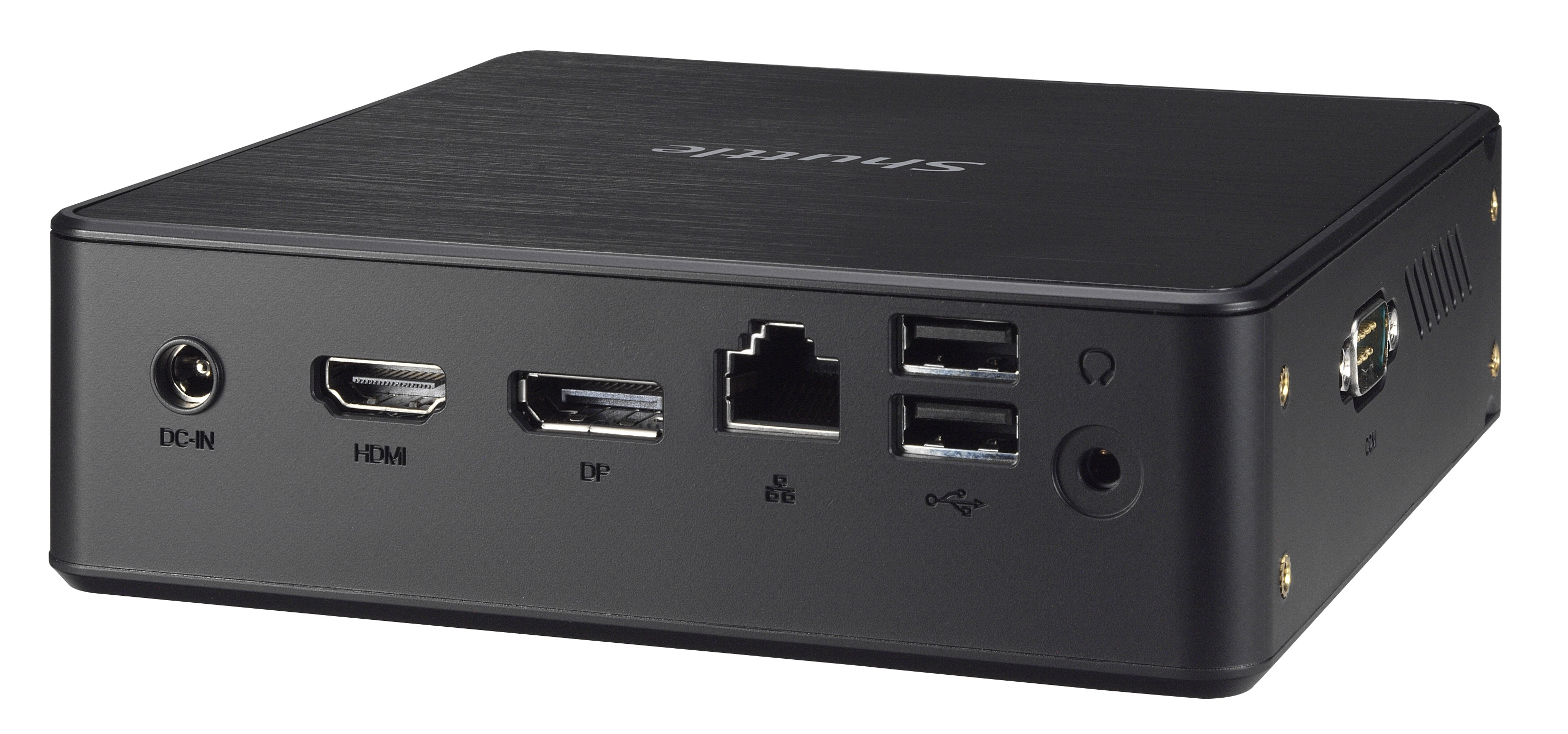

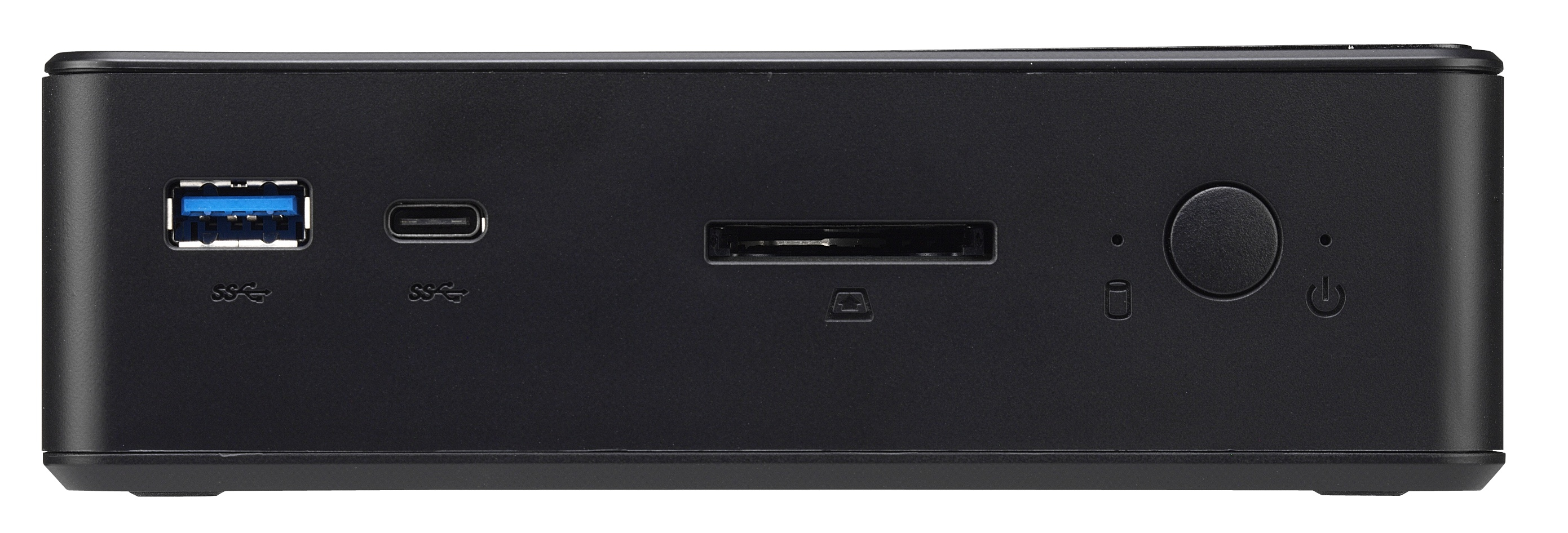

Shuttle Nano PC NC10U3 , Intel i3-8145U, 1x HDMI, 1x DP, 1x 2.5″ bay, 1x M.2, 1x LAN, 1x COM, Wifi, 24/7 permanent operation, incl. VESA & Stand
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 142 mm
- Wi-Fi
- Y
- Width
- 142 mm
- Height
- 42 mm
- Safety
- CB, BSMI, ETL
- Weight
- 400 g
- 64-bit support
- Y
- L3 cache
- 4 MB
- BIOS type
- AMI
1 / 14
Shopping actions
Overview
The Shuttle Nano PC NC10U3 , Intel i3-8145U, 1x HDMI, 1x DP, 1x 2.5″ bay, 1x M.2, 1x LAN, 1x COM, Wifi, 24/7 permanent operation, incl. VESA & Stand features Intel Core i3 processor, 2 cores, up to 3.9 GHz boost and Active cooling. Full verified specifications are listed below.
Technical Specifications
Processor
10 SPECS
Cores
2
Model
i3-8145U
Processor line
Intel Core i3
Socket
BGA 1528
Threads
4
Clock speed
2.1 GHz
Process node
14 nm
CPU brand
Intel
Boost clock
3.9 GHz
TDP
15 W
Memory
3 SPECS
Voltage
1.2 V
Memory slots
2
Max memory
32 GB
Cooling
1 SPEC
Cooling type
Active
Physical
7 SPECS
Depth
142 mm
Width
142 mm
Height
42 mm
Weight
400 g
Product type
Mini PC (<= 3L) barebone
Colour
Black
Customs (HS) code
84713000
Ports & Connectivity
4 SPECS
HDMI ports
1
DisplayPorts quantity
1
USB 2.0 ports
2
Ethernet ports
1
Logistics & Packaging
2 SPECS
Package weight
1200 g
Country of origin
China
General
85 SPECS
Wi-Fi
Yes
Safety
CB, BSMI, ETL
64-bit support
Yes
L3 cache
4 MB
BIOS type
AMI
Audio chip
Realtek ALC662
DC-in jack
Yes
Idle power states
Yes
Ethernet LAN
Yes
HDMI version
2.0a
Intel TSX-NI
No
Power supply
65
Certifications
CE, FCC, BSMI, RCM, RED, VCCI
RoHS, ErP
On/off switch
Yes
VESA mounting
Yes
LAN controller
Intel I211
LED indicators
HDD,Power
Memory channels
Dual-channel
Wi-Fi standard
802.11b,802.11g,Wi-Fi 4 (802.11n)
AC input voltage
100 - 240
BIOS memory size
8 MB
Drivers included
Yes
Housing material
Plastic
Intel® OS Guard
Yes
Intel ARK ID
149090
Memory slots type
SO-DIMM
Power supply type
External AC adapter
Quick start guide
Yes
AC input frequency
50 - 60
Built-in processor
Yes
Intel® Secure Key
Yes
Codename
Whiskey Lake
AC adapter included
Yes
DisplayPort version
1.2
Execute Disable (NX)
Yes
Chipset
Intel SoC
Power cord included
Yes
Graphics card family
Intel
Generation
Intel Core i3-8xxx
Card reader
Yes
Integrated graphics
Yes
Supported memory types
DDR4-SDRAM
CPU configuration (max)
1
Compatible memory cards
SD,SDHC,SDXC
Number of M.2 (M) slots
1
Storage drive interface
Serial ATA III
Combo headphone/mic port
Yes
Intel Flex Memory Access
Yes
Panel mounting interface
75 x 75,100 x 100
AC adapter output current
3.42 A
AC adapter output voltage
19 V
PCI Express slots version
3.0
Long-term availability
No
PCI Express configurations
1x2+2x1,1x4,2x2,4x1
VGA ports
0
Operating temperature
0 - 40
Eco certifications
ENERGY STAR
Intel Clear Video Technology
Yes
Number of power supply units
1
Integrated GPU model
Intel UHD Graphics 620
Storage drive sizes supported
2.5
Supported memory clock speeds
2133,2400,2666
Supported storage drive types
HDD & SSD
Intel® Turbo Boost Technology
2.0
Thermal monitoring
Yes
Intel® Smart Response Technology
Yes
Linux distributions supported
Yes
Operating humidity
10 - 90
Copper ethernet cabling technology
10BASE-T,100BASE-TX,1000BASE-T
Trusted Execution (TXT)
No
Number of storage drives supported
1
SpeedStep power scaling
Yes
Intel® Quick Sync Video Technology
Yes
Windows versions supported
Windows 10
Virtualization (VT-x)
Yes
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
