Shuttle logo MPN: P52U3

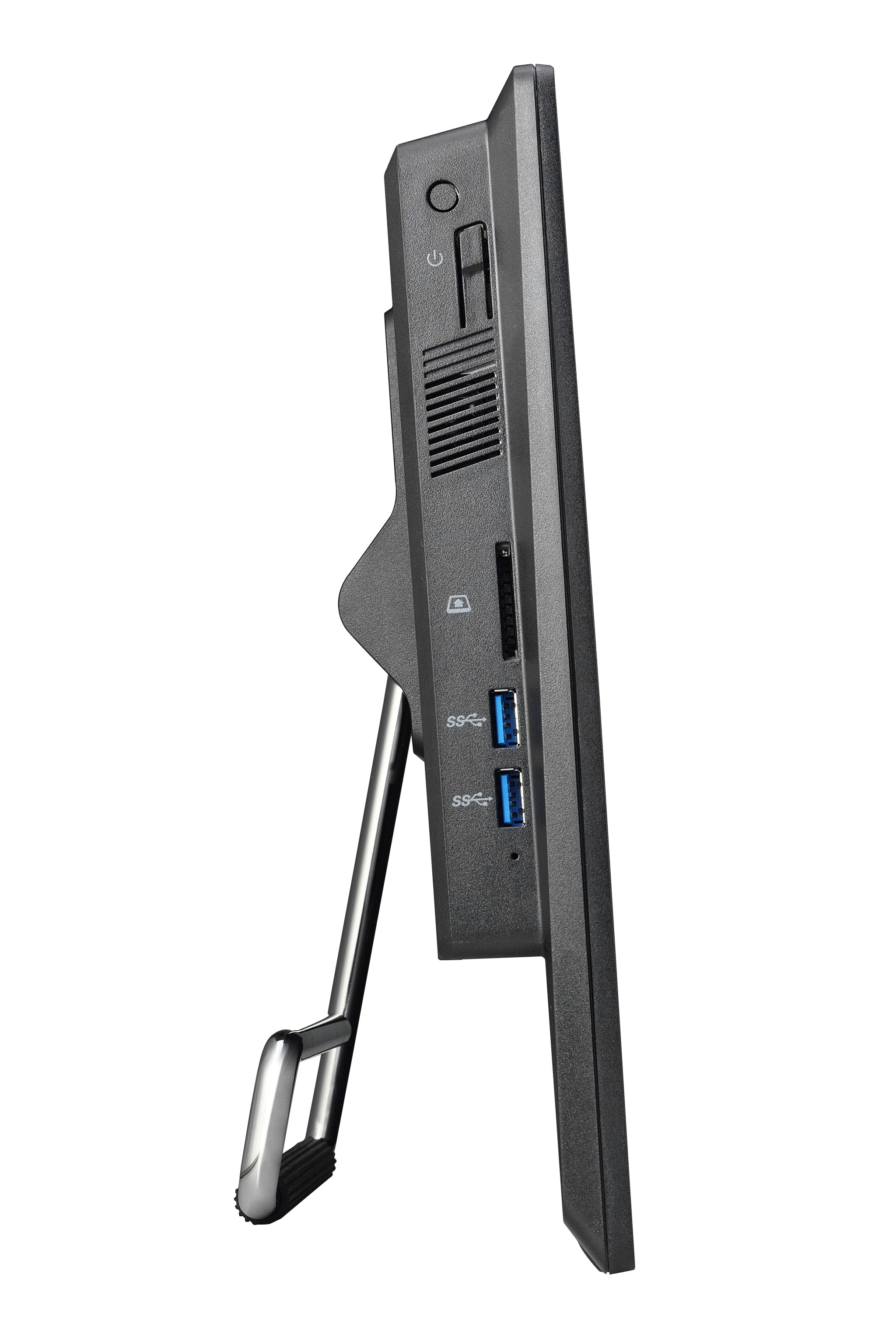

Shuttle All-In-One Barebone P52U3, 15.6″ Multi-Touch-Screen, Intel Core i3-10110U, Wifi, IP54, fanless, 24/7 permanent operation

Released: Not on record
Price not yet available US · Amazon.com

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

ECC support
N
Depth
39.8 mm
Wi-Fi
N
Width
393.6 mm
Height
272.5 mm
Weight
3250 g
Display type
Full HD
Non-ECC
Y
64-bit support
Y
View 106 specifications
1 / 9
Shopping actions
Check price on Amazon

Overview

Shuttle's range of All-in-One PCs yet comprises models with three different screen sizes: 11.6", 15.6" and 19.5". The P52U series model with a capacitive 15.6" multi-touchscreen offers Full-HD resolution. An Intel Ultra-Low-Voltage (ULV) processor makes for high computing power while it keeps energy consumption at a low level. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

Technical Specifications

Processor

9 SPECS
Cache
4 MB
Cores
2
Model
i3-10110U
Processor line
Intel Core i3
Threads
4
Clock speed
2.1 GHz
Process node
14 nm
CPU brand
Intel
Boost clock
4.1 GHz

Memory

4 SPECS
ECC support
No
Voltage
1.2 V
Memory slots
2
Max memory
64 GB

Logistics & Packaging

2 SPECS
Package weight
4500 g
Country of origin
China

Graphics

1 SPEC
Max resolution
3840 x 2160

Physical

7 SPECS
Depth
39.8 mm
Width
393.6 mm
Height
272.5 mm
Weight
3250 g
Product type
All-in-One PC barebone
Colour
Black
Customs (HS) code
84714100

Display

5 SPECS
Display type
Full HD
Panel type
IPS
Touchscreen
Yes
Screen size
15.6"
Resolution
1920 x 1080

Ports & Connectivity

3 SPECS
HDMI ports
1
USB 2.0 ports
2
Ethernet ports
1

Cooling

1 SPEC
Cooling type
Passive

General

74 SPECS
Wi-Fi
No
Non-ECC
Yes
64-bit support
Yes
BIOS type
AMI
DC-in jack
Yes
Idle power states
Yes
Aspect ratio
16:9
Chassis type
All-in-one
Ethernet LAN
Yes
HDMI version
1.4b
Intel TSX-NI
No
Power supply
65
Microphone input
Yes
On/off switch
Yes
VESA mounting
Yes
LAN controller
Intel I219
LED indicators
HDD,Power
Built-in camera
Yes
Security lock slot
Yes
Memory channels
Dual-channel
RMS power
2
AC input voltage
100 - 240
Drivers included
Yes
Headphone outputs
1
Memory slots type
SO-DIMM
Power supply type
External AC adapter
Quick start guide
Yes
AC input frequency
50 - 60
Built-in processor
Yes
Display brightness
250
Number of speakers
2
AC adapter included
Yes
Built-in speaker(s)
Yes
Execute Disable (NX)
Yes
Chipset
Intel SoC
Power cord included
Yes
Cable lock slot type
Kensington
Graphics card family
Intel
Generation
Intel Core i3-10xxx
Card reader
Yes
Integrated graphics
Yes
Supported memory types
DDR4-SDRAM
CPU configuration (max)
1
Compatible memory cards
SD,SDHC,SDXC
Number of M.2 (M) slots
1
Storage drive interface
M.2,Serial ATA III
Intel Flex Memory Access
Yes
Panel mounting interface
100 x 100
AC adapter output current
3.42 A
AC adapter output voltage
19 V
Long-term availability
No
Operating system
No
VGA ports
1
Operating temperature
0 - 40
Intel Clear Video Technology
Yes
Number of power supply units
1
Integrated GPU model
Intel UHD Graphics
Storage drive sizes supported
2.5
Supported memory clock speeds
2666,3200
Supported storage drive types
HDD & SSD
Trusted Platform Module (TPM)
Yes
Number of processors supported
1
Linux distributions supported
Yes
Operating humidity
10 - 90
Trusted Execution (TXT)
No
Number of storage drives supported
2
SpeedStep power scaling
Yes
Windows versions supported
Windows 10,Windows 11
Trusted Platform Module (TPM) version
2.0
Virtualization (VT-x)
Yes
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Directed I/O virtualization (VT-d)
Yes
Powered by Icecat

Market Value History

Price history not started yet

Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.

Sources

Icecat product datasheet

Product lifecycle

In production

Still listed as on-market by the manufacturer — actively sold and supported.

Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
