FSP logo MPN: VIC-850GM

FSP VIC-850GM power supply unit 850 W 20+4 pin ATX ATX Black

Released: Not on record
Price not yet available US · Amazon.com

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

Wattage
850 W
Efficiency rating
80 PLUS Gold
Depth
150 mm
Width
150 mm
Height
86 mm
Purpose
PC
Efficiency
90
Cabling type
Fully-Modular
Cooling type
Active
View 39 specifications
1 / 6
Shopping actions
Check price on Amazon

Overview

The Future is Now:ATX 3.1 & PCIe Gen 5.1 Ready
Following the latest ATX 3.1 & PCIe Gen 5.1 regulation, support up to 200% power excursion and with the new interface of PCIe 12V-2x6 connector to ensure peak performance with future hardware upgrades.

High Efficiency in Gold-certified
Certified by world-class organizations 80 PLUS® gold certification for lower power loss, less heat, and quieter operation

+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilize the output voltage to ensure system stability.

+12V Single Rail Design
Designed for power - intensive graphics cards provides strong power to any overloading condition.

Durable 420V Main Capacitor
The main capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

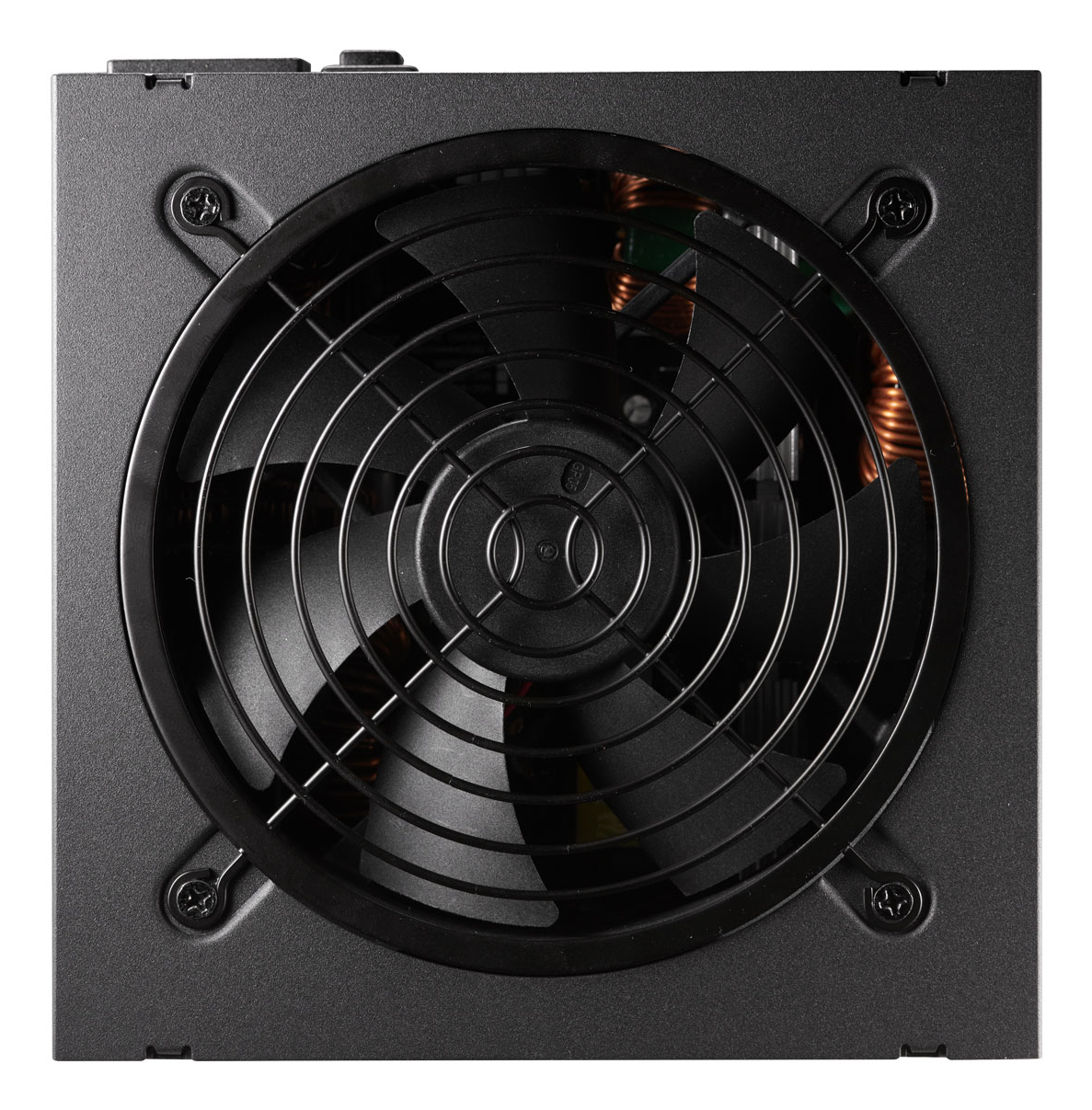

Quiet and Long-lasting Fan
Built with optimized thermal solution and an advanced 120mm fan for cooler components and quieter operation.

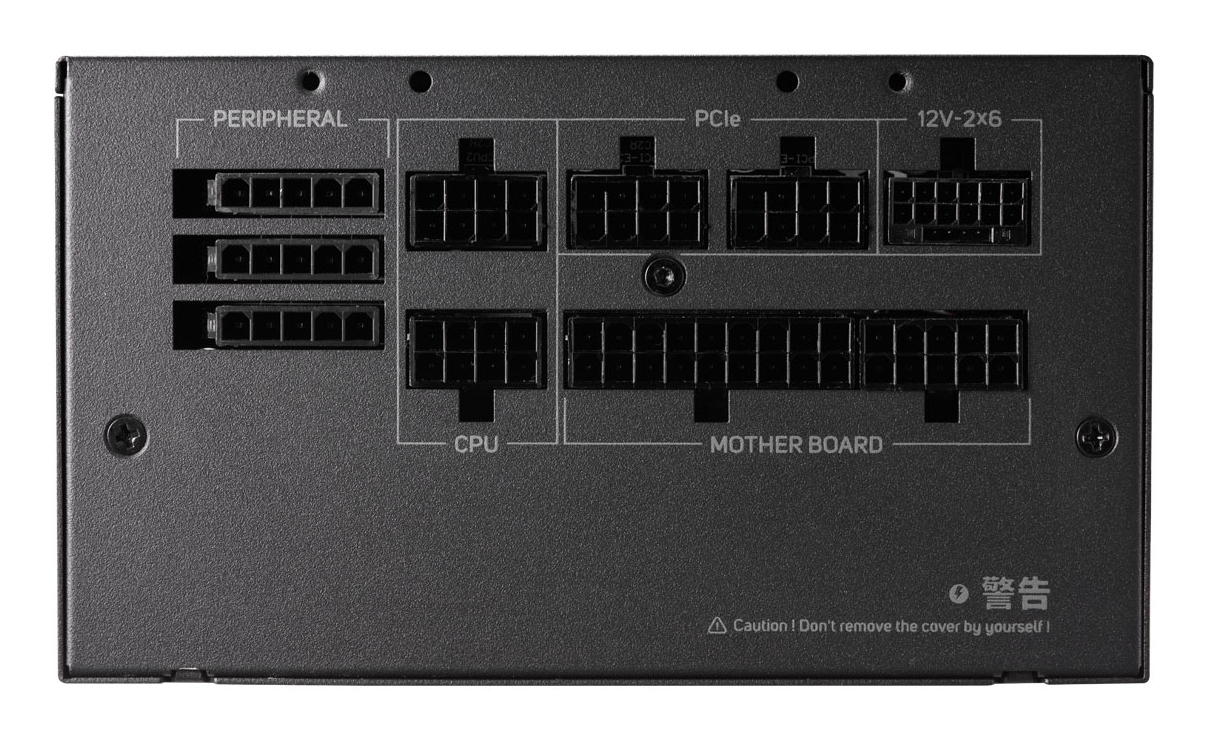

Fully Modular Cabling Design
The VIC GM offers hassle-free installation by letting users connect only the necessary cables, which enhances airflow and minimizes cable clutter inside the system.

Strong Power Supply for CPU Needs
This power supply is equipped with dual 8-pin PCIe power connectors, delivering ample 12V power to meet the demands of high-performance CPUs.

Thermal Resilience: Power You Can Depend On
The VIC GM power supply is engineered for reliable power delivery, even in temperatures up to 40°C. Count on stable performance for your everyday computing, ensuring system longevity without heat concerns.

Complete Protection
Our comprehensive circuit shields your valuable components from harm.

Technical Specifications

Physical

4 SPECS
Depth
150 mm
Width
150 mm
Height
86 mm
Colour
Black

Power

2 SPECS
Wattage
850 W
Efficiency rating
80 PLUS Gold

Cooling

2 SPECS
Cooling type
Active
Fan size
120

General

31 SPECS
Purpose
PC
Efficiency
90
Cabling type
Fully-Modular
Power factor
0.9
Input current
10.5 - 5
On/off switch
Yes
AC input voltage
100 - 240
AC input frequency
50/60
Bearing type
HYB
Combined power (+5V)
100
Combined power (+12V)
850
Combined power (-12V)
3.6
CPU power cable length
700
Combined power (+3.3V)
100
Combined power (+5Vsb)
15
SATA power cable length
500,155
Max output current (+5V)
20
Max output current (+12V)
70.83
Max output current (-12V)
0.3
Power protection features
Over current,Over voltage,Short circuit,Over power,Under voltage,Surge & inrush protection (SIP),No load operation
Max output current (+3.3V)
20
Max output current (+5Vsb)
3
Motherboard power connector
20+4 pin ATX
CPU power connector (4+4 pin)
Yes
Motherboard power cable length
600
Number of SATA power connectors
8
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
Peripheral (Molex) power cable length
155,500
PCI Express power connectors (6+2 pin)
3
Peripheral (Molex) power connectors (4-pin)
4
