MPN:
PPA5007101

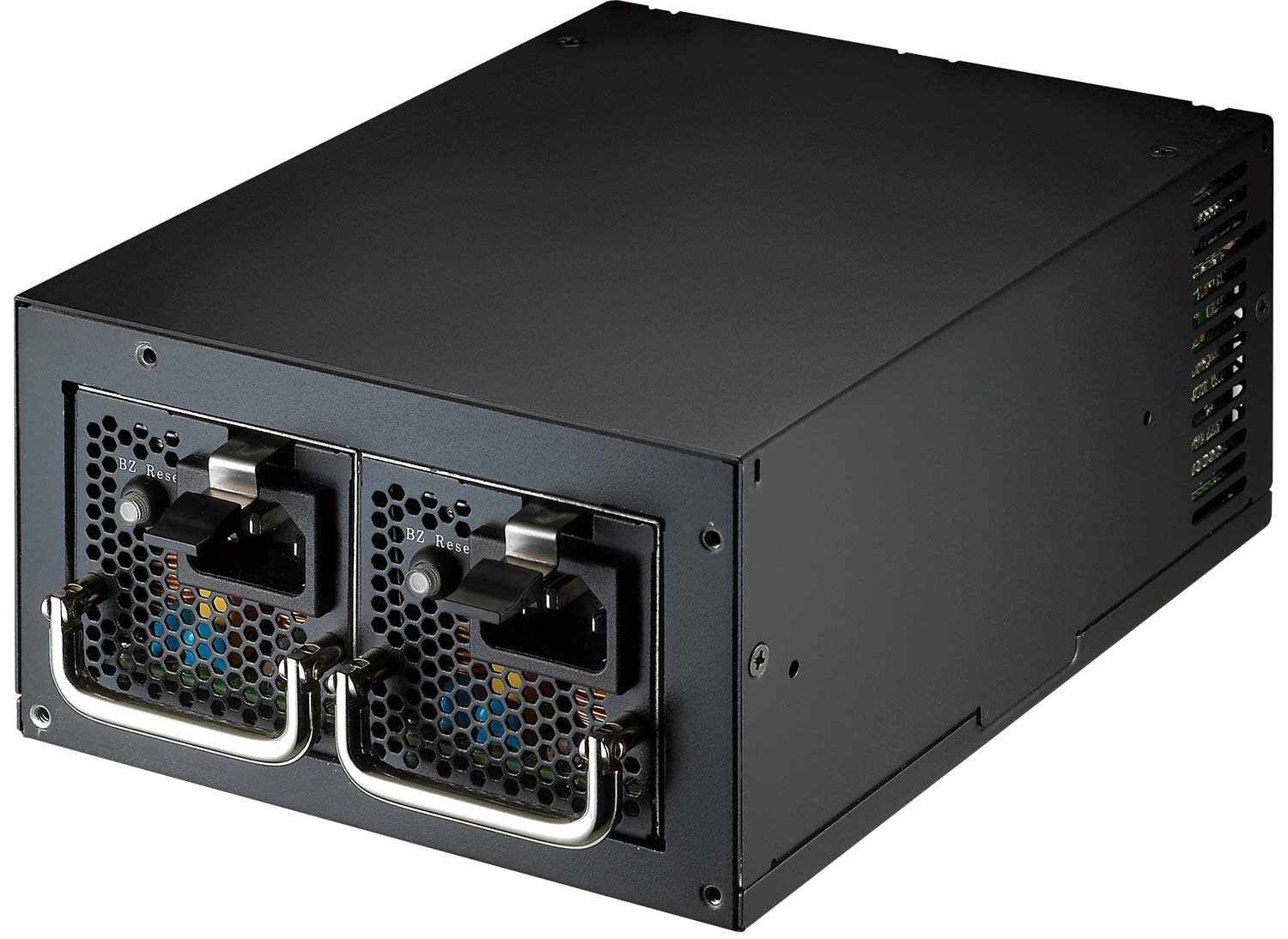

FSP Twins power supply unit 500 W 24-pin ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 500 W
- Efficiency rating
- 80 PLUS Gold
- Depth
- 190 mm
- Width
- 150 mm
- Height
- 86 mm
- Manual included
- Y
- Purpose
- Server
- Efficiency
- 90
- Cabling type
- Non-Modular
1 / 6
Shopping actions
Overview
The FSP Twins power supply unit 500 W 24-pin ATX Black features 500 W output, 80 PLUS 80 PLUS Gold efficiency, a 40 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
190 mm
Width
150 mm
Height
86 mm
Colour
Black
Cooling
3 SPECS
Cooling type
Active
Fan size
40
Number of fans
2
Power
2 SPECS
Wattage
500 W
Efficiency rating
80 PLUS Gold
General
28 SPECS
Manual included
Yes
Purpose
Server
Efficiency
90
Cabling type
Non-Modular
Packaging type
Box
Input current
8
Warranty card
Yes
AC input voltage
100 - 240
AC input frequency
50 - 60
Combined power (+5V)
130
Combined power (+3.3V)
130
Max output current (+5V)
20
Max output current (-12V)
0.5
Power protection features
Over current,Over voltage,Short circuit
Max output current (+12V1)
16
Max output current (+12V2)
16
Max output current (+12V3)
16
Max output current (+3.3V)
20
Max output current (+5Vsb)
3
Floppy disk drive connector
Yes
Motherboard power connector
24-pin ATX
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Number of SATA power connectors
6
Power Factor Correction (PFC) type
Active
Redundant power supply (RPS) support
Yes
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
2
