MPN:
PPA12A0600

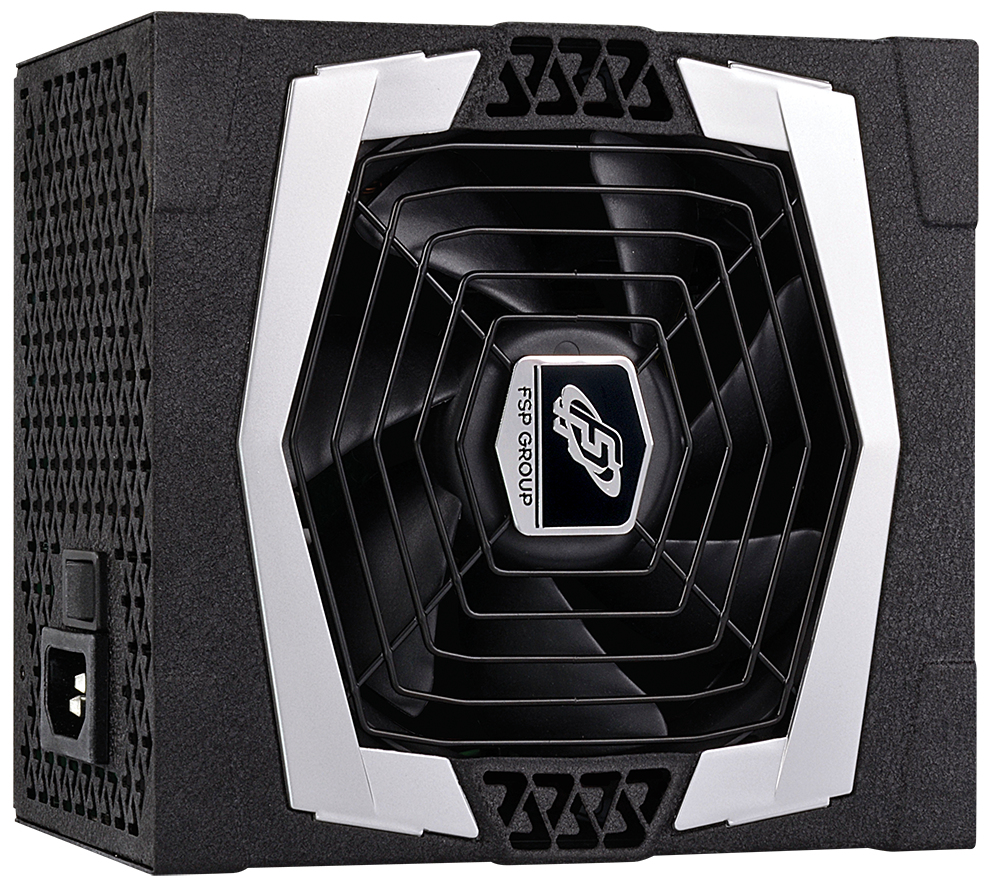

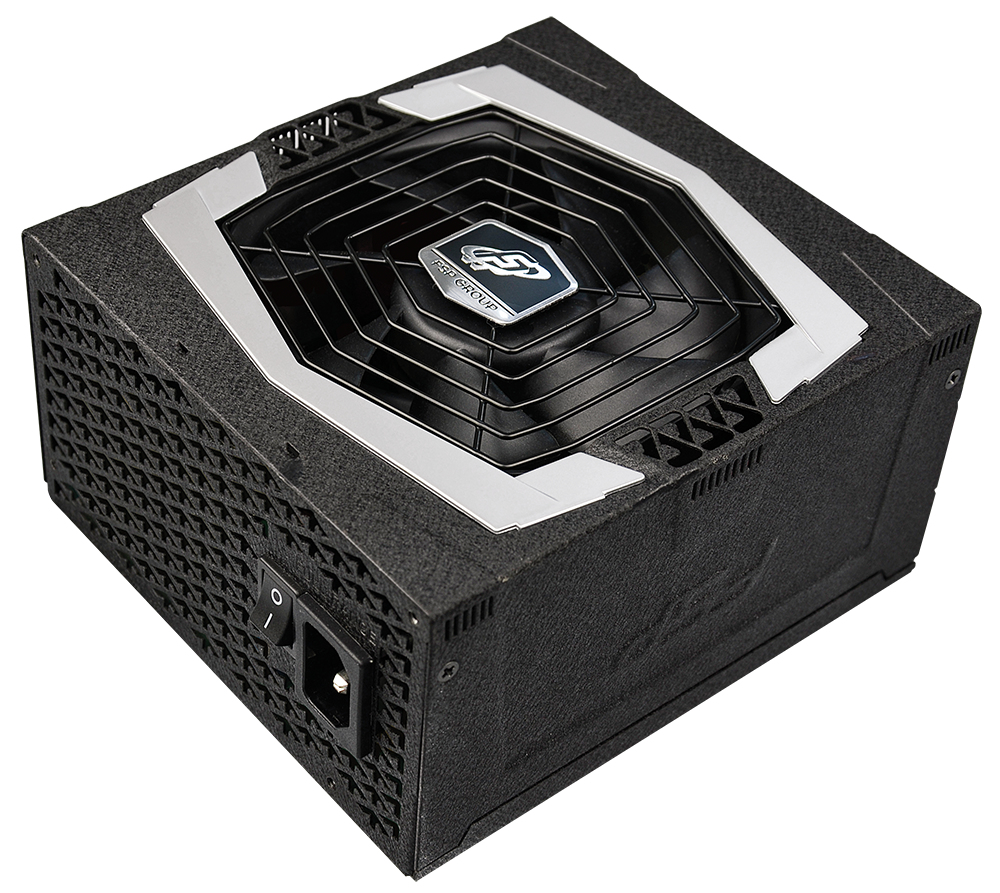

FSP PT-1200FM power supply unit 1200 W 24-pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 1200 W
- Efficiency rating
- 80 PLUS Platinum
- Depth
- 190 mm
- Width
- 150 mm
- Height
- 86 mm
- Safety
- V
- Purpose
- PC
- Efficiency
- 92
- ATX version
- 2.31
1 / 4
Shopping actions
Overview
The FSP PT-1200FM power supply unit 1200 W 24-pin ATX ATX Black features 1200 W output, 80 PLUS 80 PLUS Platinum efficiency, a 135 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
190 mm
Width
150 mm
Height
86 mm
Colour
Black
Cooling
3 SPECS
Cooling type
Active
Fan size
135
Number of fans
1
Power
2 SPECS
Wattage
1200 W
Efficiency rating
80 PLUS Platinum
General
36 SPECS
Safety
V
Purpose
PC
Efficiency
92
ATX version
2.31
EPS version
2.92
Noise level
21
Cabling type
Fully-Modular
Fan location
Side
On/off switch
Yes
AC input voltage
100 - 240
AC input frequency
50 - 60
Combined power (+5V)
160
Combined power (+12V)
1200
Combined power (-12V)
24.6
Combined power (+3.3V)
160
Combined power (+5Vsb)
24.6
Compliance certificates
RoHS
Max output current (+5V)
25
Max output current (+12V)
100
Max output current (-12V)
0.8
Power protection features
Over current,Over voltage,Short circuit
Max output current (+3.3V)
25
Max output current (+5Vsb)
3

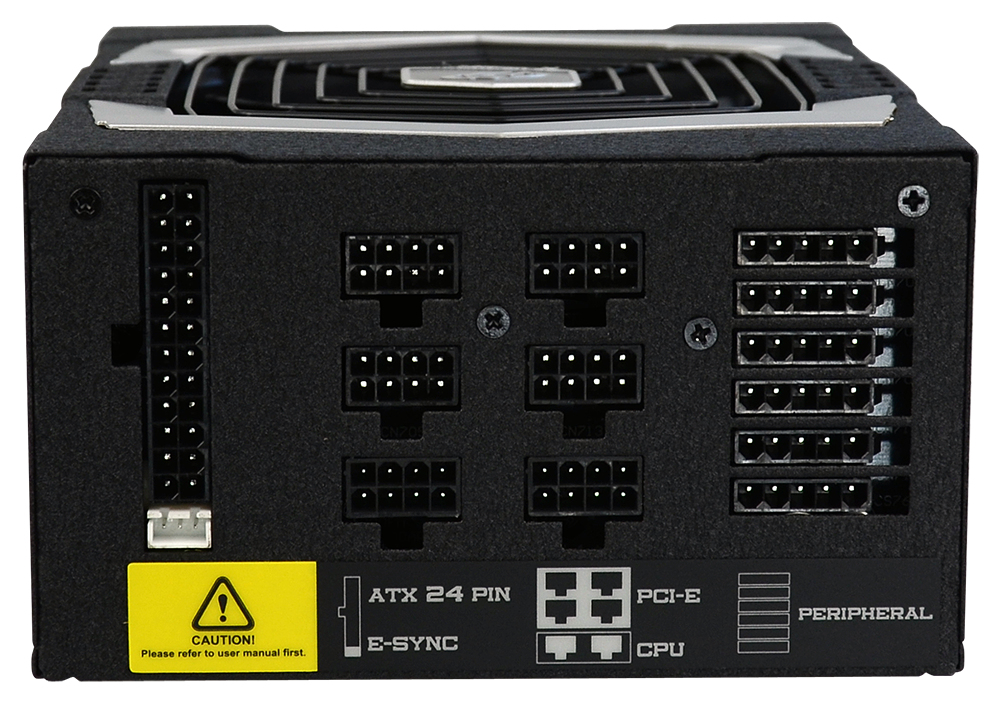

Floppy disk drive connector
Yes
Motherboard power connector
24-pin ATX
Eco certifications
ENERGY STAR
ATX Power connector (24-pin)
Yes
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Maximum input current (@110V)
+12V,+3.3V,+5V,+5Vsb,-12V
Number of SATA power connectors
13
Omnigrid (2-pin) power connectors
1
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
8
Peripheral (Molex) power connectors (4-pin)
6
