MPN:
PPA4509700

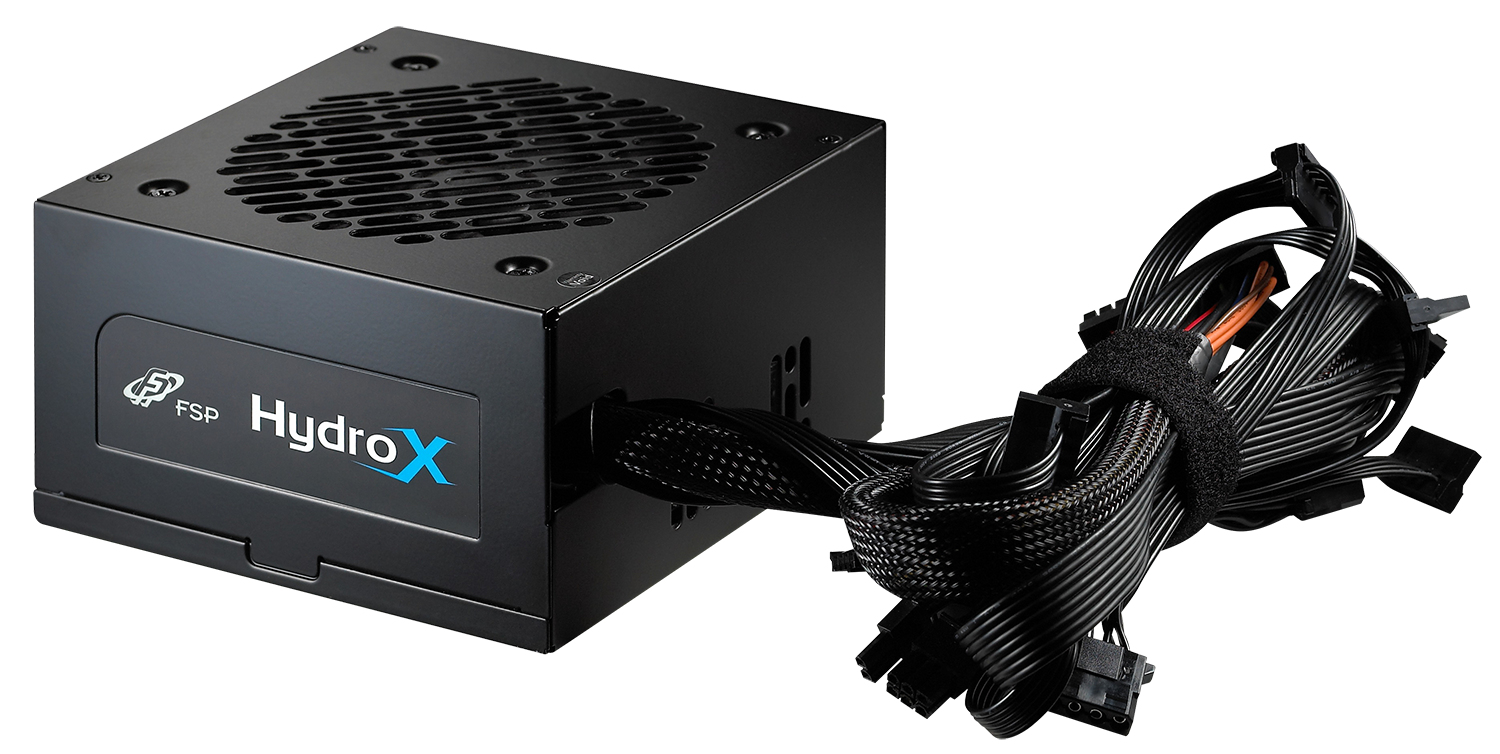

FSP PPA4509700 power supply unit 450 W 24-pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 450 W
- Efficiency rating
- 80 PLUS Gold
- Depth
- 150 mm
- Width
- 150 mm
- Height
- 86 mm
- Purpose
- PC
- Efficiency
- 90
- Cabling type
- Non-Modular
- Input current
- 4 - 8
1 / 6
Shopping actions
Overview
The FSP PPA4509700 power supply unit 450 W 24-pin ATX ATX Black features 450 W output and 80 PLUS 80 PLUS Gold efficiency. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
150 mm
Width
150 mm
Height
86 mm
Colour
Black
Power
2 SPECS
Wattage
450 W
Efficiency rating
80 PLUS Gold
General
28 SPECS
Purpose
PC
Efficiency
90
Cabling type
Non-Modular
Input current
4 - 8
AC input voltage
100 - 240
AC input frequency
50 - 60
Bearing type
Ball bearing
Combined power (+5V)
120
Combined power (+12V)
450
Combined power (-12V)
3.6
Combined power (+3.3V)
120
Combined power (+5Vsb)
12.5
Max output current (+5V)
20
Max output current (+12V)
37.5
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Short circuit
Max output current (+3.3V)
20
Max output current (+5Vsb)
2.5
Floppy disk drive connector
Yes
Motherboard power connector
24-pin ATX
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Noise level (quiet mode, 50%)
13
Number of SATA power connectors
6
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
2
