MPN:
PPA7003201

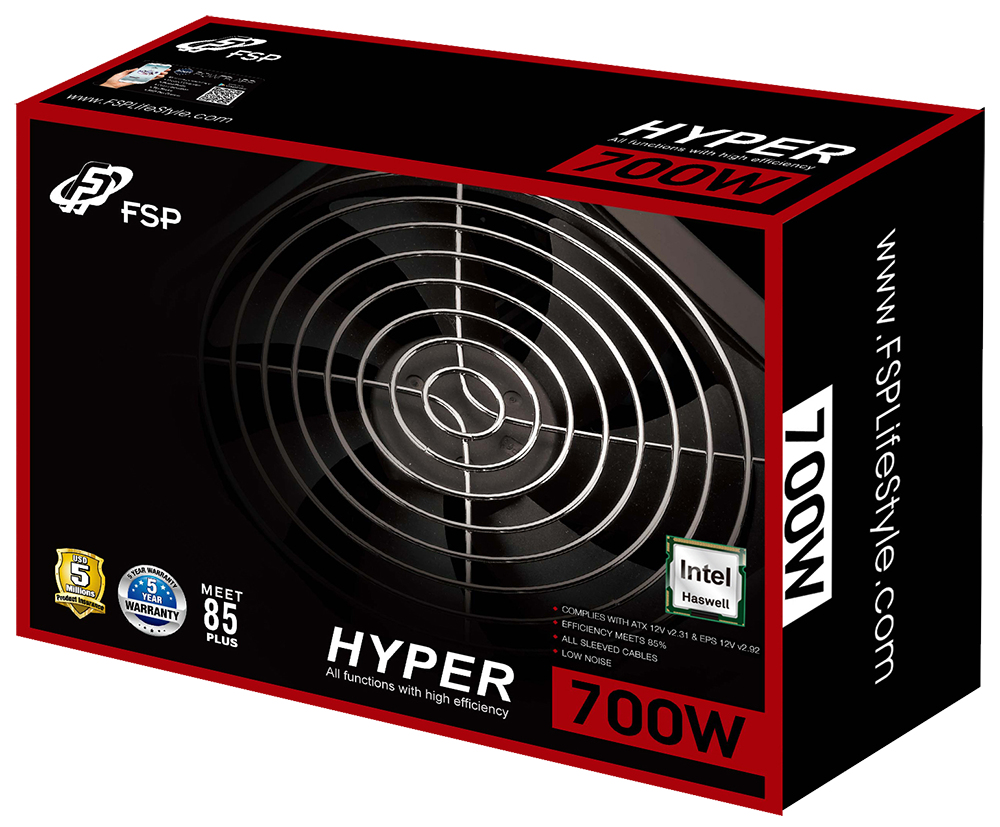

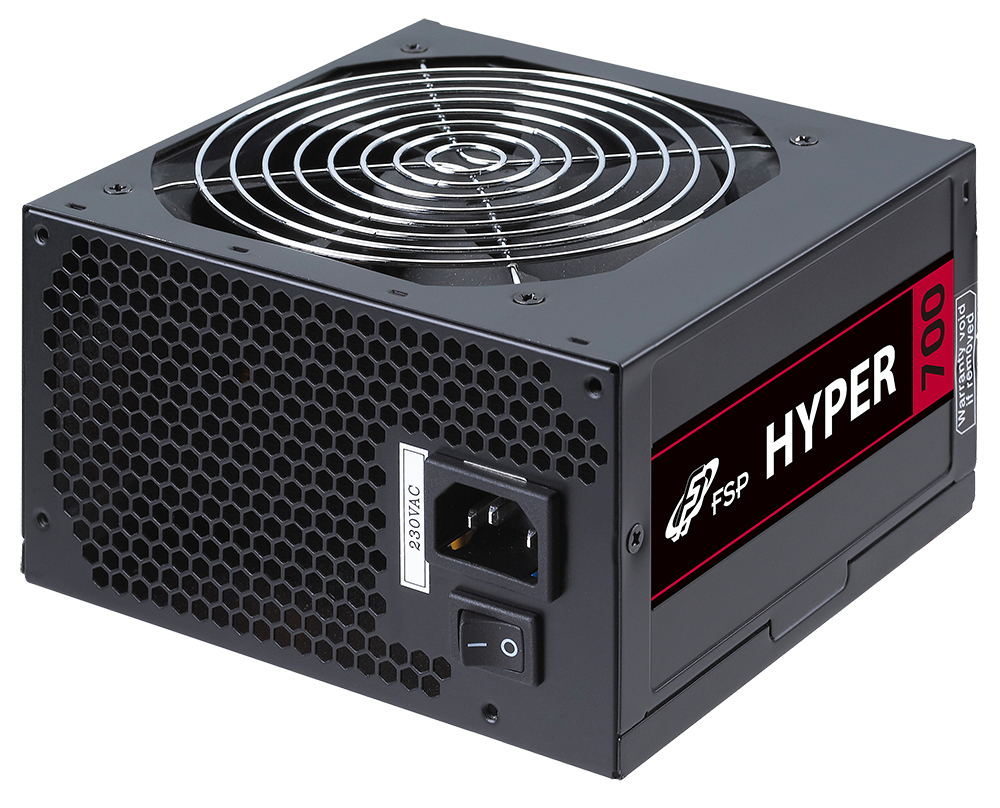

FSP Hyper S power supply unit 700 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 700 W
- Depth
- 150 mm
- Width
- 140 mm
- Height
- 86 mm
- Safety
- CE, CB, TUV, C-tick
- Weight
- 1800 g
- Purpose
- PC
- Efficiency
- 85
- ATX version
- 2.31
1 / 3
Shopping actions
Overview
The FSP Hyper S power supply unit 700 W 20+4 pin ATX ATX Black features 700 W output, a 120 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
150 mm
Width
140 mm
Height
86 mm
Weight
1800 g
Colour
Black
Cooling
3 SPECS
Cooling type
Active
Fan size
120
Number of fans
1
Power
1 SPEC
Wattage
700 W
General
35 SPECS
Safety
CE, CB, TUV, C-tick
Purpose
PC
Efficiency
85
ATX version
2.31
EPS version
2.92
Cabling type
Non-Modular
Fan location
Top
Power factor
0.99
Input current
5
AC input voltage
200 - 240
AC input frequency
50 - 60
Combined power (+5V)
150
Combined power (+12V)
636
Combined power (-12V)
18.6
PCI Express connector
Yes
Combined power (+3.3V)
150
Combined power (+5Vsb)
18.6
Max output current (+5V)
20
Max output current (+12V)
53
Max output current (-12V)
0.3
Power protection features
Over current,Over voltage,Short circuit
Max output current (+3.3V)
20
Max output current (+5Vsb)
3
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Maximum input current (@110V)
+12V,+3.3V,+5V,+5Vsb,-12V
Noise level (quiet mode, 50%)
19
ATX power connector (20+4 pin)
Yes
Number of SATA power connectors
8
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
2
