MPN:
PPA6503001

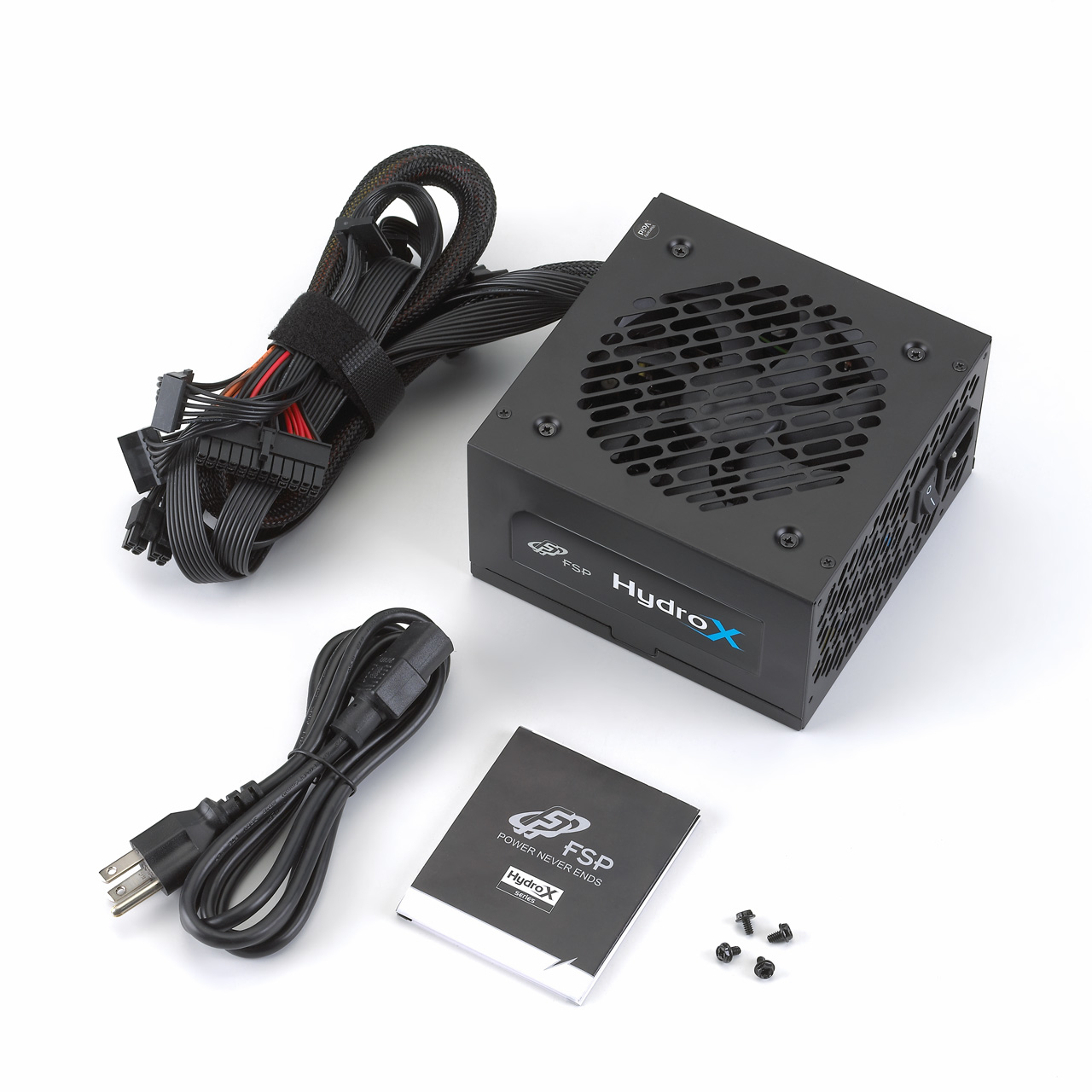

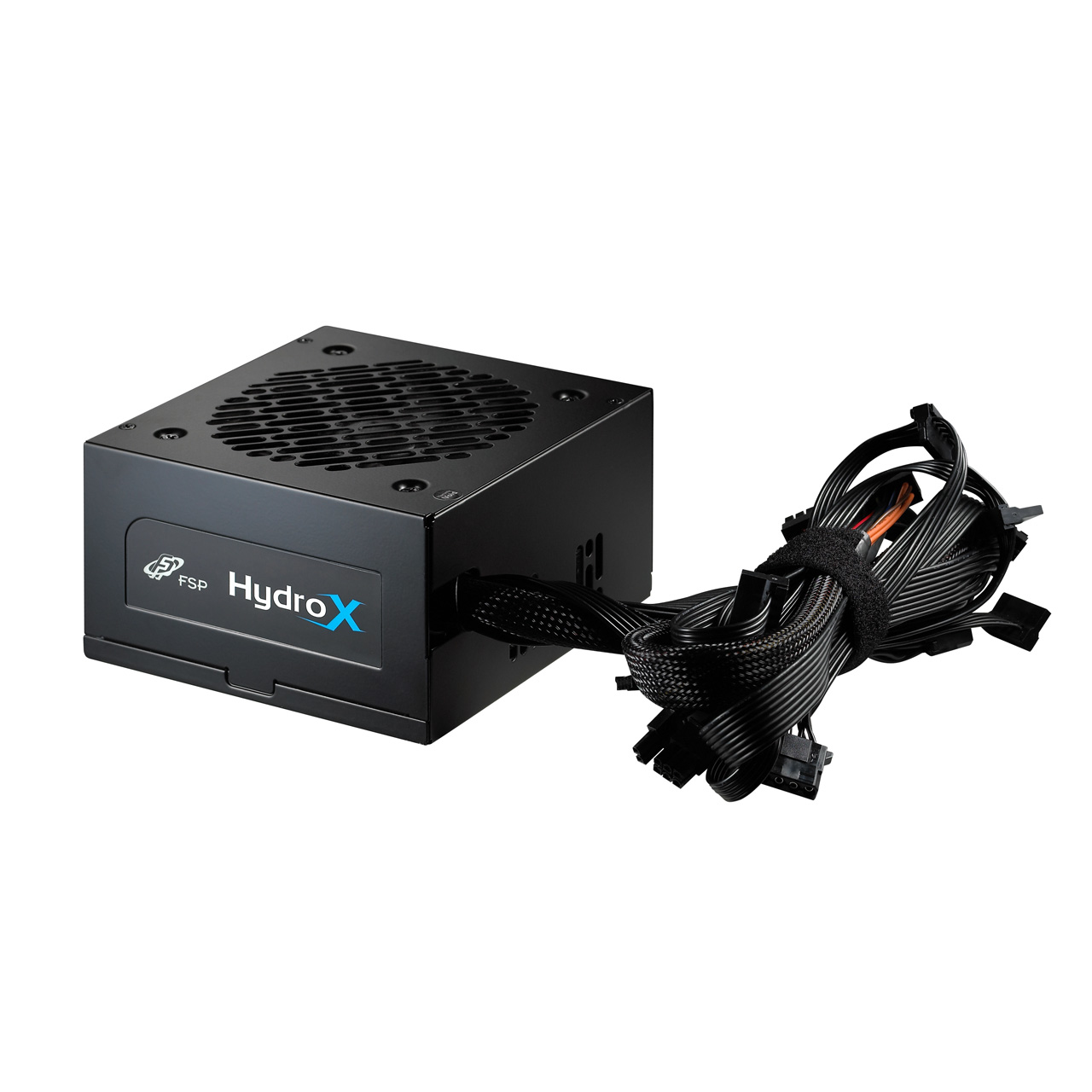

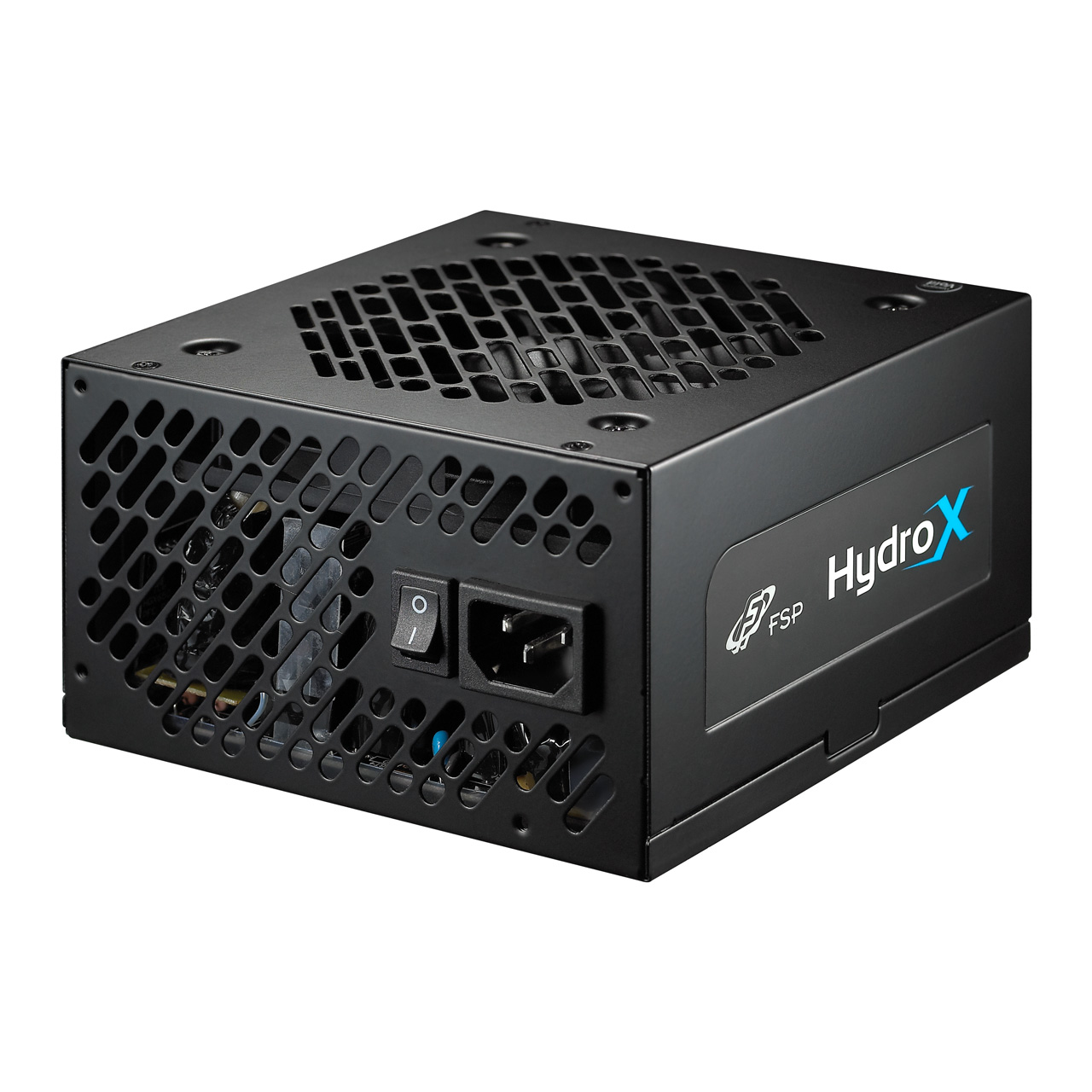

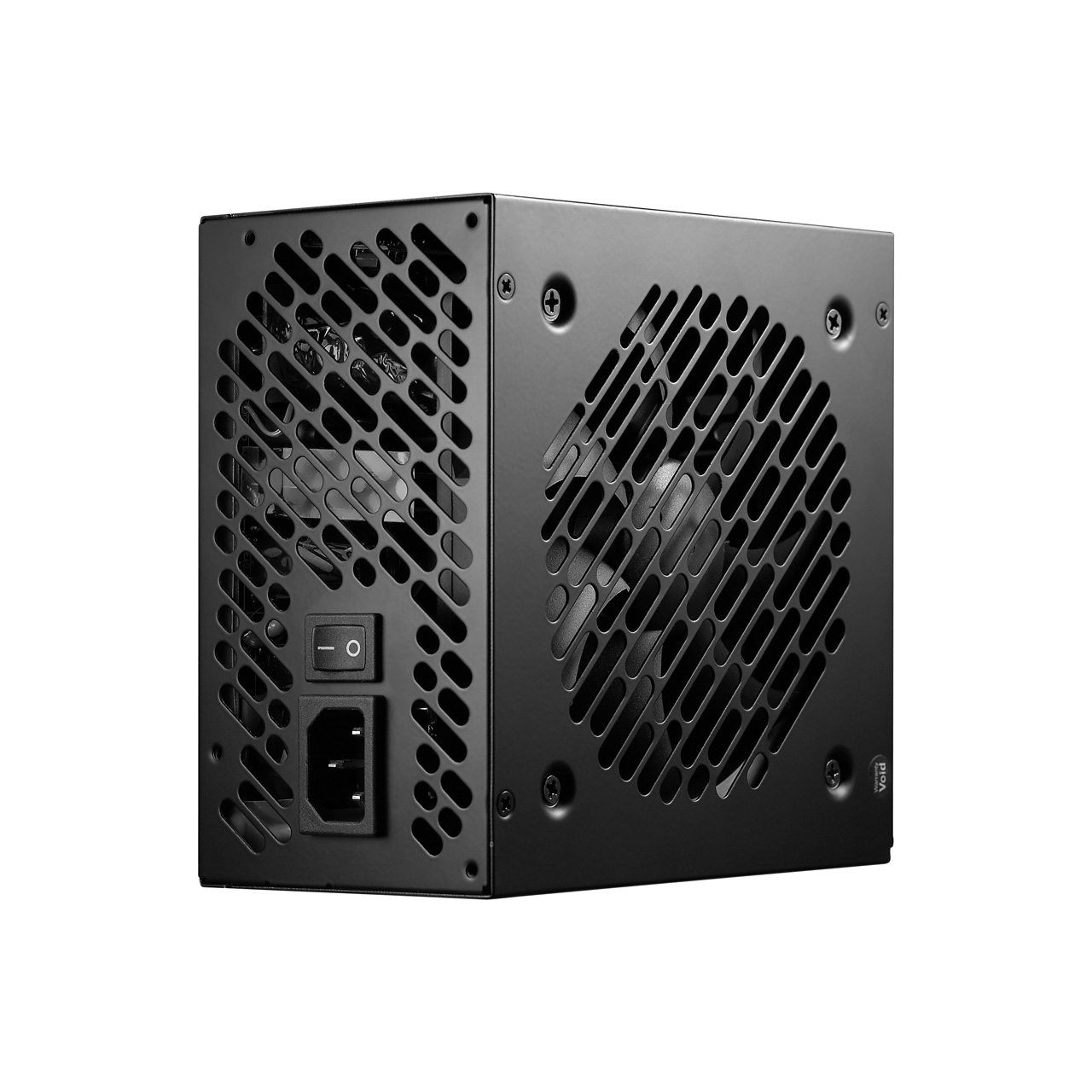

FSP Hydro X power supply unit 650 W 24-pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 650 W
- Efficiency rating
- 80 PLUS Gold
- Depth
- 150 mm
- Width
- 150 mm
- Height
- 86 mm
- Weight
- 2080 g
- Purpose
- PC
- Efficiency
- 90
- Noise level
- 40
1 / 4
Shopping actions
Overview
The FSP Hydro X power supply unit 650 W 24-pin ATX ATX Black features 650 W output, 80 PLUS 80 PLUS Gold efficiency and a 120 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
150 mm
Width
150 mm
Height
86 mm
Weight
2080 g
Colour
Black
Power
2 SPECS
Wattage
650 W
Efficiency rating
80 PLUS Gold
Cooling
2 SPECS
Fan size
120
Number of fans
1
General
31 SPECS
Purpose
PC
Efficiency
90
Noise level
40
Cabling type
Non-Modular
Power factor
0.9
On/off switch
Yes
AC input voltage
100 - 240
AC input frequency
50 - 60
Bearing type
Ball bearing
Combined power (+5V)
120
Combined power (+12V)
650
Combined power (-12V)
3.6
Combined power (+3.3V)
120
Combined power (+5Vsb)
12.5
Max output current (+5V)
20
Max output current (+12V)
54.16
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit
Max output current (+3.3V)
20
Max output current (+5Vsb)
2.5
Motherboard power connector
24-pin ATX
Operating temperature
0 - 40
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Maximum input current (@110V)
10
Maximum input current (@220V)
5
Number of SATA power connectors
10
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
2
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
