MPN:
PPA10A3610

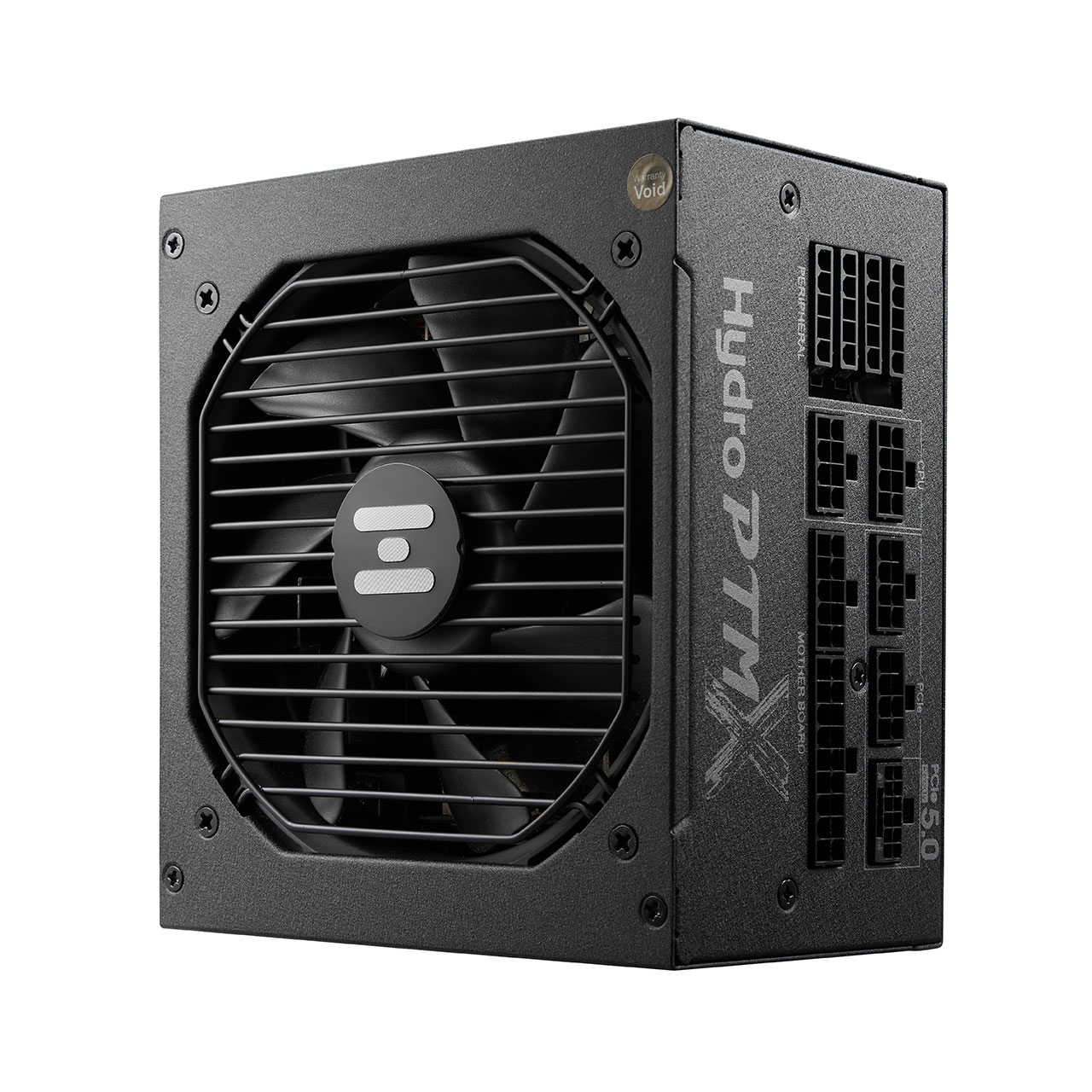

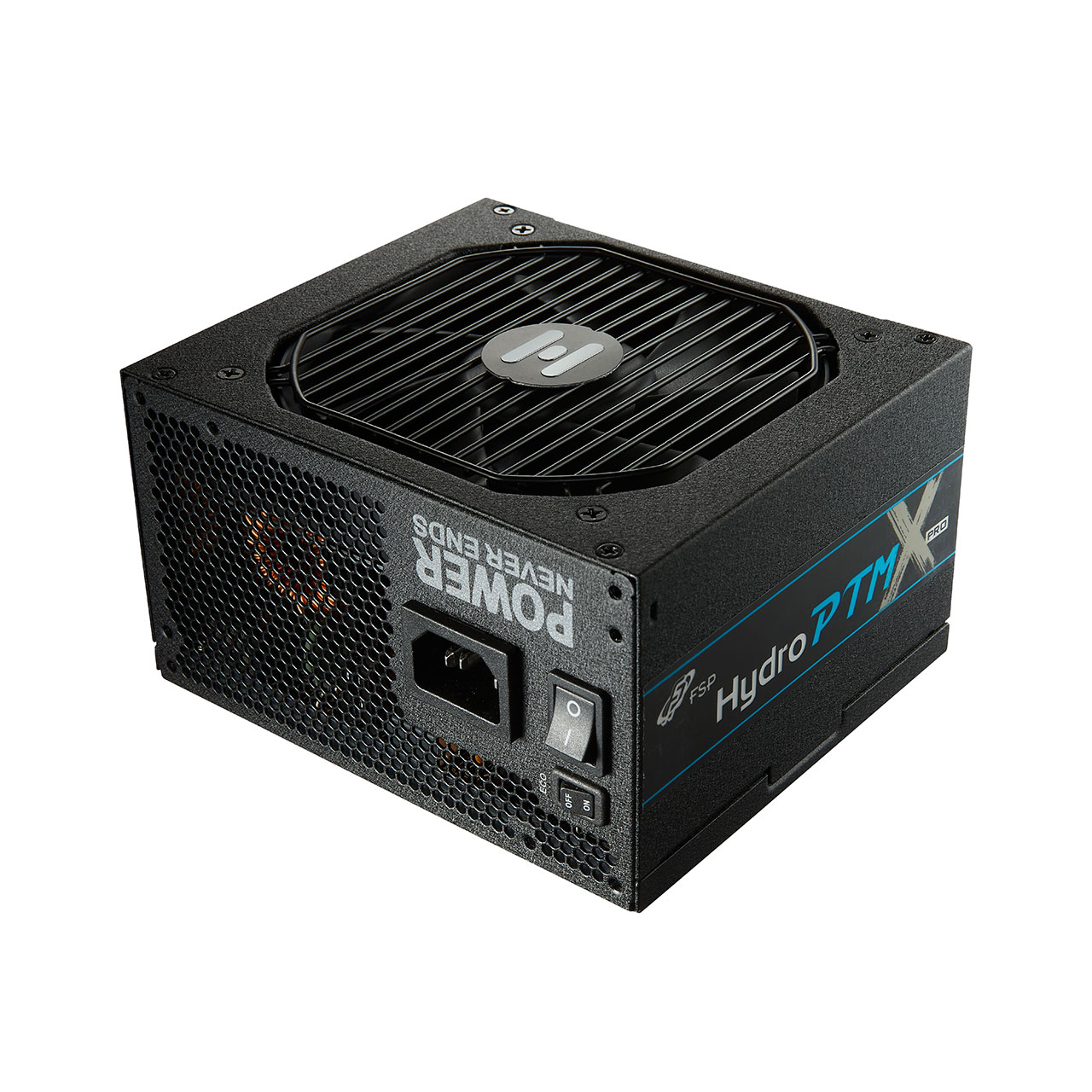

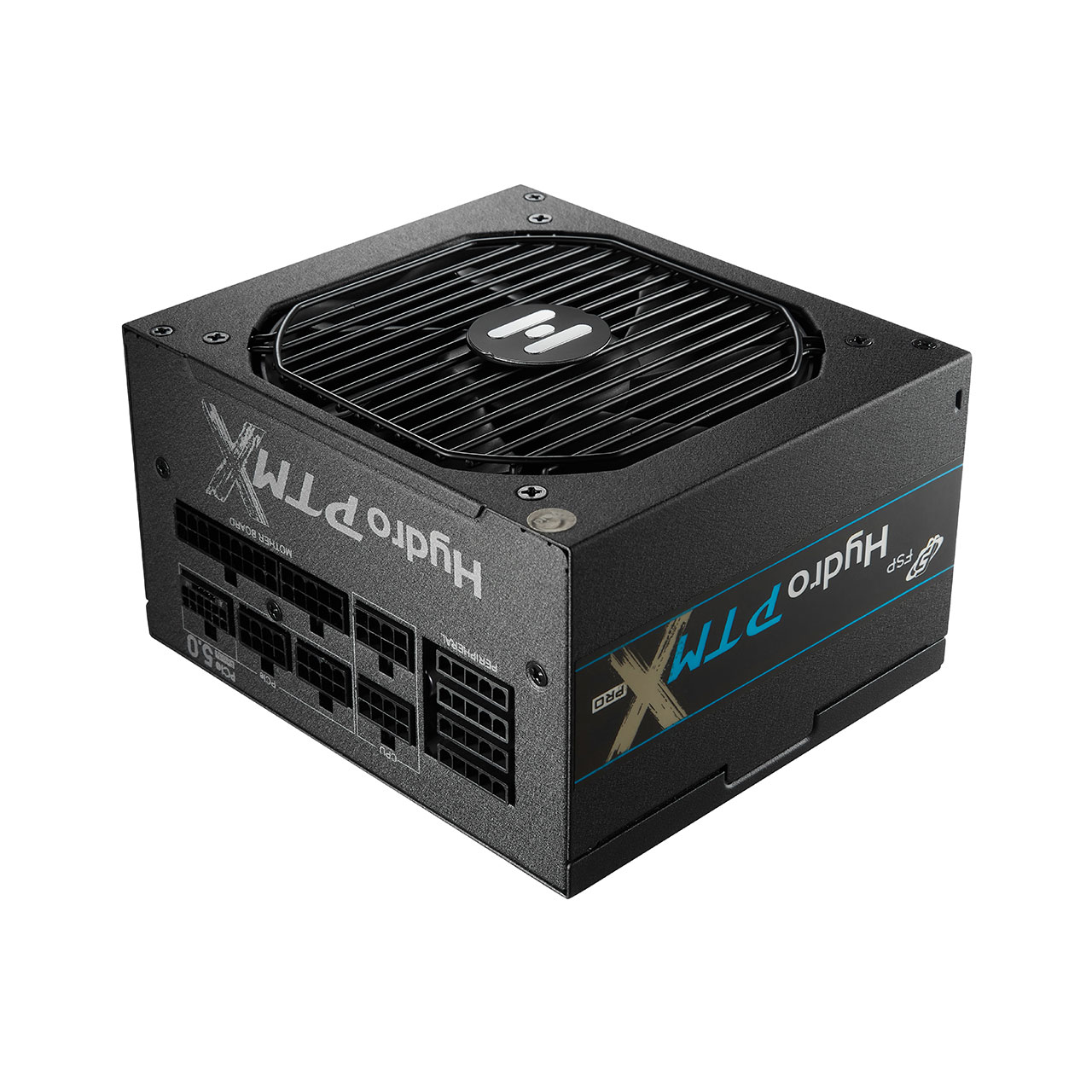

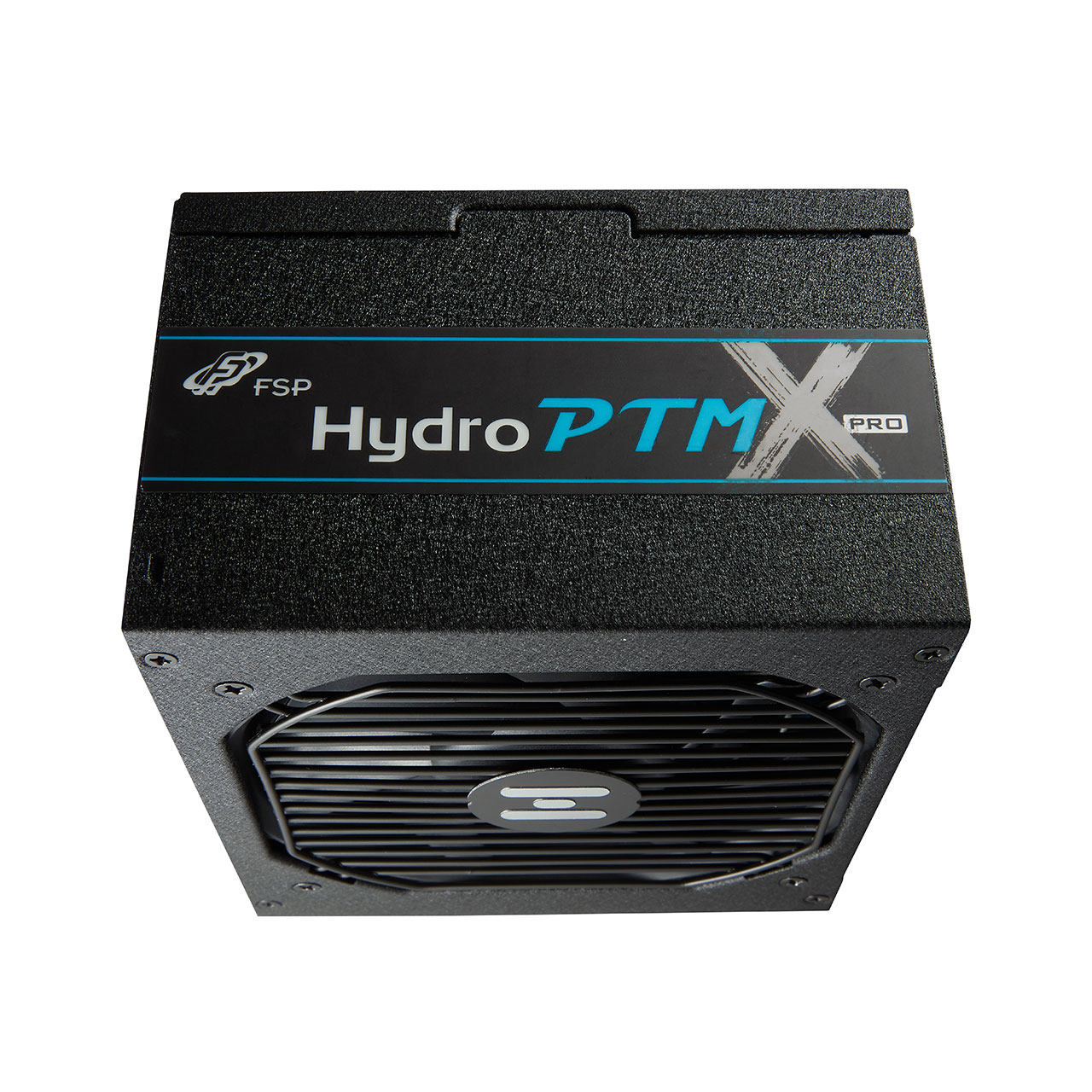

FSP Hydro PTM X PRO ATX3.0(PCIe5.0) 1000W power supply unit 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 1000 W
- Efficiency rating
- 80 PLUS Titanium
- Depth
- 130 mm
- Width
- 150 mm
- Height
- 86 mm
- Purpose
- PC
- Efficiency
- 92
- ATX version
- 3.0
- EPS version
- 2.92
1 / 6
Shopping actions
Overview
The FSP Hydro PTM X PRO ATX3.0(PCIe5.0) 1000W power supply unit 20+4 pin ATX ATX Black features 1000 W output, 80 PLUS 80 PLUS Titanium efficiency, a 120 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
130 mm
Width
150 mm
Height
86 mm
Colour
Black
Cooling
3 SPECS
Cooling type
Active
Fan size
120
Number of fans
1
Power
2 SPECS
Wattage
1000 W
Efficiency rating
80 PLUS Titanium
General
38 SPECS
Purpose
PC
Efficiency
92
ATX version
3.0
EPS version
2.92
Cabling type
Fully-Modular
Fan location
Top
Power factor
0.9
Input current
13-6
On/off switch
Yes

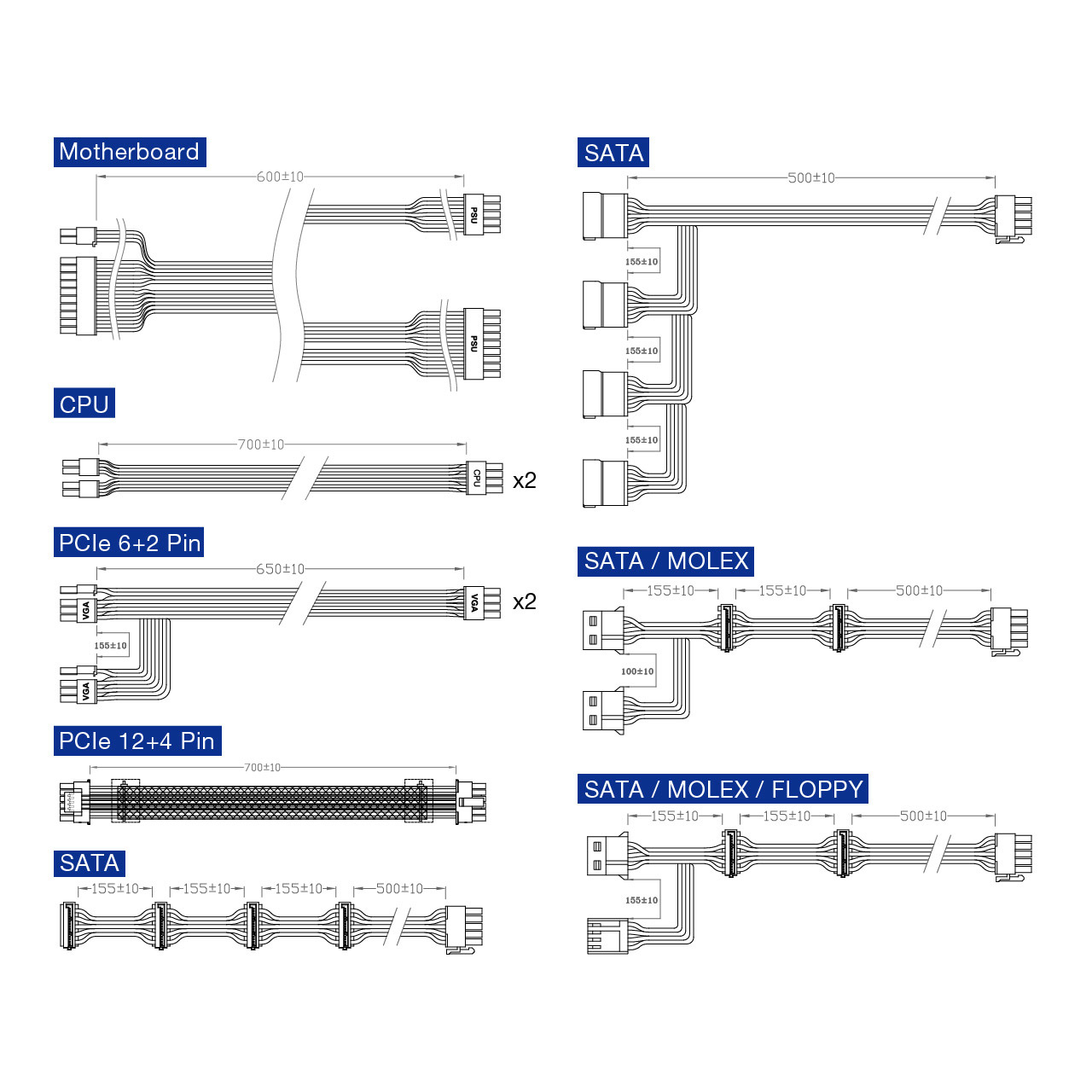

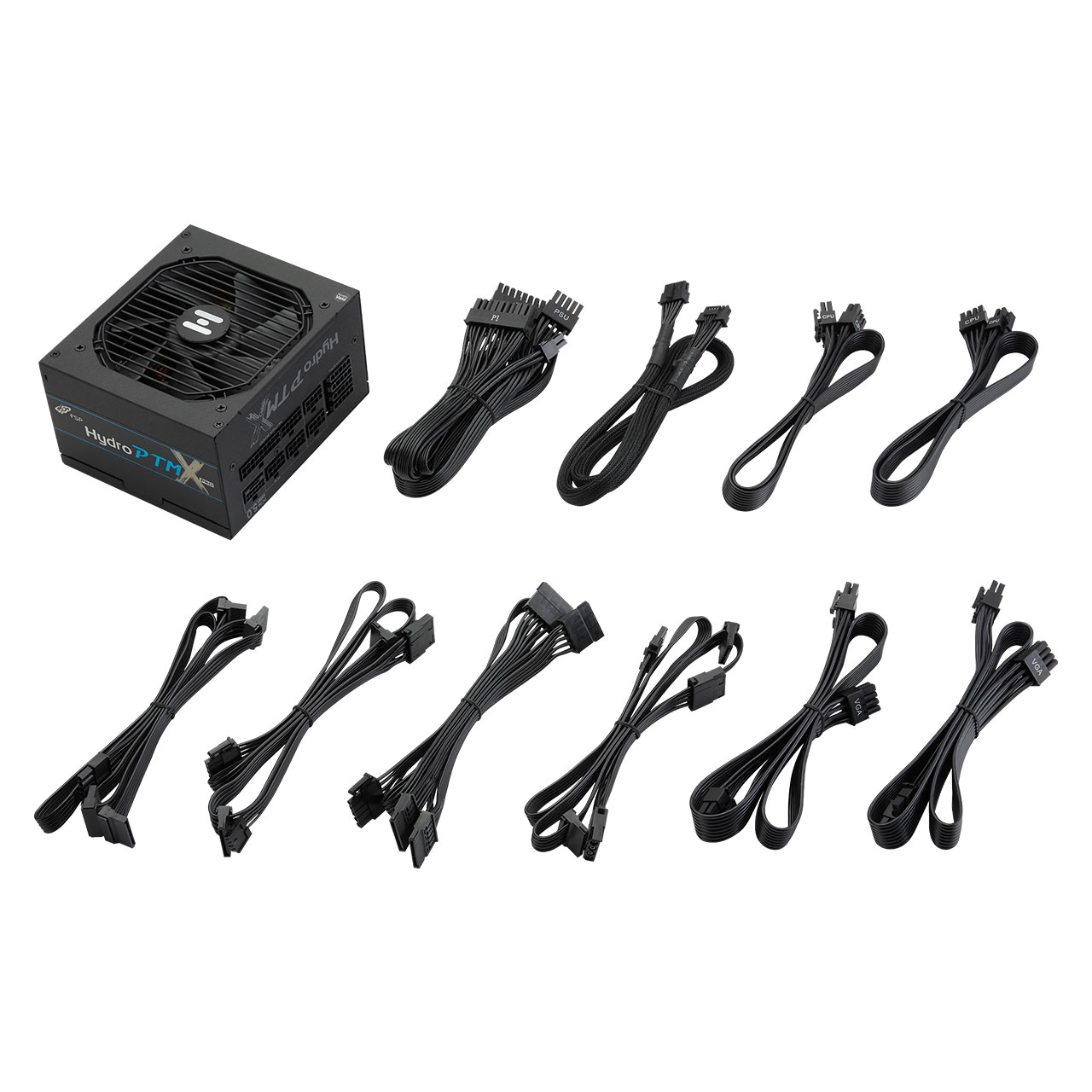

Included cables
CPU,PCIe,Peripheral (Molex),SATA
AC input voltage
100 - 240
AC input frequency
50/60
Bearing type
FDB
Combined power (+5V)
120
Combined power (+12V)
1000
Combined power (-12V)
18.6
CPU power cable length
700
Combined power (+3.3V)
120
Combined power (+5Vsb)
18.6
SATA power cable length
500
Max output current (+5V)
20
Max output current (+12V)
83.33
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit
Max output current (+3.3V)
20
Max output current (+5Vsb)
3
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Motherboard power cable length
600
Number of SATA power connectors
12
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (12+4 pin)
1
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (12+4 pin) cable length
700
