MPN:
9PA500C501

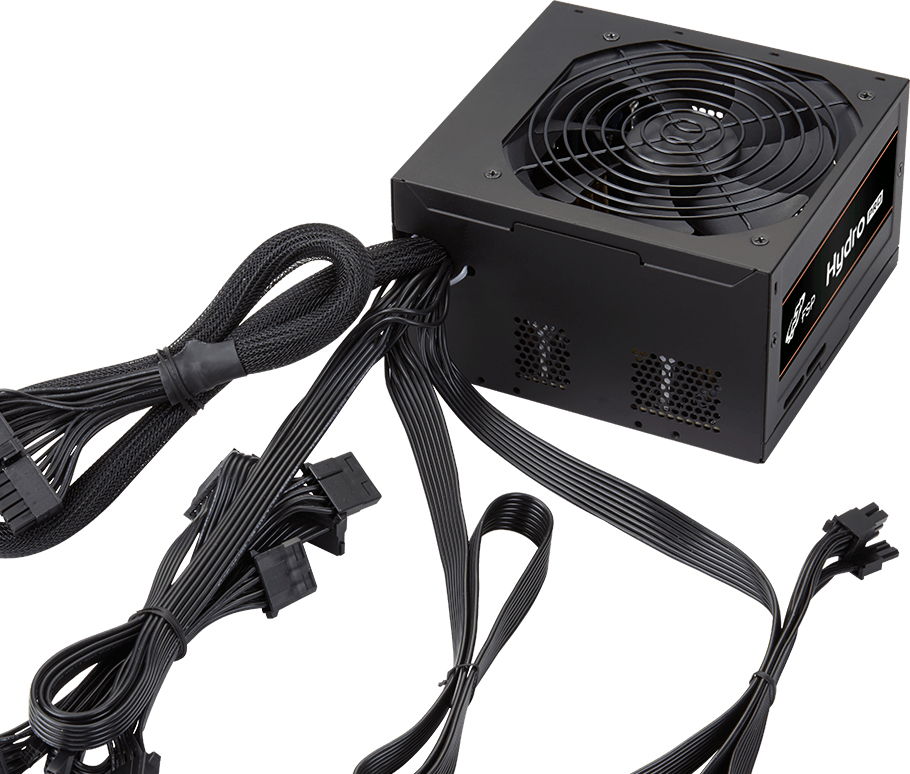

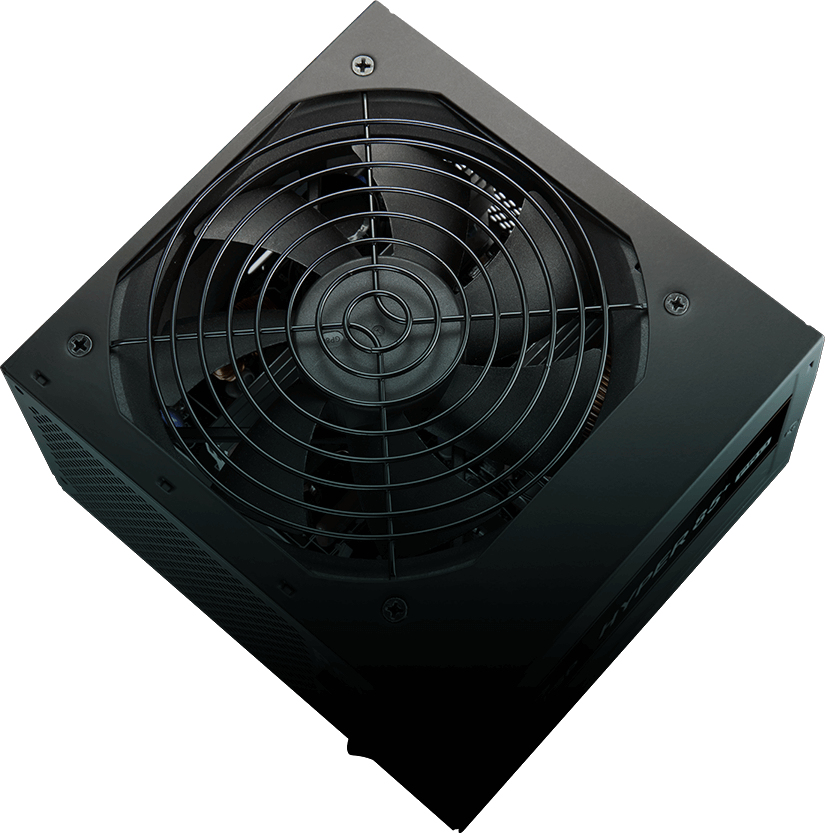

FSP Hydro PRO 500W power supply unit 24-pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 500 W
- Efficiency rating
- 80 PLUS Bronze
- Depth
- 150 mm
- Width
- 140 mm
- Height
- 86 mm
- Weight
- 1437 g
- Purpose
- PC
- Efficiency
- 88
- Cabling type
- Non-Modular
1 / 4
Shopping actions
Overview
The FSP Hydro PRO 500W power supply unit 24-pin ATX ATX Black features 500 W output, 80 PLUS 80 PLUS Bronze efficiency, a 120 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
150 mm
Width
140 mm
Height
86 mm
Weight
1437 g
Colour
Black
Cooling
3 SPECS
Cooling type
Active
Fan size
120
Number of fans
1
Power
2 SPECS
Wattage
500 W
Efficiency rating
80 PLUS Bronze
General
26 SPECS
Purpose
PC
Efficiency
88
Cabling type
Non-Modular
Input current
4
On/off switch
Yes
AC input voltage
200 - 240
AC input frequency
50 - 60
Combined power (+5V)
100
Combined power (+12V)
492
Combined power (-12V)
16.1
Combined power (+3.3V)
100
Combined power (+5Vsb)
16.1
Max output current (+5V)
20
Max output current (+12V)
41
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Short circuit
Max output current (+3.3V)
20
Max output current (+5Vsb)
2.5
Motherboard power connector
24-pin ATX
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Number of SATA power connectors
6
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
3
