MPN:
HP2-800M

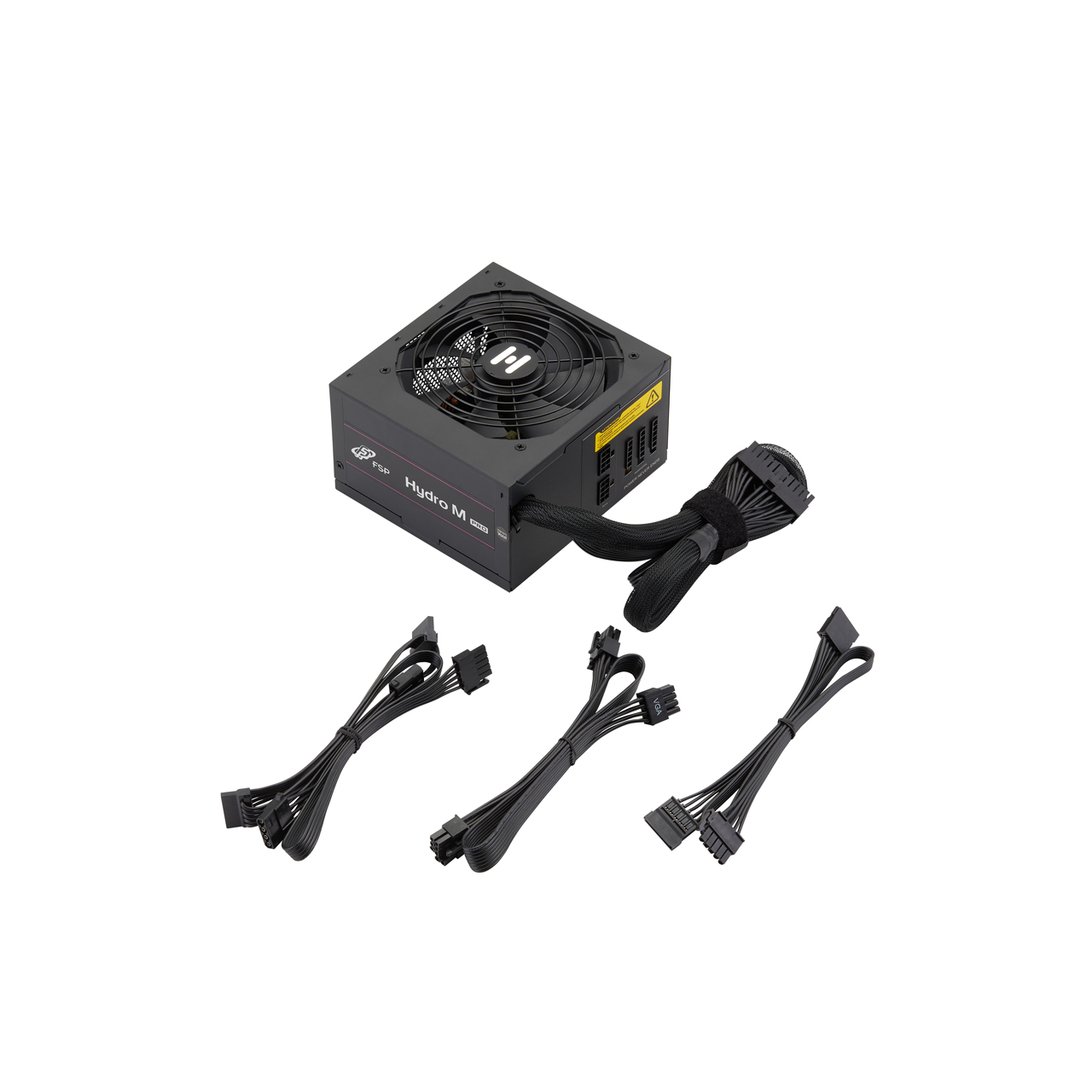

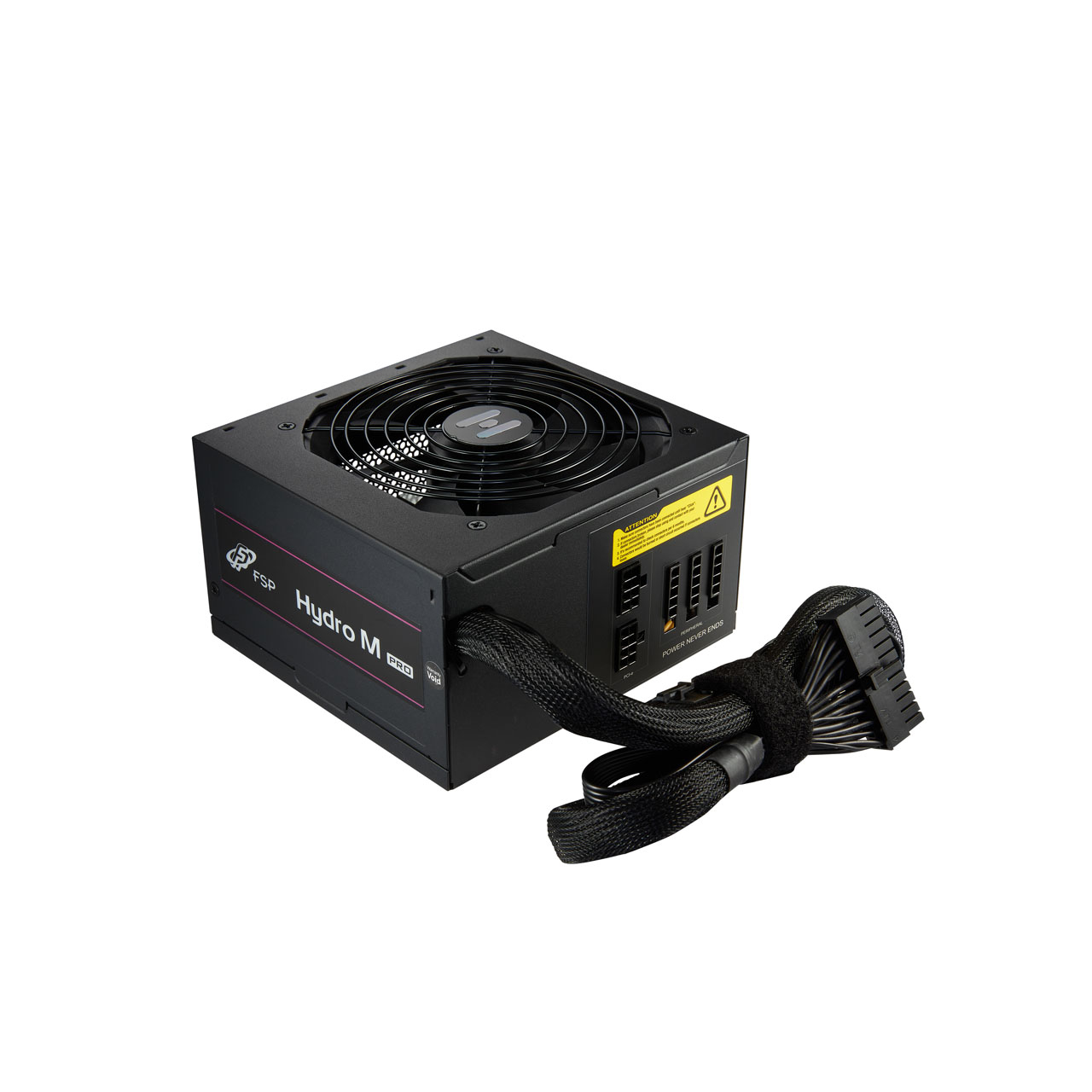

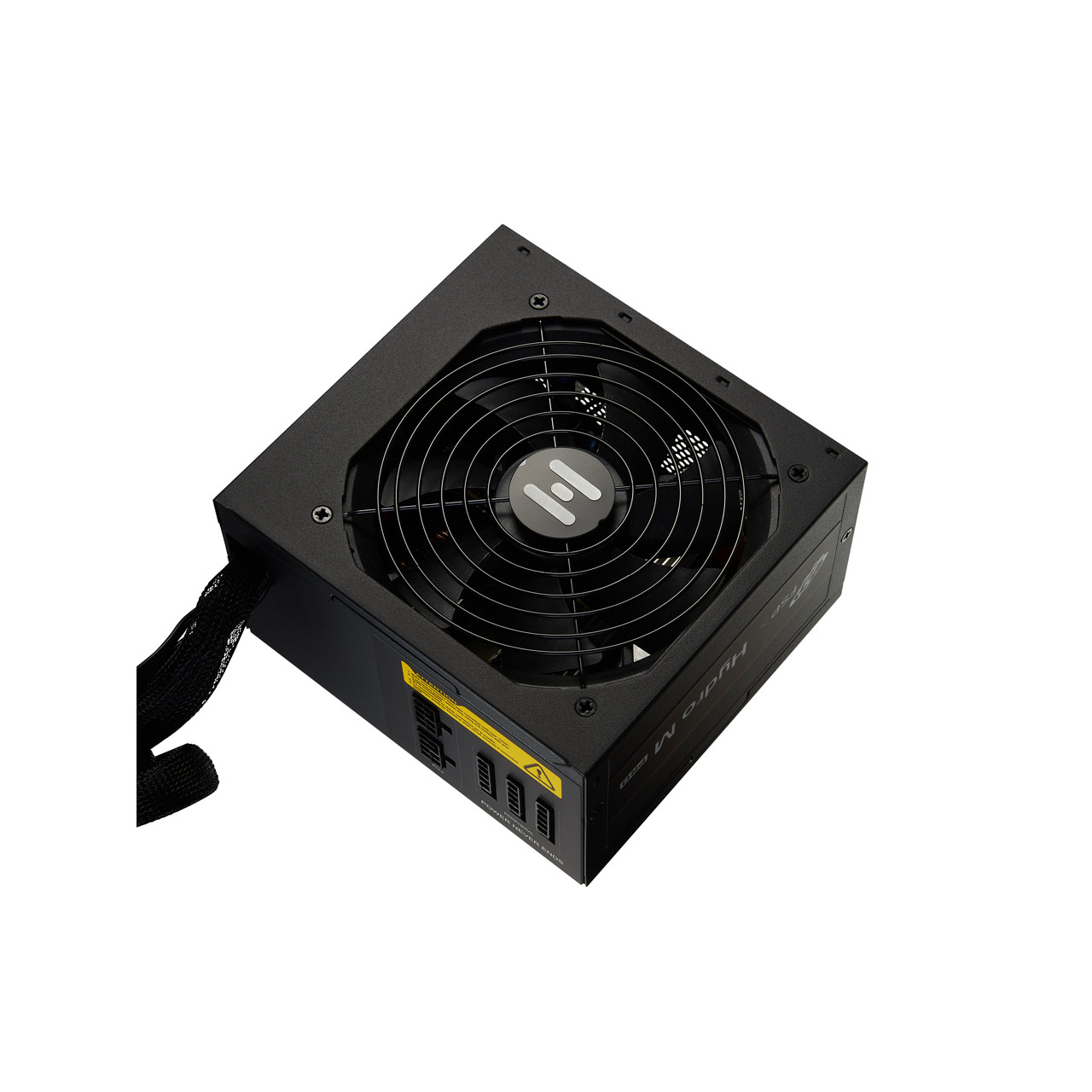

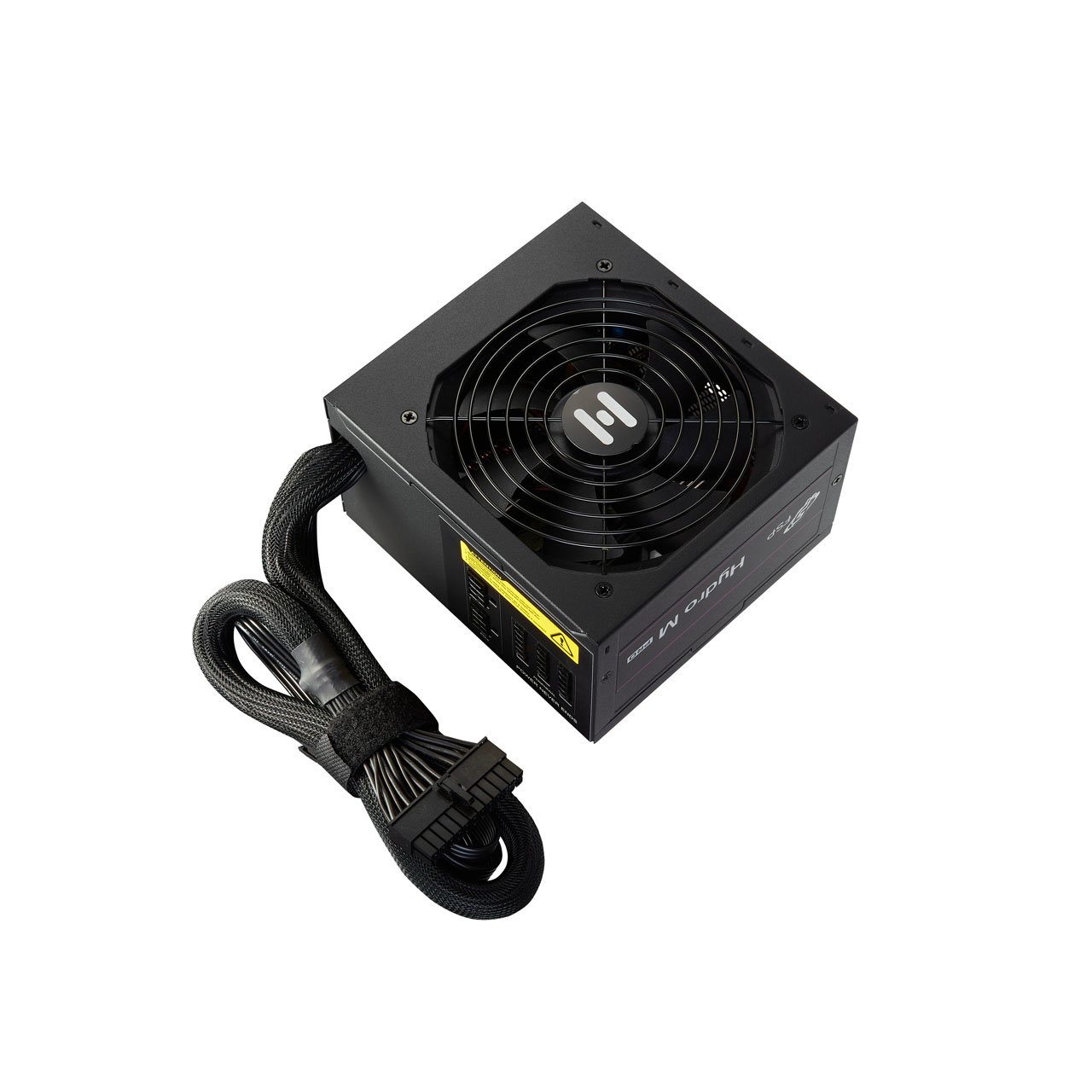

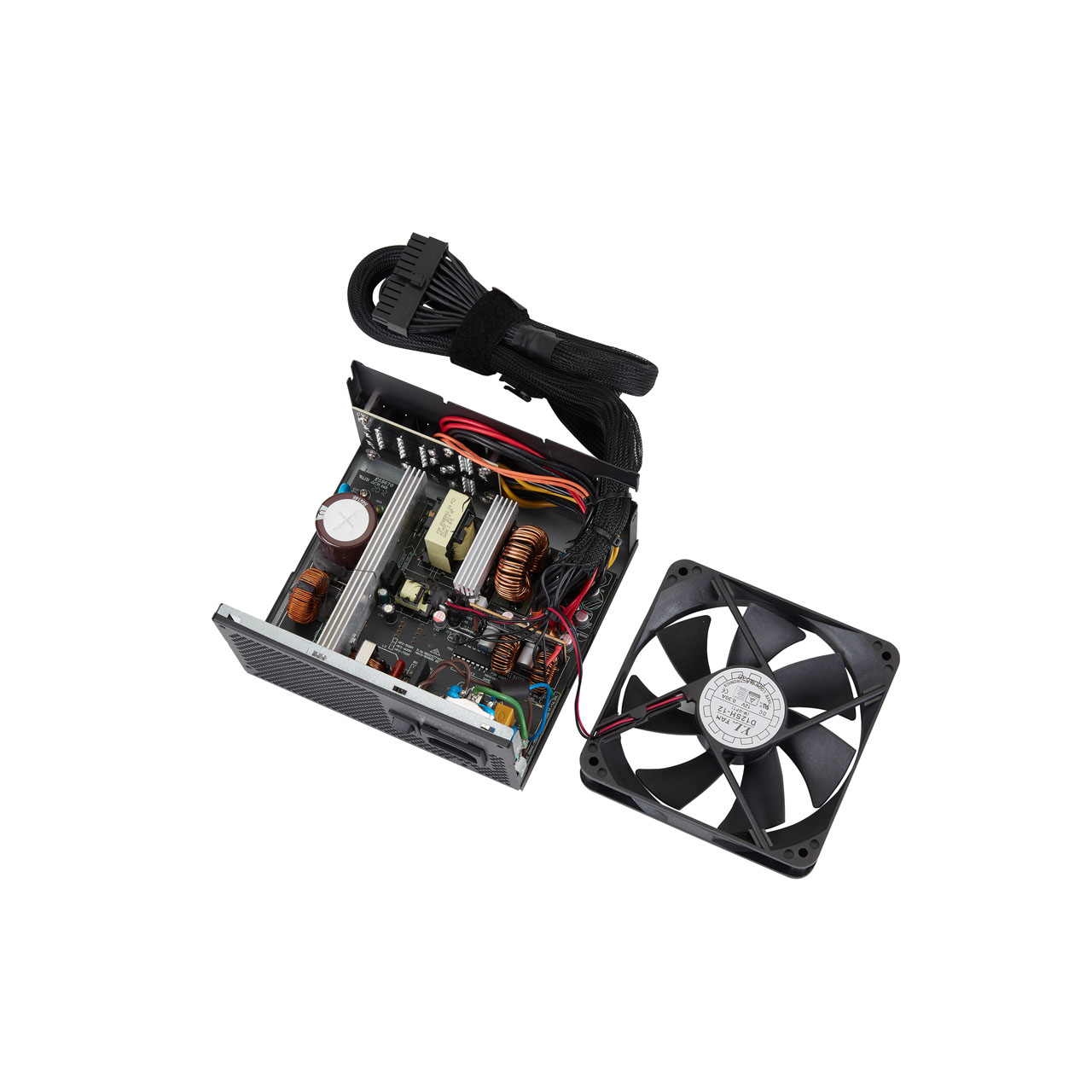

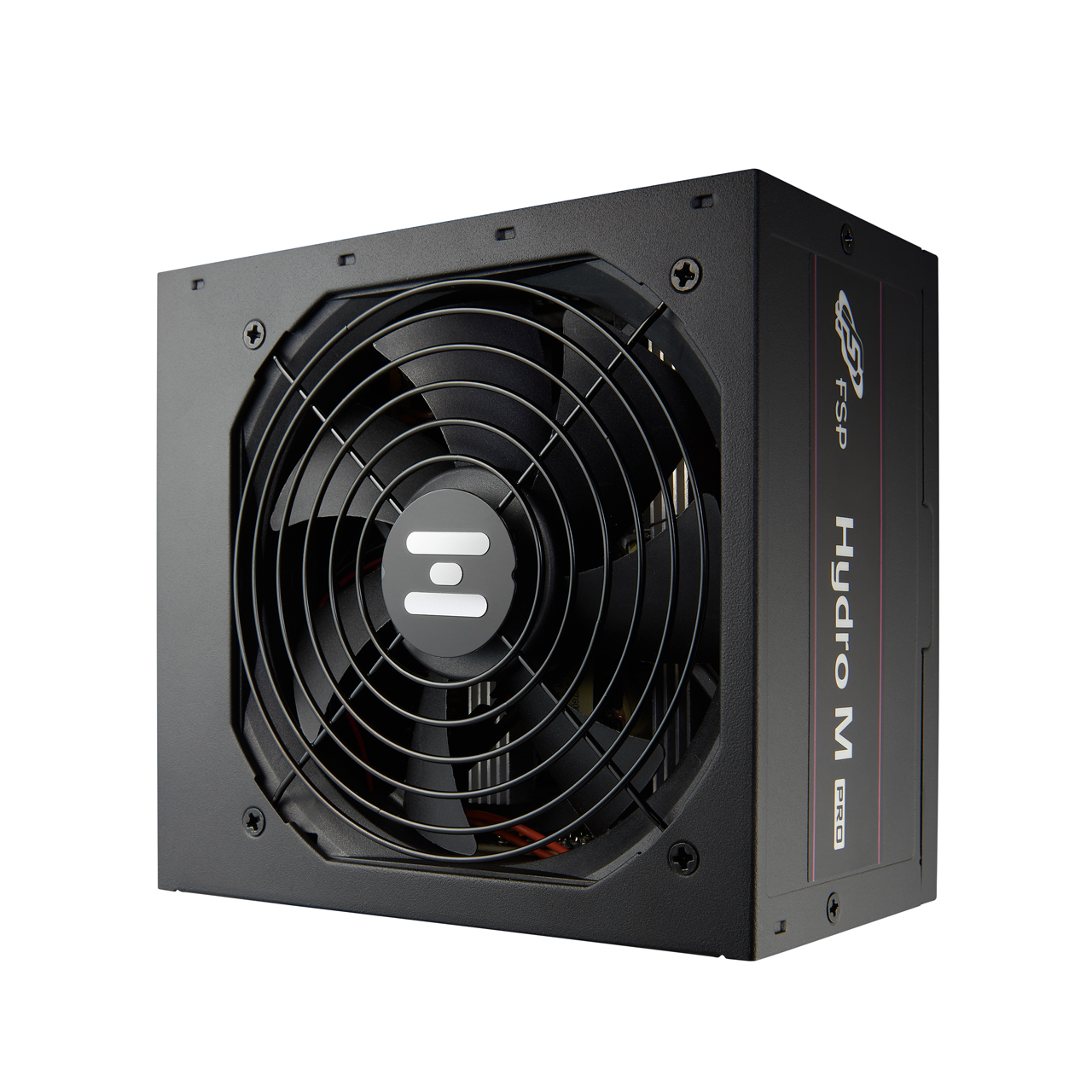

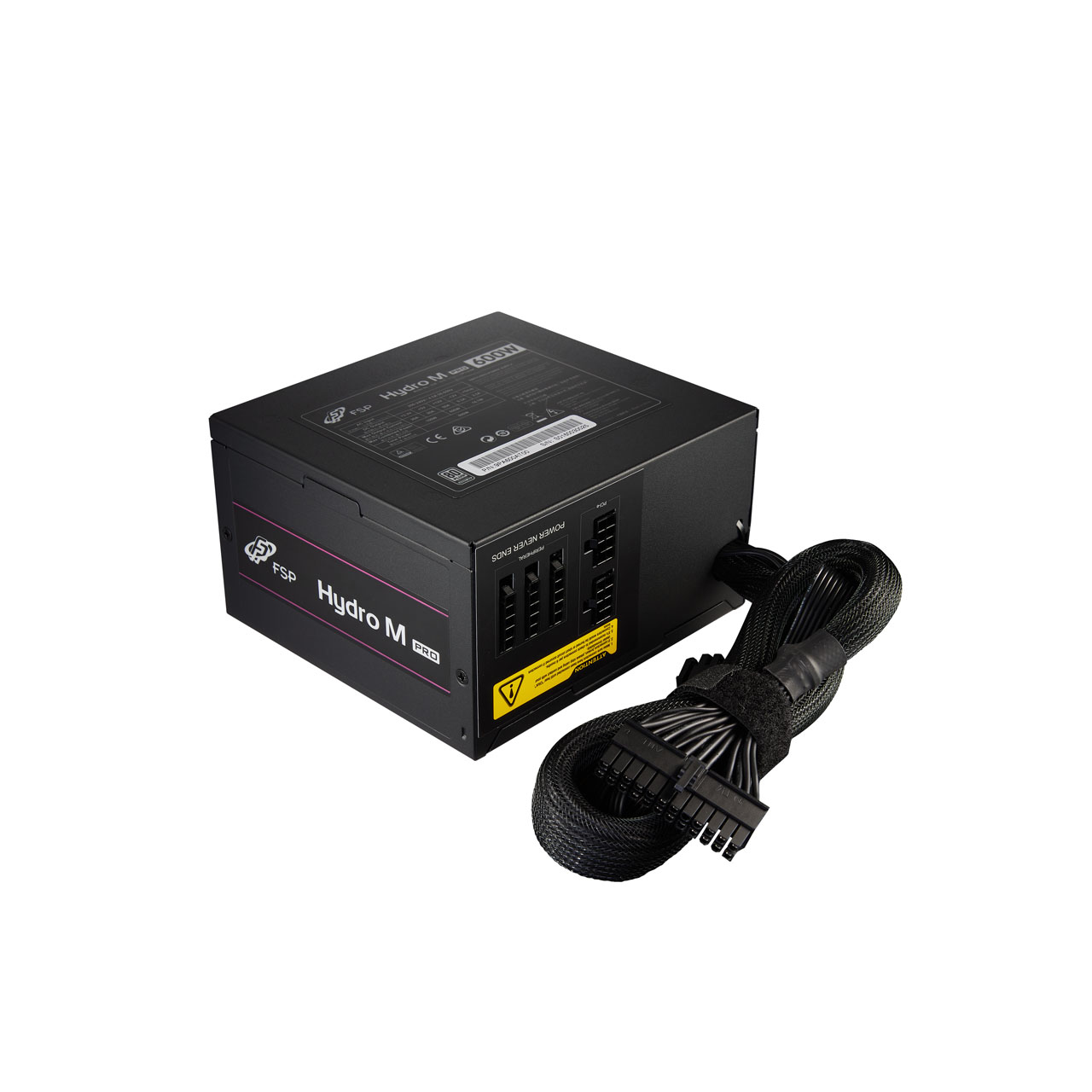

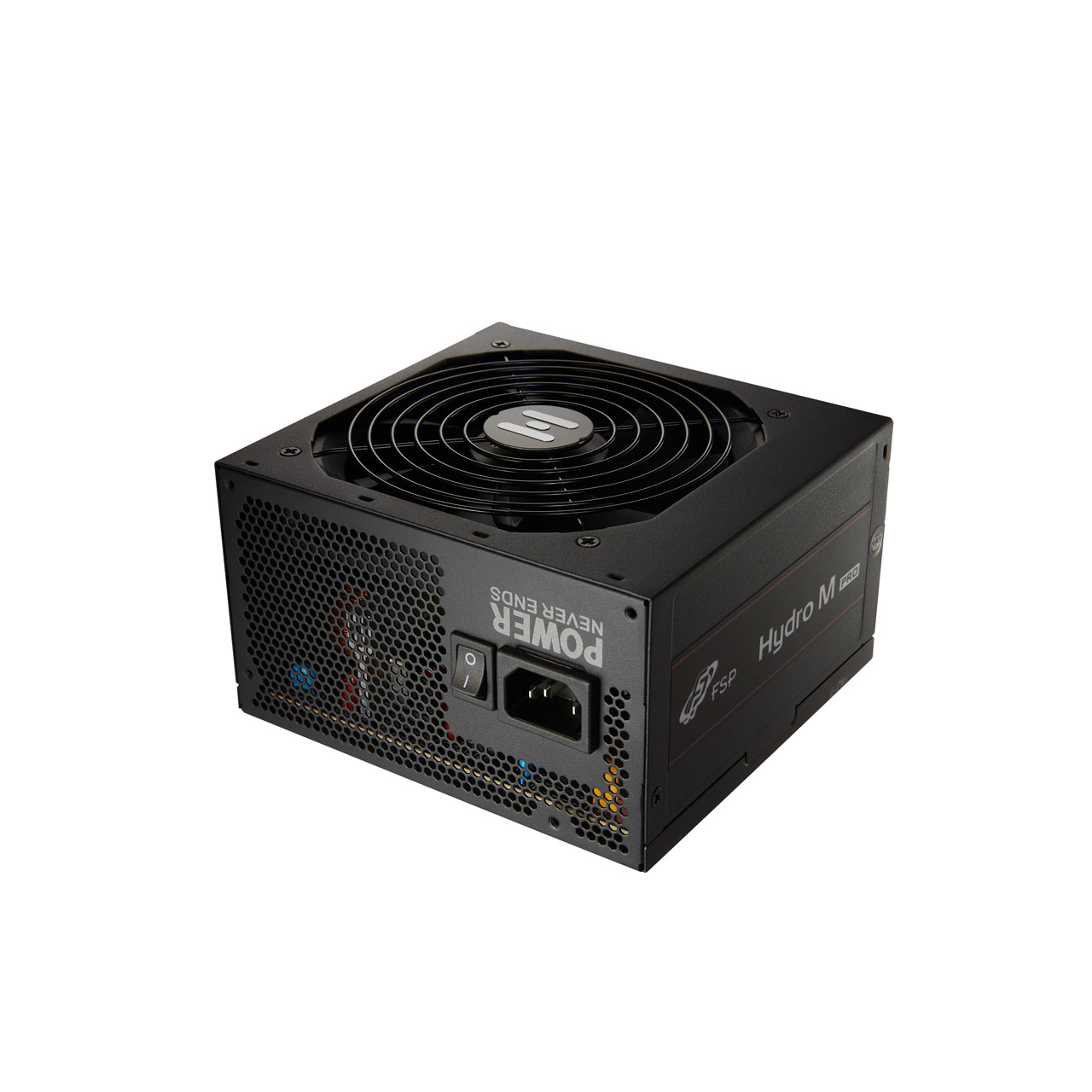

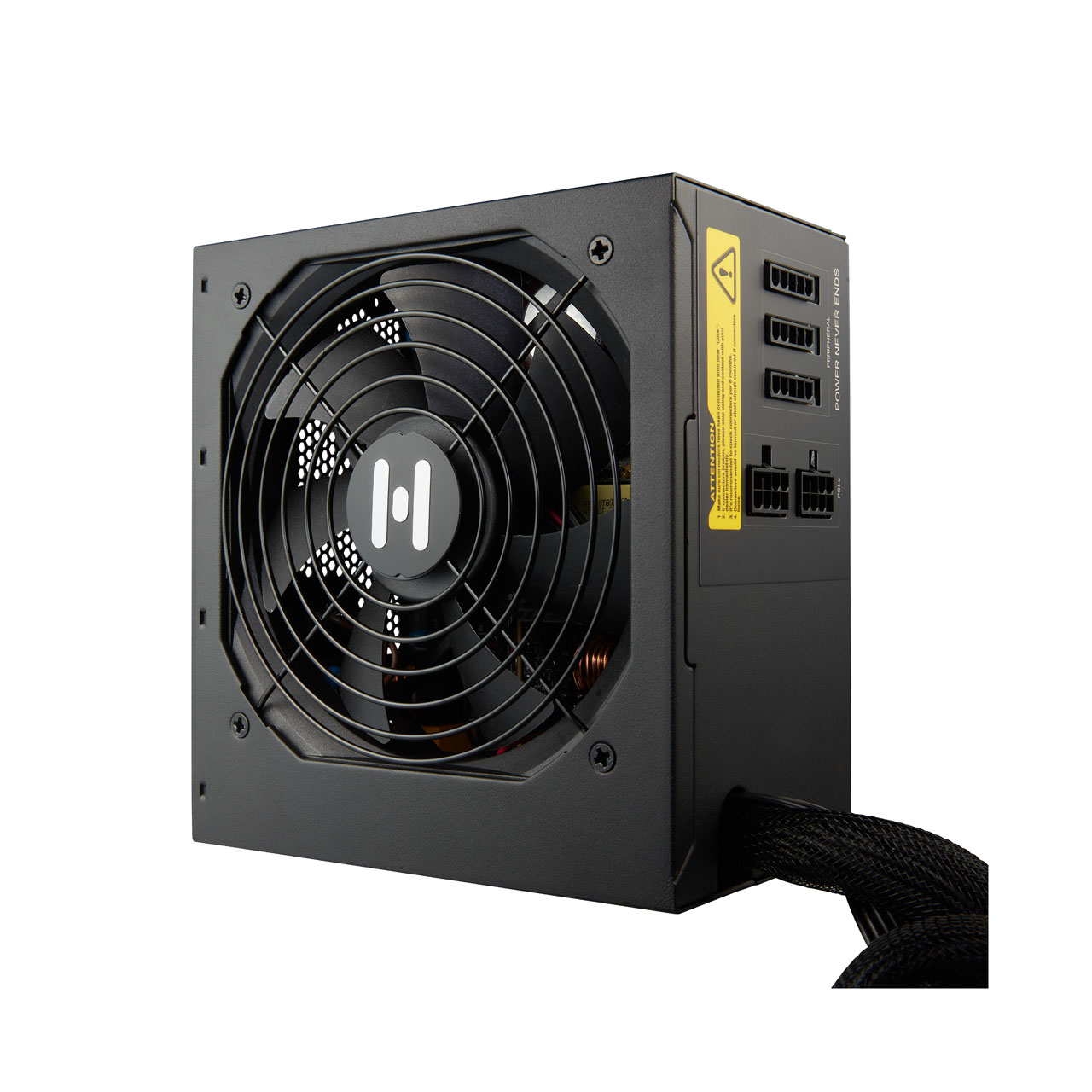

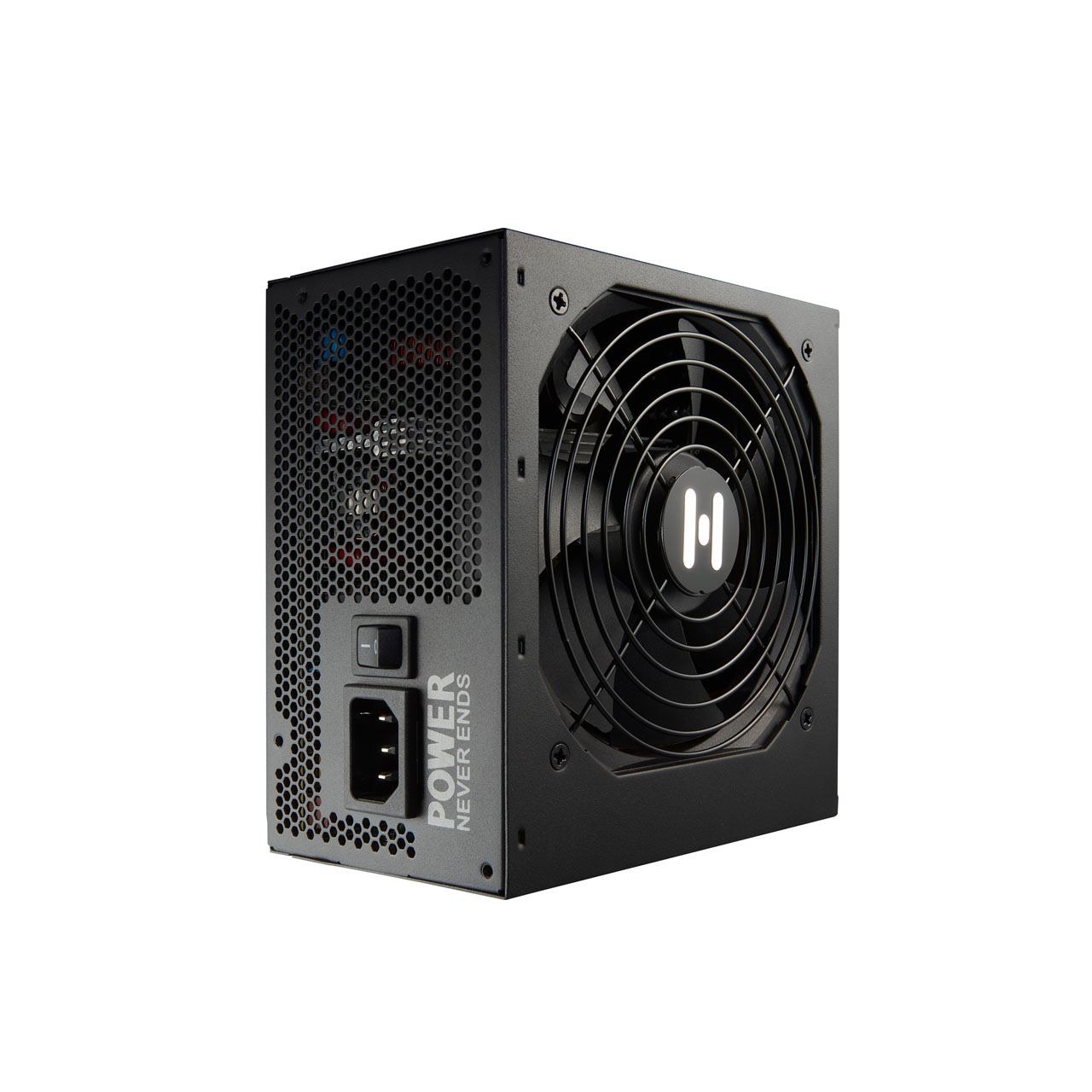

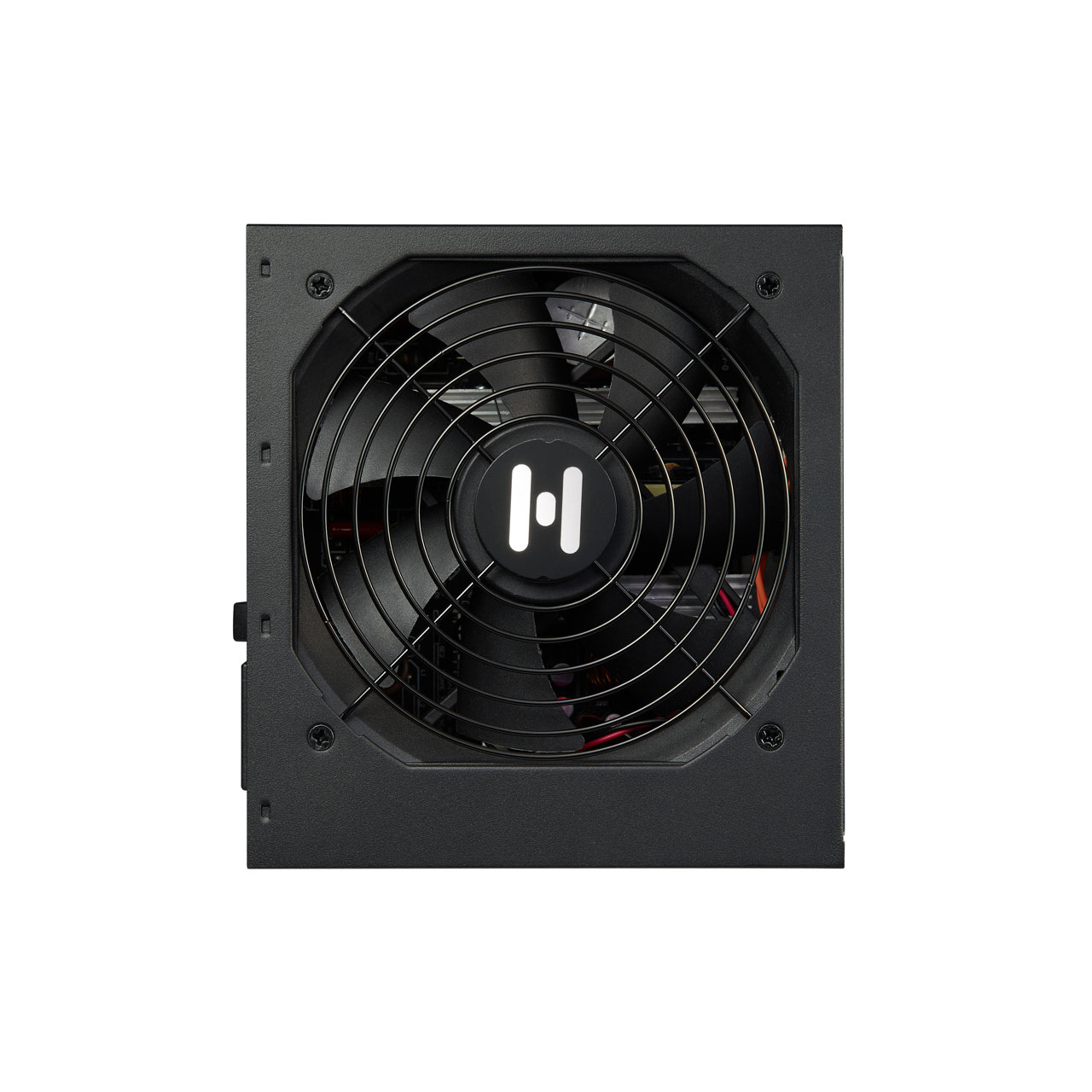

FSP HYDRO M Pro 800 power supply unit 800 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 800 W
- Efficiency rating
- 80 PLUS Bronze
- Depth
- 150 mm
- Width
- 140 mm
- Height
- 86 mm
- Purpose
- PC
- Efficiency
- 88
- Cabling type
- Semi-Modular
- Cooling type
- Active
1 / 11
Shopping actions
Overview
The FSP HYDRO M Pro 800 power supply unit 800 W 20+4 pin ATX ATX Black features 800 W output, 80 PLUS 80 PLUS Bronze efficiency, a 120 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
150 mm
Width
140 mm
Height
86 mm
Colour
Black
Customs (HS) code
84733020
Power
2 SPECS
Wattage
800 W
Efficiency rating
80 PLUS Bronze
Cooling
2 SPECS
Cooling type
Active
Fan size
120
General
28 SPECS
Purpose
PC
Efficiency
88
Cabling type
Semi-Modular
Packaging type
Box
Input current
6
On/off switch
Yes
AC input voltage
200 - 240
AC input frequency
50 - 60
Combined power (+5V)
100
Combined power (+12V)
799.9
Combined power (-12V)
3.6
Combined power (+3.3V)
100
Combined power (+5Vsb)
12.5
Max output current (+5V)
20
Max output current (+12V)
66.66
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Short circuit
Max output current (+3.3V)
20
Max output current (+5Vsb)
2.5
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Number of SATA power connectors
8
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
3
