MPN:
PPA6504004

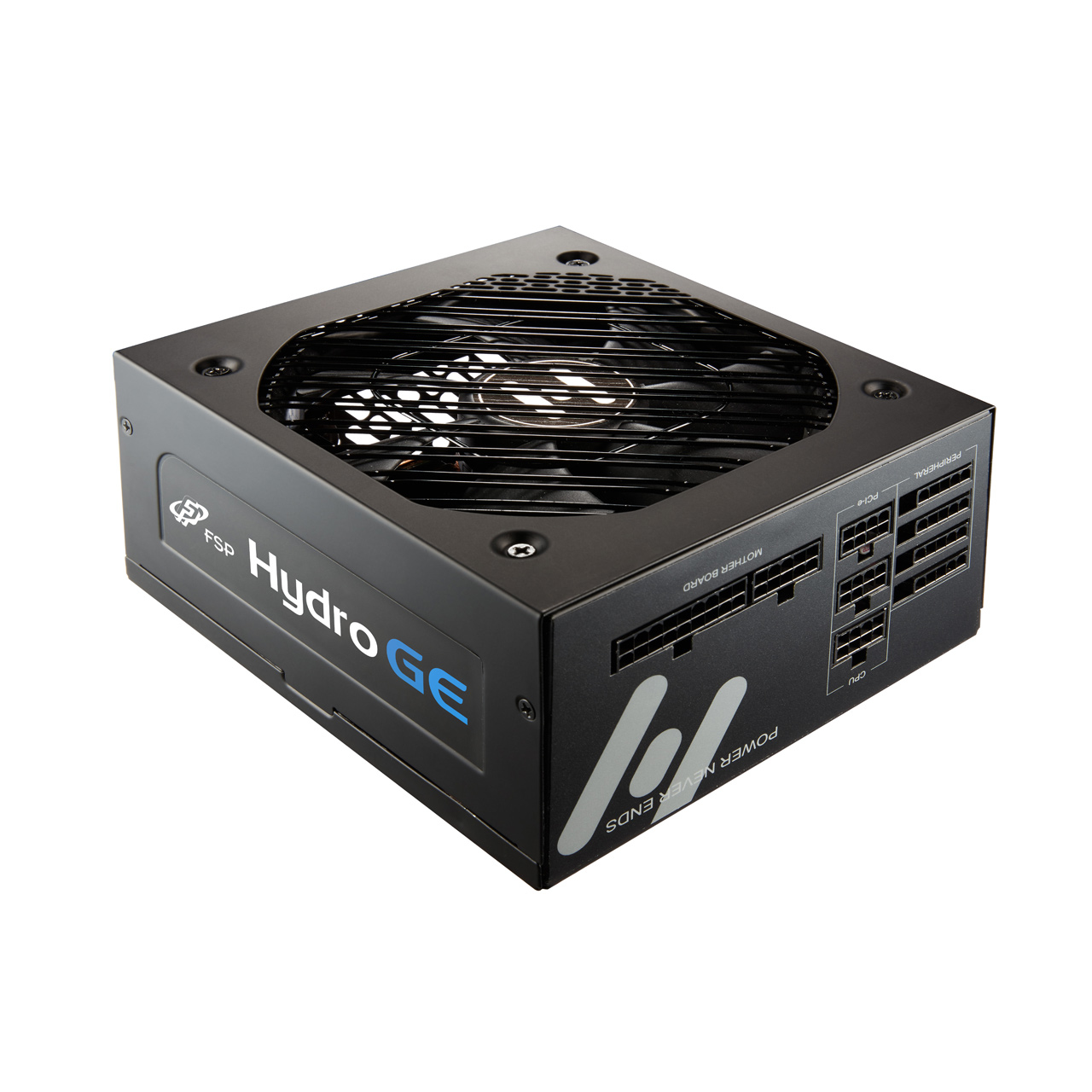

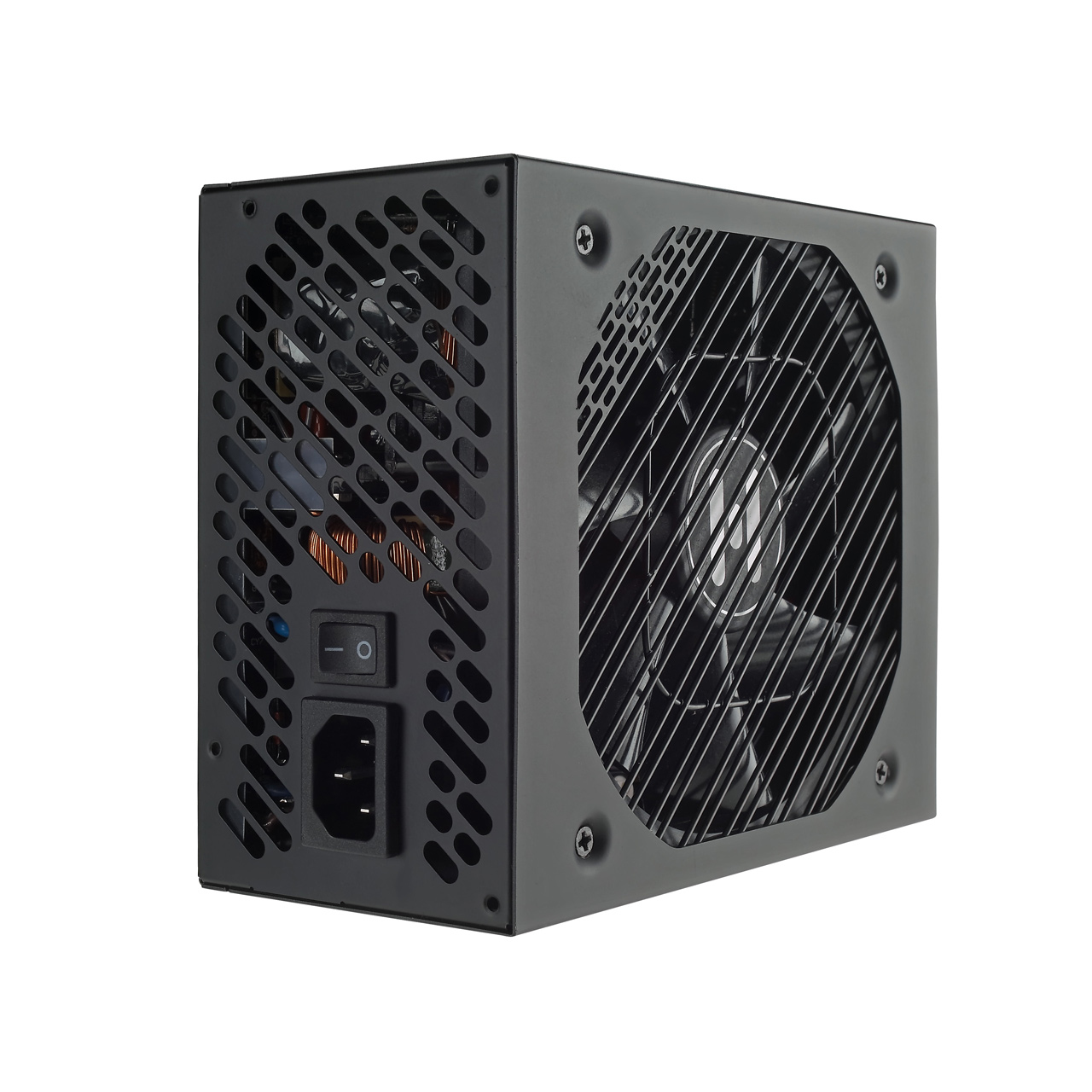

FSP Hydro GE power supply unit 650 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 650 W
- Efficiency rating
- 80 PLUS Gold
- Depth
- 150 mm
- Width
- 170 mm
- Height
- 86 mm
- Safety
- CE, FCC, TUV, BSMI, UL, CCC
- Purpose
- PC
- Efficiency
- 90
- ATX version
- 2.4
1 / 3
Shopping actions
Overview
The FSP Hydro GE power supply unit 650 W 20+4 pin ATX ATX Black features 650 W output, 80 PLUS 80 PLUS Gold efficiency, a 135 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
150 mm
Width
170 mm
Height
86 mm
Colour
Black
Cooling
3 SPECS
Cooling type
Active
Fan size
135
Number of fans
1
Power
2 SPECS
Wattage
650 W
Efficiency rating
80 PLUS Gold
General
34 SPECS
Safety
CE, FCC, TUV, BSMI, UL, CCC
Purpose
PC
Efficiency
90
ATX version
2.4
EPS version
2.92
Noise level
35
Cabling type
Fully-Modular
Power factor
0.9
On/off switch
Yes
AC input voltage
100 - 240
AC input frequency
50 - 60
Bearing type
FDB
Combined power (+5V)
100
Combined power (+12V)
650
Combined power (-12V)
3.5
Combined power (+3.3V)
100
Combined power (+5Vsb)
12.5
Max output current (+5V)
20
Max output current (+12V)
54.16
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage
Max output current (+3.3V)
20
Max output current (+5Vsb)
2.5
EPS power connector (8-pin)
Yes
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
EPS power connector (4+4 pin)
Yes
Maximum input current (@110V)
10
Maximum input current (@220V)
5
Number of SATA power connectors
12
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
3
