MPN:
PPA6502804
FSP Hydro G power supply unit 650 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 650 W
- Efficiency rating
- 80 PLUS Gold
- Depth
- 170 mm
- Width
- 150 mm
- Height
- 86 mm
- Manual included
- Y
- Purpose
- PC
- Efficiency
- 90
- ATX version
- 2.4
1 / 4
Shopping actions
Overview

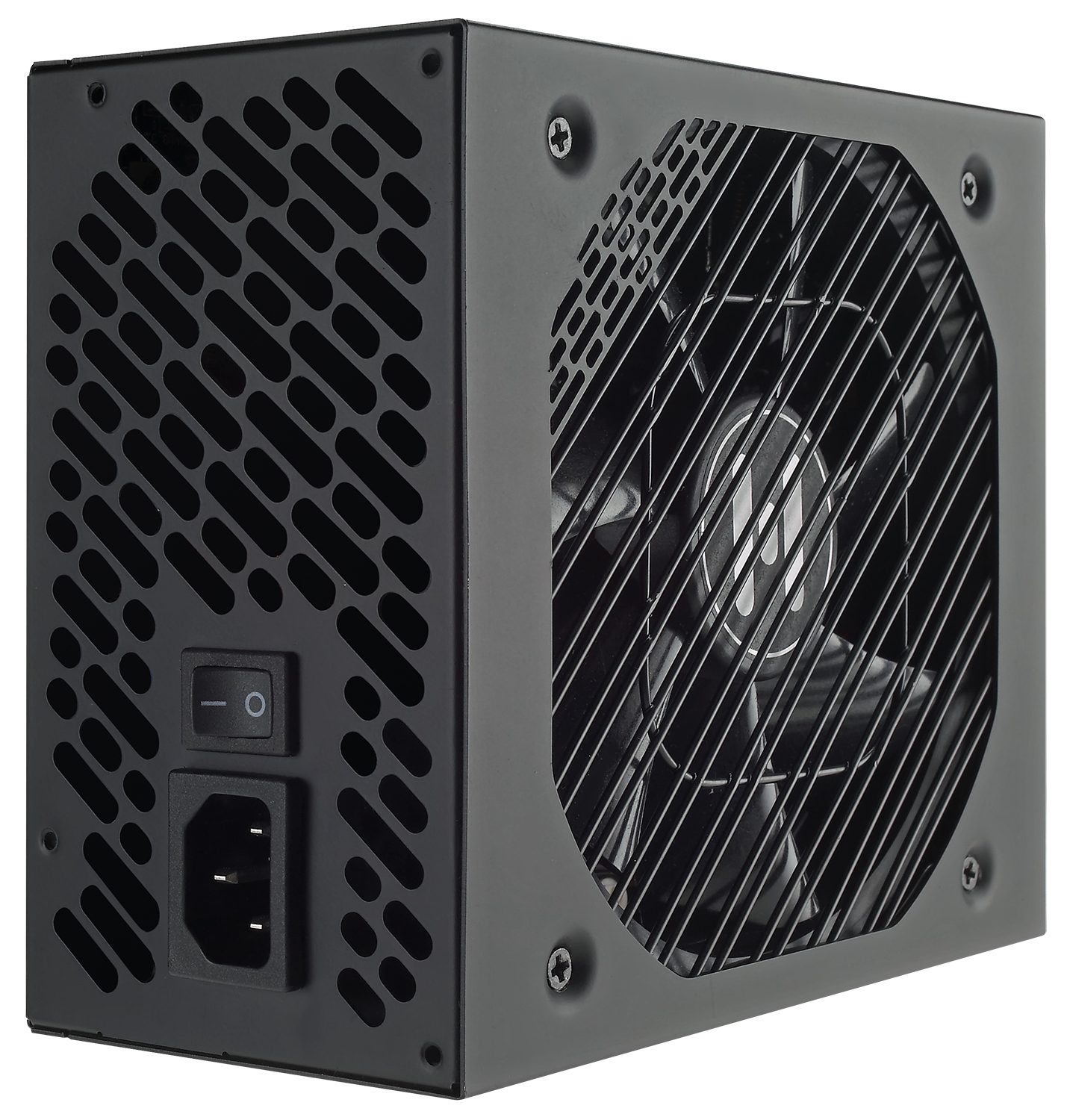

The FSP Hydro G power supply unit 650 W 20+4 pin ATX ATX Black features 650 W output, 80 PLUS 80 PLUS Gold efficiency, a 135 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
170 mm
Width
150 mm
Height
86 mm
Colour
Black
Cooling
3 SPECS
Cooling type
Active
Fan size
135
Number of fans
1
Power
2 SPECS
Wattage
650 W
Efficiency rating
80 PLUS Gold
General
37 SPECS
Manual included
Yes
Purpose
PC
Efficiency
90
ATX version
2.4
EPS version
2.92

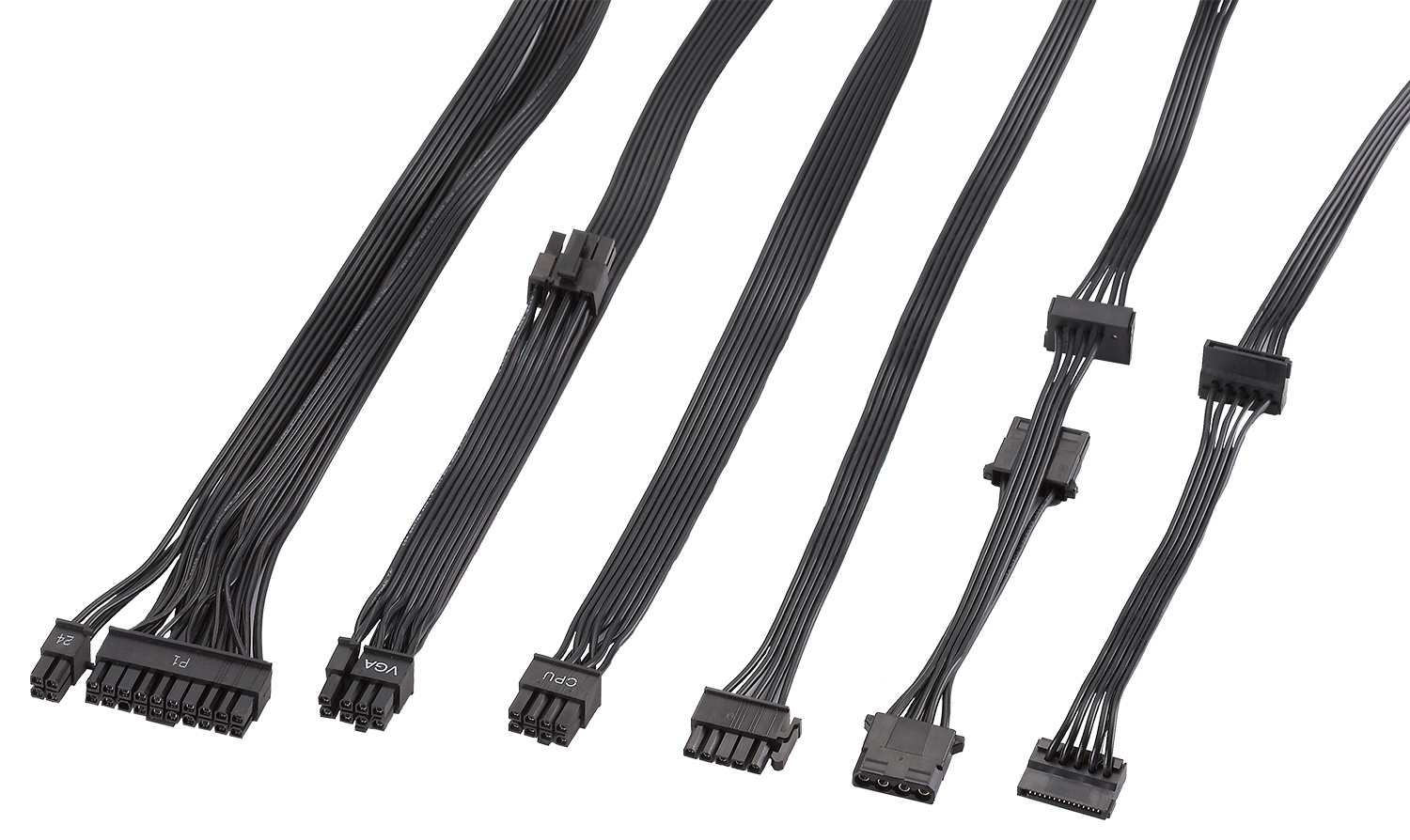

Cabling type
Fully-Modular
Fan location
Top
Packaging type
Box
Power factor
0.99
Certifications
CE, CB, TUV, C-tick
Input current
8.5
On/off switch
Yes
Warranty card
Yes
AC input voltage
100 - 240
AC input frequency
50 - 60
Bearing type
FDB
Combined power (+5V)
150
Combined power (+12V)
650
Combined power (-12V)
6
Combined power (+3.3V)
150
Combined power (+5Vsb)
17.5
Max output current (+5V)
25
Max output current (+12V)
54
Max output current (-12V)
0.5
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage
Max output current (+3.3V)
25
Max output current (+5Vsb)
3.5
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Noise level (quiet mode, 50%)
15
Number of SATA power connectors
10
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
5
