MPN:
9PA350AP01

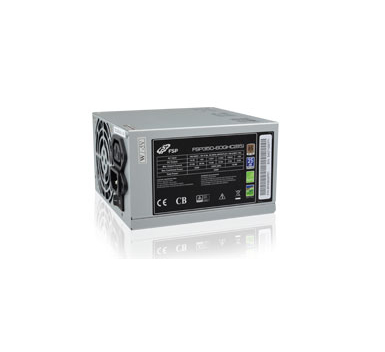

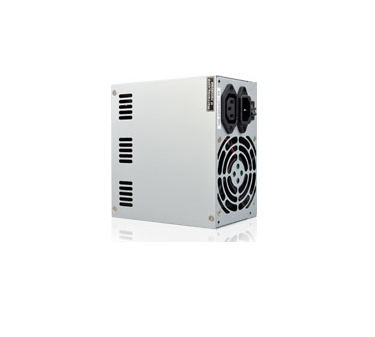

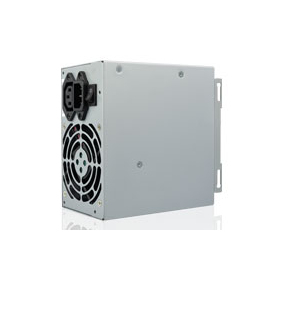

FSP FSP350-60GHC power supply unit 350 W 20+4 pin ATX ATX Grey
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 350 W
- Depth
- 140 mm
- Width
- 150 mm
- Height
- 86 mm
- Purpose
- PC
- Efficiency
- 85
- Cabling type
- Non-Modular
- Cooling type
- Active
- Fan size
- 80
1 / 3
Shopping actions
Overview
The FSP FSP350-60GHC power supply unit 350 W 20+4 pin ATX ATX Grey features 350 W output, a 80 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
140 mm
Width
150 mm
Height
86 mm
Colour
Grey
Cooling
3 SPECS
Cooling type
Active
Fan size
80
Number of fans
1
Power
1 SPEC
Wattage
350 W
General
32 SPECS
Purpose
PC
Efficiency
85
Cabling type
Non-Modular
Fan location
Side
Input current
4
On/off switch
Yes
Monitor outlet
Yes
AC input voltage
90 - 264
AC input frequency
47 - 63
Dimensions
150 x 140 x 86
Combined power (+5V)
105
Combined power (-12V)
23.5
Combined power (+3.3V)
105
Combined power (+5Vsb)
23.5
Compliance certificates
RoHS
CPU P4 connector (4-pin)
1
Max output current (+5V)
20
Max output current (-12V)
0.5
Max output current (+12V1)
15
Max output current (+12V2)
18
Max output current (+3.3V)
21
Max output current (+5Vsb)
3.5
Motherboard power connector
20+4 pin ATX
Eco certifications
ENERGY STAR
Floppy drive power connector
1
Maximum input current (@110V)
+12V1,+12V2,+3.3V,+5V,-12V,-5Vsb
ATX power connector (20+4 pin)
Yes
Number of SATA power connectors
4
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6-pin)
1
Peripheral (Molex) power connectors (4-pin)
3
