MPN:
FSP300-701UJ

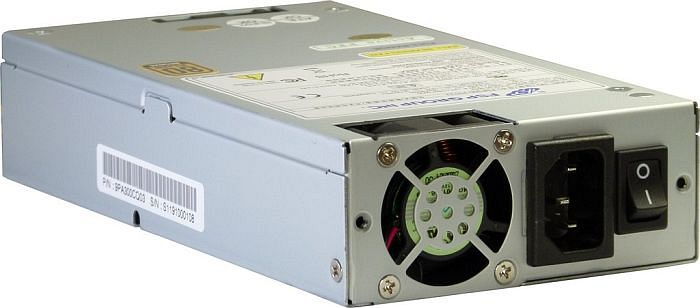

FSP FSP300-701UJ power supply unit 300 W 1U Grey
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 300 W
- Efficiency rating
- 80 PLUS Bronze
- Depth
- 190 mm
- Width
- 100 mm
- Height
- 40.5 mm
- Safety
- CE,FCC,TUV,CCC
- Purpose
- Server
- Hold time
- 17
- Efficiency
- 85
1 / 2
Shopping actions
Overview
The FSP FSP300-701UJ power supply unit 300 W 1U Grey features 300 W output, 80 PLUS 80 PLUS Bronze efficiency and a 40 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
190 mm
Width
100 mm
Height
40.5 mm
Colour
Grey
Power
2 SPECS
Wattage
300 W
Efficiency rating
80 PLUS Bronze
Cooling
1 SPEC
Fan size
40
General
19 SPECS
Safety
CE,FCC,TUV,CCC
Purpose
Server
Hold time
17
Efficiency
85
Cabling type
Non-Modular
AC input voltage
115 - 230
AC input frequency
47 - 63
Max output current (+5V)
16
Max output current (-12V)
0.5
Power protection features
Over power,Short circuit
Storage temperature
-20 - 80
Max output current (+12V1)
16
Max output current (+12V2)
16
Max output current (+3.3V)
14
Max output current (+5Vsb)
3
Operating temperature
0 - 50
MTBF
100000 h
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
1U
