MPN:
9PA300CW11

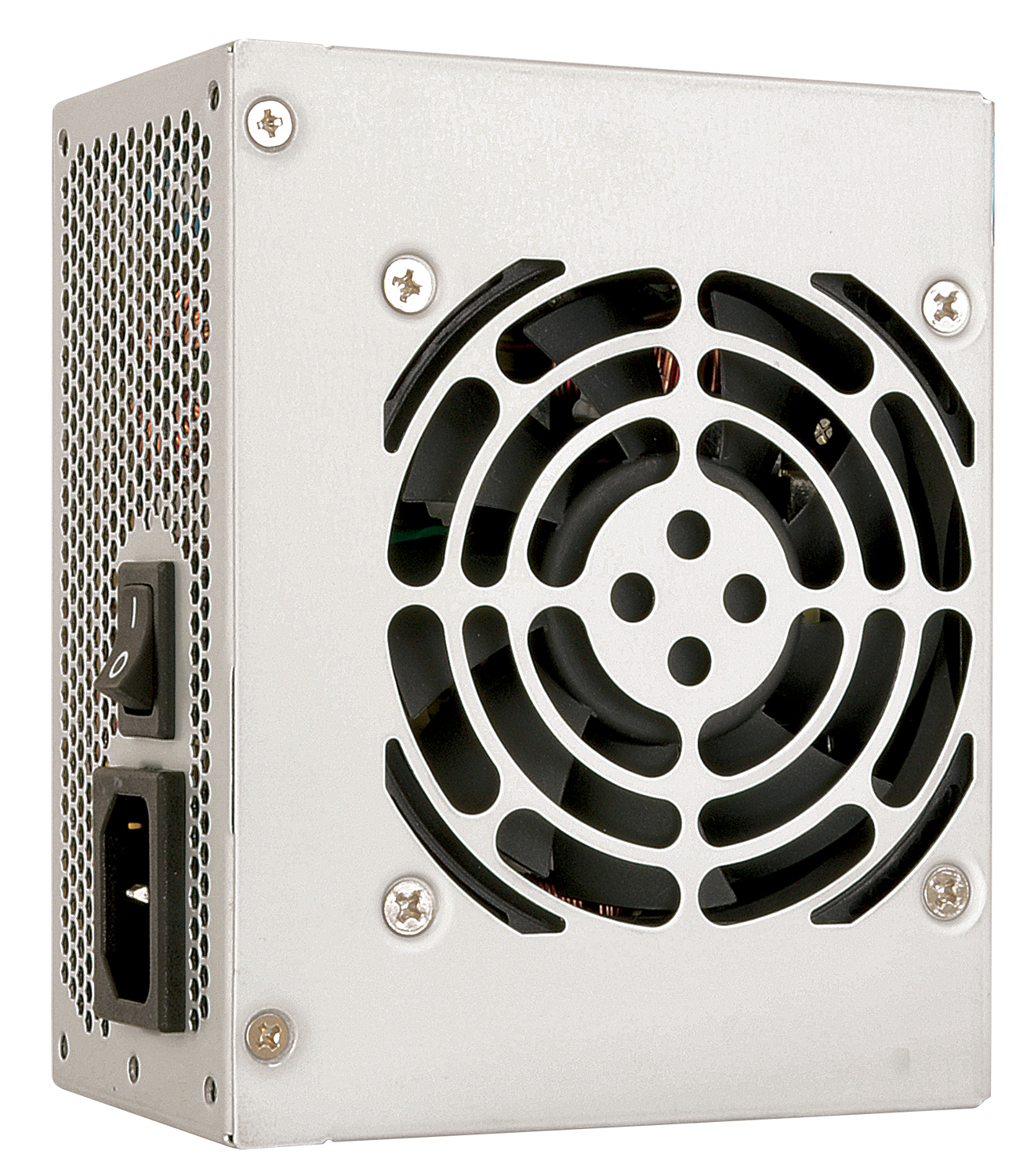

FSP FSP300-50GHS 85+ power supply unit 300 W 20+4 pin ATX SFX White
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 300 W
- Efficiency rating
- 80 PLUS Bronze
- Depth
- 100 mm
- Width
- 125 mm
- Height
- 63.5 mm
- Purpose
- PC/server
- Efficiency
- 82
- Fan size
- 80
- Input current
- 3.5
1 / 2
Shopping actions
Overview
The FSP FSP300-50GHS 85+ power supply unit 300 W 20+4 pin ATX SFX White features 300 W output, 80 PLUS 80 PLUS Bronze efficiency and a 80 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
100 mm
Width
125 mm
Height
63.5 mm
Colour
White
Power
2 SPECS
Wattage
300 W
Efficiency rating
80 PLUS Bronze
Cooling
2 SPECS
Fan size
80
Number of fans
1
General
25 SPECS
Purpose
PC/server
Efficiency
82
Input current
3.5
AC input voltage
90 - 265
AC input frequency
47 - 63
Combined power (+5V)
103
Combined power (+12V)
228
Combined power (-12V)
21
Combined power (+3.3V)
103
Combined power (+5Vsb)
21
Compliance certificates
RoHS
CPU P4 connector (4-pin)
1
Max output current (+5V)
20
Max output current (-12V)
0.5
Max output current (+12V1)
14
Max output current (+12V2)
19
Max output current (+3.3V)
21
Max output current (+5Vsb)
3
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
Number of SATA power connectors
2
Supported board sizes
ATX
Power supply unit (PSU) form factor
SFX
Peripheral (Molex) power connectors (4-pin)
4
