MPN:
FSP270-60LE(80)

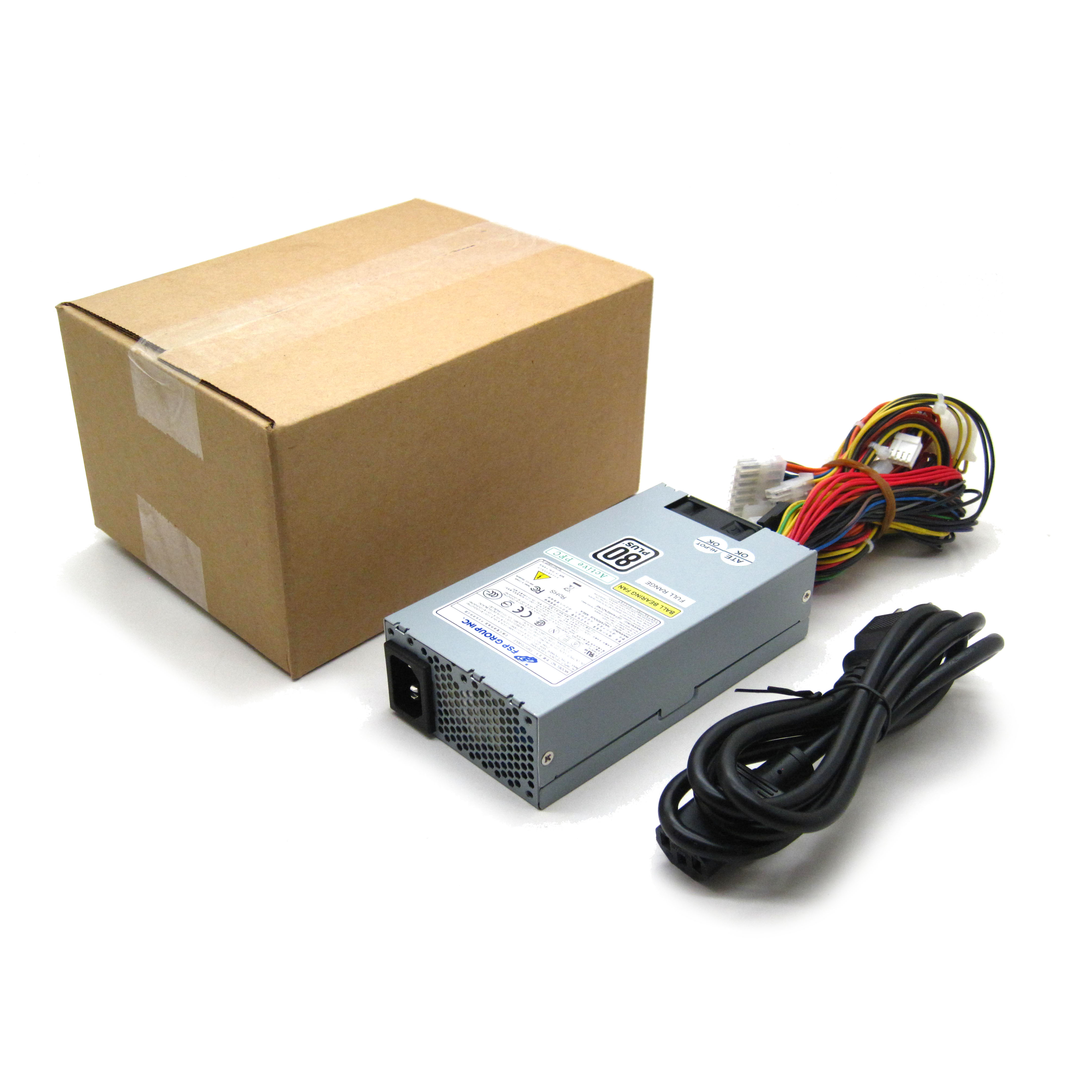

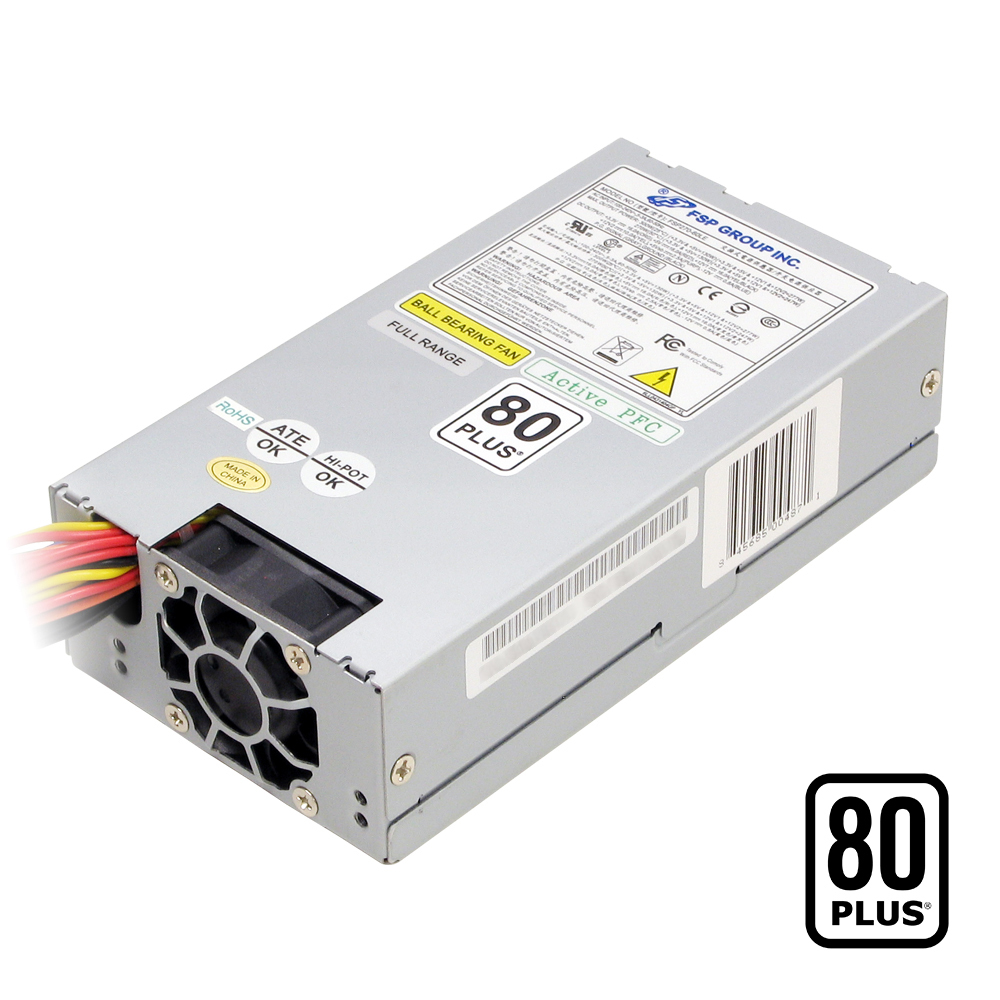

FSP FSP270-60LE(80) power supply unit 270 W 20+4 pin ATX ATX Grey
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 270 W
- Efficiency rating
- 80 PLUS
- Depth
- 150 mm
- Width
- 80 mm
- Height
- 40 mm
- Safety
- UL, CSA, IEC, CE, TUV/VDE, NEMKO
- Weight
- 1360 g
- Cabling type
- Non-Modular
- Connectors
- IEC C14
1 / 5
Shopping actions
Overview
The FSP FSP270-60LE(80) power supply unit 270 W 20+4 pin ATX ATX Grey features 270 W output, 80 PLUS 80 PLUS efficiency and a 40 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
150 mm
Width
80 mm
Height
40 mm
Weight
1360 g
Colour
Grey
Logistics & Packaging
1 SPEC
Country of origin
Taiwan
Power
2 SPECS
Wattage
270 W
Efficiency rating
80 PLUS
Cooling
2 SPECS
Fan size
40
Number of fans
1
General
26 SPECS
Safety
UL, CSA, IEC, CE, TUV/VDE, NEMKO
Cabling type
Non-Modular
Connectors
IEC C14
Fan location
Side
Input current
5
AC input voltage
115 - 230
AC input frequency
47 - 63

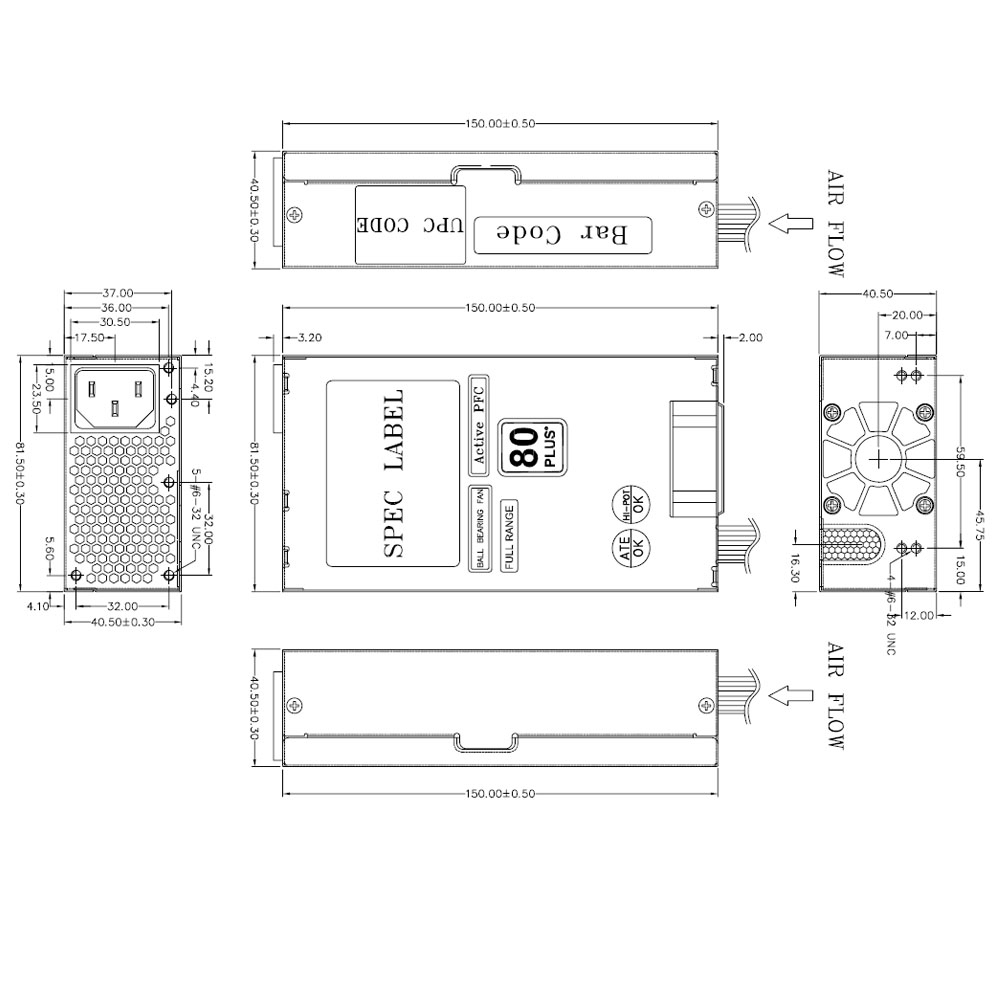

Dimensions
150 x 81.5 x 40.3
Power rocker switch
No
Compliance certificates
RoHS
CPU P4 connector (4-pin)
1
Max output current (+5V)
18
Max output current (-12V)
0.8
Power protection features
Over current,Over voltage,Short circuit
Max output current (+12V1)
16
Max output current (+12V2)
10
Max output current (+3.3V)
16
Max output current (+5Vsb)
2.5

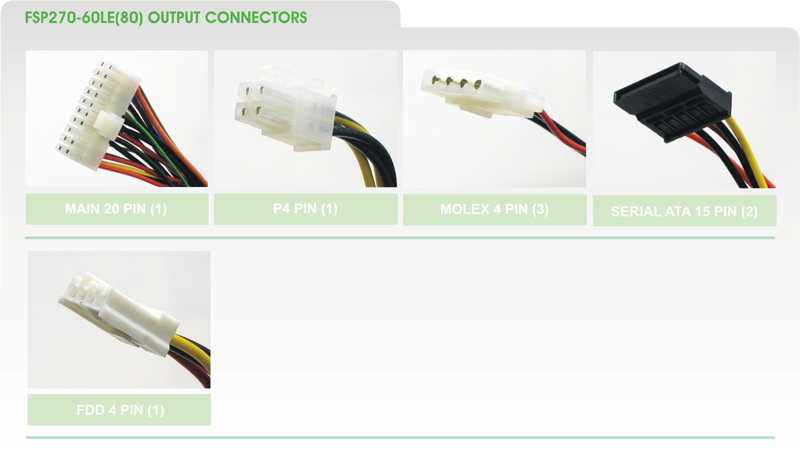

Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
Maximum input current (@110V)
+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Number of SATA power connectors
2
MTBF
100000 h
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
Peripheral (Molex) power connectors (4-pin)
3
