MPN:
FSP250-50GUB

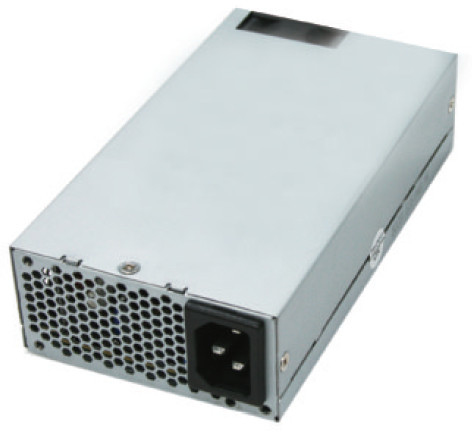

FSP FSP250-50GUB power supply unit 250 W Flex ATX Grey
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 250 W
- Efficiency rating
- 80 PLUS Bronze
- Depth
- 150 mm
- Width
- 81.5 mm
- Height
- 40 mm
- Safety
- CE,FCC,TUV,UL/cUL
- Purpose
- PC
- Rise time
- 20
- Cabling type
- Non-Modular
Shopping actions
Overview
The FSP FSP250-50GUB power supply unit 250 W Flex ATX Grey features 250 W output, 80 PLUS 80 PLUS Bronze efficiency and Passive cooling. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
150 mm
Width
81.5 mm
Height
40 mm
Colour
Grey
Power
2 SPECS
Wattage
250 W
Efficiency rating
80 PLUS Bronze
Cooling
1 SPEC
Cooling type
Passive
General
20 SPECS
Safety
CE,FCC,TUV,UL/cUL
Purpose
PC
Rise time
20
Cabling type
Non-Modular
Certifications
EN55022 class B
EN55024
EN 61000-3-2
EN 61000-3-3
AC input voltage
100 - 240
AC input frequency
47 - 63
Max output current (+5V)
18
Max output current (-12V)
0.5
Power over Ethernet (PoE)
No
Storage temperature
-20 - 80
Max output current (+12V1)
17
Max output current (+3.3V)
18
Max output current (+5Vsb)
2
Operating temperature
10 - 50
Maximum input current (@110V)
3
Maximum input current (@220V)
1.5
MTBF
100000 h
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
Flex ATX
