MPN:
AS-550

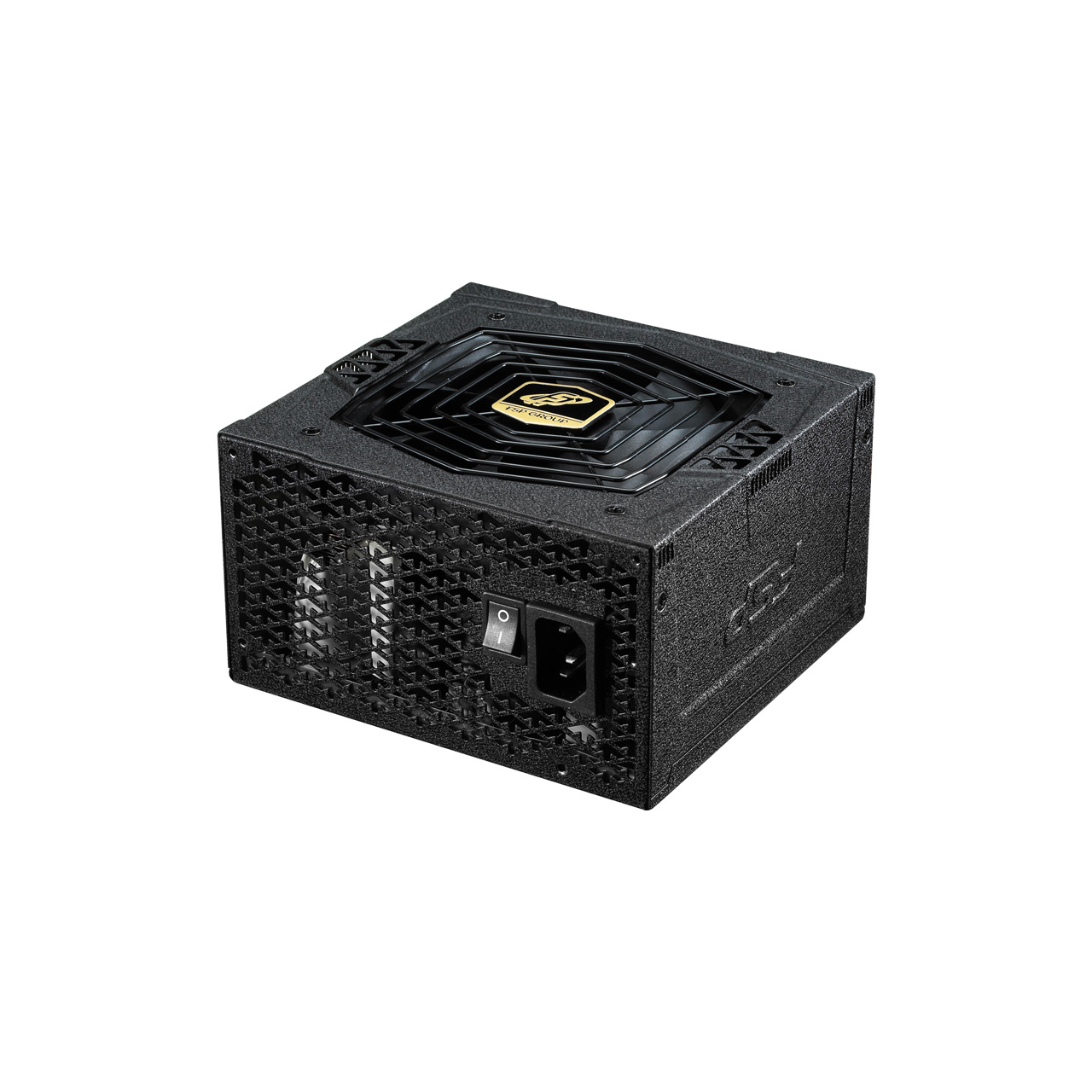

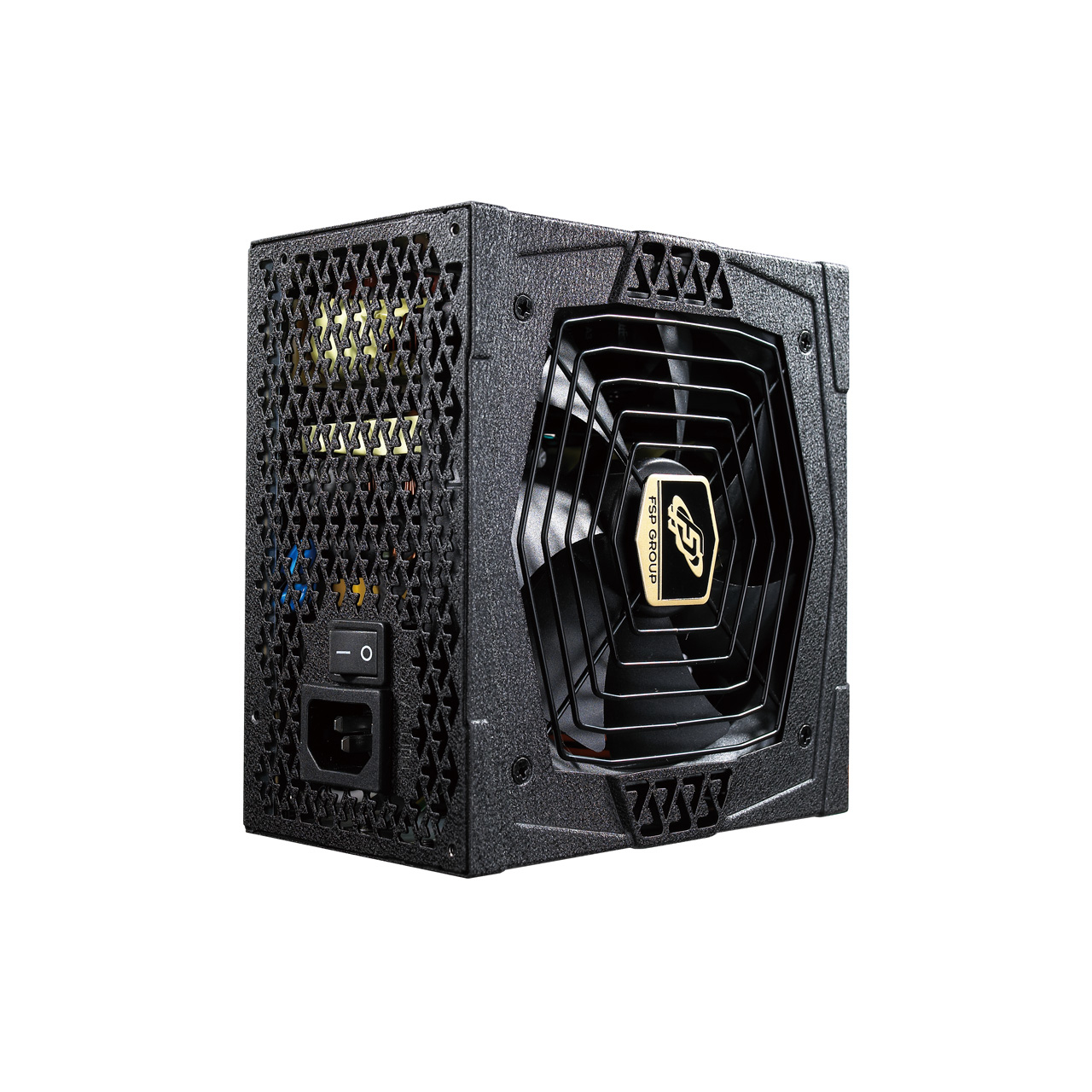

FSP AURUM S 550W power supply unit 24-pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 550 W
- Efficiency rating
- 80 PLUS Gold
- Depth
- 150 mm
- Width
- 140 mm
- Height
- 86 mm
- Weight
- 2070 g
- Purpose
- PC
- Efficiency
- 90
- ATX version
- 2.31
1 / 2
Shopping actions
Overview
The FSP AURUM S 550W power supply unit 24-pin ATX ATX Black features 550 W output, 80 PLUS 80 PLUS Gold efficiency, a 120 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
150 mm
Width
140 mm
Height
86 mm
Weight
2070 g
Colour
Black
Cooling
3 SPECS
Cooling type
Active
Fan size
120
Number of fans
1
Power
2 SPECS
Wattage
550 W
Efficiency rating
80 PLUS Gold
General
30 SPECS
Purpose
PC
Efficiency
90
ATX version
2.31
EPS version
2.92
Noise level
21
Cabling type
Non-Modular
Power factor
0.9
Input current
4
AC input voltage
100 - 240
AC input frequency
50 - 60
Combined power (+5V)
125
Combined power (+12V)
504
Combined power (-12V)
18.6
Combined power (+3.3V)
125
Combined power (+5Vsb)
18.6
Max output current (+5V)
22
Max output current (+12V)
42
Max output current (-12V)
0.3
Max output current (+3.3V)
24
Max output current (+5Vsb)
3
Motherboard power connector
24-pin ATX
Operating temperature
0 - 40
ATX Power connector (24-pin)
Yes
Floppy drive power connector
1
EPS power connector (4+4 pin)
Yes
Number of SATA power connectors
5
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
3
