MPN:
PPA5004108

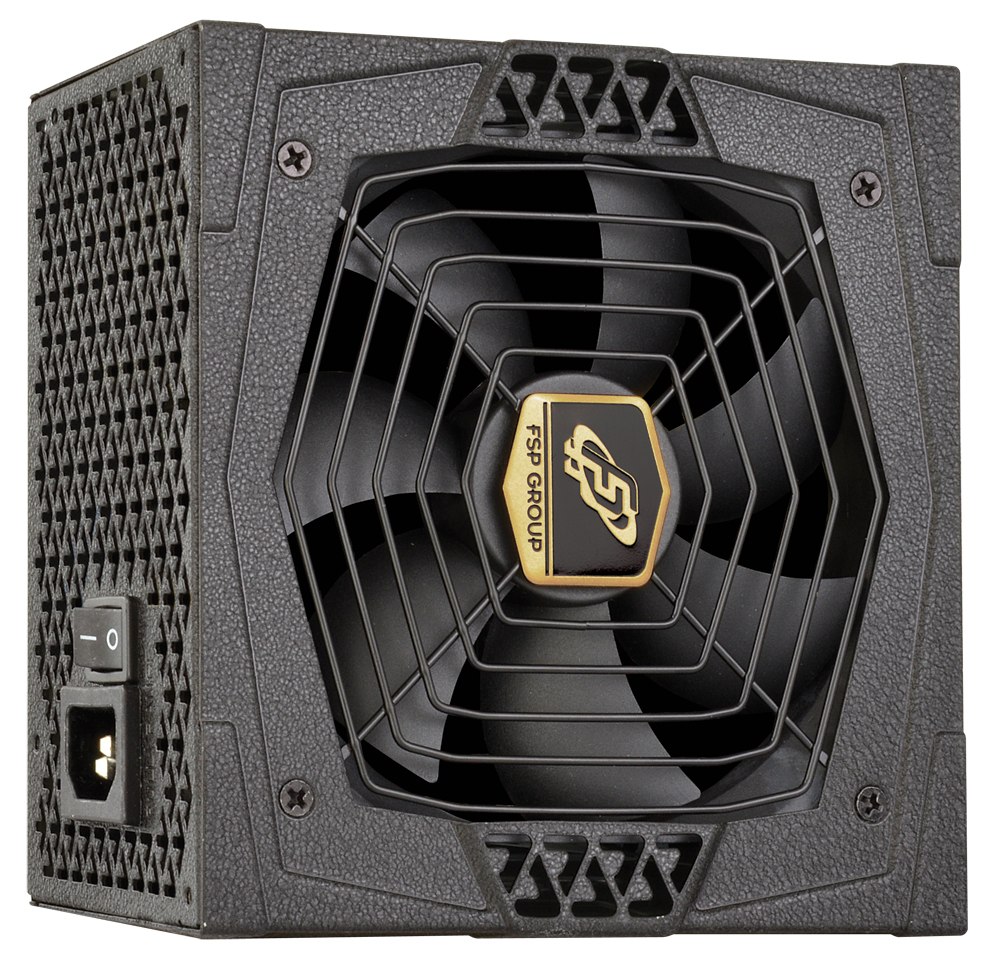

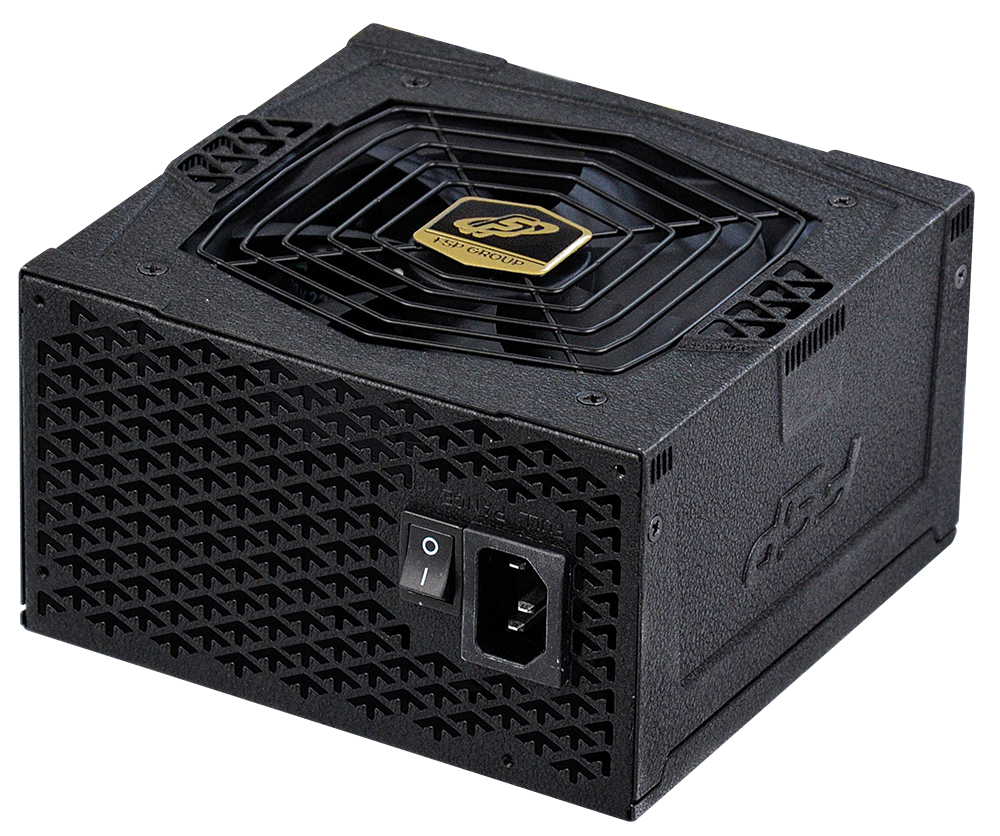

FSP Aurum S 500 power supply unit 500 W 24-pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 500 W
- Depth
- 150 mm
- Width
- 140 mm
- Height
- 86 mm
- Purpose
- PC
- Efficiency
- 90
- ATX version
- 2.3
- EPS version
- 2.92
- Noise level
- 21
1 / 3
Shopping actions
Overview
The FSP Aurum S 500 power supply unit 500 W 24-pin ATX ATX Black features 500 W output and a 120 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
150 mm
Width
140 mm
Height
86 mm
Colour
Black
Cooling
2 SPECS
Fan size
120
Number of fans
1
Power
1 SPEC
Wattage
500 W
General
32 SPECS
Purpose
PC
Efficiency
90
ATX version
2.3
EPS version
2.92
Noise level
21
Power factor
99
Certifications
CB, CE, FCC, UL/CUL, TUV, GOST, CCC, BSMI
Input current
4 - 8
On/off switch
Yes
AC input voltage
90 - 264
AC input frequency
47 - 63
Combined power (+5V)
120
Combined power (+12V)
468
Combined power (-12V)
18.6
Combined power (+3.3V)
120
Combined power (+5Vsb)
18.6
Max output current (+5V)
20
Max output current (+12V)
39
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Short circuit
Max output current (+3.3V)
24
Max output current (+5Vsb)
3
Motherboard power connector
24-pin ATX
ATX Power connector (24-pin)
Yes
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Maximum input current (@110V)
+12V,+3.3V,+5V,+5Vsb,-12V
Number of SATA power connectors
5
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
3
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
