MPN:
PPA5501601
FSP Aurum CM 550 power supply unit 550 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 550 W
- Efficiency rating
- 80 PLUS Gold
- Depth
- 150 mm
- Width
- 160 mm
- Height
- 86 mm
- Safety
- cUL, FCC, CE, TUV, GOST, BSMI, CCC
- Weight
- 2530 g
- Purpose
- PC
- Efficiency
- 90
1 / 5
Shopping actions
Overview

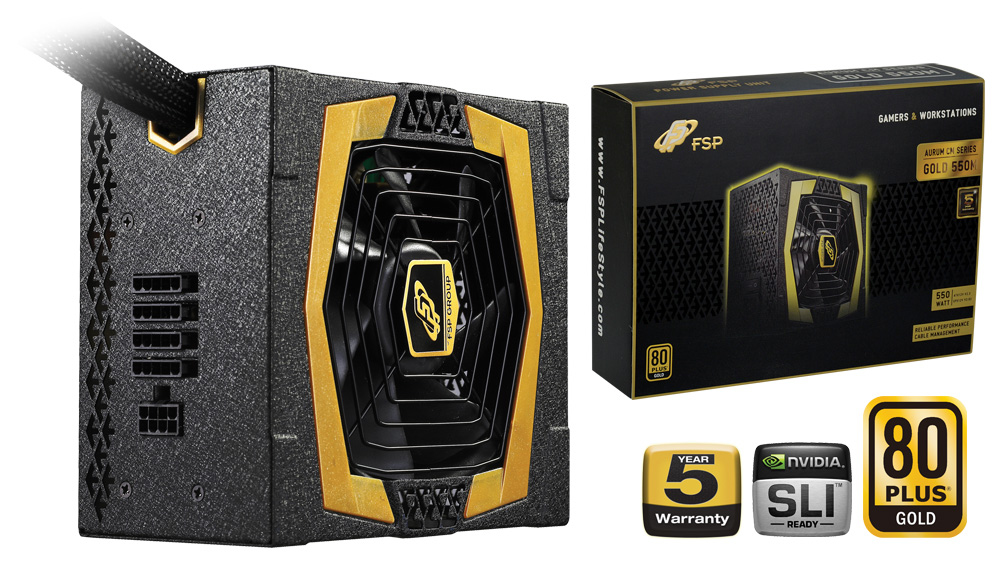

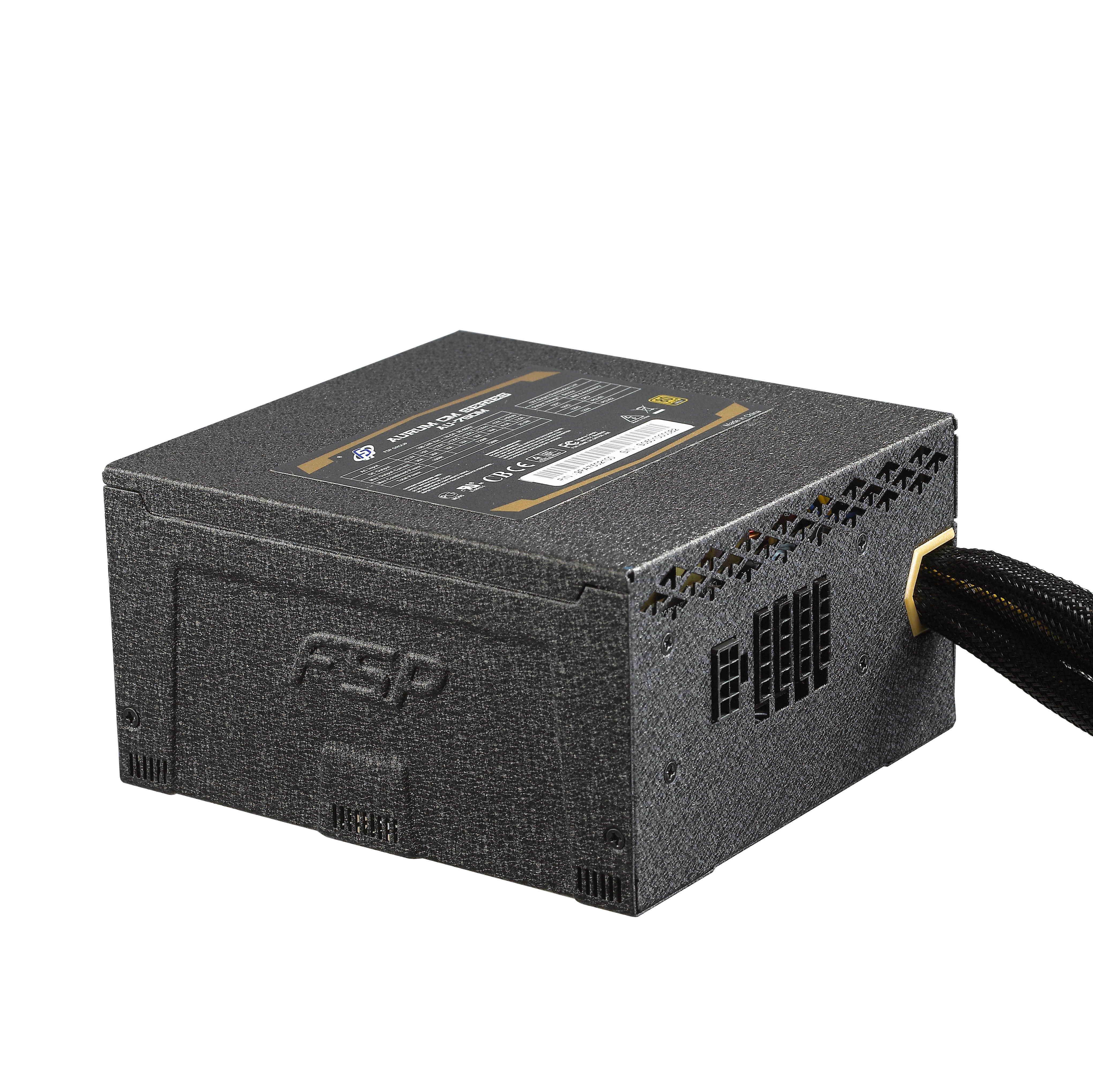

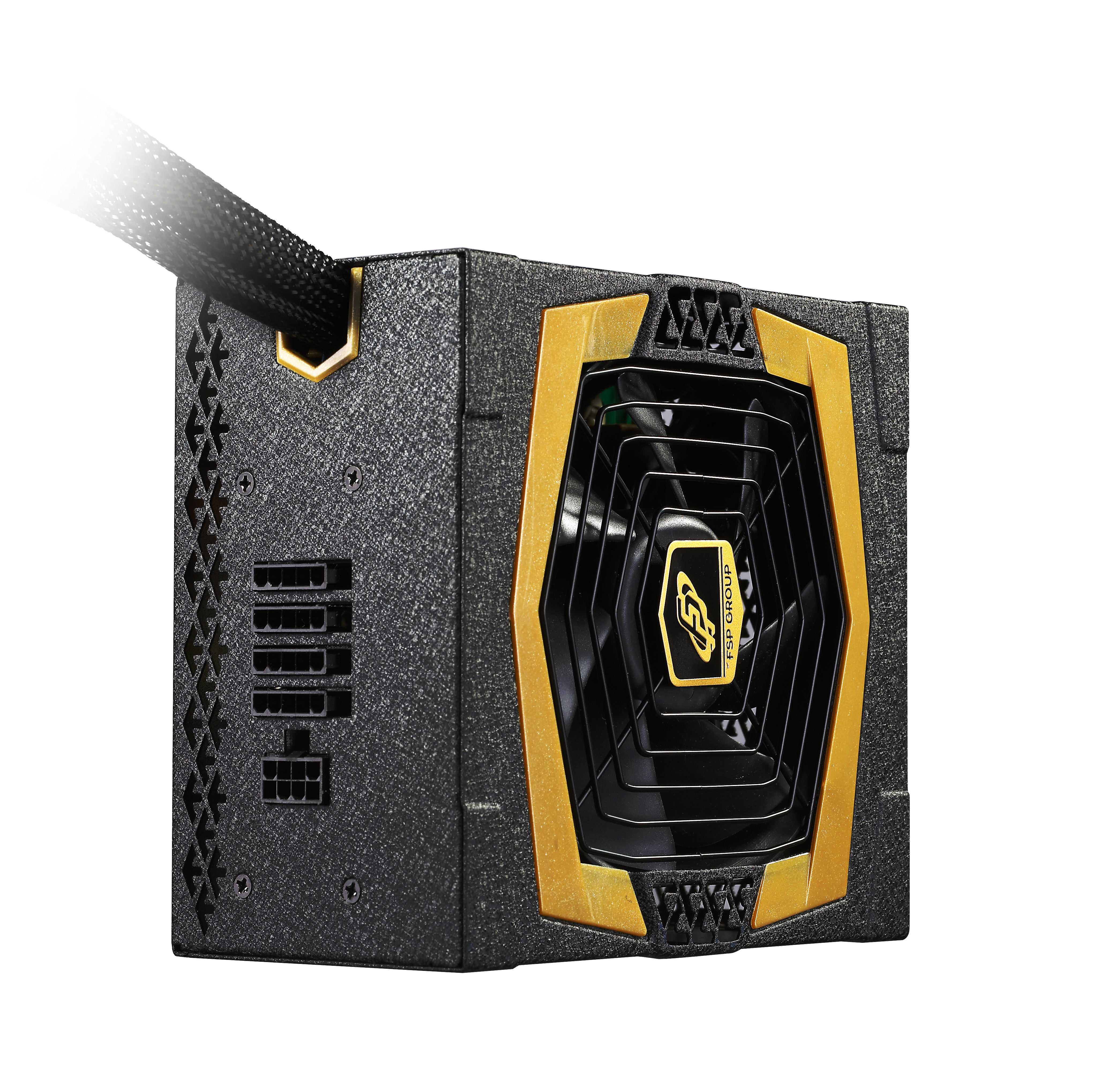

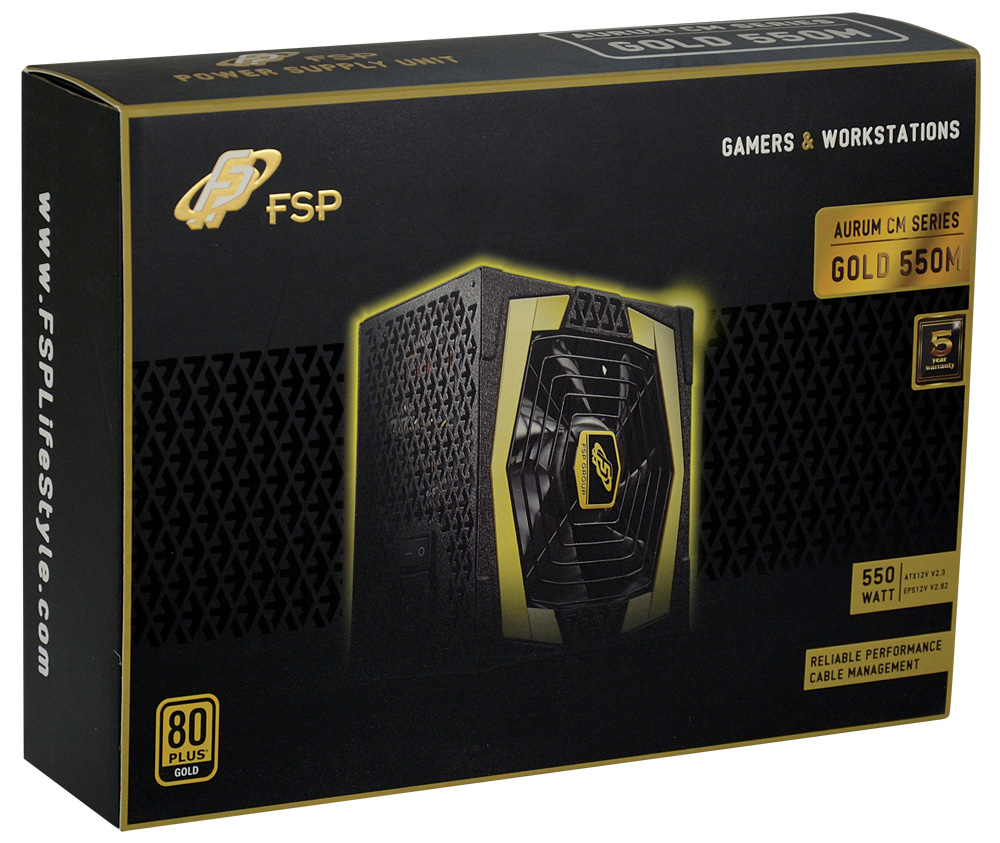

The FSP Aurum CM 550 power supply unit 550 W 20+4 pin ATX ATX Black features 550 W output, 80 PLUS 80 PLUS Gold efficiency, a 120 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
150 mm
Width
160 mm
Height
86 mm
Weight
2530 g
Colour
Black
Power
2 SPECS
Wattage
550 W
Efficiency rating
80 PLUS Gold
Cooling
3 SPECS
Cooling type
Active
Fan size
120
Number of fans
1
Logistics & Packaging
3 SPECS
Package depth
327 mm
Package width
245 mm
Package height
96 mm
General
36 SPECS
Safety
cUL, FCC, CE, TUV, GOST, BSMI, CCC
Purpose
PC
Efficiency
90
ATX version
2.3
EPS version
2.92
Noise level
21
Cabling type
Semi-Modular
Fan location
Top
Input current
4 - 8
On/off switch
Yes
AC input voltage
90 - 264
AC input frequency
47 - 63
Combined power (+5V)
140
Combined power (-12V)
23.5
Combined power (+3.3V)
140
Combined power (+5Vsb)
23.5
Max output current (+5V)
24
Max output current (-12V)
0.5
Power protection features
Over current,Over voltage,Short circuit
Max output current (+12V1)
18
Max output current (+12V2)
18
Max output current (+12V3)
18
Max output current (+12V4)
18
Max output current (+3.3V)
24
Max output current (+5Vsb)
3.5
EPS power connector (8-pin)
Yes
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Maximum input current (@110V)
+12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V
ATX power connector (20+4 pin)
Yes
Number of SATA power connectors
7
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
4
