MPN:
9PA300DK08

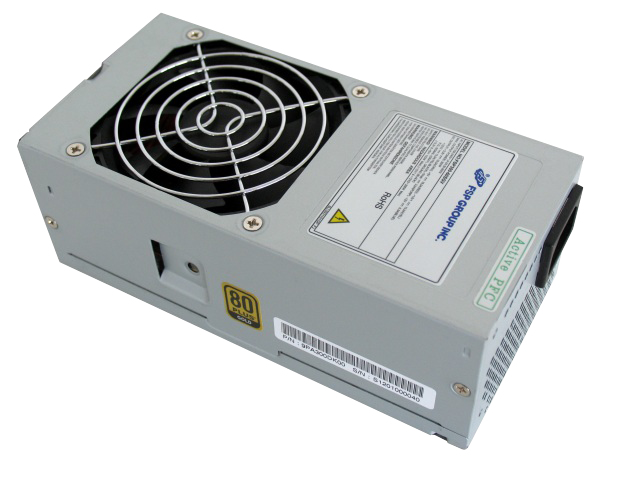

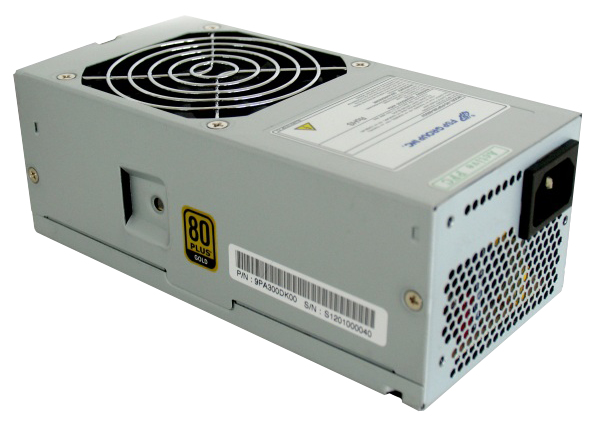

FSP 9PA300DK08 power supply unit 300 W 24-pin ATX TFX Grey
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 300 W
- Efficiency rating
- 80 PLUS Gold
- Depth
- 175 mm
- Width
- 85 mm
- Height
- 65 mm
- Purpose
- PC
- Efficiency
- 90.58
- Cabling type
- Non-Modular
- Input current
- 2 - 4
1 / 2
Shopping actions
Overview
The FSP 9PA300DK08 power supply unit 300 W 24-pin ATX TFX Grey features 300 W output and 80 PLUS 80 PLUS Gold efficiency. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
175 mm
Width
85 mm
Height
65 mm
Colour
Grey
Power
2 SPECS
Wattage
300 W
Efficiency rating
80 PLUS Gold
Cooling
1 SPEC
Number of fans
1
General
28 SPECS
Purpose
PC
Efficiency
90.58
Cabling type
Non-Modular
Input current
2 - 4
AC input voltage
90 - 264
AC input frequency
47 - 53
Combined power (+5V)
103
Combined power (+12V)
288
Combined power (-12V)
16
Combined power (+3.3V)
103
Combined power (+5Vsb)
16
Compliance certificates
RoHS
CPU P4 connector (4-pin)
1
Max output current (+5V)
18
Max output current (-12V)
0.3
Power protection features
Over voltage
Max output current (+12V1)
13
Max output current (+12V2)
13
Max output current (+3.3V)
18
Max output current (+5Vsb)
3
Floppy disk drive connector
Yes
Motherboard power connector
24-pin ATX
Eco certifications
ENERGY STAR
Floppy drive power connector
1
Number of SATA power connectors
3
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
TFX
Peripheral (Molex) power connectors (4-pin)
1
