MPN:
CTG-750C-RGB

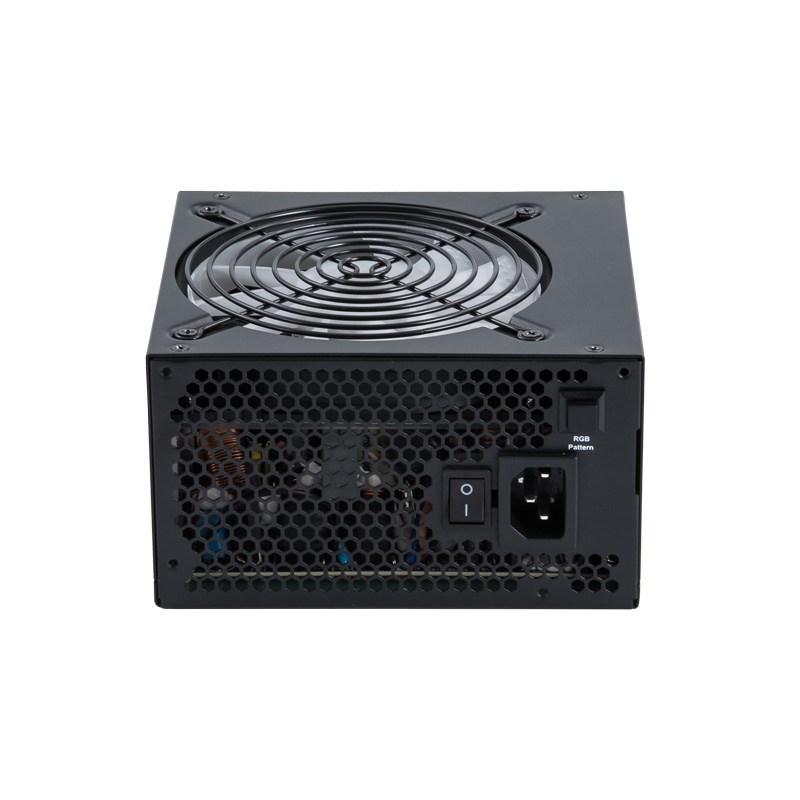

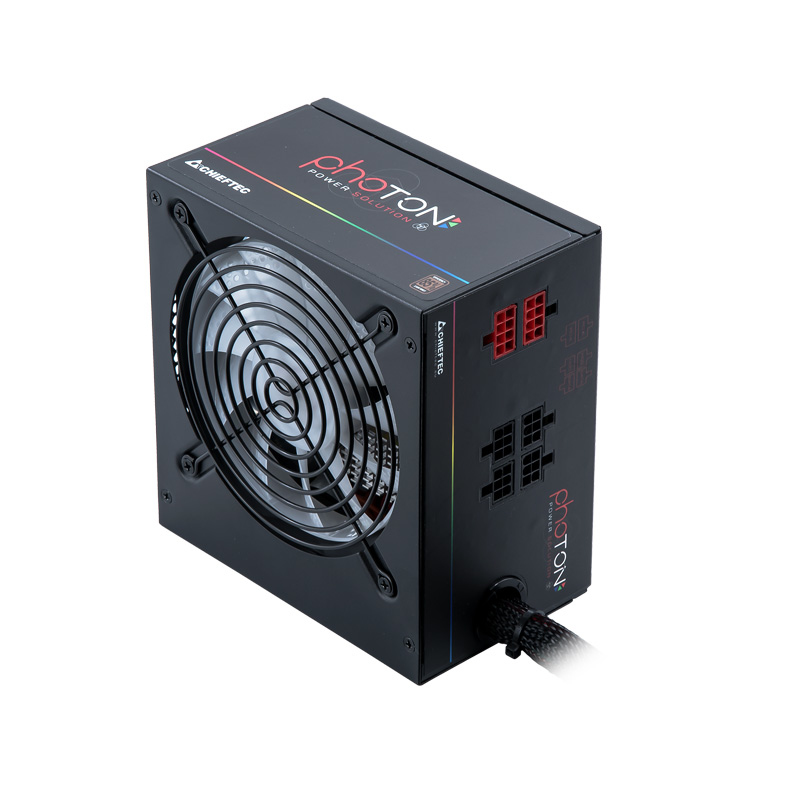

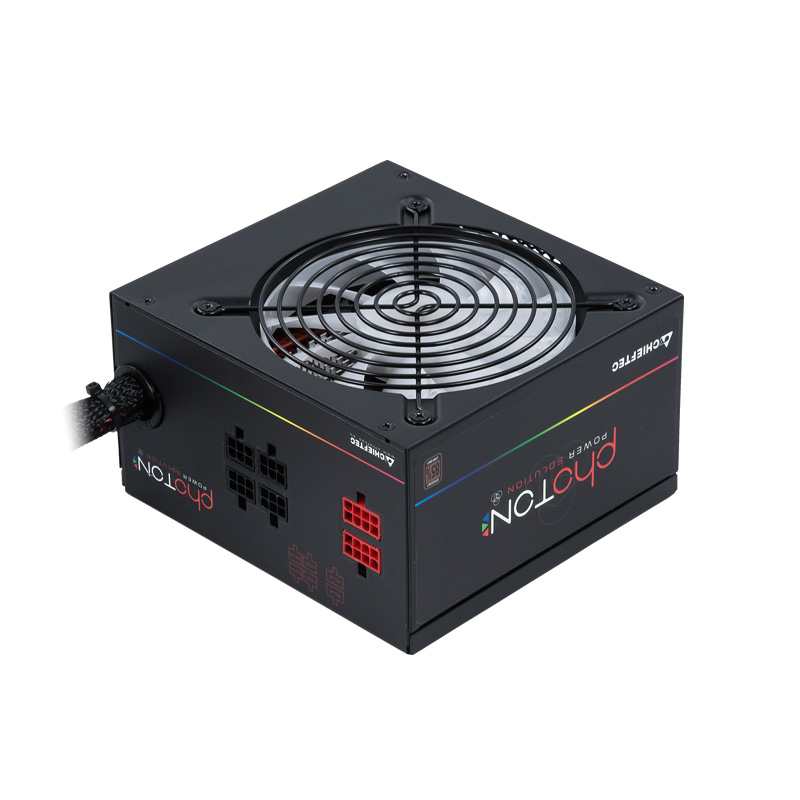

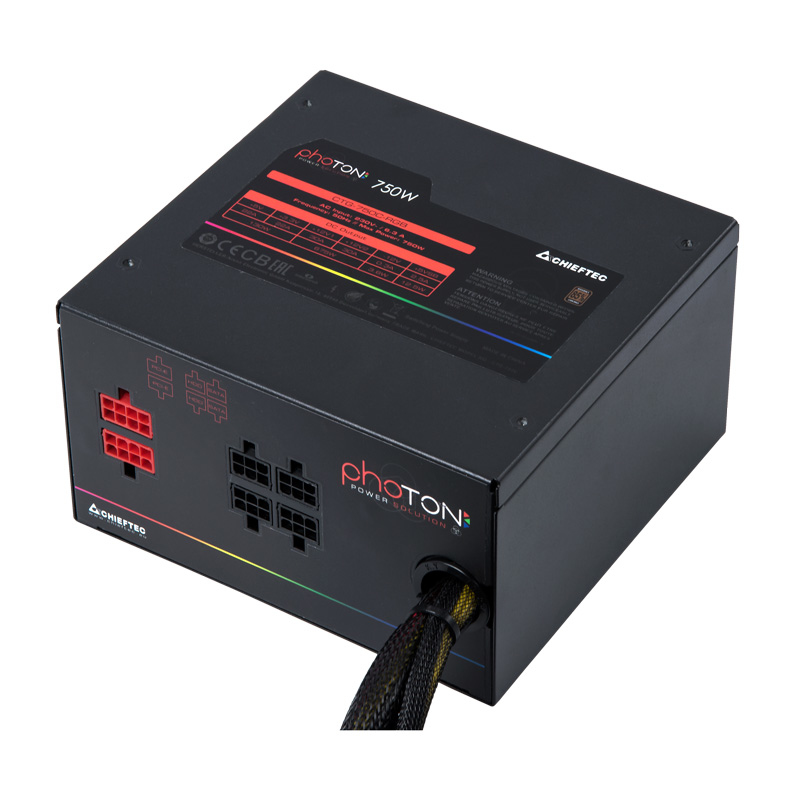

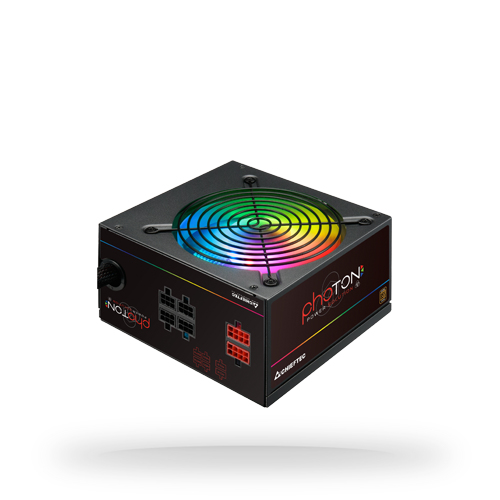

Chieftec Photon power supply unit 750 W 24-pin ATX PS/2 Black
Released: Not on record
$308.20
from
US · Amazon.com
Updated 2 months ago
Last updated Sep 3, 2026 03:14 UTC
Ratings & price sourced from Amazon.com (United States).
- Wattage
- 750 W
- Depth
- 140 mm
- Width
- 150 mm
- Height
- 87 mm
- Weight
- 2150 g
- Purpose
- PC
- Efficiency
- 85
- Cabling type
- Semi-Modular
- Cooling type
- Active
1 / 8
Shopping actions
Overview
The Chieftec Photon power supply unit 750 W 24-pin ATX PS/2 Black features 750 W output, a 120 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
6 SPECS
Depth
140 mm
Width
150 mm
Height
87 mm
Weight
2150 g
Colour
Black
Customs (HS) code
84733020
Power
1 SPEC
Wattage
750 W
Cooling
3 SPECS
Cooling type
Active
Fan size
120
Number of fans
1
Graphics
1 SPEC
Illumination
Yes
General
32 SPECS
Purpose
PC
Efficiency
85
Cabling type
Semi-Modular
Fan location
Top
Input current
6.3
AC input voltage
230
AC input frequency
50
Illumination colour
Blue,Green,Red
Combined power (+5V)
130
Combined power (-12V)
3.6
CPU power cable length
600
Combined power (+3.3V)
130
SATA power cable length
150,450
Max output current (+5V)
22
Max output current (-12V)
0.3
Power protection features
Over voltage,Overload,Short circuit,Under voltage
Max output current (+12V1)
30
Max output current (+12V2)
30
Max output current (+3.3V)
22
Floppy disk drive connector
Yes
Motherboard power connector
24-pin ATX
ATX Power connector (24-pin)
Yes
Floppy drive power connector
2
CPU power connector (4+4 pin)
Yes
Motherboard power cable length
550
PCI Express power cable length
550
Number of SATA power connectors
6
Supported board sizes
ATX
Power supply unit (PSU) form factor
PS/2
Peripheral (Molex) power cable length
150,450
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
4
Market Value History
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
