MPN:
BP005EU

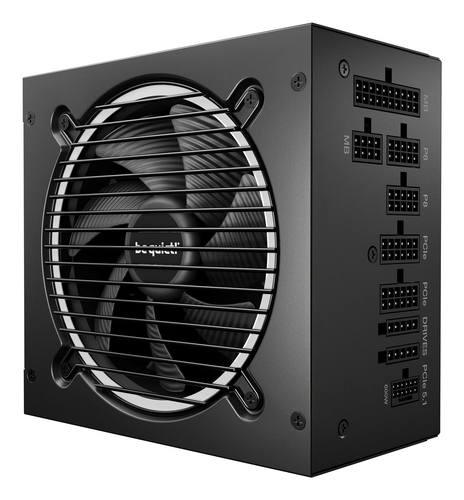

be quiet! PURE POWER 12 1000W power supply unit 20+4 pin ATX ATX Black
Released: Not on record
$290.70
from
US · Amazon.com
Updated 2 weeks ago
Last updated Sep 3, 2026 03:14 UTC
Ratings & price sourced from Amazon.com (United States).
- Wattage
- 1000 W
- Efficiency rating
- 80 PLUS Gold
- Depth
- 160 mm
- Width
- 86 mm
- Height
- 150 mm
- Weight
- 2800 g
- Purpose
- PC
- Hold time
- 17.82
- Efficiency
- 90.6
1 / 6
Shopping actions
Overview
Exceptional quiet, superior features
Pure Power 12 1000W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
Technical Specifications
Physical
5 SPECS
Depth
160 mm
Width
86 mm
Height
150 mm
Weight
2800 g
Colour
Black
Cooling
3 SPECS
Cooling type
Active
Fan size
120
Number of fans
1
Logistics & Packaging
5 SPECS
Package depth
320 mm
Package width
133 mm
Package height
210 mm
Package weight
3200 g
Shipping (inner) case net weight
13900
Power
2 SPECS
Wattage
1000 W
Efficiency rating
80 PLUS Gold
Graphics
1 SPEC
Illumination
No
General
56 SPECS
Purpose
PC
Hold time
17.82
Efficiency
90.6
Peak power
1050
ATX version
3.1
EPS version
2.92

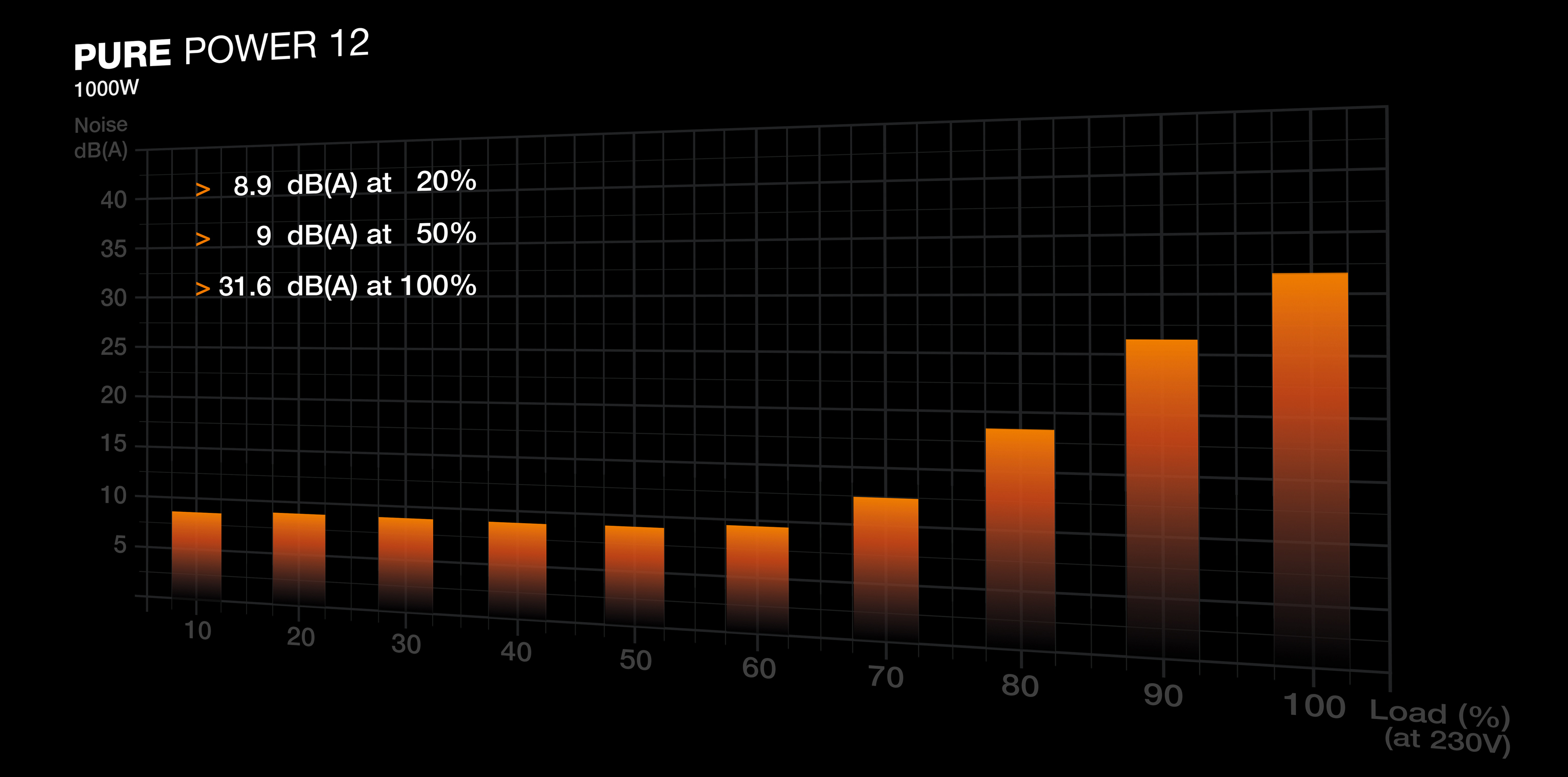

Noise level
31.6
Cabling type
Non-Modular
Power factor
0.98
On/off switch
Yes

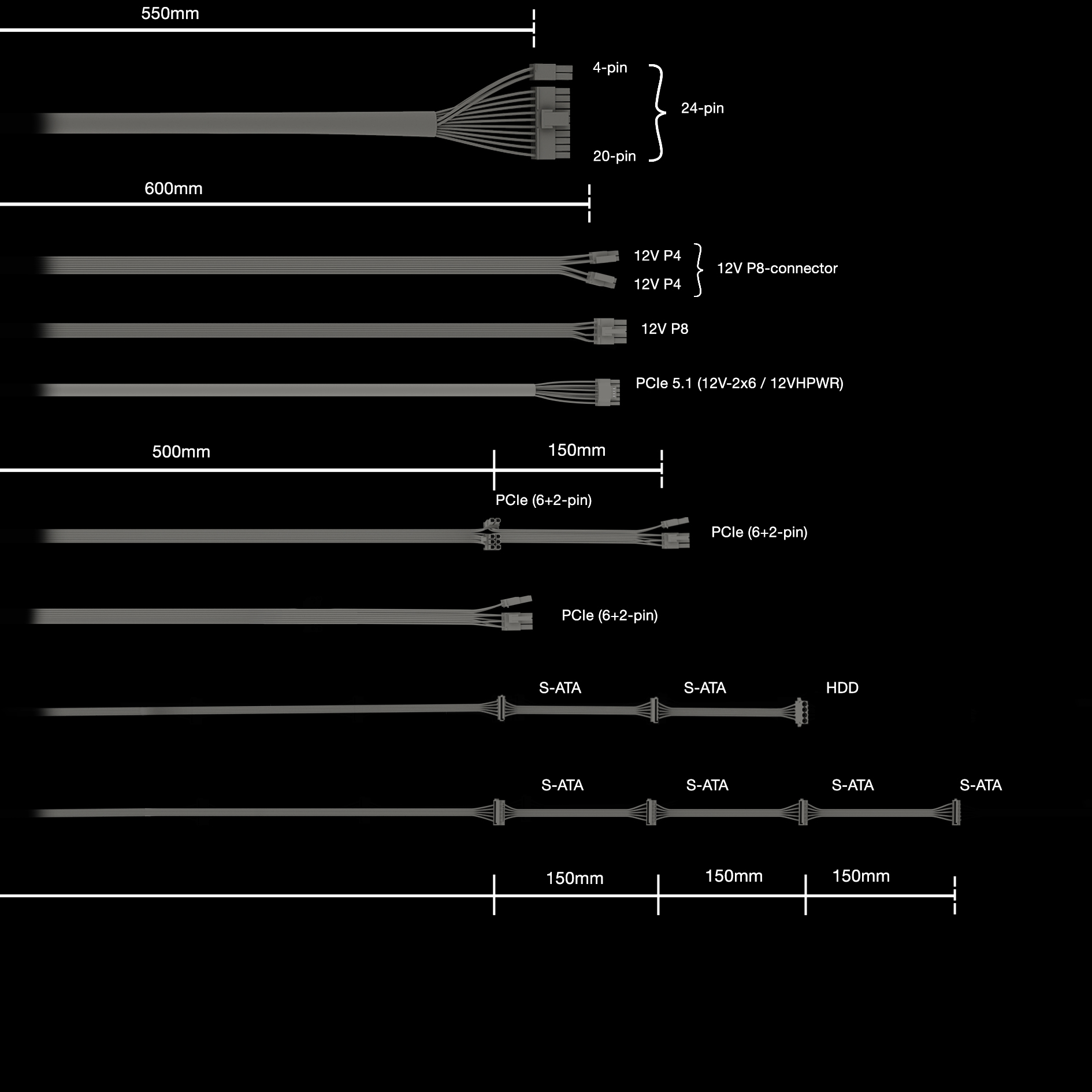

Included cables
AC
Screws included
Yes
Warranty period
10
AC input voltage
110 - 240
AC input frequency
50/60
Bearing type
Rifle
Combined power (+5V)
120
Cable tie(s) included
Yes
Combined power (+12V)
1000
Combined power (-12V)
3.6
PCI Express connector
Yes
CPU power cable length
600
Combined power (+3.3V)
120
Combined power (+5Vsb)
15
Number of +12V rail(s)
1
Compliance certificates
CB,CE,Federal Communications Commission (FCC),RoHS,UKCA,WEEE,cTUVus
SATA power cable length
500,650,800,950
Max output current (+5V)
22
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Surge & inrush protection (SIP),Under voltage
Storage temperature
-20 - 70
Max output current (+12V1)
83.4
Max output current (+3.3V)
22
Max output current (+5Vsb)
3
Motherboard power connector
20+4 pin ATX
Operating temperature
0 - 40
Shipping (inner) case width
240
Eco certifications
ENERGY STAR,ErP,Triman
Shipping (inner) case height
340
Shipping (inner) case length
560
CPU power connector (4+4 pin)
Yes
Maximum input current (@110V)
12
Maximum input current (@220V)
6
Motherboard power cable length
550
PCI Express power cable length
600
Number of SATA power connectors
6
Storage relative humidity (H-H)
0 - 95
MTBF
100000 h
Operating humidity
0 - 90
Power Factor Correction (PFC) type
Active
Products per shipping (inner) case
4
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (12-pin)
1
Peripheral (Molex) power cable length
800
PCI Express power connectors (6+2 pin)
3
Peripheral (Molex) power connectors (4-pin)
1
