MPN:
90MB0LD0-M0EAY0

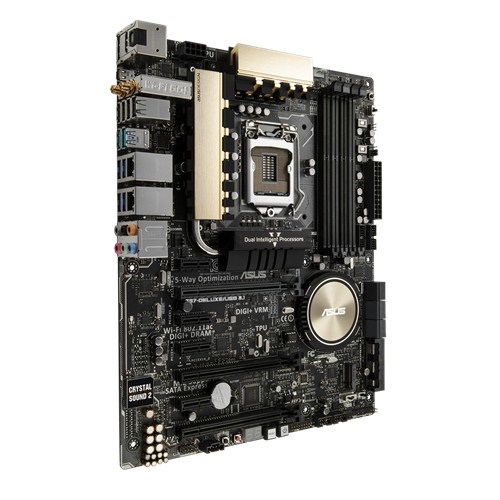

ASUS Z97-DELUXE/USB 3.1 Intel® Z97 LGA 1150 (Socket H3) ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 244 mm
- Wi-Fi
- Y
- Width
- 305 mm
- BIOS type
- UEFI AMI
- Bluetooth
- Y
- RAID levels
- 0,1,5,10
- ACPI version
- 5.0
- Ethernet LAN
- Y
- LAN controller
- Intel I211-AT,Intel I218-V
1 / 4
Shopping actions
Overview
The ASUS Z97-DELUXE/USB 3.1 Intel® Z97 LGA 1150 (Socket H3) ATX (Depth: 244 mm). Full verified specifications are listed below.
Technical Specifications
Ports & Connectivity
6 SPECS
HDMI ports
1
PS/2 ports
0
DVI-D ports quantity
0
DisplayPorts quantity
1
USB 2.0 ports
4
Ethernet ports
2
Memory
2 SPECS
Memory slots
4
Max memory
32 GB
Power
1 SPEC
Power source
ATX
Processor
3 SPECS
Bundled software
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Socket
LGA 1150 (Socket H3)
CPU brand
Intel
Physical
3 SPECS
Depth
244 mm
Width
305 mm
Form factor
ATX
Storage
1 SPEC
SATA ports
6
General
46 SPECS
Wi-Fi
Yes
BIOS type
UEFI AMI
Bluetooth
Yes
RAID levels
0,1,5,10
ACPI version
5.0
Ethernet LAN
Yes
LAN controller
Intel I211-AT,Intel I218-V
Memory channels
Dual-channel
S/PDIF out port
Yes
Wi-Fi standard
802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
BIOS memory size
64 MB
Drivers included
Yes
Bluetooth version
4.0
CPU fan connector
Yes
Clear CMOS button
Yes
EZ plug connector
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
ECC сompatibility
non-ECC
USB 2.0 connectors
2
Chipset
Intel Z97
S/PDIF out connector
Yes
eSATA ports quantity
0
Audio channels
7.1
Supported memory types
DDR3-SDRAM
Ethernet interface type
Gigabit Ethernet
FireWire ports
0
Mini DisplayPorts quantity
1
Motherboard chipset family
Intel
VGA ports
0
Compatible processor series
Intel Celeron,Intel Pentium
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Number of SATA III connectors
6
Supported memory clock speeds
1333,1600,1866,2000,2133,2200,2400,2600,2666,2800,2933,3000,3100,3200
PCI Express x1 (Gen 2.x) slots
4
Number of EATX power connectors
1
PCI Express x16 (Gen 2.x) slots
1
PCI Express x16 (Gen 3.x) slots
2
Number of chassis fan connectors
4
Supported storage drive interfaces
SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Parallel processing technology support
3-Way CrossFireX,Quad-GPU SLI
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Market Value History
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
