MPN:
90MB1170-M0EAY0
ASUS TUF GAMING X570-PLUS (WI-FI) AMD X570 Socket AM4 ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 244 mm
- Wi-Fi
- Y
- Width
- 305 mm
- Height
- 68 mm
- Weight
- 900 g
- Line-in
- Y
- BIOS type
- UEFI AMI
- Bluetooth
- Y
- PCI slots
- N
1 / 6
Shopping actions
Overview
The ASUS TUF GAMING X570-PLUS (WI-FI) AMD X570 Socket AM4 ATX (Depth: 244 mm). Full verified specifications are listed below.
Technical Specifications

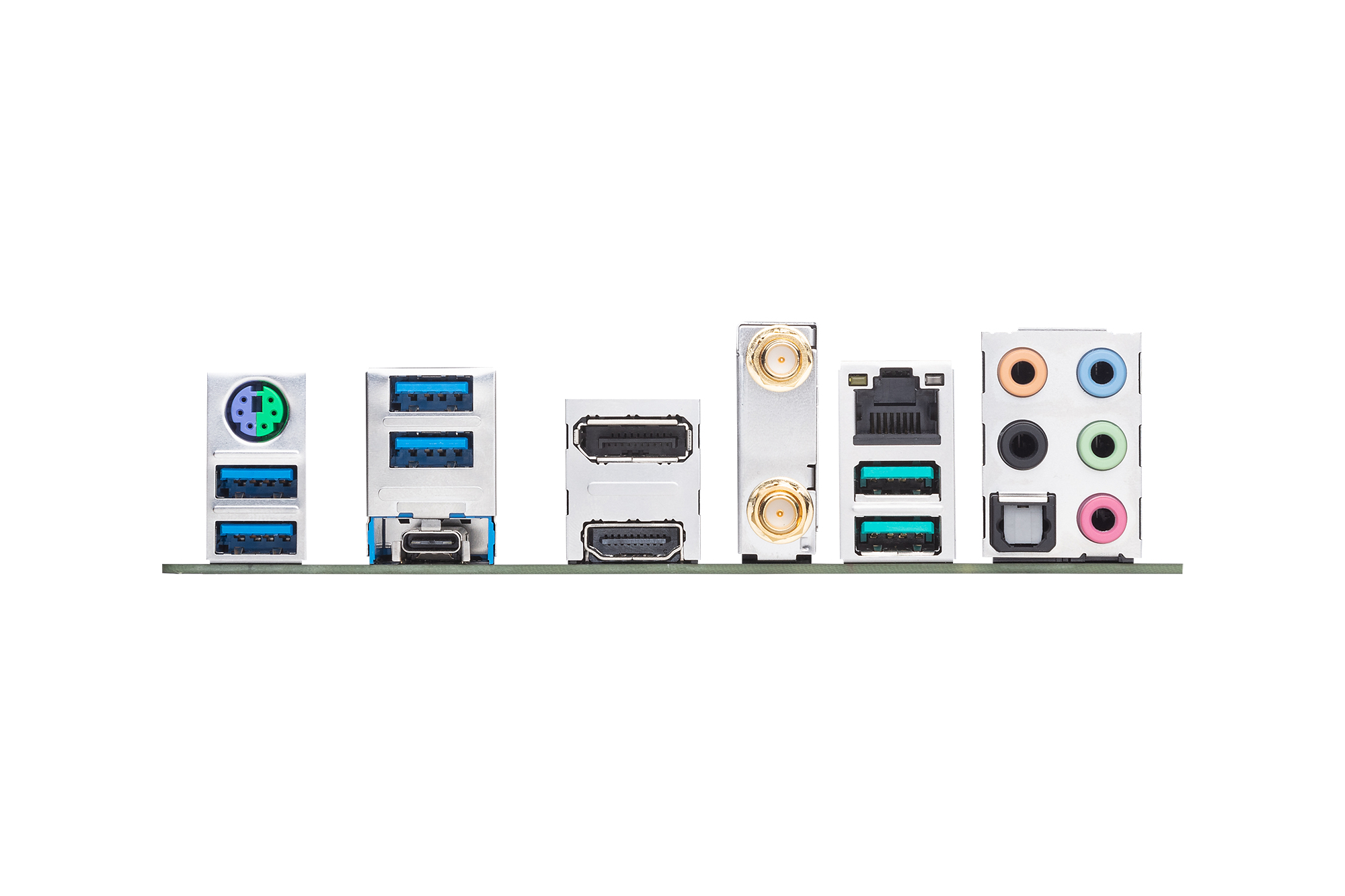

Ports & Connectivity
7 SPECS
HDMI ports
1
PS/2 ports
1
DVI-D ports quantity
0
DVI-I ports quantity
0
DisplayPorts quantity
1
USB 2.0 ports
0
Ethernet ports
1
Processor
2 SPECS
Socket
Socket AM4
CPU brand
AMD
Graphics
1 SPEC
Max resolution
4096 x 2160
Physical
7 SPECS
Depth
244 mm
Width
305 mm
Height
68 mm
Weight
900 g
Colour
Black
Form factor
ATX
Customs (HS) code
84733020
Memory
2 SPECS
Memory slots
4
Max memory
128 GB
Storage
1 SPEC
SATA ports
0
General
94 SPECS
Wi-Fi
Yes
Line-in
Yes
BIOS type
UEFI AMI
Bluetooth
Yes
PCI slots
0
Audio chip
Realtek ALC S1200A
PCI-X slots
0
RAID levels
0,1,10
ACPI version
6.2
Ethernet LAN
Yes
HDMI version
1.4b
RAID support
Yes
Intended use
PC
Microphone input
Yes
TPM connector
Yes
LAN controller
Realtek L8200A
Included cables
SATA
Memory channels
Dual-channel
S/PDIF out port
Yes
Wi-Fi standard
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
BIOS memory size
256 MB
Drivers included
Yes
Bluetooth version
5.0
CPU fan connector
Yes
Clear CMOS jumper
Yes
Headphone outputs
1
Memory slots type
DIMM
Unbuffered memory
Yes
Wake-on-LAN ready
Yes
RGB LED pin header
Yes
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
USB 2.0 connectors
2
12V power connector
Yes
Chipset
AMD X570
PCI Express x1 slots
0
PCI Express x4 slots
0
PCI Express x8 slots
0
eSATA ports quantity
0
mSATA ports quantity
0
Audio channels
7.1
Front panel connector
Yes
PCI Express x16 slots
0
Mini PCI Express slots
0
Integrated graphics
No
Supported memory types
DDR4-SDRAM
Ethernet interface type
Gigabit Ethernet
Number of M.2 (M) slots
2
Number of COM connectors
1
Quick installation guide
Yes
Digital audio optical out
1
FireWire ports
0
Motherboard chipset family
AMD
USB 3.2 Gen 2x2 connectors
0
VGA ports
0
Compatible processor series
AMD Ryzen 2000 Series,AMD Ryzen 3000 Series
Front panel audio connector
Yes
Supported CPU sockets
Socket AM4
USB4 Gen 2x2 ports quantity
0
USB4 Gen 3x2 ports quantity
0
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
0
Number of SATA III connectors
8
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3300,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5000,5100
PCI Express x1 (Gen 2.x) slots
0
PCI Express x1 (Gen 3.x) slots
0
PCI Express x1 (Gen 4.x) slots
2
PCI Express x4 (Gen 1.x) slots
0
PCI Express x4 (Gen 2.x) slots
0
PCI Express x4 (Gen 4.x) slots
0
PCI Express x8 (Gen 1.x) slots
0
Number of EATX power connectors
1
PCI Express x16 (Gen 2.x) slots
0
PCI Express x16 (Gen 3.x) slots
0
PCI Express x16 (Gen 4.x) slots
2
PCI Express x16 (Gen 5.x) slots
0
Maximum number of SMP processors
1
Mini PCI Express (Gen 1.x) slots
0
Mini PCI Express (Gen 2.x) slots
0
Number of chassis fan connectors
3
Number of Parallel ATA connectors
0
Supported storage drive interfaces
SATA III
Mini PCI Express slot (full length)
0
Mini PCI Express slot (half-length)
0
Windows versions supported
Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 10 x64
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2x2 Type-C ports quantity
0
Parallel processing technology support
CrossFireX
PCI Express OCuLink connectors (NVMe support)
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots
0
