MPN:
90MB12P0-M0EAY0

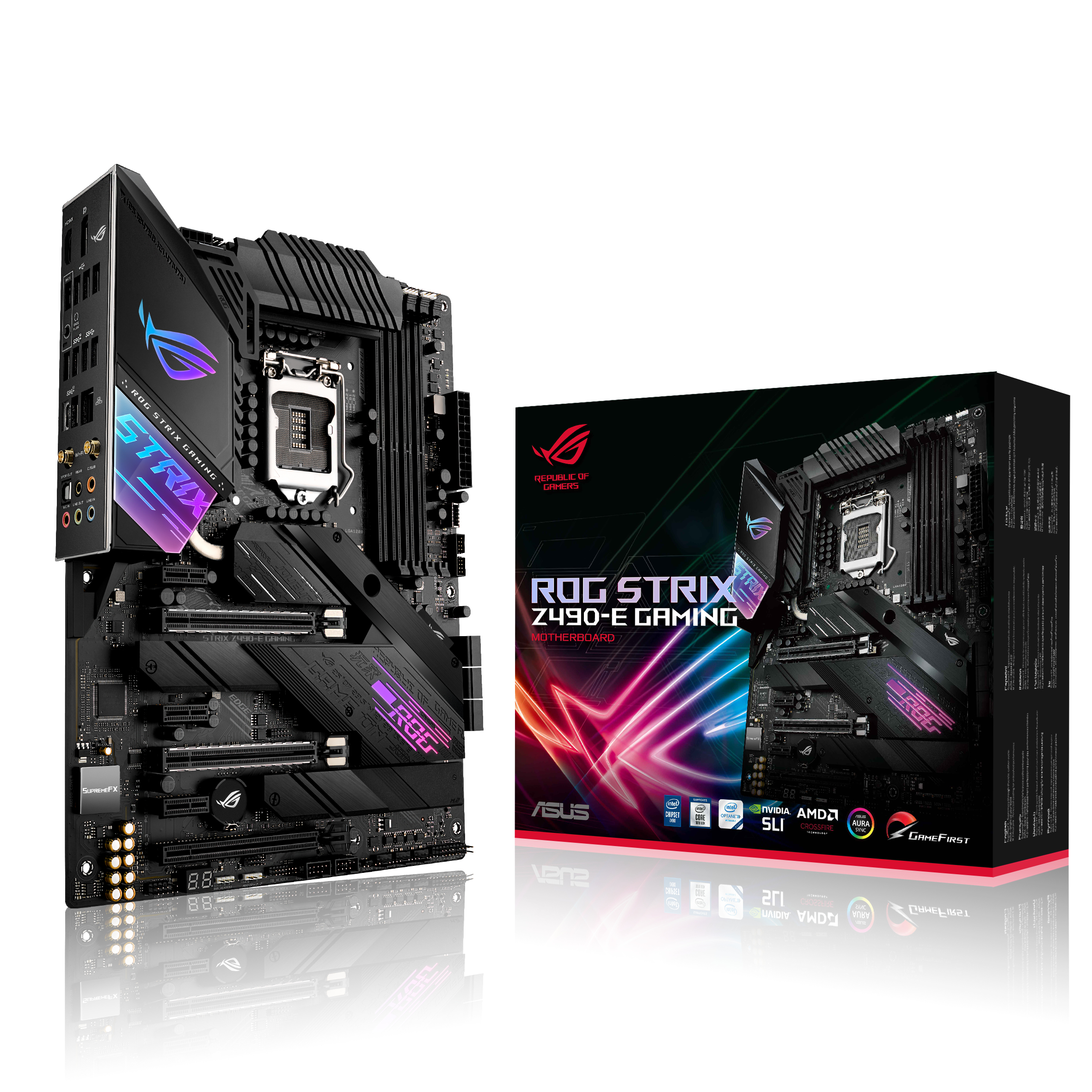

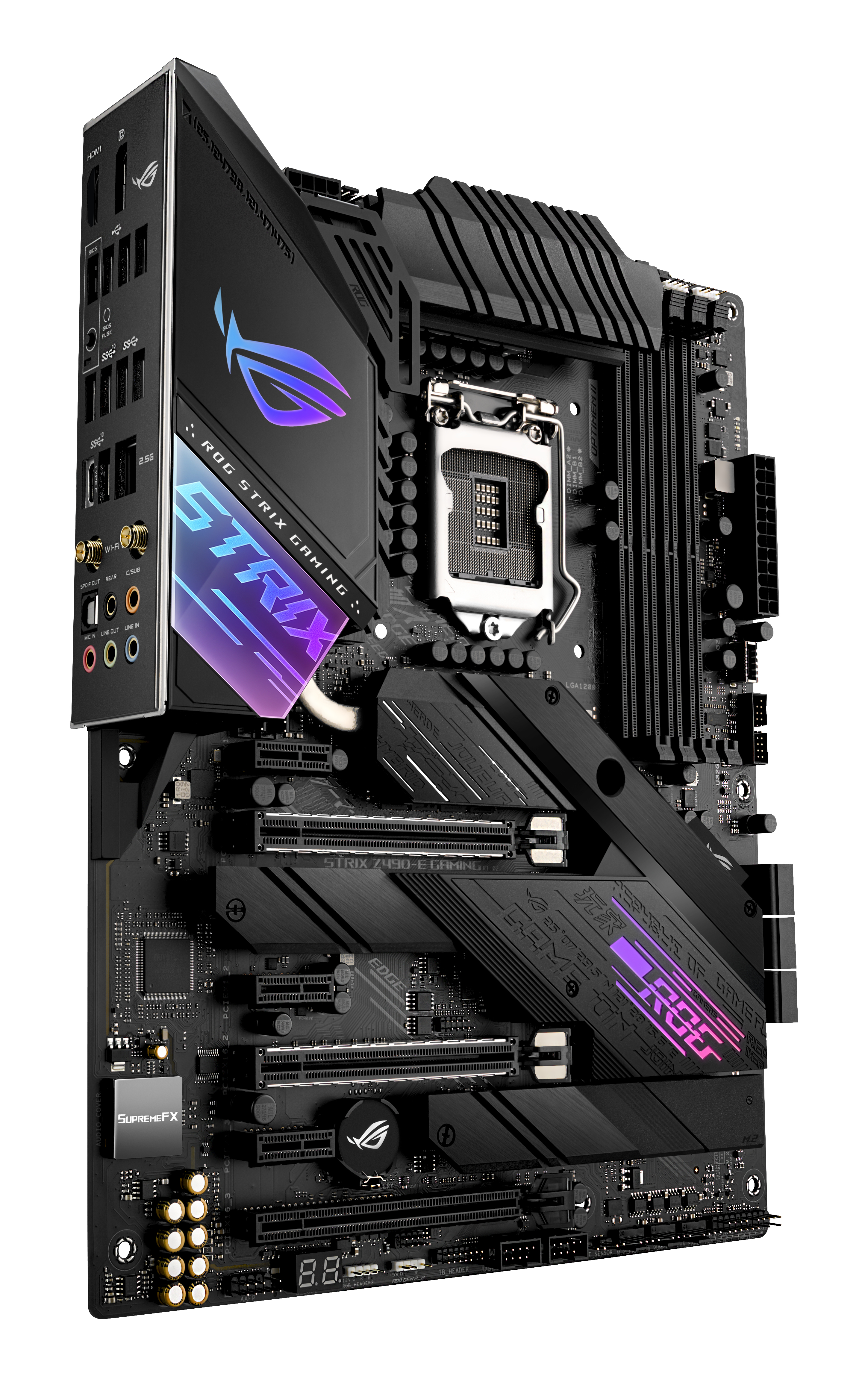

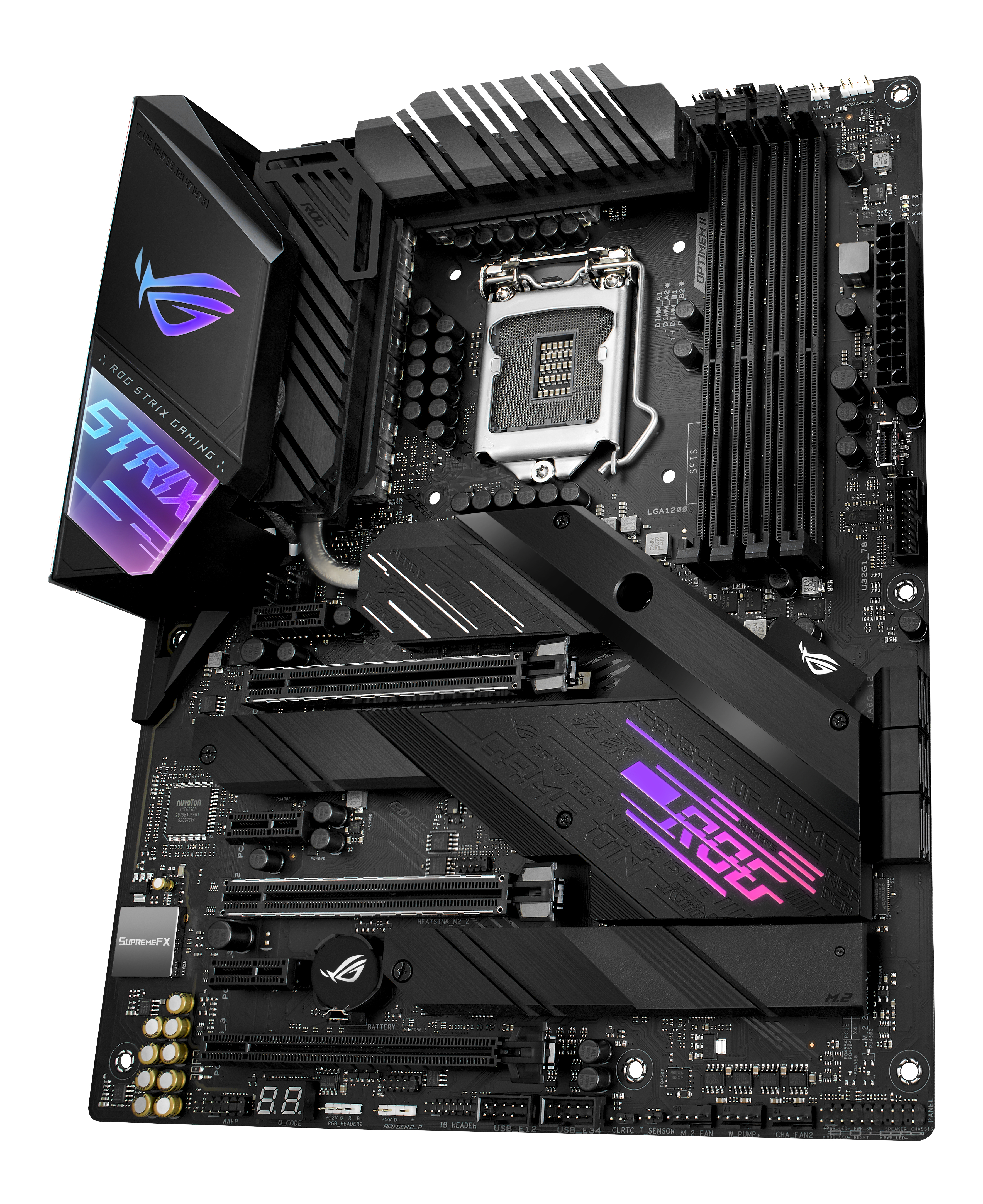

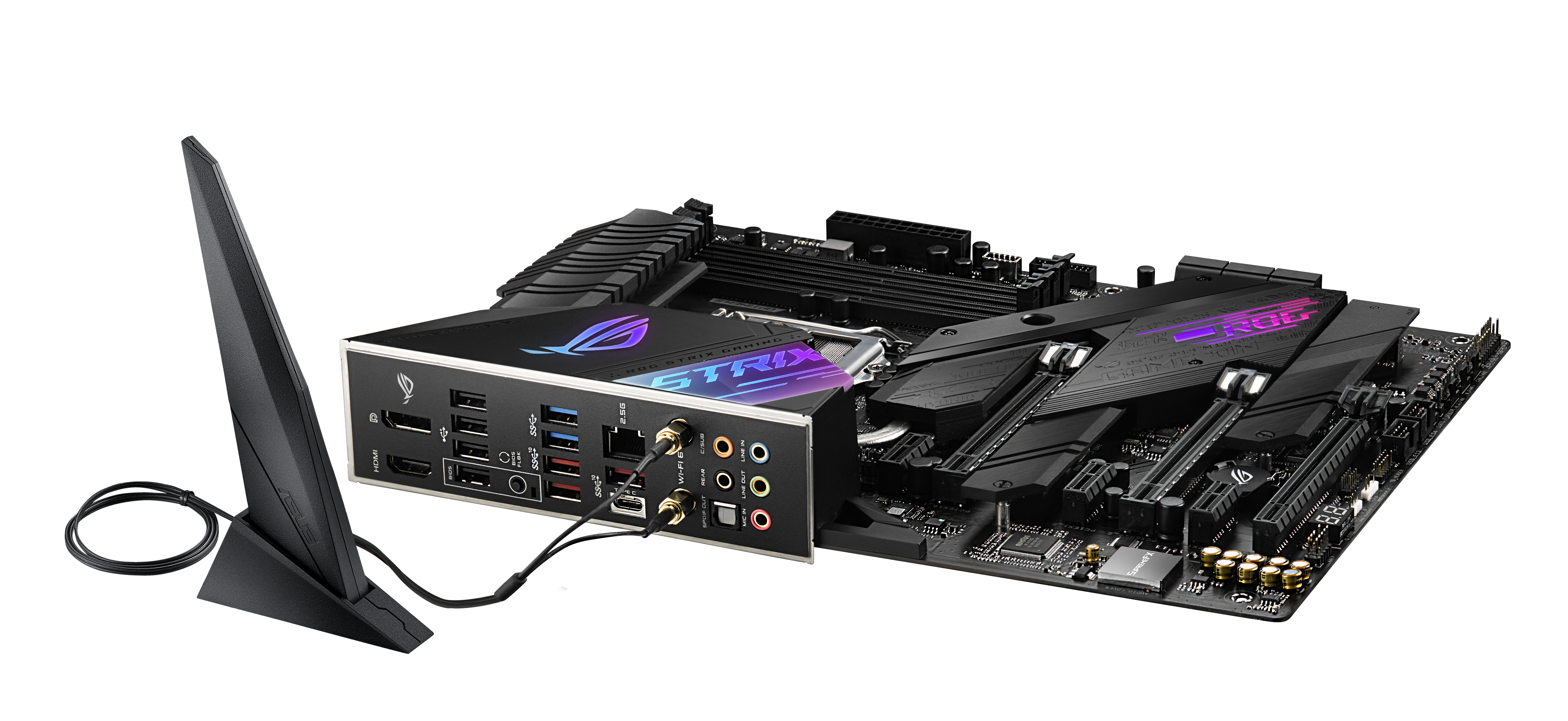

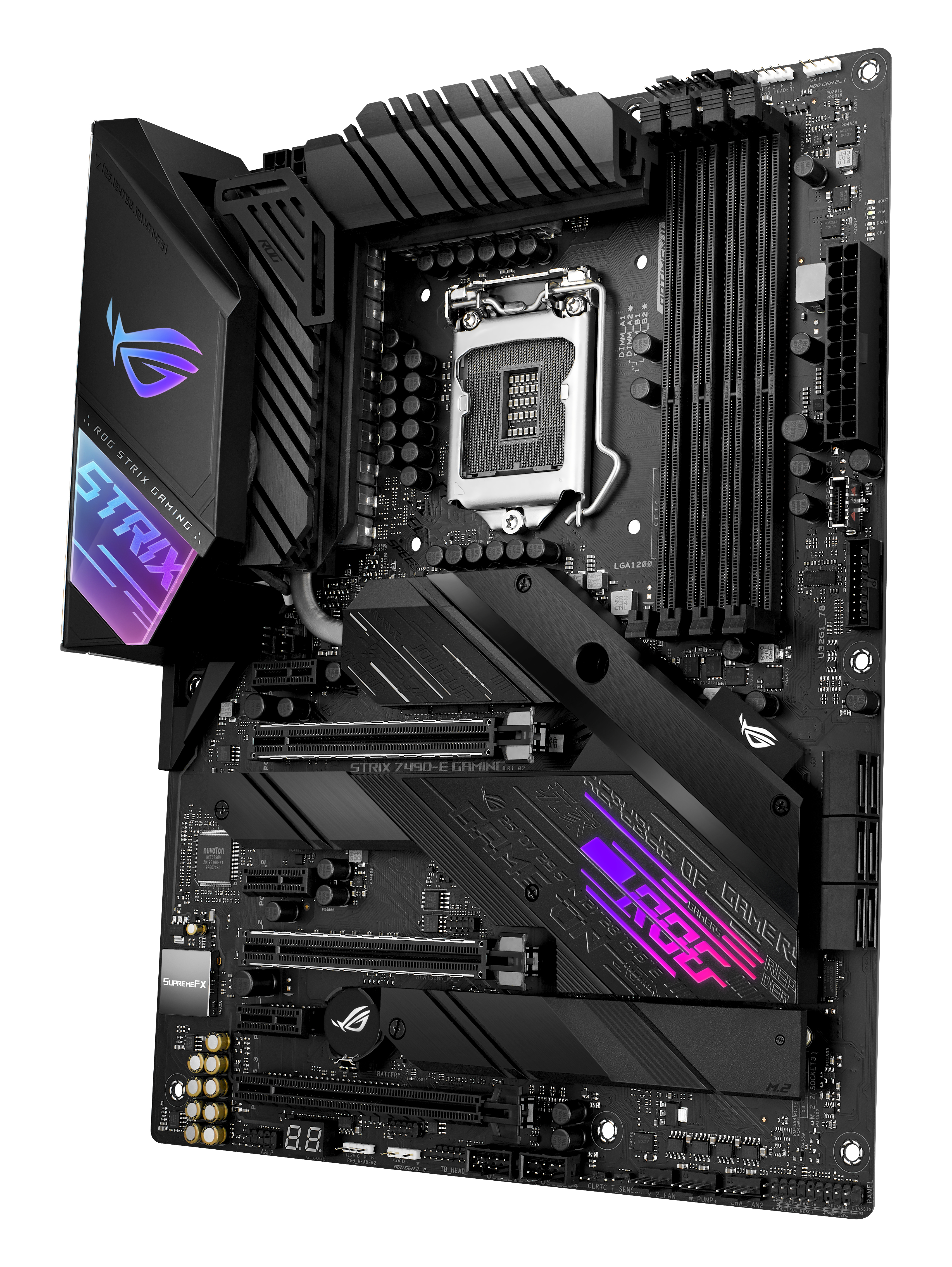

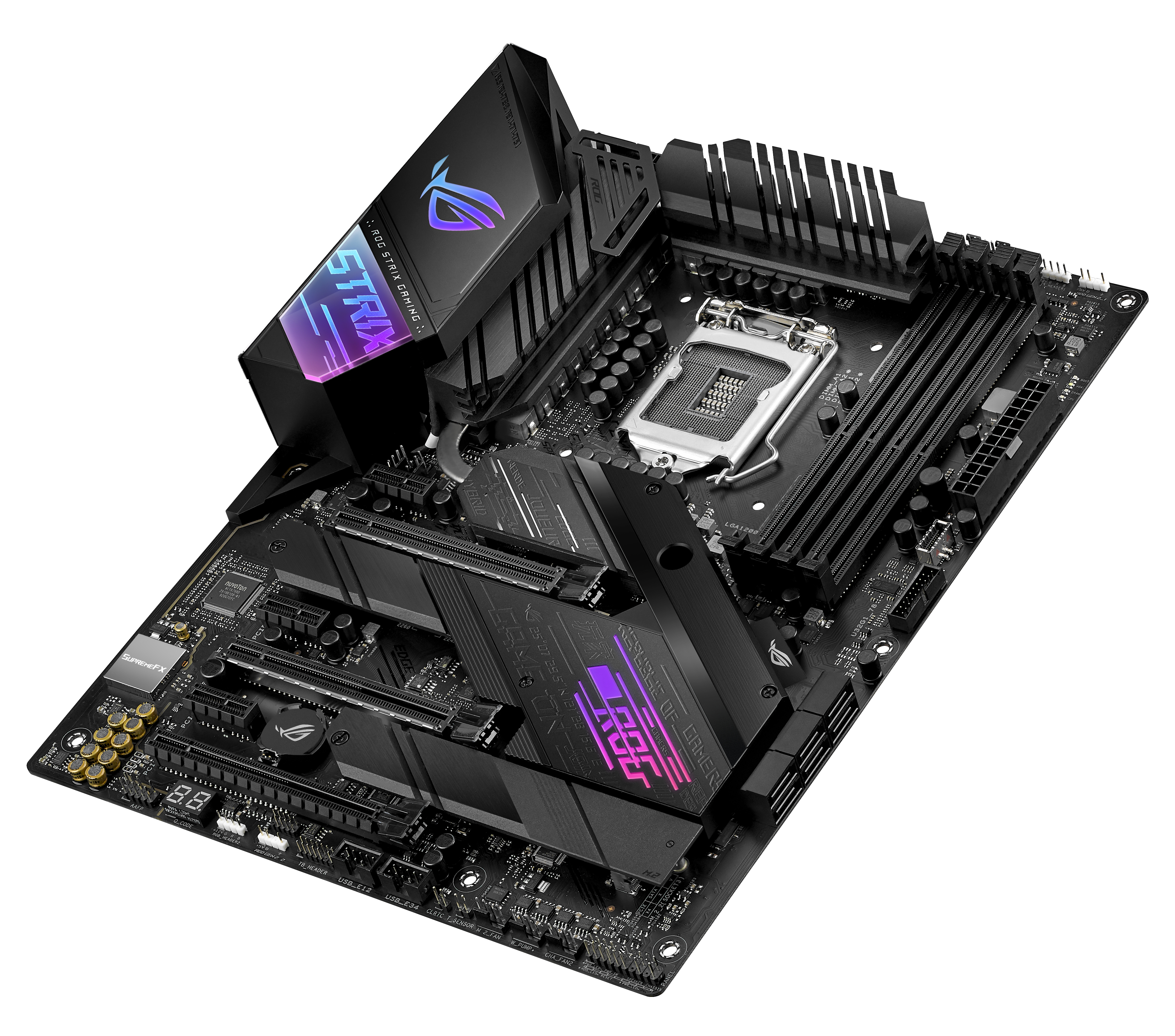

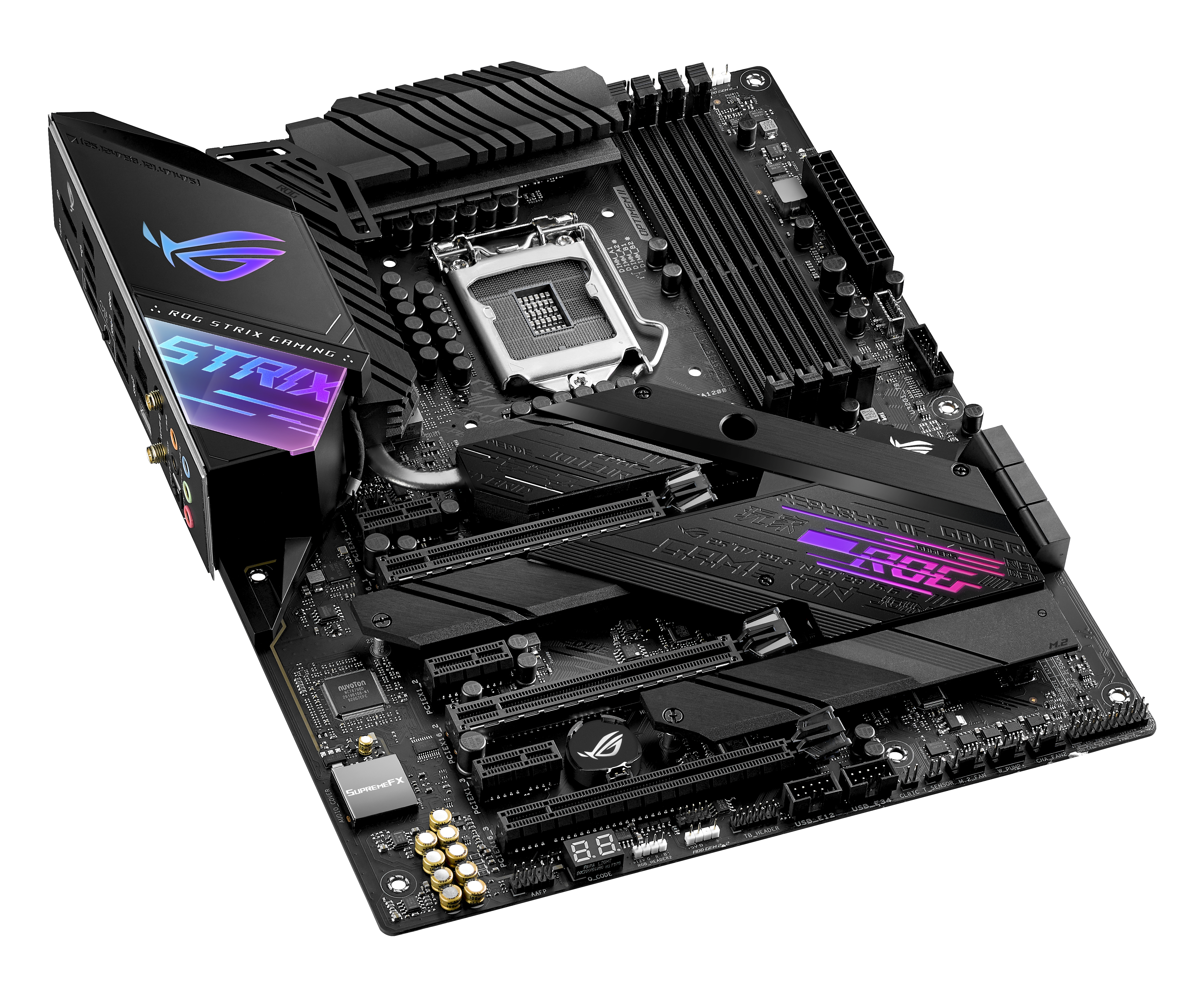

ASUS ROG STRIX Z490-E GAMING Intel Z490 LGA 1200 (Socket H5) ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 244 mm
- Wi-Fi
- Y
- Width
- 305 mm
- BIOS type
- UEFI AMI
- Bluetooth
- Y
- Audio chip
- SupremeFX S1220A
- RAID levels
- 0,1,5,10
- Ethernet LAN
- Y
- HDMI version
- 1.4b
1 / 8
Shopping actions
Overview
The ASUS ROG STRIX Z490-E GAMING Intel Z490 LGA 1200 (Socket H5) ATX (Depth: 244 mm). Full verified specifications are listed below.
Technical Specifications
Ports & Connectivity
6 SPECS
HDMI ports
1
PS/2 ports
0
DVI-D ports quantity
0
DisplayPorts quantity
1
USB 2.0 ports
4
Ethernet ports
1
Memory
2 SPECS
Memory slots
4
Max memory
128 GB
Physical
3 SPECS
Depth
244 mm
Width
305 mm
Form factor
ATX
Processor
2 SPECS
Socket
LGA 1200 (Socket H5)
CPU brand
Intel
Graphics
1 SPEC
Max resolution
4096 x 2304
General
56 SPECS
Wi-Fi
Yes
BIOS type
UEFI AMI
Bluetooth
Yes
Audio chip
SupremeFX S1220A
RAID levels
0,1,5,10
Ethernet LAN
Yes
HDMI version
1.4b
Intended use
PC
Microphone input
Yes
LAN controller
Intel I225-V
Included cables
SATA
Memory channels
Dual-channel
S/PDIF out port
Yes
Wi-Fi standard
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
BIOS memory size
192 MB
Bluetooth version
5.1
CPU fan connector
Yes
Clear CMOS jumper
Yes
Headphone outputs
1
Memory slots type
DIMM
Unbuffered memory
Yes
ECC сompatibility
non-ECC
USB 2.0 connectors
2
DisplayPort version
1.4
Chipset
Intel Z490
Thunderbolt headers
1
eSATA ports quantity
0
Audio channels
8.0
Supported memory types
DDR4-SDRAM
Ethernet interface type
2.5 Gigabit Ethernet
Number of M.2 (M) slots
2
FireWire ports
0
Motherboard chipset family
Intel
VGA ports
0
Compatible processor series
Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium
EPS power connector (8-pin)
Yes
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
0
Number of SATA III connectors
6
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4500,4600,4800
Supported storage drive types
HDD & SSD
PCI Express x1 (Gen 3.x) slots
3
PCI Express x4 (Gen 2.x) slots
1
Number of EATX power connectors
1
PCI Express x16 (Gen 3.x) slots
2
Number of chassis fan connectors
2
Number of Parallel ATA connectors
0
Supported storage drive interfaces
M.2,SATA III
Windows versions supported
Windows 10 x64
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Parallel processing technology support
2-Way SLI,3-Way CrossFireX
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
