MPN:
Q170M2/CDM/SI R2.0

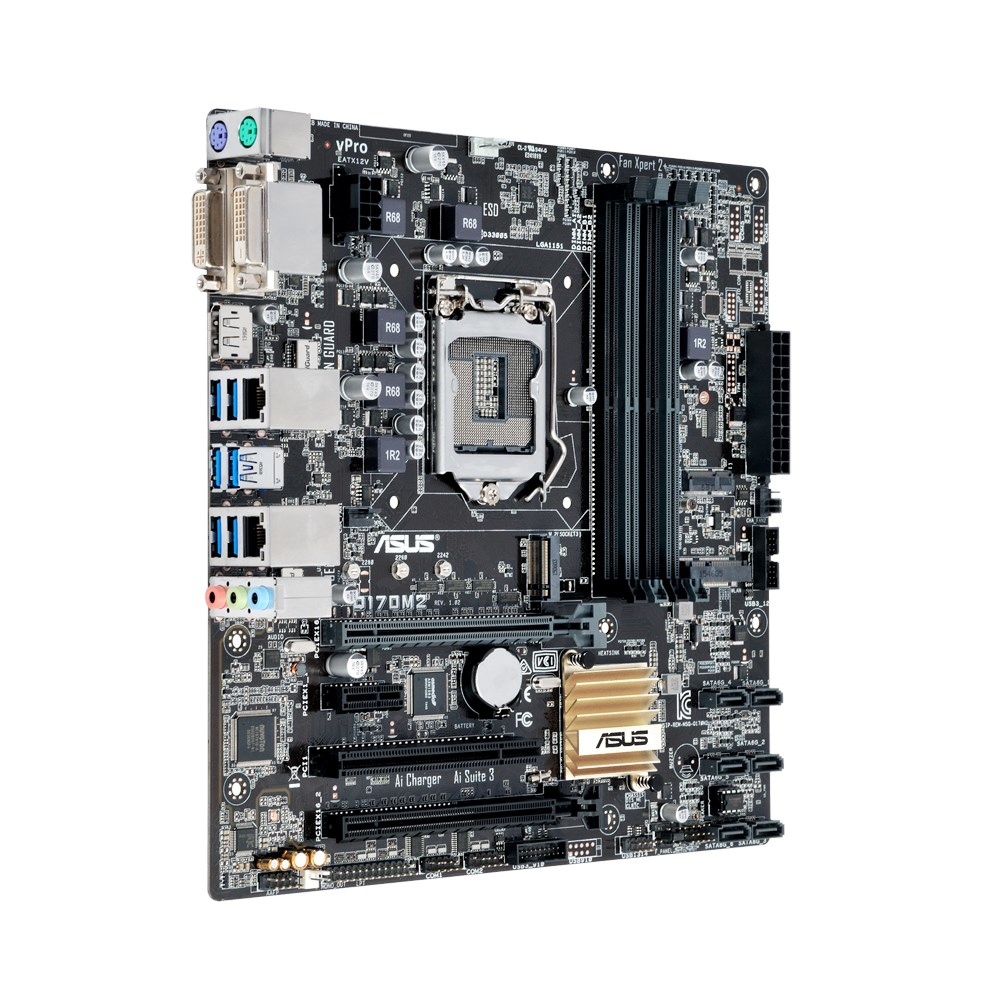

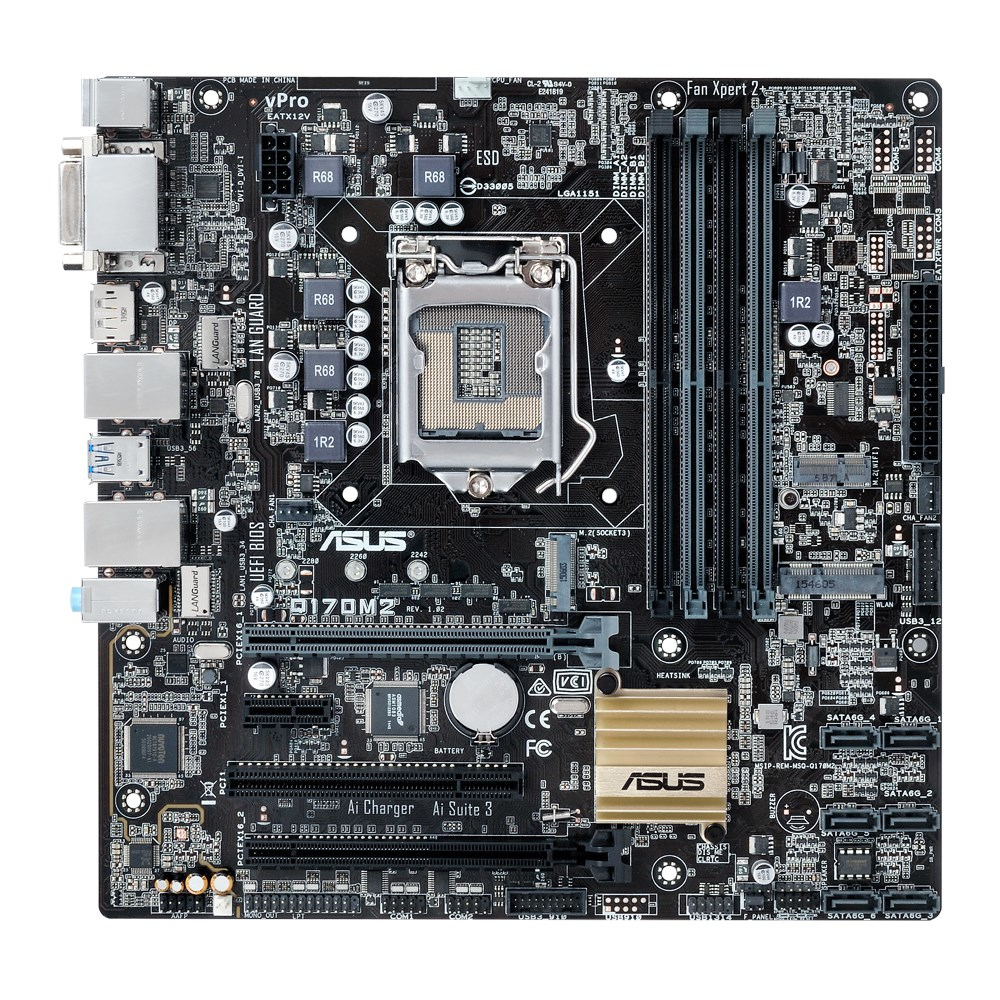

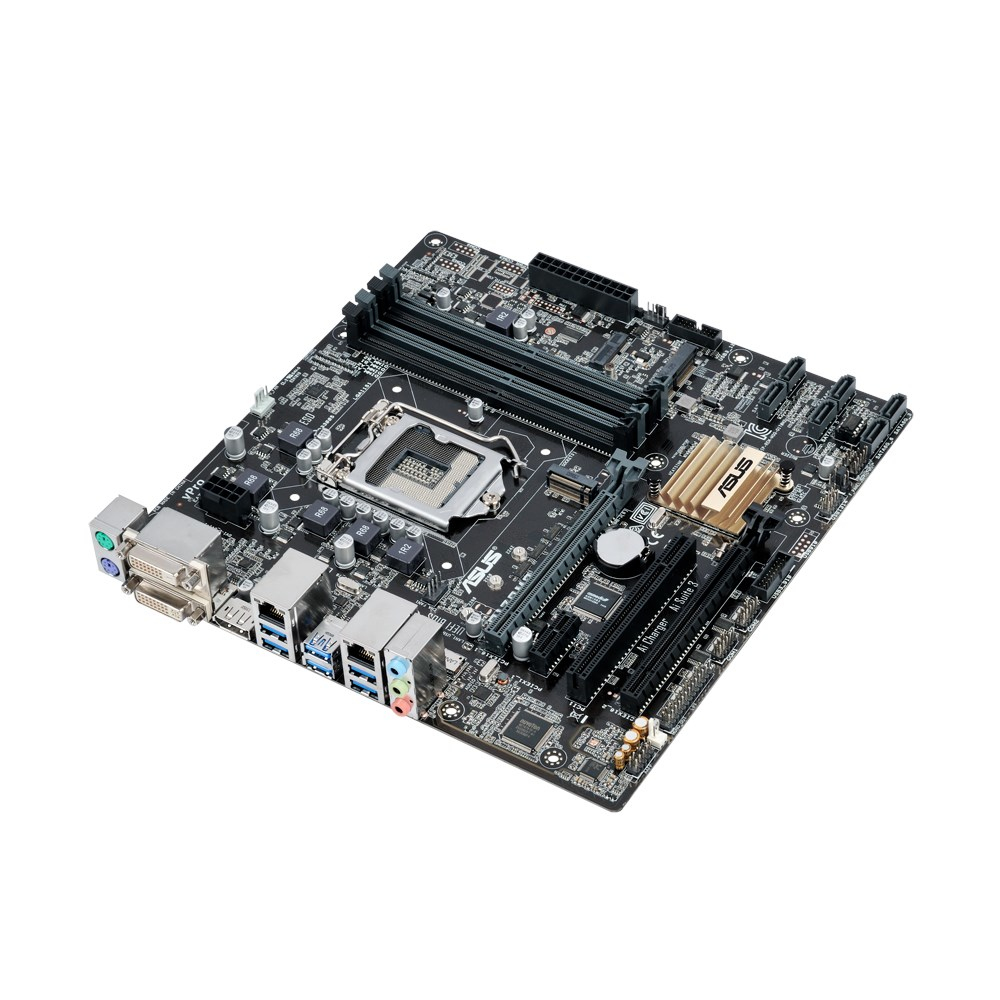

ASUS Q170M2/CDM/SI R2.0 motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 244 mm
- Wi-Fi
- N
- Width
- 244 mm
- BIOS type
- UEFI AMI
- Bluetooth
- N
- PCI slots
- Y
- Audio chip
- Realtek ALC887
- ACPI version
- 5.0
- Ethernet LAN
- Y
1 / 5
Shopping actions
Overview
Chipset Intel Q170, Socket LGA1151, DDR4, 64GB, 2400 МГц, 2xPCI-Ex16, UEFI AMI BIOS, Micro-ATX
Technical Specifications
Ports & Connectivity
7 SPECS
HDMI ports
0
PS/2 ports
2
DVI-D ports quantity
1
DVI-I ports quantity
1
DisplayPorts quantity
1
USB 2.0 ports
2
Ethernet ports
2
Memory
2 SPECS
Memory slots
4
Max memory
64 GB
Physical
3 SPECS
Depth
244 mm
Width
244 mm
Form factor
Micro ATX
Processor
2 SPECS
Socket
LGA 1151 (Socket H4)
CPU brand
Intel
General
50 SPECS
Wi-Fi
No
BIOS type
UEFI AMI
Bluetooth
No
PCI slots
1
Audio chip
Realtek ALC887
ACPI version
5.0
Ethernet LAN
Yes
Intended use
PC
Graphics card
HD Graphics
LAN controller
Intel I219-LM
Memory channels
Dual-channel
BIOS memory size
16 MB
CPU fan connector
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
ECC сompatibility
non-ECC
USB 2.0 connectors
1
Chipset
Intel Q170
Graphics card family
Intel
Audio channels
7.1
Supported memory types
DDR4-SDRAM
Ethernet interface type
Gigabit Ethernet
Number of M.2 (M) slots
1
Number of COM connectors
2
Discrete graphics support
Yes
Motherboard chipset family
Intel
VGA ports
0
Chassis intrusion connector
Yes
Compatible processor series
Intel Celeron,Intel Pentium
Front panel audio connector
Yes
Max graphics memory
1024 GB
Number of displays supported
3
Number of SATA III connectors
6
Supported memory clock speeds
2133,2400
PCI Express x1 (Gen 2.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
Number of EATX power connectors
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of chassis fan connectors
2
Supported storage drive interfaces
M.2,SATA III
Mini PCI Express slot (half-length)
1
Windows versions supported
Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8.1 Enterprise x64,Windows 8.1 Pro x64,Windows 8.1 x64
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Parallel processing technology support
Quad-GPU CrossFireX
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
10
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
