MPN:
PRIME A320I-K

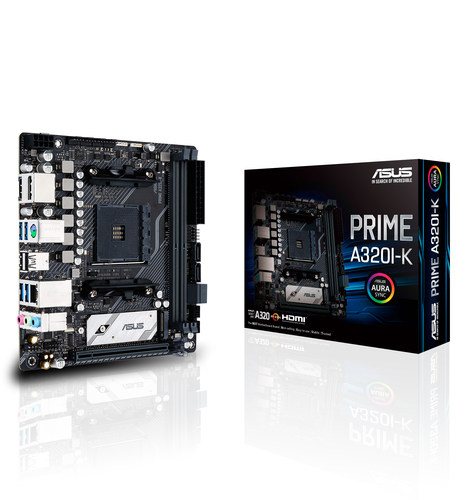

ASUS PRIME A320I-K motherboard AMD A320 Socket AM4 mini ITX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 170 mm
- Wi-Fi
- N
- Width
- 170 mm
- BIOS type
- UEFI AMI
- Audio chip
- Realtek ALC887 / Realtek ALC897
- RAID levels
- 0,1,10
- ACPI version
- 6.1
- Ethernet LAN
- Y
- HDMI version
- 1.4b
1 / 6
Shopping actions
Overview
The ASUS PRIME A320I-K motherboard AMD A320 Socket AM4 mini ITX (Depth: 170 mm). Full verified specifications are listed below.
Technical Specifications
Ports & Connectivity
6 SPECS
HDMI ports
1
PS/2 ports
1
DVI-D ports quantity
0
DisplayPorts quantity
1
USB 2.0 ports
2
Ethernet ports
1
Memory
2 SPECS
Memory slots
2
Max memory
32 GB
Physical
3 SPECS
Depth
170 mm
Width
170 mm
Form factor
Mini ITX
Processor
2 SPECS
Socket
Socket AM4
CPU brand
AMD
Graphics
1 SPEC
Max resolution
4096 x 2160
General
51 SPECS
Wi-Fi
No
BIOS type
UEFI AMI
Audio chip
Realtek ALC887 / Realtek ALC897
RAID levels
0,1,10
ACPI version
6.1
Ethernet LAN
Yes
HDMI version
1.4b
RAID support
Yes
Intended use
PC
Microphone input
Yes
TPM connector
Yes
LAN controller
Realtek RTL8111H
Included cables
SATA
Memory channels
Dual-channel
BIOS memory size
128 MB
CPU fan connector
Yes
Clear CMOS jumper
Yes
Headphone outputs
1
Memory slots type
DIMM
Unbuffered memory
Yes
ECC сompatibility
non-ECC
RGB LED pin header
Yes
USB 2.0 connectors
1
USB connector type
USB Type-A
Chipset
AMD A320
Audio channels
8
Front panel connector
Yes
Supported memory types
DDR4-SDRAM
Ethernet interface type
Gigabit Ethernet
Number of M.2 (M) slots
1
Motherboard chipset family
AMD
VGA ports
0
Compatible processor series
AMD A,AMD Athlon,AMD Athlon X4,AMD Ryzen 2000 Series,AMD Ryzen 3000 Series
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Supported CPU sockets
Socket AM4
ATX Power connector (24-pin)
Yes
Number of SATA III connectors
4
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3400,3466,3600
Supported storage drive types
HDD & SSD
Number of EATX power connectors
1
PCI Express x16 (Gen 3.x) slots
1
Number of chassis fan connectors
2
Supported storage drive interfaces
M.2,SATA III
Windows versions supported
Windows 10 x64
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
System Management BIOS (SMBIOS) version
3.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
