MPN:
90-MIBFS0-G0EAY00Z

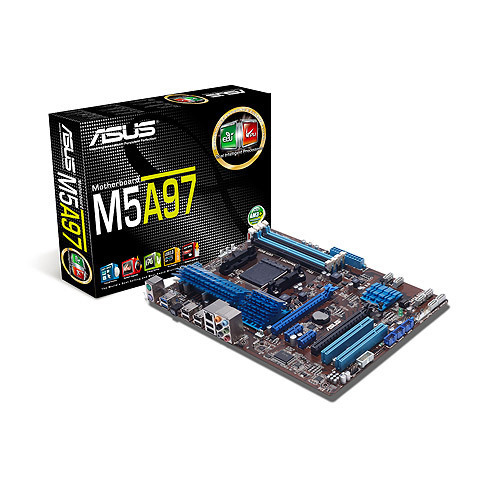

ASUS M5A97 AMD 970 Socket AM3+ ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 229 mm
- Width
- 305 mm
- BIOS type
- UEFI
- PCI slots
- 2
- Audio chip
- Realtek ALC887
- Intended use
- PC
- Microphone input
- Y
- LAN controller
- Realtek RTL8111E
- Memory channels
- Dual-channel
Shopping actions
Overview
The ASUS M5A97 AMD 970 Socket AM3+ ATX (Depth: 229 mm). Full verified specifications are listed below.
Technical Specifications
Ports & Connectivity
5 SPECS
HDMI ports
0
PS/2 ports
2
DVI-D ports quantity
0
USB 2.0 ports
6
Ethernet ports
1
Memory
2 SPECS
Memory slots
4
Max memory
32 GB
Physical
3 SPECS
Depth
229 mm
Width
305 mm
Form factor
ATX
Processor
2 SPECS
Socket
Socket AM3+
CPU brand
AMD
Power
1 SPEC
Power source
ATX
General
44 SPECS
BIOS type
UEFI
PCI slots
2
Audio chip
Realtek ALC887
Intended use
PC
Microphone input
Yes
LAN controller
Realtek RTL8111E
Memory channels
Dual-channel
S/PDIF out port
Yes
BIOS memory size
32 MB
CPU fan connector
Yes
Headphone outputs
1
ECC сompatibility
ECC & non-ECC
USB 2.0 connectors
3
Chipset
AMD 970
Networking features
Gigabit Ethernet
Power fan connector
Yes
PCI Express x1 slots
2
S/PDIF out connector
Yes
eSATA ports quantity
0
Audio channels
7.1
PCI Express x16 slots
2
Manageability features
WfM 2.0, DMI 2.0, WOL, WOR, PXE
Integrated graphics
No
Supported memory types
DDR3-SDRAM
Ethernet interface type
Gigabit Ethernet
Motherboard southbridge
AMD SB950
Number of COM connectors
1
PCI Express slots version
2.0
FireWire ports
0
Motherboard chipset family
AMD
VGA ports
0
Compatible processor series
AMD Phenom II X2,AMD Phenom II X3,AMD Phenom II X4,AMD Phenom II X6
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
0
Number of SATA III connectors
6
Supported memory clock speeds
1066,1333,1600,1866,2133
Number of chassis fan connectors
2
Number of Parallel ATA connectors
0
Supported storage drive interfaces
SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors
0
Parallel processing technology support
Quad-GPU CrossFireX
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
