MPN:
H97-PLUS

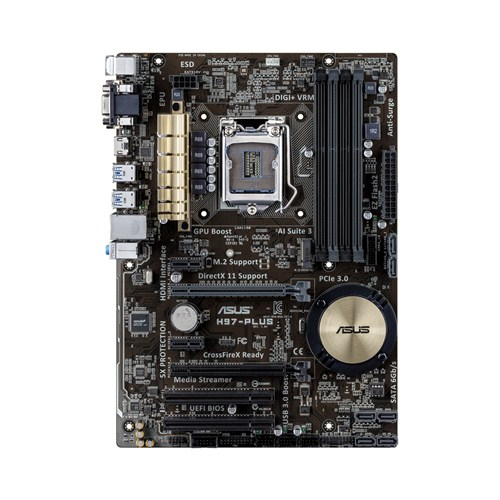

ASUS H97-Plus Intel® H97 LGA 1150 (Socket H3) ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 218 mm
- Width
- 305 mm
- BIOS type
- UEFI AMI
- PCI slots
- 2
- RAID levels
- 0,1,5,10
- ACPI version
- 5.0
- Ethernet LAN
- Y
- Intended use
- PC
- Microphone input
- Y
1 / 5
Shopping actions
Overview
The ASUS H97-Plus Intel® H97 LGA 1150 (Socket H3) ATX (Depth: 218 mm). Full verified specifications are listed below.
Technical Specifications

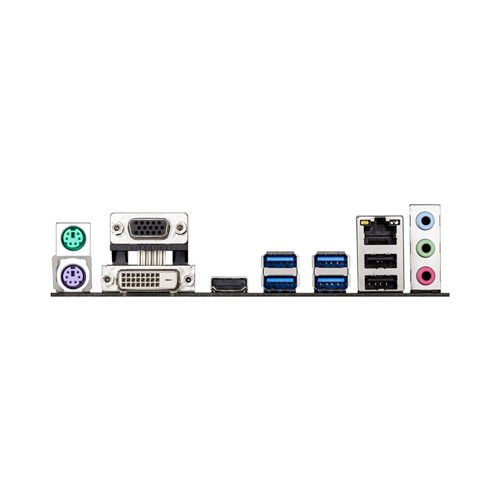

Ports & Connectivity
5 SPECS
HDMI ports
1
PS/2 ports
2
DVI-D ports quantity
1
USB 2.0 ports
2
Ethernet ports
1
Memory
2 SPECS
Memory slots
4
Max memory
32 GB
Power
1 SPEC
Power source
ATX
Physical
3 SPECS
Depth
218 mm
Width
305 mm
Form factor
ATX
Processor
2 SPECS
Socket
LGA 1150 (Socket H3)
CPU brand
Intel
Graphics
1 SPEC
Max resolution
4096 x 2160
General
43 SPECS
BIOS type
UEFI AMI
PCI slots
2
RAID levels
0,1,5,10
ACPI version
5.0
Ethernet LAN
Yes
Intended use
PC
Microphone input
Yes
TPM connector
Yes
LAN controller
Realtek 8111GR
Included cables
SATA
Memory channels
Dual-channel
BIOS memory size
64 MB
CPU fan connector
Yes
Clear CMOS jumper
Yes
Headphone outputs
1
Memory slots type
DIMM
Unbuffered memory
Yes
ECC сompatibility
non-ECC
USB 2.0 connectors
3
Chipset
Intel H97
PCI Express x1 slots
2
S/PDIF out connector
Yes
eSATA ports quantity
0
Audio channels
7.1
Supported memory types
DDR3-SDRAM
Ethernet interface type
Gigabit Ethernet
Number of COM connectors
1
FireWire ports
0
Motherboard chipset family
Intel
VGA ports
1
Compatible processor series
Intel Celeron
Number of SATA II connectors
0
Number of SATA III connectors
6
Supported memory clock speeds
1333,1600
Number of EATX power connectors
1
PCI Express x16 (Gen 2.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
Number of chassis fan connectors
2
Number of Parallel ATA connectors
0
Supported storage drive interfaces
SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Parallel processing technology support
Quad-GPU CrossFireX
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Market Value History
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
