MPN:
90MB0L70-M0UBY0

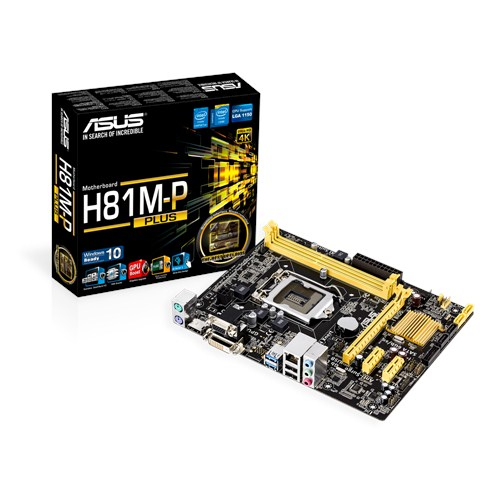

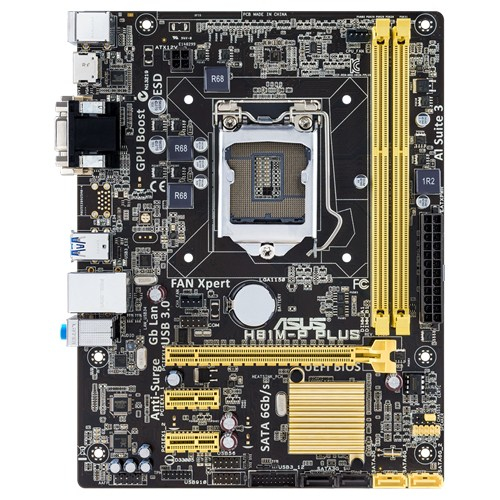

ASUS H81M-P PLUS Intel® H81 LGA 1150 (Socket H3) micro ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 174 mm
- Width
- 226 mm
- Manual included
- Y
- BIOS type
- UEFI AMI
- ACPI version
- 2.0a
- Ethernet LAN
- Y
- Intended use
- PC
- Microphone input
- Y
- TPM connector
- Y
1 / 4
Shopping actions
Overview
The ASUS H81M-P PLUS Intel® H81 LGA 1150 (Socket H3) micro ATX (Depth: 174 mm). Full verified specifications are listed below.
Technical Specifications

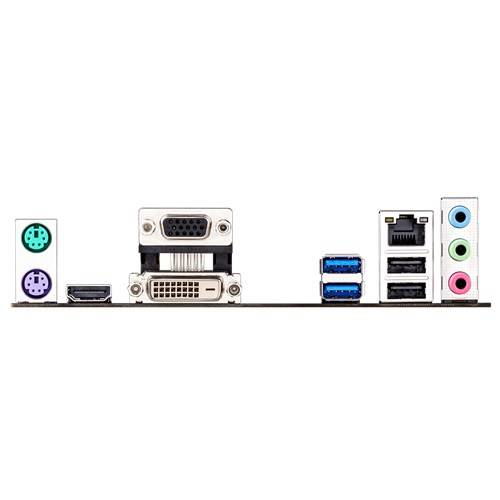

Ports & Connectivity
5 SPECS
HDMI ports
1
PS/2 ports
2
DVI-D ports quantity
1
USB 2.0 ports
2
Ethernet ports
1
Memory
2 SPECS
Memory slots
2
Max memory
16 GB
Storage
1 SPEC
SATA ports
4
Physical
3 SPECS
Depth
174 mm
Width
226 mm
Form factor
Micro ATX
Processor
2 SPECS
Socket
LGA 1150 (Socket H3)
CPU brand
Intel
Graphics
1 SPEC
Max resolution
4096 x 2160
Power
1 SPEC
Power source
ATX
General
54 SPECS
Manual included
Yes
BIOS type
UEFI AMI
ACPI version
2.0a
Ethernet LAN
Yes
Intended use
PC
Microphone input
Yes
TPM connector
Yes
LAN controller
Intel I218-V
Audio connector
Yes
Included cables
SATA
Memory channels
Dual-channel
BIOS memory size
64 MB
Drivers included
Yes
CPU fan connector
Yes
Headphone outputs
1
Memory slots type
DIMM
Unbuffered memory
Yes
COM ports quantity
1
ECC сompatibility
non-ECC
USB 2.0 connectors
2
Chipset
Intel H81
eSATA ports quantity
0
Audio channels
7.1
Front panel connector
Yes
Integrated graphics
Yes
Supported memory types
DDR3-SDRAM
Ethernet interface type
Gigabit Ethernet
Number of COM connectors
1
FireWire ports
0
Motherboard chipset family
Intel
VGA ports
1
Chassis intrusion connector
Yes
Compatible processor series
Intel Celeron,Intel Pentium
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Max graphics memory
1024 GB
Number of SATA II connectors
2
Intel Core i3/i5/i7/i9 series
i3-4xxx,i5-4xxx,i7-4xxx
Number of SATA III connectors
2
Supported memory clock speeds
1066,1333,1600
PCI Express x1 (Gen 2.x) slots
2
Number of EATX power connectors
1
PCI Express x16 (Gen 2.x) slots
1
Number of chassis fan connectors
1
Number of Parallel ATA connectors
0
Intel Extreme Memory Profile (XMP)
Yes
Supported storage drive interfaces
SAS-2,SATA III
Windows versions supported
Windows 10 Home x64,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8 Enterprise x64,Windows 8 Pro x64,Windows 8 x64,Windows 8.1 Enterprise x64,Windows 8.1 Pro x64,Windows 8.1 x64
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
