MPN:
F1A75-M PRO

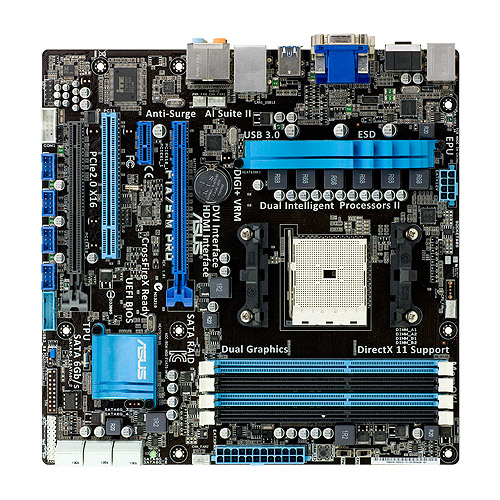

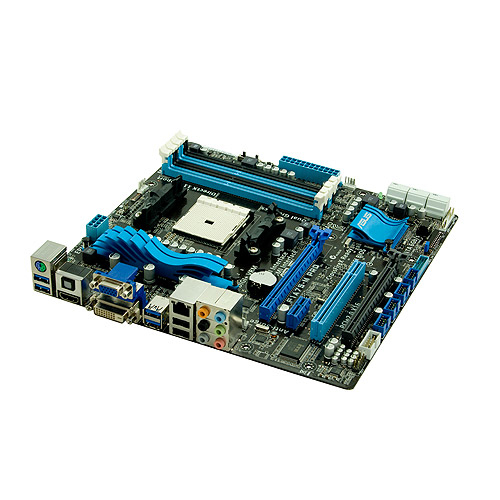

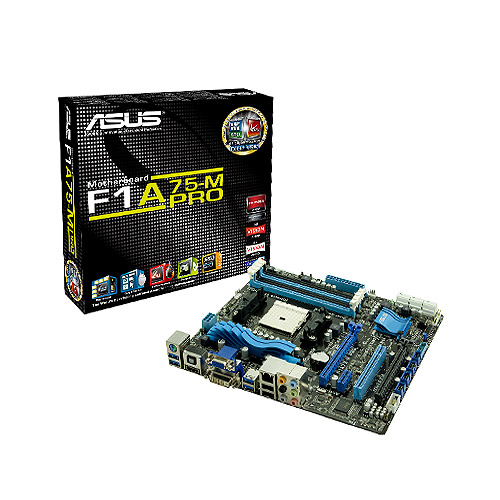

ASUS F1A75-M PRO motherboard AMD A75 Socket FM1 micro ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 244 mm
- Width
- 244 mm
- BIOS type
- AMI
- PCI slots
- Y
- Audio chip
- Realtek ALC892
- RAID levels
- 0,1,10,JBOD
- ACPI version
- 2.0a
- Intended use
- PC
- Graphics card
- Radeon HD 6000
1 / 4
Shopping actions
Overview
The ASUS F1A75-M PRO motherboard AMD A75 Socket FM1 micro ATX (Depth: 244 mm). Full verified specifications are listed below.
Technical Specifications

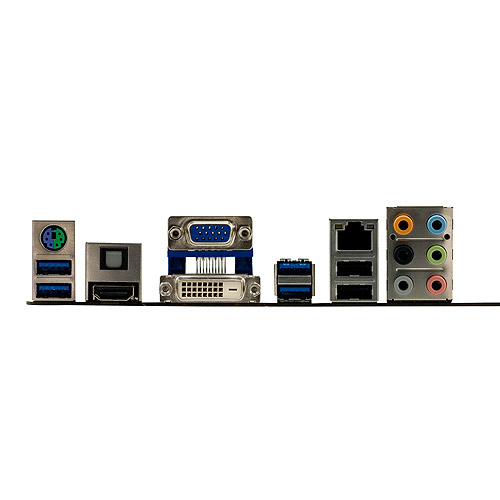

Ports & Connectivity
5 SPECS
HDMI ports
1
PS/2 ports
2
DVI-D ports quantity
1
USB 2.0 ports
2
Ethernet ports
1
Memory
2 SPECS
Memory slots
4
Max memory
64 GB
Physical
3 SPECS
Depth
244 mm
Width
244 mm
Form factor
Micro ATX
Processor
2 SPECS
Socket
Socket FM1
CPU brand
AMD
Power
1 SPEC
Power source
ATX
General
47 SPECS
BIOS type
AMI
PCI slots
1
Audio chip
Realtek ALC892
RAID levels
0,1,10,JBOD
ACPI version
2.0a
Audio output
S/PDIF
Intended use
PC
Graphics card
Radeon HD 6000
Microphone input
Yes
LAN controller
Realtek RTL8111E
Memory channels
Dual-channel
S/PDIF out port
Yes
BIOS memory size
32 MB
Drivers included
Yes
CPU fan connector
Yes
Headphone outputs
6
Memory slots type
DIMM
ECC сompatibility
non-ECC
USB 2.0 connectors
4
Chipset
AMD A75
Power fan connector
Yes
Graphics card family
AMD
S/PDIF out connector
Yes
eSATA ports quantity
0
Audio channels
7.1
PCI Express x16 slots
2
Integrated graphics
No
Supported memory types
DDR3-SDRAM
Ethernet interface type
Fast Ethernet,Gigabit Ethernet
Number of COM connectors
1
PCI Express slots version
2.0
FireWire ports
0
Motherboard chipset family
AMD
VGA ports
1
Chassis intrusion connector
Yes
Compatible processor series
AMD A,AMD E
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
0
Number of SATA III connectors
6
Supported memory clock speeds
1066,1333,1600,1866
Number of EATX power connectors
1
Number of chassis fan connectors
2
Number of Parallel ATA connectors
0
Supported storage drive interfaces
SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
