MPN:
90MB0DJ0-M0EAY0

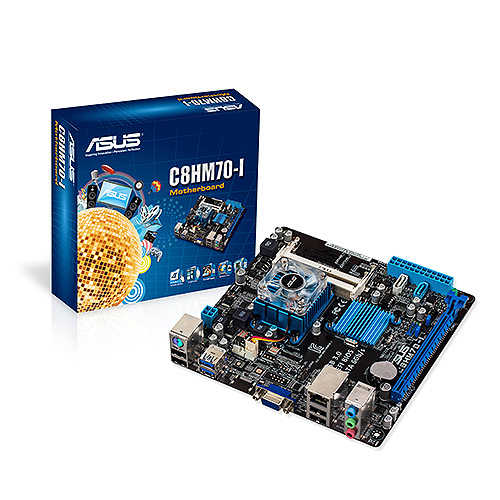

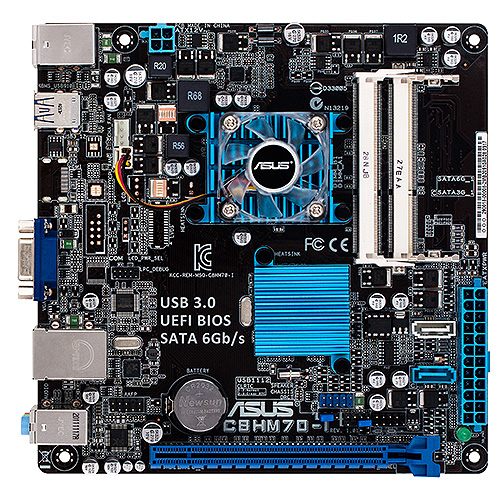

ASUS C8HM70-I Intel® HM70 Express BGA 1023 mini ITX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 170.2 mm
- Width
- 170.2 mm
- BIOS type
- UEFI AMI
- Audio chip
- Realtek ALC887-VD
- ACPI version
- 2.0a
- Ethernet LAN
- Y
- Intended use
- PC
- Microphone input
- Y
- LAN controller
- Realtek RTL8111F
1 / 4
Shopping actions
Overview
The ASUS C8HM70-I Intel® HM70 Express BGA 1023 mini ITX (Depth: 170.2 mm). Full verified specifications are listed below.
Technical Specifications

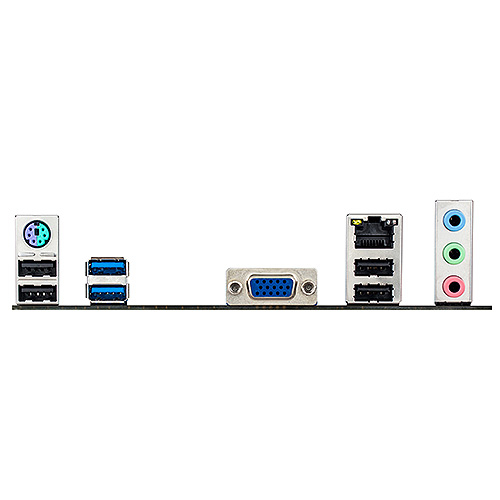

Ports & Connectivity
5 SPECS
HDMI ports
0
PS/2 ports
1
DVI-D ports quantity
0
USB 2.0 ports
4
Ethernet ports
1
Memory
2 SPECS
Memory slots
2
Max memory
16 GB
Power
1 SPEC
Power source
ATX
Processor
3 SPECS
Model
847
Socket
BGA 1023
CPU brand
Intel
Physical
3 SPECS
Depth
170.2 mm
Width
170.2 mm
Form factor
Mini ITX
Graphics
1 SPEC
Max resolution
2048 x 1536
General
50 SPECS
BIOS type
UEFI AMI
Audio chip
Realtek ALC887-VD
ACPI version
2.0a
Ethernet LAN
Yes
Intended use
PC
Microphone input
Yes
LAN controller
Realtek RTL8111F
Included cables
SATA
Memory channels
Dual-channel
BIOS memory size
64 MB
CPU fan connector
Yes
Headphone outputs
1
Memory slots type
DIMM
Unbuffered memory
Yes
ECC сompatibility
non-ECC
USB 2.0 connectors
2
Chipset
Intel HM70 Express
Networking features
Gigabit Ethernet
Intel Celeron series
400
Number of DIMM slots
2
eSATA ports quantity
0
Audio channels
7.1
PCI Express x16 slots
1
Integrated graphics
Yes
Supported memory types
DDR3-SDRAM
Ethernet interface type
Fast Ethernet,Gigabit Ethernet
Quick installation guide
Yes
PCI Express slots version
2.0
FireWire ports
0
Motherboard chipset family
Intel
PCI Express slots quantity
1
VGA ports
1
Chassis intrusion connector
Yes
Compatible processor series
Intel Celeron
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Compatible OS
Windows 8
Number of SATA II connectors
1
Number of SATA III connectors
1
Supported memory clock speeds
1066,1333
Number of processors supported
1
Maximum number of SMP processors
1
Number of chassis fan connectors
1
Number of Parallel ATA connectors
0
Supported storage drive interfaces
SATA II,SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors
0
Parallel processing technology support
Not supported
Peripheral (Molex) power connectors (4-pin)
1
Intel® Virtualization Technology (Intel® VT)
VT-x
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
