MPN:
C60M1-I

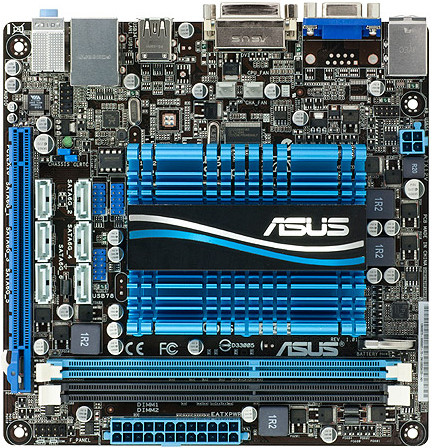

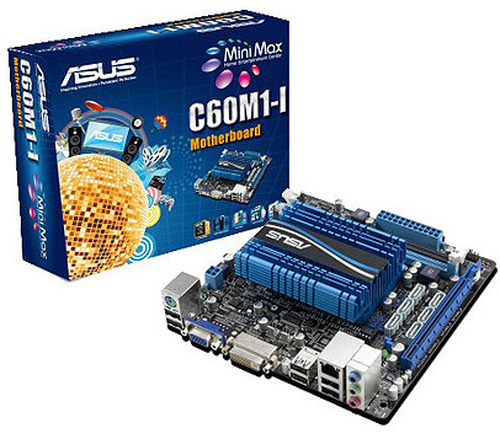

ASUS C60M1-I motherboard AMD A50M FCH mini ITX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 170 mm
- Width
- 170 mm
- BIOS type
- AMI
- Bandwidth
- 6 GB/s
- Audio chip
- VIA VT1708S
- Ethernet LAN
- Y
- Intended use
- PC
- Graphics card
- Radeon HD 6290
- LAN controller
- Realtek RTL8111F
1 / 4
Shopping actions
Overview
The ASUS C60M1-I motherboard AMD A50M FCH mini ITX (Depth: 170 mm). Full verified specifications are listed below.
Technical Specifications

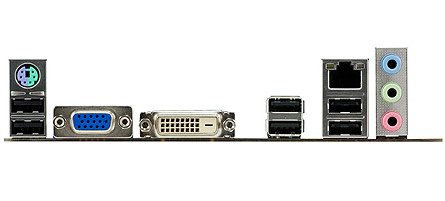

Ports & Connectivity
4 SPECS
HDMI ports
0
PS/2 ports
1
USB 2.0 ports
6
Ethernet ports
1
Processor
1 SPEC
CPU brand
AMD
Graphics
1 SPEC
Max resolution
1920 x 1200
Power
1 SPEC
Power source
ATX
Physical
3 SPECS
Depth
170 mm
Width
170 mm
Form factor
Mini ITX
Memory
2 SPECS
Memory slots
2
Max memory
8 GB
Storage
1 SPEC
SATA ports
6
General
40 SPECS
BIOS type
AMI
Bandwidth
6 GB/s
Audio chip
VIA VT1708S
Audio output
3
Ethernet LAN
Yes
Intended use
PC
Graphics card
Radeon HD 6290
LAN controller
Realtek RTL8111F
Included cables
SATA
Controller type
SATA
Memory channels
Single-channel
BIOS memory size
32 MB
Drivers included
Yes
CPU fan connector
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
ECC сompatibility
non-ECC
USB 2.0 connectors
3
Chipset
AMD A50M FCH
Graphics card family
ATI
eSATA ports quantity
0
PCI Express x16 slots
1
Integrated graphics
Yes
Supported memory types
DDR3-SDRAM
Ethernet interface type
Gigabit Ethernet
PCI Express slots version
2.0
FireWire ports
0
Motherboard chipset family
AMD
PCI Express slots quantity
1
VGA ports
1
Compatible processor series
AMD C
Front panel audio connector
Yes
Supported memory clock speeds
800,1066
Number of EATX power connectors
1
Number of chassis fan connectors
1
Number of Parallel ATA connectors
0
Supported storage drive interfaces
SATA
USB 3.2 Gen 1 (3.1 Gen 1) connectors
0
Parallel processing technology support
Not supported
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
