ASUS logo MPN: 90MB1JS0-M0UAY0

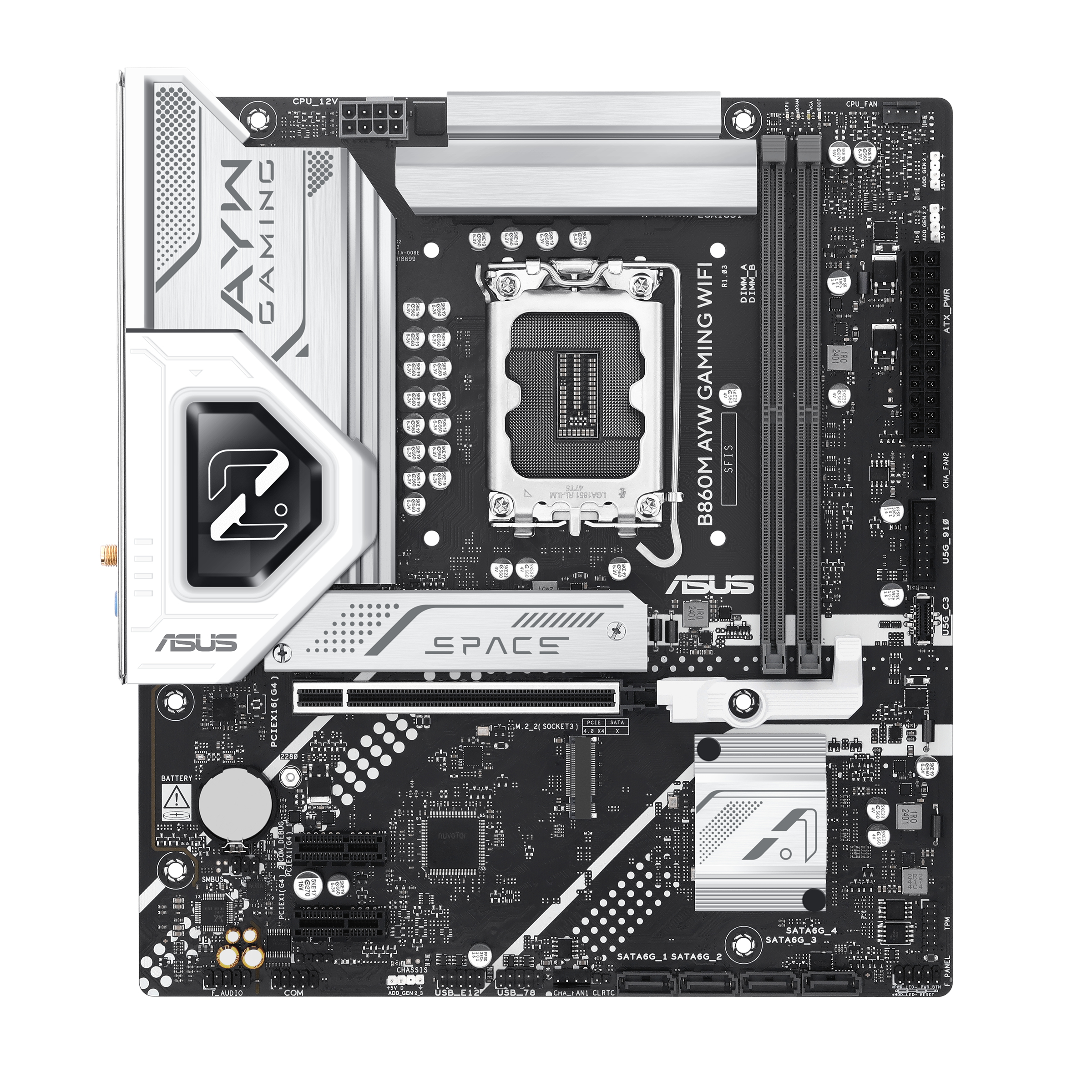

ASUS B860M AYW GAMING WIFI Intel B860 LGA 1851 (Socket V1) micro ATX

Released: Not on record
Price not yet available US · Amazon.com

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

Depth
222 mm
Wi-Fi
Y
Width
244 mm
BIOS type
UEFI AMI
Bluetooth
Y
RAID levels
0,1,5,10
Ethernet LAN
Y
RAID support
Y
Intended use
PC
View 69 specifications
Shopping actions
Check price on Amazon

Overview

B860M
AYW GAMING WIFI
ASUS B860 series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). The B860M AYW GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Technical Specifications

Ports & Connectivity

4 SPECS
HDMI ports
1
DVI-D ports quantity
0
USB 2.0 ports
3
Ethernet ports
1

Processor

2 SPECS
Socket
LGA 1851 (Socket V1)
CPU brand
Intel

Physical

4 SPECS
Depth
222 mm
Width
244 mm
Colour
White,Black
Form factor
Micro ATX

Memory

2 SPECS
Memory slots
2
Max memory
128 GB

General

57 SPECS
Wi-Fi
Yes
BIOS type
UEFI AMI
Bluetooth
Yes
RAID levels
0,1,5,10
Ethernet LAN
Yes
RAID support
Yes
Intended use
PC
TPM connector
Yes
Included cables
SATA
Memory channels
Dual-channel
Screws included
Yes
Wi-Fi standard
Wi-Fi 6 (802.11ax)
BIOS memory size
256 MB
Bluetooth version
5.3
CPU fan connector
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
ECC сompatibility
non-ECC
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
USB 2.0 connectors
2
12V power connector
Yes
Chipset
Intel B860
S/PDIF out connector
Yes
WiFi-AP antenna jack
1
Audio channels
7.1
Front panel connector
Yes
Supported memory types
DDR5-SDRAM
Ethernet interface type
2.5 Gigabit Ethernet
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Number of COM connectors
1
Number of HDDs supported
4
Motherboard chipset family
Intel
VGA ports
0
Compatible processor series
Intel Core Ultra (Series 2)
Front panel audio connector
Yes
Supported CPU sockets
LGA 1851
ATX Power connector (24-pin)
Yes
Number of CPU fan connectors
1
Number of SATA III connectors
4
Supported storage drive types
HDD & SSD
PCI Express x1 (Gen 4.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
Number of chassis fan connectors
2
Number of storage drives supported
6
Supported storage drive interfaces
M.2,SATA III
Windows versions supported
Windows 10 x64,Windows 11
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
1st M.2 highest PCI Express generation
5.0
2nd M.2 highest PCI Express generation
4.0
Parallel processing technology support
Not supported
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
