MPN:
B150M-C/CSM

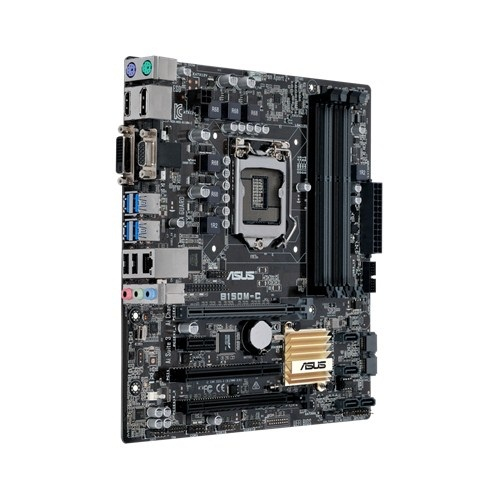

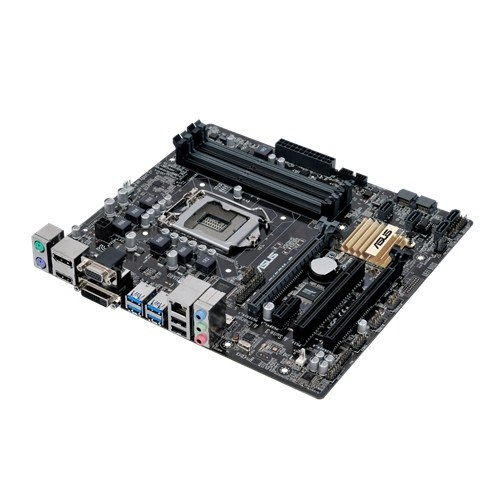

ASUS B150M-C/CSM motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- BIOS type
- UEFI AMI
- PCI slots
- Y
- ACPI version
- 5.0
- Ethernet LAN
- Y
- Intended use
- PC
- Microphone input
- Y
- LAN controller
- Realtek RTL8111F
- Included cables
- SATA
- Socket
- LGA 1151 (Socket H4)
1 / 4
Shopping actions
Overview
The ASUS B150M-C/CSM motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX (BIOS type: UEFI AMI). Full verified specifications are listed below.
Technical Specifications
Ports & Connectivity
6 SPECS
HDMI ports
1
PS/2 ports
2
DVI-D ports quantity
1
DisplayPorts quantity
1
USB 2.0 ports
2
Ethernet ports
1
Power
1 SPEC
Power source
ATX
Processor
2 SPECS
Socket
LGA 1151 (Socket H4)
CPU brand
Intel
Memory
2 SPECS
Memory slots
4
Max memory
64 GB
Physical
1 SPEC
Form factor
Micro ATX
General
45 SPECS
BIOS type
UEFI AMI
PCI slots
1
ACPI version
5.0
Ethernet LAN
Yes
Intended use
PC
Microphone input
Yes
LAN controller
Realtek RTL8111F
Included cables
SATA
CPU fan connector
Yes
Headphone outputs
1
Memory slots type
DIMM
Unbuffered memory
Yes
ECC сompatibility
non-ECC
USB 2.0 connectors
2
Chipset
Intel B150
Graphics card family
Intel
PCI Express x1 slots
1
Audio channels
7.1
PCI Express x16 slots
2
Integrated graphics
No
Supported memory types
DDR4-SDRAM
Number of COM connectors
2
Quick installation guide
Yes
Motherboard chipset family
Intel
VGA ports
1
Chassis intrusion connector
Yes
Compatible processor series
Intel Celeron,Intel Pentium
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
0
Number of displays supported
3
Intel Core i3/i5/i7/i9 series
i3-6xxx,i5-6xxx,i7-6xxx
Number of SATA III connectors
6
Supported memory clock speeds
2133
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Number of EATX power connectors
1
Number of chassis fan connectors
2
Number of Parallel ATA connectors
0
Intel Extreme Memory Profile (XMP)
Yes
Supported storage drive interfaces
SATA III
Intel® Quick Sync Video Technology
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Market Value History
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
