MPN:
BT7U3EA

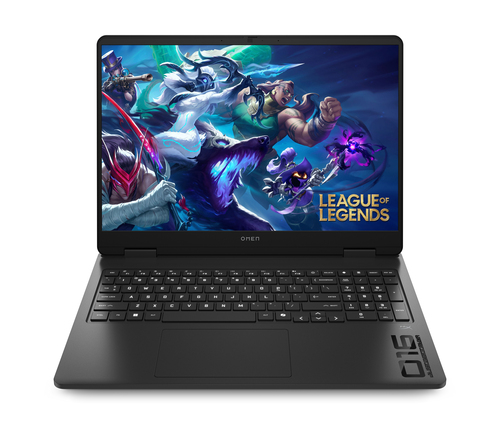

HP OMEN Gaming 16-am0505na Intel Core Ultra 5 225H Laptop 40.6 cm (16″) 2K 24 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Wi-Fi 6E (802.11ax) Windows 11 Home AI PC Black
Released: May 23, 2025
1 year ago
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Screen size
- 16"
- Resolution
- 1920 x 1200
- Processor line
- Intel Core Ultra 5
- Capacity
- 24 GB
- Storage
- 1 TB
- Cores
- 14
- NVMe
- Y
- Depth
- 269 mm
- Wi-Fi
- Y
1 / 14
Shopping actions
Overview
Bold performance without the burnout
The new OMEN 16 not only has the power of the latest next-gen Intel[1] and NVIDIA components, but it also has the proper thermal innovations to keep them from burning out. Pair that with OMEN AI for maximum possible FPS at the click of a button and Unleashed Mode for that extra boost in performance, and you have our most reliably powerful laptop yet.
Technical Specifications
Logistics & Packaging
12 SPECS
UNSPSC code
43211503
Package depth
567 mm
Package width
63 mm
Package height
305 mm
Package weight
3770 g
Country of origin
China,Thailand
Carbon footprint
140
Carbon emissions, logistics (kg of CO2e)
2
Carbon emissions, end-of-life (kg of CO2e)
1
Carbon emissions, manufacturing (kg of CO2e)
119
GPSR safety info (link)
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true ; HP REG 23010, 08028 Barcelona, Spain ; reg@hp.com
Total carbon emissions, w/o use phase (kg of CO2e)
20
Display
6 SPECS
Display type
2K
Panel type
IPS
Touchscreen
No
Screen size
16"
Resolution
1920 x 1200
Aspect ratio
16:10
Storage
3 SPECS
Capacity
1 TB
Form factor
M.2
Storage
1 TB
Graphics
2 SPECS
Memory clock
5600 MHz
VRAM
8 GB
Processor
8 SPECS
Cache
18 MB
Cores
14
Model
225H
Processor line
Intel Core Ultra 5
Threads
14
Cache level
L3
CPU brand
Intel
Boost clock
4.9 GHz
Physical
7 SPECS
Depth
269 mm
Width
357.5 mm
Weight
2430 g
Form factor
Clamshell
Product type
Notebook
Colour
Black
Market segment
Gaming
Memory
4 SPECS
Capacity
24 GB
Form factor
SO-DIMM
Memory type
DDR5-SDRAM
Max memory
24 GB
Ports & Connectivity
3 SPECS
HDMI ports
1
USB 2.0 ports
0
Ethernet ports
1
General
126 SPECS
NVMe
Yes
Wi-Fi
Yes
Non-ECC
Yes
Bluetooth
Yes
HP market segment
Home
Colour name
Shadow black
HP Imagepad
Yes
Antenna type
2x2
Audio system
DTS:X Ultra
Colour gamut
100
Ethernet LAN
Yes
Front camera
Yes
HDMI version
2.1
Fast charging
Yes
Height (rear)
25.4
Microphone input
Yes
NVIDIA G-SYNC
Yes
SSD interface
PCI Express 4.0
Storage media
SSD
HP Audio Boost
Yes
Height (front)
23.7
Numeric keypad
Yes
Trial software
100 GB Dropbox storage for 3 months
Efficient cores
8
HP front camera
HP TrueVision FHD
HP speaker type
HP Dual Speakers
Pointing device
Touchpad
Wi-Fi standard
Wi-Fi 6E (802.11ax)
AC adapter power
230 W
Battery capacity
83 Wh
Keyboard backlit
Yes
RGB colour space
sRGB
Sparsity support
Yes
Anti-glare screen
Yes
Bluetooth version
5.3
HP GTIN (EAN/UPC)
199251568589
HP Security tools
Camera privacy shutter; Trusted Platform Module (Firmware TPM) support
Introduction year
2025
Keyboard included
Yes
Performance cores
4
Battery life
5.75 h
Battery technology
Lithium Polymer (LiPo)
Cabling technology
10/100/1000Base-T(X)
Display brightness
400
Full-size keyboard
Yes
Memory module type
SODIMM
Optical drive type
No
Temperature sensor
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
AC adapter included
Yes
Built-in microphone
Yes
Built-in speaker(s)
Yes
Maximum turbo power
115
Chipset
Intel SoC
Original brand name
HP
Password protection
Yes
Total SSDs capacity
1000
AC adapter frequency
50 - 60
Front camera HD type
Full HD
HP Software provided
HP Support Assistant; HP Connection Optimizer; OMEN Gaming Hub
Keyboard colour name
Shadow black
Maximum refresh rate
165
Processor base power
28
Generation
Intel Core Ultra (Series 2)
USB Sleep-and-Charge
Yes
GPU performance up to
63
Keyboard backlit zone
4-zone RGB
Manufacturer warranty
1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
NPU performance up to
13
Number of microphones
2
WLAN controller model
Intel Wi-Fi 6E AX211
Dedicated graphics
Yes
Integrated graphics
Yes
Pre-installed software
Otter.ai, 1 month trial for new Microsoft 365 customers, McAfee Online Protection 30-day trial; 1-month Adobe free trial offer; PC Game Pass 3-month trial
Ethernet LAN data rates
10,100,1000
Front camera resolution
1920 x 1080
Keyboard backlit colour
RGB
Number of battery cells
6
sRGB coverage (typical)
100
AC adapter input voltage
100 - 240
Combo headphone/mic port
Yes
Display bezel technology
Micro-Edge
Fast charging time (50%)
30
Memory slots (available)
2
Number of SSDs installed
1
Password protection type
BIOS,Power on
Included power adapter
Paint finish
USB Type-C charging port
Yes
Discrete GPU manufacturer
NVIDIA
Display diagonal (metric)
40.6
Low Power Efficient-cores
2
Mobile network connection
No
On-board GPU manufacturer
Intel
Sustainability compliance
Yes
Display response rise/fall
3
HP Artificial Intelligence
AI PC
Operating system
Windows 11 Home
USB Sleep-and-Charge ports
1
Neural processor unit (NPU)
Intel AI Boost
Number of built-in speakers
2
Eco certifications
ENERGY STAR,EPEAT,EPEAT Gold
USB Power Delivery (USB PD)
Yes
Dedicated GPU model
NVIDIA GeForce RTX 5060
Memory layout (slots x size)
2 x 12
Integrated GPU model
Intel Arc 130T
WLAN controller manufacturer
Intel
Discrete graphics memory type
GDDR7
Efficient-core base frequency
1.3
On-board graphics card family
Intel Arc Graphics
Trusted Platform Module (TPM)
Yes
Intel® Turbo Boost Technology
Yes
Windows Studio effects support
Yes
Performance-core base frequency
1.7
Total processor performance up to
83
Efficient-core Max Turbo Frequency
4.3
Continuous video playback time (max)
9.75
Performance-core Max Turbo Frequency
4.9
USB Type-C DisplayPort Alternate Mode
Yes
Sustainable technologies and materials
Ocean-bound plastic in speaker enclosure(s) and bezel; Keyboard keycaps and scissors contain post-consumer recycled plastic
AI software frameworks supported by NPU
DirectML,OpenVINO,Windows ML,ONNX RT,WebNN
Low Power Efficient-core Base Frequency
700
Low Power Efficient-core Max Turbo Frequency
2.5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Launched
2025
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
