MPN:
DS7700U-Q26948B

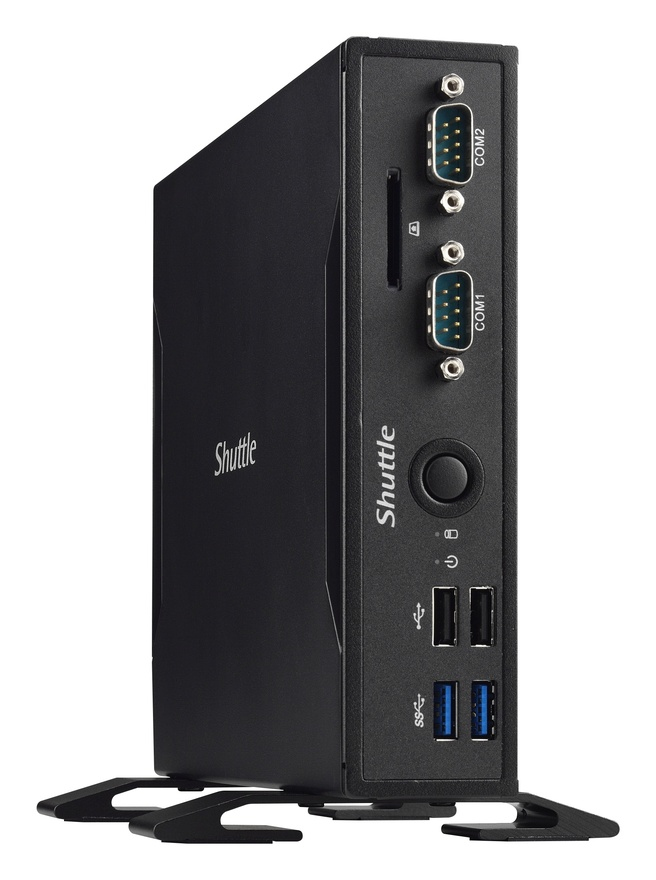

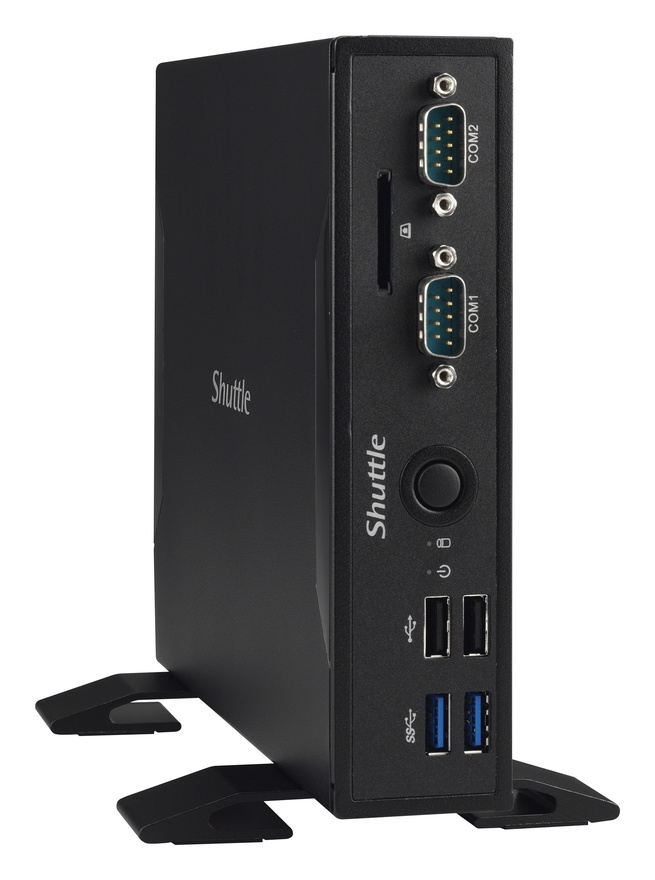

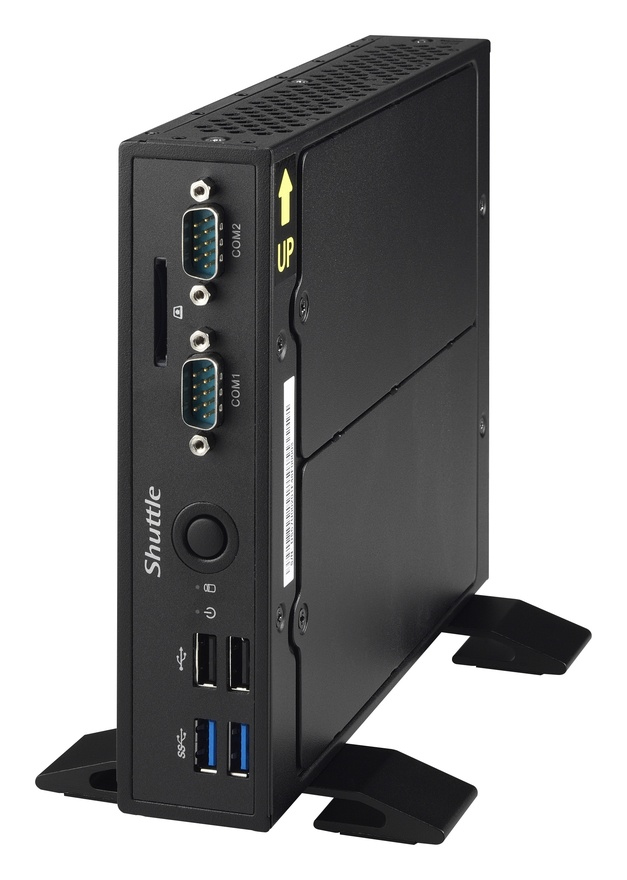

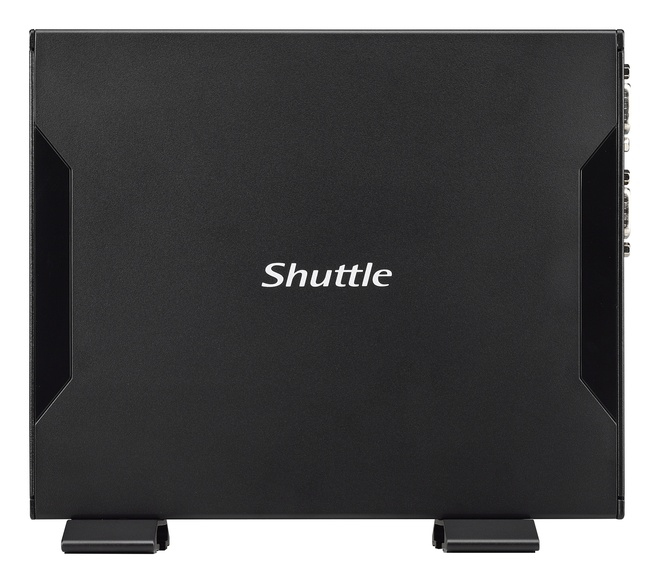

Shuttle XPC slim DS77U Intel® Celeron® 3865U 4 GB DDR4-SDRAM 120 GB SSD Windows 10 IoT Enterprise Nettop Mini PC Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 200 mm
- Wi-Fi
- Y
- Width
- 165 mm
- Height
- 39.5 mm
- Volume
- 1.3
- Weight
- 1430 g
- Fanless
- Y
- Bus type
- OPI
- DVI port
- N
1 / 9
Shopping actions
Overview
The Shuttle XPC slim DS77U Intel® Celeron® 3865U 4 GB DDR4-SDRAM 120 GB SSD Windows 10 IoT Enterprise Nettop Mini PC Black features Intel Celeron processor, 2 cores, 4 GB of memory and DDR4-SDRAM. Full verified specifications are listed below.
Technical Specifications
Processor
11 SPECS
Cache
2 MB
Cores
2
Model
3865U
Processor line
Intel Celeron
Threads
2
Clock speed
1.8 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
CPU operating modes
64-bit
TDP
15 W
Memory
3 SPECS
Capacity
4 GB
Memory type
DDR4-SDRAM
Max memory
32 GB
Graphics
1 SPEC
Memory clock
2133 MHz
Physical
6 SPECS
Depth
200 mm
Width
165 mm
Height
39.5 mm
Weight
1430 g
Product type
Mini PC (<= 3L)
Colour
Black

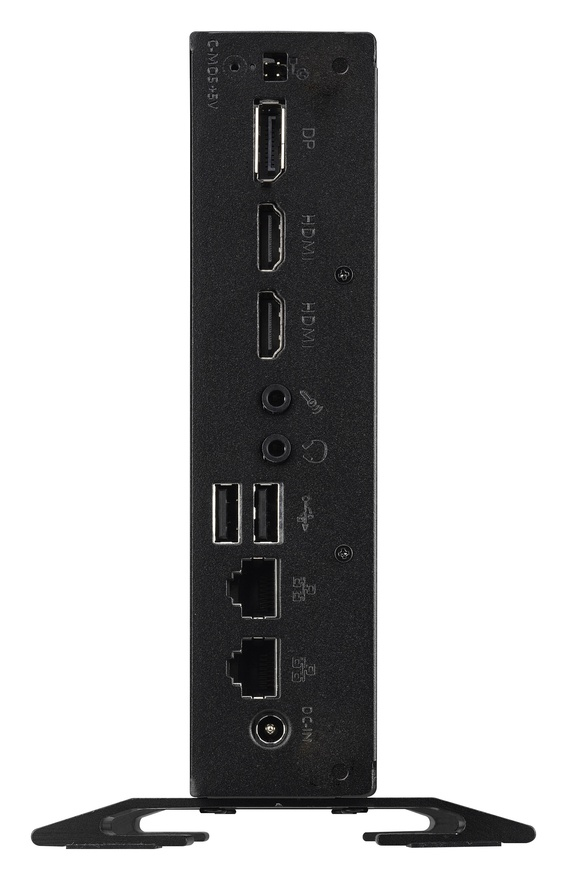

Ports & Connectivity
4 SPECS
HDMI ports
2
DisplayPorts quantity
1
USB 2.0 ports
4
Ethernet ports
2
Storage
2 SPECS
Capacity
120 GB
Storage
120 GB
Logistics & Packaging
1 SPEC
Package weight
2130 g
General
110 SPECS
Wi-Fi
Yes
Volume
1.3
Fanless
Yes
Bus type
OPI
DVI port
No
64-bit support
Yes
BIOS type
AMI
Tjunction
100
DC-in jack
Yes
Idle power states
Yes
Chassis type
Nettop
Ethernet LAN
Yes
Intel TSX-NI
No
Memory slots
2x SO-DIMM
Power supply
65
Microphone input
Yes
On/off button
Yes
Storage media
SSD
VESA mounting
Yes
Security lock slot
Yes
Memory channels
Dual-channel
Bus speed
4 GT/s
Wi-Fi standard
802.11b,802.11g,Wi-Fi 4 (802.11n)
BIOS memory size
64 MB
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
96507
Headphone outputs
1
Wake-on-LAN ready
Yes
Cabling technology
10/100/1000Base-T(X)
Intel® Secure Key
Yes
Optical drive type
No
Codename
Kaby Lake
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
AC adapter included
Yes
DisplayPort version
1.2
Execute Disable (NX)
Yes
Total SSDs capacity
120
Cable lock slot type
Kensington
Intel FDI Technology
Yes
Intel TSX-NI version
0.00
Configurable TDP-down
10
Serial ports
2
Card reader
Yes
Dedicated graphics
No
Integrated graphics
Yes
Processor package size
42 X 24
CPU configuration (max)
1
Compatible memory cards
SD,SDHC,SDXC
Compliance certificates
RoHS
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Intel Flex Memory Access
Yes
Number of SSDs installed
1
Intel Enhanced Halt State
Yes
On-board graphics card ID
0x5906
PCI Express slots version
2.0
ECC memory support
No
Long-term availability
No
Operating system
Windows 10 IoT Enterprise
PCI Express configurations
1x2+2x1,1x4,2x2,4x1
Power supply input voltage
100 - 240
Instruction sets
SSE4.1,SSE4.2
VGA ports
0
Operating temperature
0 - 40
Power draw (standby)
8 W
Eco certifications
ENERGY STAR
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Integrated GPU model
Intel HD Graphics 610
Power supply input frequency
50 - 60
Thunderbolt 3 ports quantity
0
Trusted Platform Module (TPM)
Yes
Intel® Turbo Boost Technology
No
Number of processors installed
1
Thermal monitoring
Yes
Intel® Smart Response Technology
Yes
Operating humidity
10 - 90
Trusted Execution (TXT)
No
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
10
Memory types supported by processor
DDR3L-SDRAM,DDR4-SDRAM,LPDDR3-SDRAM
Maximum on-board graphics card memory
32
On-board graphics card OpenGL version
4.4
On-board graphics card base frequency
300
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel Smart Response Technology version
1.00
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
1600,1866,2133
Intel Software Guard Extensions (Intel SGX)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
34.1
Maximum internal memory supported by processor
32
On-board graphics card dynamic frequency (max)
900
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
0.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
