Shuttle logo MPN: PEC-DL20N401

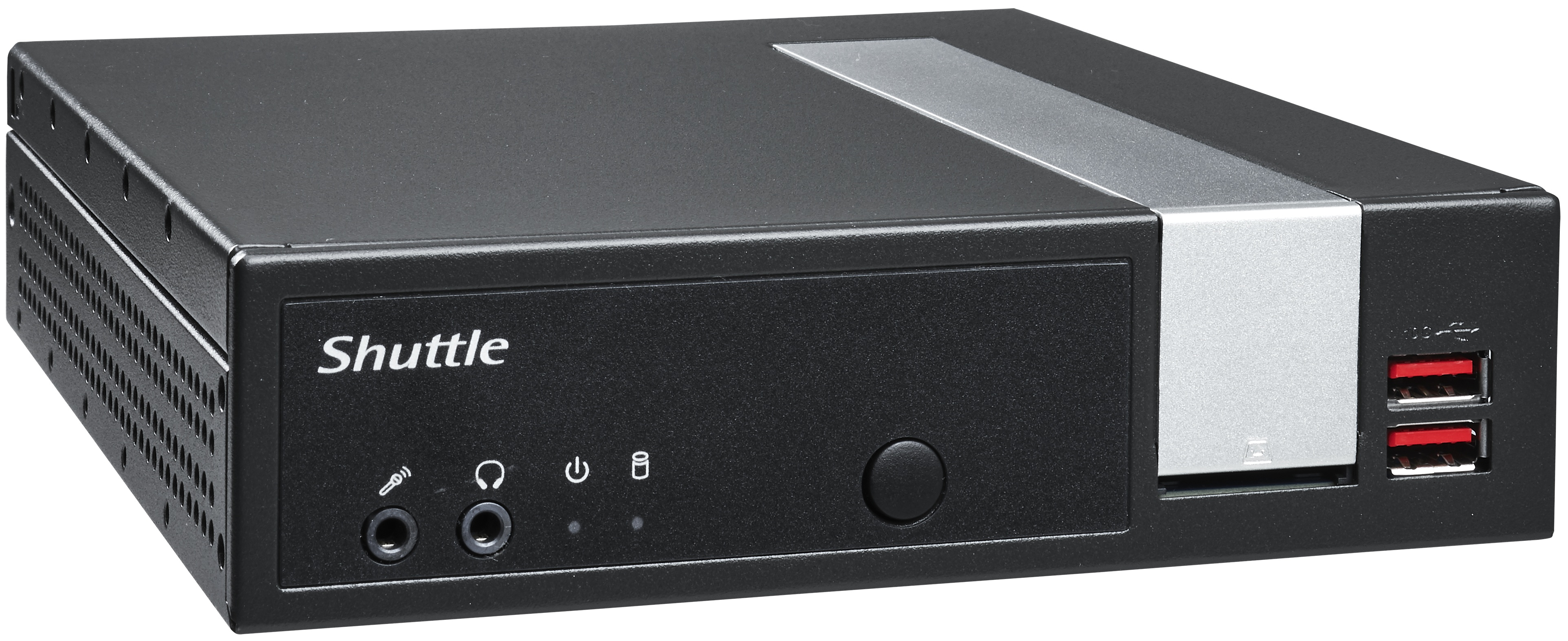

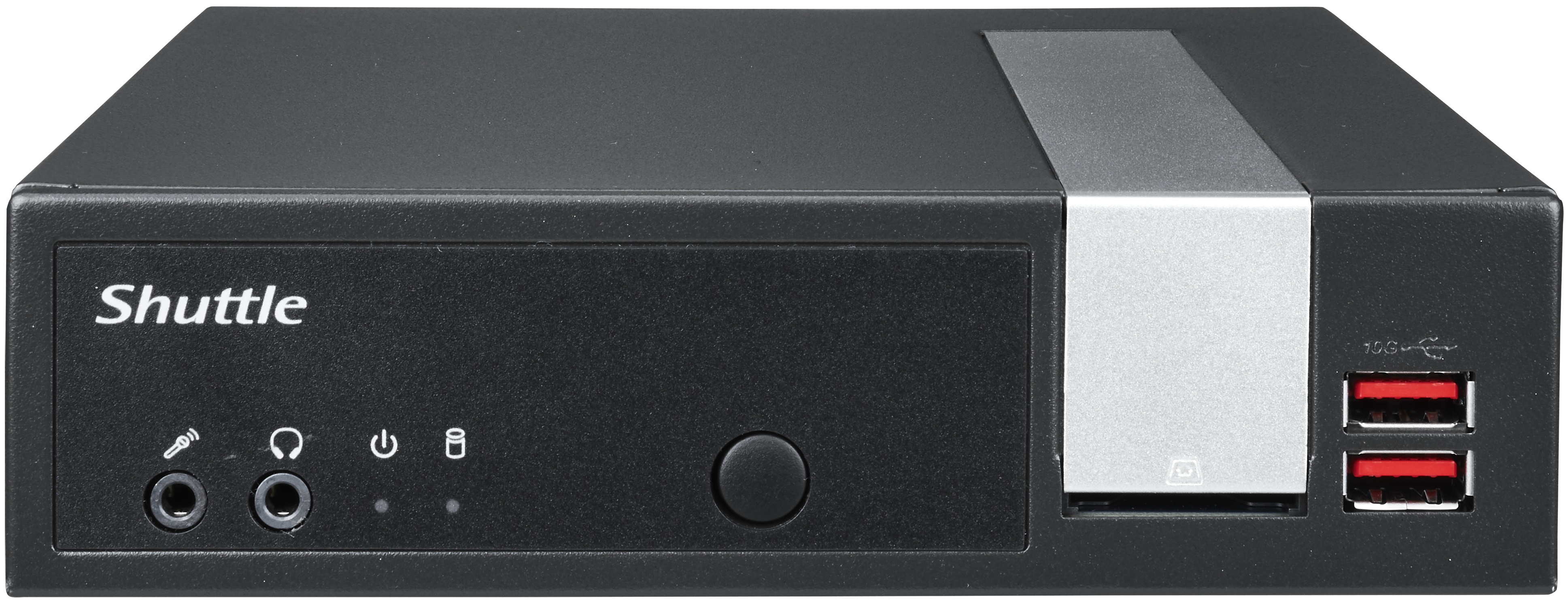

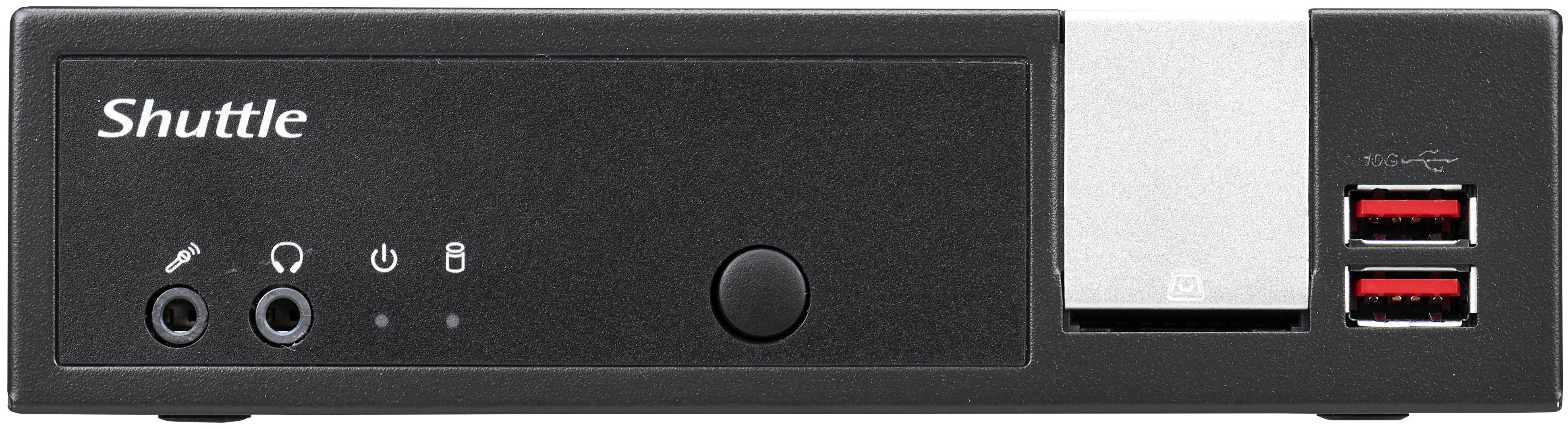

Shuttle XPC slim DL2000XA Intel® Celeron® N4505 4 GB DDR4-SDRAM 128 GB SSD Slim PC Mini PC Black

Released: Not on record
Price not yet available US · Amazon.com

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

Depth
165 mm
Wi-Fi
N
Width
190 mm
Height
43 mm
Safety
CB, BSMI, ETL
Volume
1.35
Weight
800 g
64-bit support
Y
BIOS type
UEFI AMI
View 99 specifications
1 / 5
Shopping actions
Check price on Amazon

Overview

The Shuttle XPC slim System DL2000XA is a fixed configuration without operating system based on the Shuttle XPC Barebone DL20N. With the built-in NVMe SSD card and the efficient 10 nm Intel Celeron processor (codenamed "Jasper Lake"), this slim PC works energy saving and pretty fast. The integrated graphics is based on Intel's powerful 11th gen. Intel UHD Graphics that supports hardware acceleration for 4K videos. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. It's the ideal PC for applications such as Office, Thin Client, Digital Signage, POS and Multimedia.

Technical Specifications

Processor

9 SPECS
Cores
2
Model
N4505
Processor line
Intel Celeron
Socket
BGA 1090
Threads
2
Clock speed
2 GHz
Process node
10 nm
CPU brand
Intel
Boost clock
2.9 GHz

Memory

3 SPECS
Capacity
4 GB
Memory type
DDR4-SDRAM
Max memory
16 GB

Logistics & Packaging

2 SPECS
Package weight
1950 g
Country of origin
China

Physical

7 SPECS
Depth
165 mm
Width
190 mm
Height
43 mm
Weight
800 g
Product type
Mini PC (<= 3L)
Colour
Black
Customs (HS) code
84715000

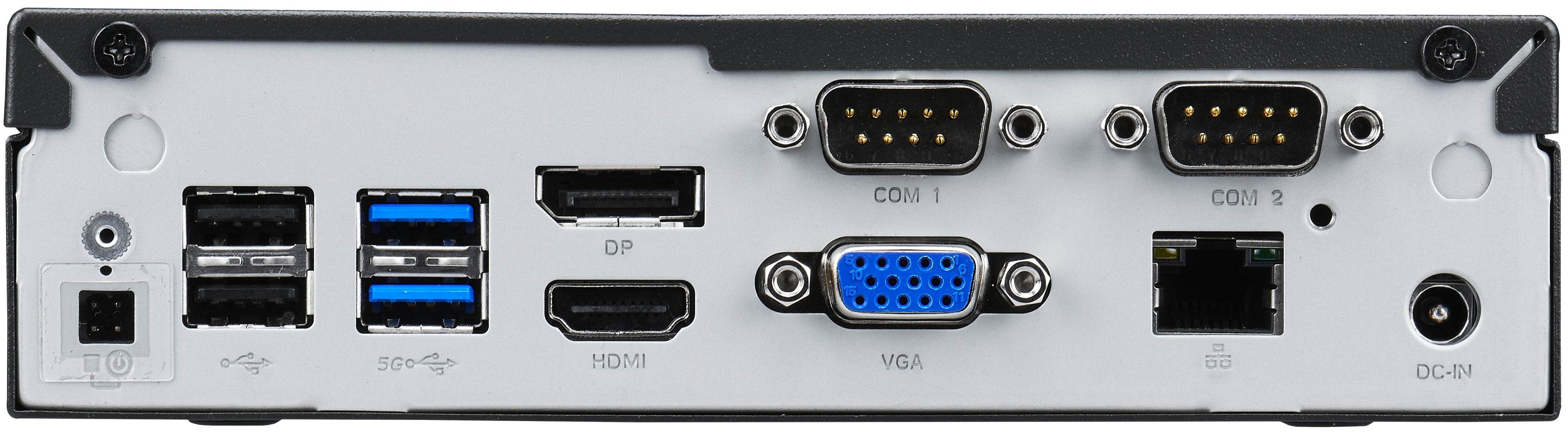

Ports & Connectivity

4 SPECS
HDMI ports
1
DisplayPorts quantity
1
USB 2.0 ports
2
Ethernet ports
1

Storage

2 SPECS
Capacity
128 GB
Storage
128 GB

Cooling

1 SPEC
Cooling type
Passive

General

71 SPECS
Wi-Fi
No
Safety
CB, BSMI, ETL
Volume
1.35
64-bit support
Yes
BIOS type
UEFI AMI
DC-in jack
Yes
Idle power states
Yes
Chassis type
Slim PC
Ethernet LAN
Yes
HDMI version
2.0b
Memory slots
2x SO-DIMM
Power supply
40
Certifications
FCC, CE, BSMI, RCM, VCCI, RED, RoHS, ErP
Microphone input
Yes
Storage media
SSD
VESA mounting
Yes
LAN controller
Intel I211
Viewing window
No
Security lock slot
Yes
Memory channels
Dual-channel
Display included
No
Drivers included
Yes
Housing material
Steel
Headphone outputs
1
Cabling technology
10/100/1000Base-T(X)
Optical drive type
No
AC adapter included
Yes
Built-in speaker(s)
No
DisplayPort version
1.4a
Chipset
Intel SoC
Password protection
Yes
Placement supported
Horizontal/Vertical
Power cord included
Yes
Total SSDs capacity
128
Cable lock slot type
Kensington
Water cooling system
No
Serial ports
2
Card reader
Yes
Dedicated graphics
No
Integrated graphics
Yes
CPU configuration (max)
1
Compatible memory cards
SD,SDHC,SDXC
Ethernet LAN data rates
10,100,1000
Number of SSDs installed
1
On-board GPU manufacturer
Intel
Operating system
No
Power supply input voltage
100 - 240
VGA ports
1
Operating temperature
0 - 40
Eco certifications
ENERGY STAR
Dedicated GPU model
Not available
Memory layout (slots x size)
1 x 4
Integrated GPU model
Intel UHD Graphics
Power supply input frequency
50 - 60
Thunderbolt 3 ports quantity
0
Trusted Platform Module (TPM)
Yes
Number of processors supported
1
Operating humidity
10 - 90
Trusted Execution (TXT)
No
Number of storage drives installed
1
Number of storage drives supported
1
SpeedStep power scaling
Yes
Trusted Platform Module (TPM) version
1.2
Virtualization (VT-x)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Software Guard Extensions (Intel SGX)
No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Directed I/O virtualization (VT-d)
Yes
Powered by Icecat

Market Value History

Price history not started yet

Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.

Sources

Icecat product datasheet

Product lifecycle

In production

Still listed as on-market by the manufacturer — actively sold and supported.

Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
