MPN:
CUBI 5 10M-006MYS

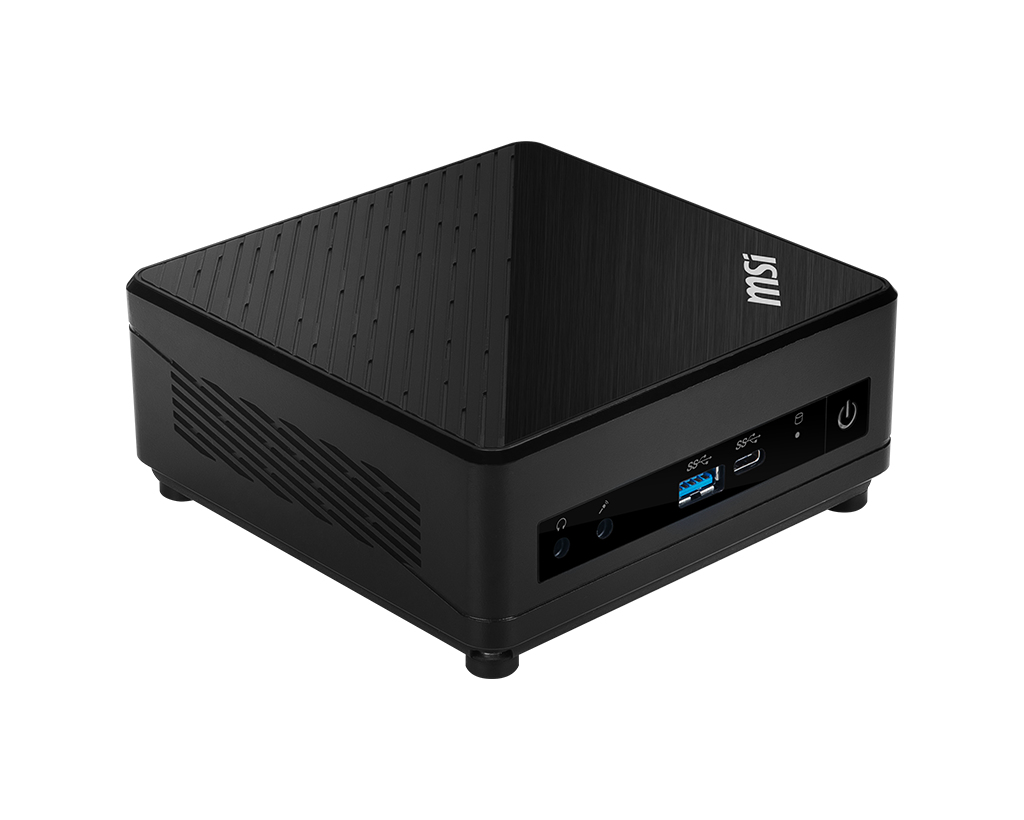

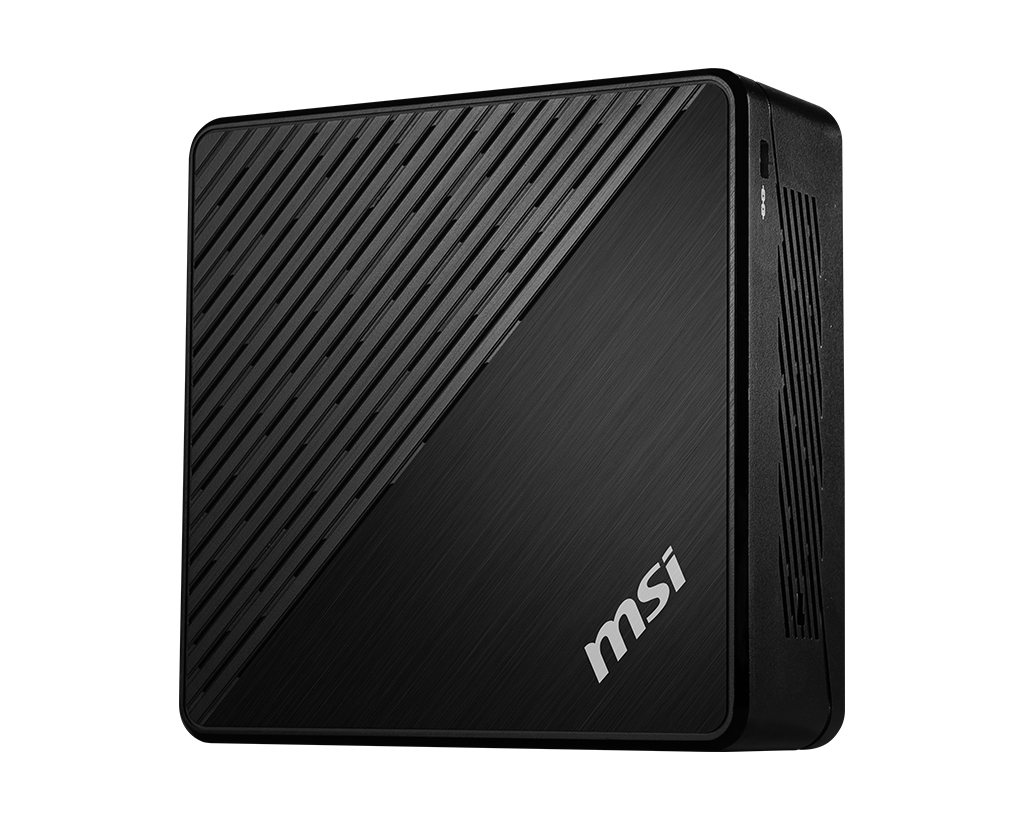

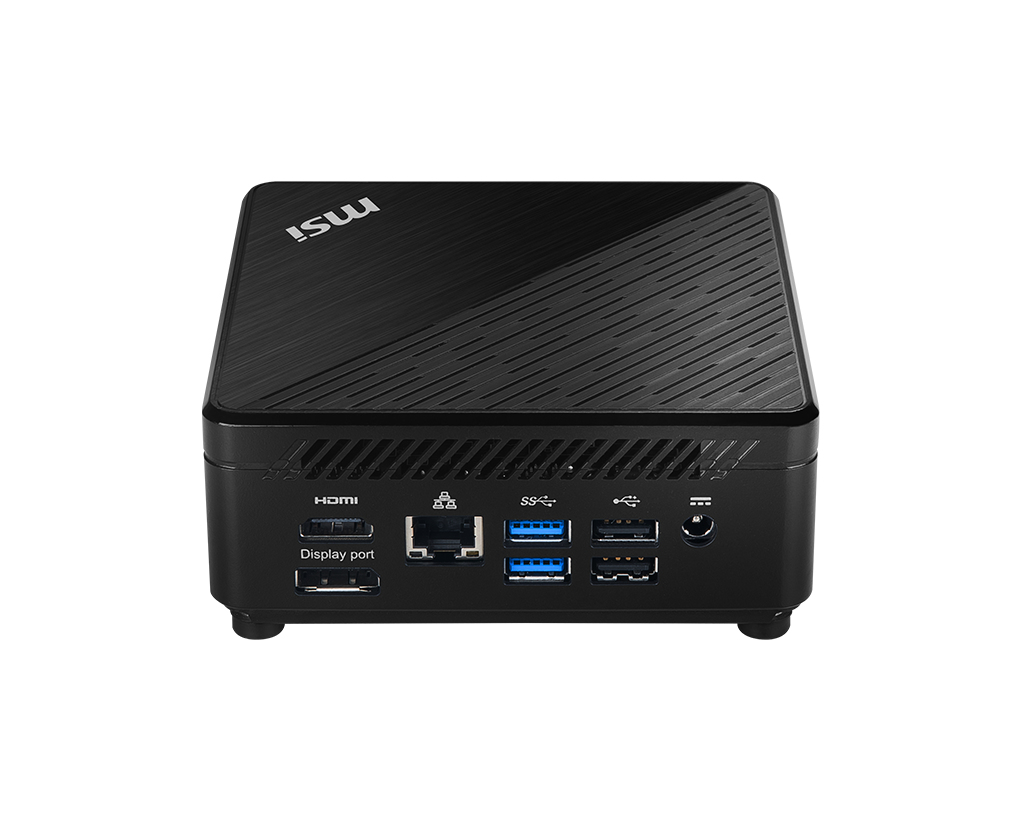

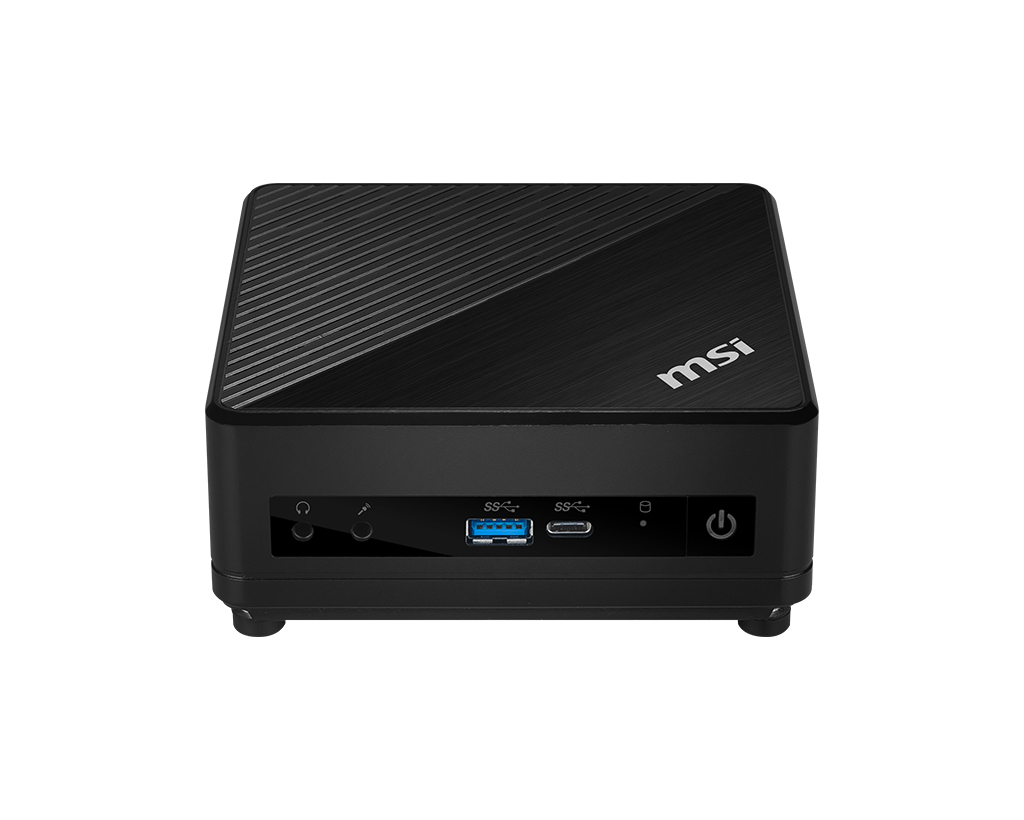

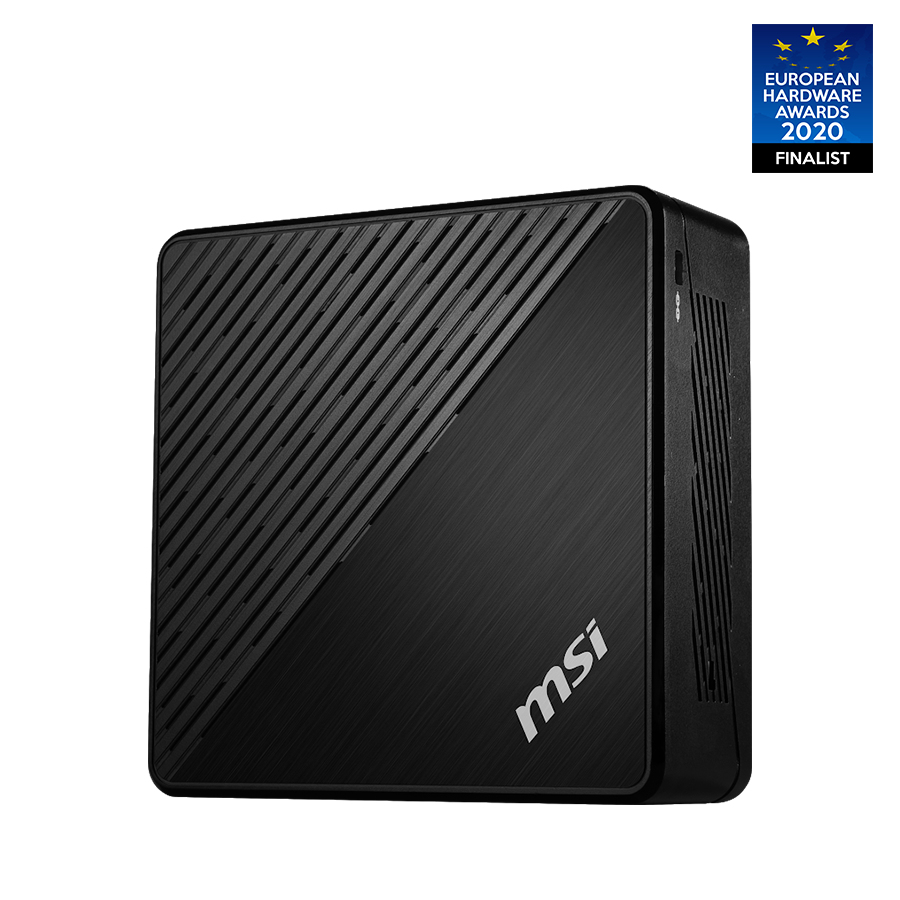

MSI Cubi 5 10M-006MYS Intel® Core™ i5 i5-10210U 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Home Mini PC Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 124 mm
- Wi-Fi
- Y
- Width
- 124 mm
- Height
- 53.7 mm
- Weight
- 550 g
- DVI port
- N
- 64-bit support
- Y
- L3 cache
- 6 MB
- Bluetooth
- Y
1 / 7
Shopping actions
Overview
The MSI Cubi 5 10M-006MYS Intel® Core™ i5 i5-10210U 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Home Mini PC Black features Intel Core i5 processor, 4 cores, up to 4.2 GHz boost and 8 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
12 SPECS
Cache
6 MB
Cores
4
Model
i5-10210U
Processor line
Intel Core i5
Socket
BGA 1528
Threads
8
Clock speed
1.6 GHz
Process node
14 nm
CPU brand
Intel
Boost clock
4.2 GHz
CPU operating modes
64-bit
TDP
15 W
Logistics & Packaging
4 SPECS
Package depth
506 mm
Package width
221 mm
Package height
469 mm
Package weight
1400 g
Physical
6 SPECS
Depth
124 mm
Width
124 mm
Height
53.7 mm
Weight
550 g
Product type
Mini PC (<= 3L)
Colour
Black
Ports & Connectivity
4 SPECS
HDMI ports
1
DisplayPorts quantity
1
USB 2.0 ports
2
Ethernet ports
1
Memory
3 SPECS
Capacity
8 GB
Memory type
DDR4-SDRAM
Max memory
64 GB
Storage
3 SPECS
Capacity
256 GB
Form factor
M.2
Storage
256 GB
General
109 SPECS
Wi-Fi
Yes
DVI port
No
64-bit support
Yes
L3 cache
6 MB
Bluetooth
Yes
Tjunction
100
Audio chip
Realtek ALC887
DC-in jack
Yes
Idle power states
Yes
Chassis type
Mini PC
Ethernet LAN
Yes
HDMI version
1.4
Intel TSX-NI
No
Memory slots
2x SO-DIMM
Power supply
65
Certifications
FCC(Class B)
CB/CE
UL(CUL)
BSMI
VCCI
RCM(C-Tick)
Graphics card
UHD Graphics
Microphone input
Yes
SSD interface
PCI Express
Storage media
SSD
VESA mounting
Yes
Security lock slot
Yes
Bus speed
4 GT/s
Wi-Fi standard
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
195436
Bluetooth version
5.0
Headphone outputs
1
Power supply type
External AC adapter
Intel® Secure Key
Yes
Optical drive type
No
Codename
Comet Lake
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
AC adapter included
Yes
Configurable TDP-up
25
DisplayPort version
1.2
Execute Disable (NX)
Yes
Placement supported
Horizontal
Power cord included
Yes
Total SSDs capacity
256
Cable lock slot type
Kensington
Graphics card family
Intel
Generation
Intel Core i5-10xxx
Audio channels
2.1
Configurable TDP-down
10
Card reader
No
Dedicated graphics
No
Integrated graphics
Yes
Processor package size
46 x 24
CPU configuration (max)
1
Ethernet LAN data rates
10,100,1000
Intel Flex Memory Access
Yes
Number of SSDs installed
1
Panel mounting interface
100 x 100
Number of execution units
24
On-board GPU manufacturer
Intel
On-board graphics card ID
0x9B41
PCI Express slots version
3.0
Storage temperature
-20 - 60
Long-term availability
No
Operating system
Windows 10 Home
PCI Express configurations
1x4,2x2,1x2+2x1,4x1
Instruction sets
SSE4.1,SSE4.2,AVX 2.0
VGA ports
0
Operating temperature
0 - 35
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Memory layout (slots x size)
1 x 8
Integrated GPU model
Intel UHD Graphics
Thunderbolt 3 ports quantity
0
Configurable TDP-up frequency
2.1
OS architecture
64-bit
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
Configurable TDP-down frequency
0.8
Storage relative humidity (H-H)
0 - 90
Thermal monitoring
Yes
Operating humidity
0 - 85
Trusted Execution (TXT)
No
Number of storage drives installed
1
Number of storage drives supported
2
SpeedStep power scaling
Yes
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR4-SDRAM,LPDDR3-SDRAM
Maximum on-board graphics card memory
32
On-board graphics card OpenGL version
4.5
On-board graphics card base frequency
300
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
2666,2133
Intel Software Guard Extensions (Intel SGX)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
41.66
Maximum internal memory supported by processor
64
On-board graphics card dynamic frequency (max)
1100
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
