MPN:
9S6-B91811-215

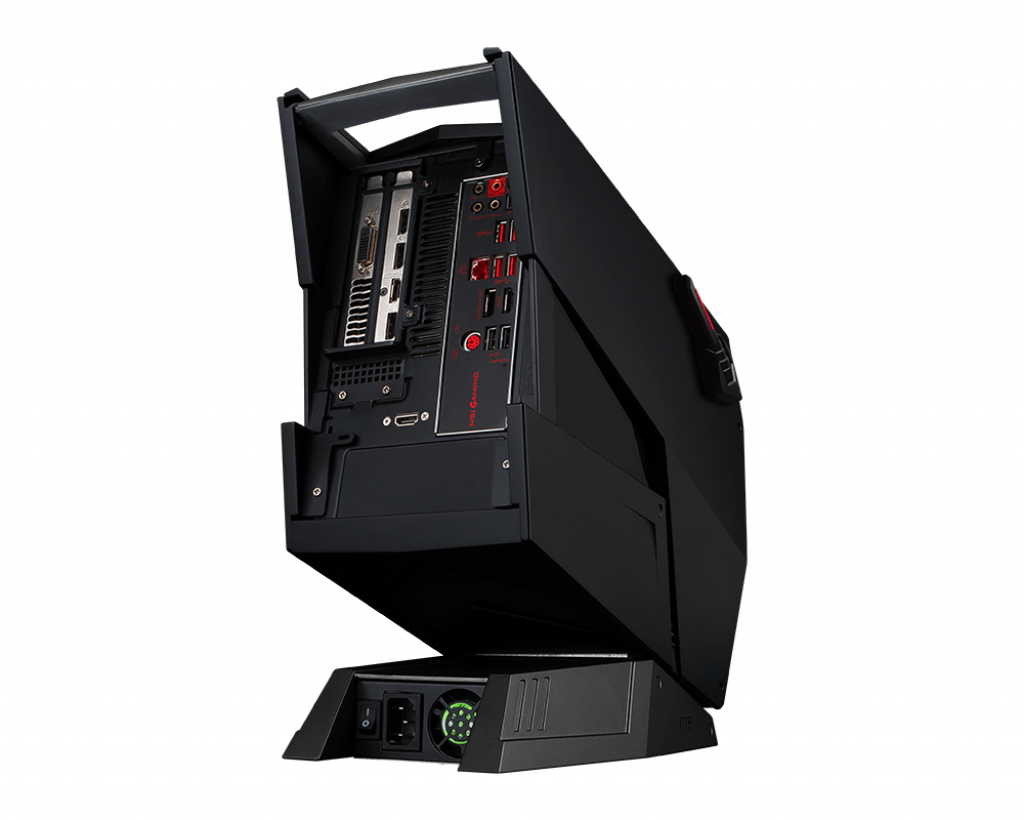

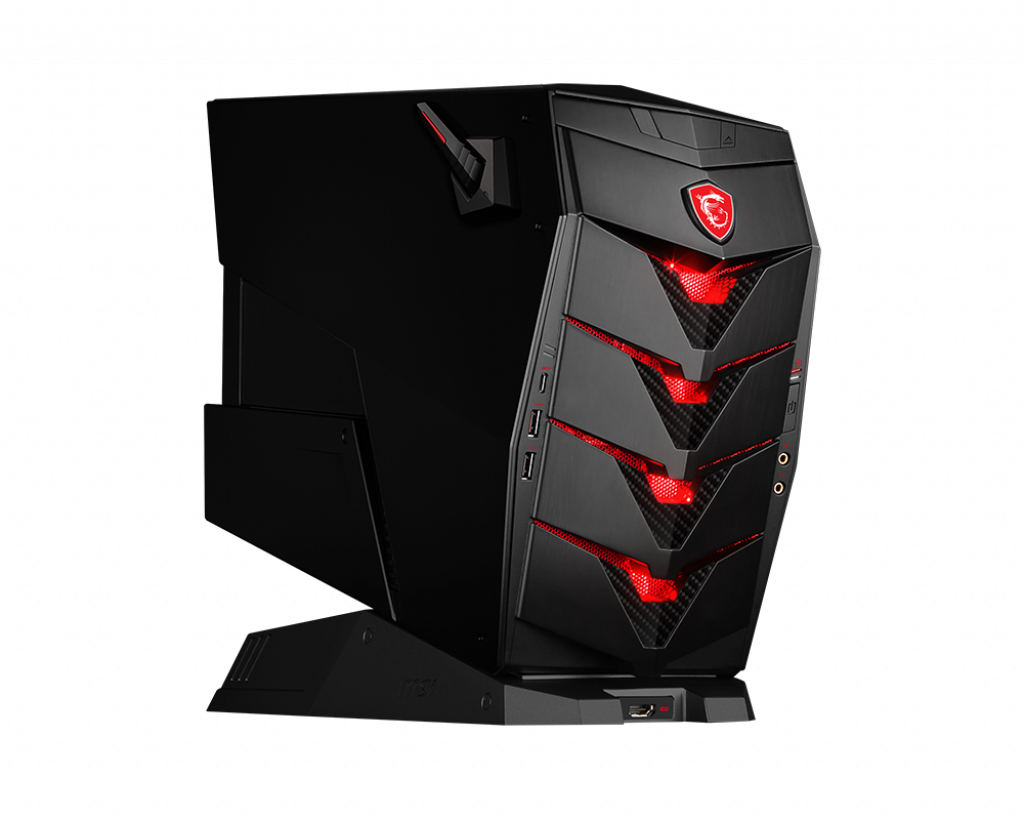

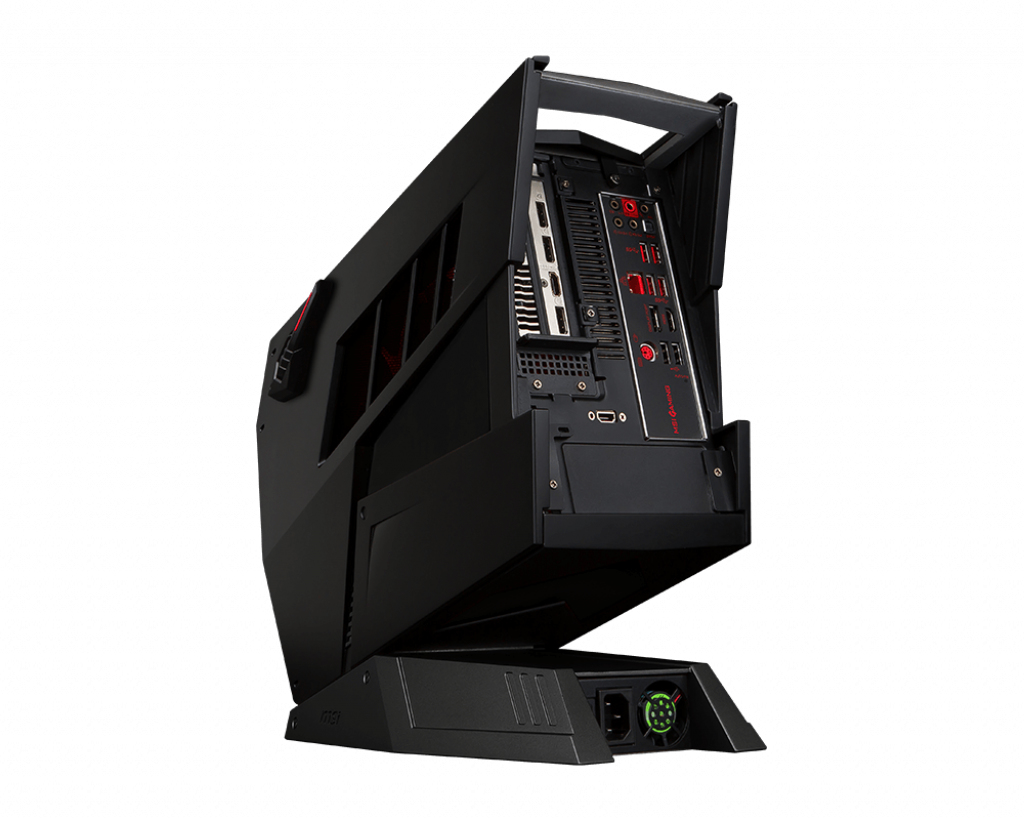

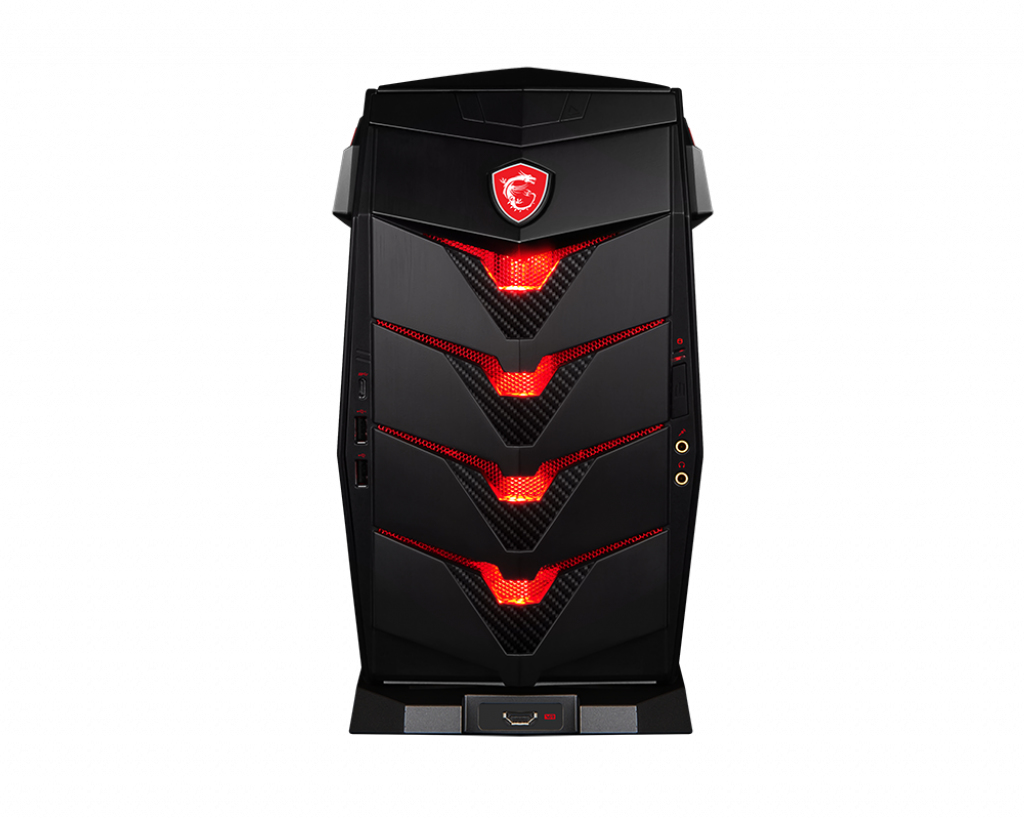

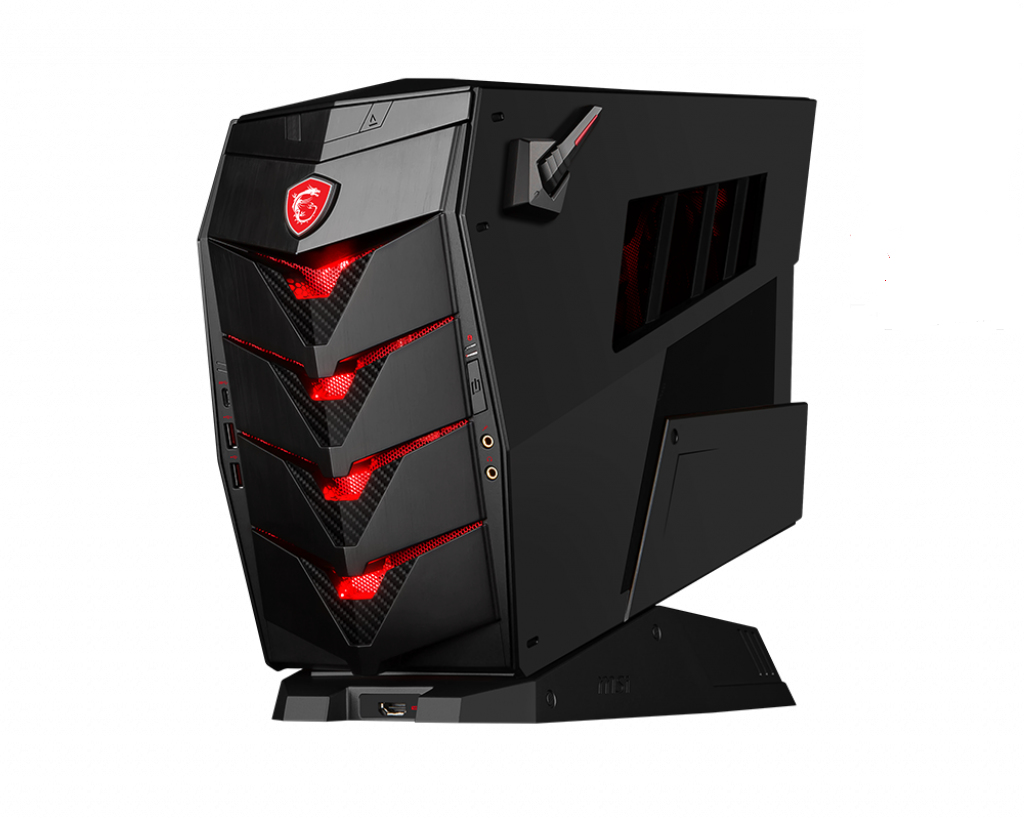

MSI Aegis 3 8SD-215 Intel® Core™ i7 i7-8700 16 GB DDR4-SDRAM 1.51 TB HDD+SSD NVIDIA® GeForce RTX™ 2070 Windows 10 Home Desktop PC Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- CUDA
- Y
- Depth
- 376 mm
- Wi-Fi
- Y
- Width
- 170 mm
- Height
- 433 mm
- Manual included
- Y
- Weight
- 8050 g
- Line-in
- Y
- Bus type
- DMI3
1 / 5
Shopping actions
Overview
The MSI Aegis 3 8SD-215 Intel® Core™ i7 i7-8700 16 GB DDR4-SDRAM 1.51 TB HDD+SSD NVIDIA® GeForce RTX™ 2070 Windows 10 Home Desktop PC Black features Intel Core i7 processor, 6 cores, up to 4.6 GHz boost and 8 GB of video memory. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Cache
12 MB
Cores
6
Model
i7-8700
Processor line
Intel Core i7
Socket
LGA 1151 (Socket H4)
Threads
12
Clock speed
3.2 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
4.6 GHz
CPU operating modes
64-bit
TDP
65 W
Storage
4 SPECS
Capacity
1 TB
Capacity
512 GB
Form factor
M.2
Storage
1512 GB
Memory
3 SPECS
Capacity
16 GB
Memory type
DDR4-SDRAM
Max memory
32 GB
Physical
7 SPECS
Depth
376 mm
Width
170 mm
Height
433 mm
Weight
8050 g
Product type
PC
Colour
Black
Market segment
Gaming
Ports & Connectivity
5 SPECS
HDMI ports
2
PS/2 ports
1
DisplayPorts quantity
1
USB 2.0 ports
4
Ethernet ports
1
Graphics
3 SPECS
CUDA
Yes
Memory clock
2400 MHz
VRAM
8 GB
Power
1 SPEC
Efficiency rating
80 PLUS Bronze
Logistics & Packaging
1 SPEC
Package weight
11200 g
General
113 SPECS
Wi-Fi
Yes
Manual included
Yes
Line-in
Yes
Bus type
DMI3
DVI port
No
Drive form factor
2.5/3.5
64-bit support
Yes
Line-out
Yes
Bluetooth
Yes
Tjunction
100
Idle power states
Yes
Scalability
1S
Chassis type
Desktop
Ethernet LAN
Yes
Intel TSX-NI
Yes
Memory slots
2x SO-DIMM
Power supply
450
Microphone input
Yes
NVIDIA G-SYNC
Yes
Storage media
HDD+SSD
Processor code
SR3QS
Included cables
AC
Memory channels
Dual-channel
S/PDIF out port
Yes
Bus speed
8 GT/s
Wi-Fi standard
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
126686
Processor series
Intel Core i7-8700 Desktop Series
Bluetooth version
4.2
Headphone outputs
1
Cabling technology
10/100/1000Base-T(X)
Intel® Secure Key
Yes
Optical drive type
DVD Super Multi
Codename
Coffee Lake
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Execute Disable (NX)
Yes
Chipset
Intel B250
Placement supported
Vertical
Total HDDs capacity
1000
Total SSDs capacity
512
Intel TSX-NI version
1.00
Generation
Intel Core i7-8xxx
Audio channels
7.1
Configurable TDP-down
65
WLAN controller model
Intel Dual Band Wireless-AC 3168
Card reader
No
Dedicated graphics
Yes
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Optical drives quantity
1
Number of HDDs installed
1
Number of SSDs installed
1
Intel Enhanced Halt State
Yes
Number of execution units
24
On-board graphics card ID
0x3E92
PCI Express slots version
3.0
ECC memory support
No
Long-term availability
Yes
Operating system
Windows 10 Home
PCI Express configurations
1x16,1x8+2x4,2x8
Instruction sets
AVX 2.0,SSE4.1,SSE4.2
Thunderbolt ports quantity
0
VGA ports
0
Virtual Reality (VR) ready
Yes
Dedicated GPU model
NVIDIA GeForce RTX 2070
Intel Clear Video Technology
Yes
Integrated GPU model
Intel UHD Graphics 630
Thunderbolt 2 ports quantity
0
Thunderbolt 3 ports quantity
0
Discrete graphics memory type
GDDR5
On-board graphics card family
Intel UHD Graphics
OS architecture
64-bit
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
Thermal solution specification
PCG 2015C
Thermal monitoring
Yes
Trusted Execution (TXT)
Yes
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR4-SDRAM
Maximum on-board graphics card memory
64
On-board graphics card OpenGL version
4.5
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel Stable Image Platform Program (SIPP)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
2666
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Identity Protection Technology version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
41.6
Maximum internal memory supported by processor
64
On-board graphics card dynamic frequency (max)
1200
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
1.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
